UZJ100L-GNPEKW (1998)
Toyota Land Cruiser 100
ILLUST NO. 1 OF 4(9801-0208)
CONDENSER(SINGLE AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-6A240 | ||||
| 88688-6A340 | ||||
| 90091-20609 | ||||
| 90099-04500 | ||||
| 90099-14119 | ||||
| 91631-G0830 | ||||
ILLUST NO. 1 OF 4(9801-0208)
CONDENSER(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-2B640 | ||||
| 88688-6A340 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04500 | ||||
| 91631-G0830 | ||||

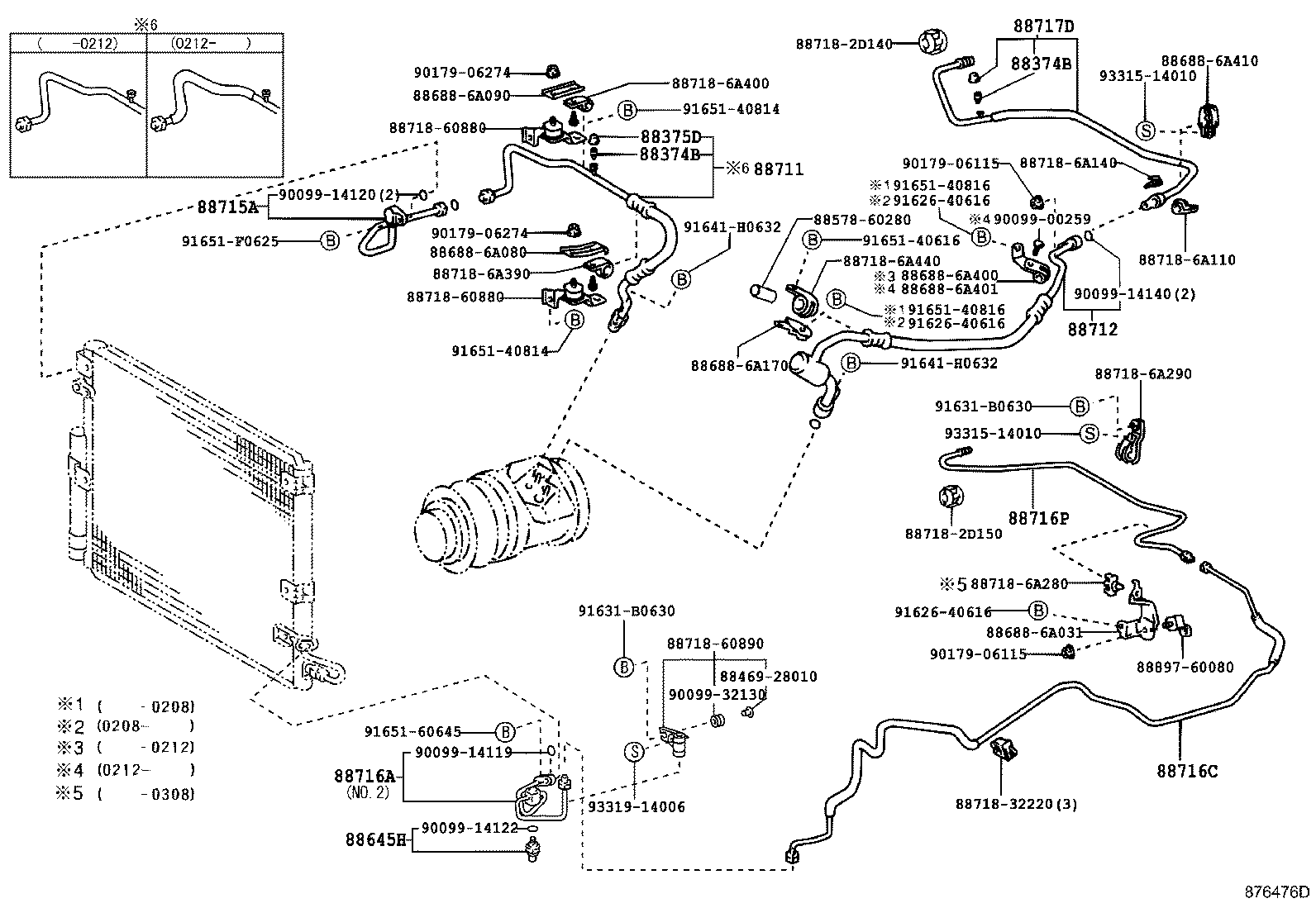

ILLUST NO. 2 OF 4(9801-0208)
FRONT(SINGLE AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88578-60110 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A170 | ||||
| 88688-6A400 | ||||
| 88688-6A410 | ||||
| 88718-32220 | ||||
| 88718-60880 | ||||
| 88718-60890 | ||||
| 88718-6A110 | ||||
| 88718-6A140 | ||||
| 88718-6A280 | ||||
| 88718-6A290 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14140 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 91626-40616 | ||||
| 91631-60630 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60645 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93319-14006 | ||||
ILLUST NO. 3 OF 4(9801-0508)
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88688-6A130 | ||||
| 88714-95D00 | ||||
| 88718-6A150 | ||||
| 88718-6A200 | ||||
| 88718-6A220 | ||||
| 88718-6A230 | ||||
| 88718-6A240 | ||||
| 88718-6A330 | ||||
| 88718-6A340 | ||||
| 88718-6A350 | ||||
| 88718-6A360 | ||||
| 90044-64009 | ||||
| 90119-06003 | ||||
| 90179-06161 | ||||
| 93315-14010 | ||||
| 93315-15010 | ||||
| 93381-16012 | ||||
ILLUST NO. 4 OF 4(9801-0508)
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14126 | ||||
| 90099-14138 | ||||
| 90099-14139 | ||||
ILLUST NO. 2 OF 4(9801-0208)
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88469-28010 | ||||
| 88578-60280 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A170 | ||||
| 88688-6A400 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-60880 | ||||
| 88718-6A020 | ||||
| 88718-6A120 | ||||
| 88718-6A130 | ||||
| 88718-6A140 | ||||
| 88718-6A150 | ||||
| 88718-6A190 | ||||
| 88718-6A270 | ||||
| 88718-6A280 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90044-64009 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14140 | ||||
| 90099-32130 | ||||
| 90159-60325 | ||||
| 90179-06032 | ||||
| 90179-06115 | ||||
| 90464-00074 | ||||
| 91626-40616 | ||||
| 91631-60630 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93385-16010 | ||||
ILLUST NO. 1 OF 5(0001- )
CONDENSER(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60010 |
UZJ100..LHD |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-60020 |
UZJ100..LHD |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60271 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460-60260 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60770 |
HDJ100,UZJ100 |
1 | ||
| 88688-60770 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-6A420 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-60780 |
HDJ100,UZJ100 |
1 | ||
| 88688-60851 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88688-60780 |
HDJ100,UZJ100..LHD |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-60790 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-60790 |
HDJ100,UZJ100 |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-60800 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-60800 |
HDJ100,UZJ100 |
1 | ||
| 88688-6A190 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460G - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-6A180 |
UZJ100..LHD |
1 | ||
| 88460H - BRACKET, COOLER CONDENSER, NO.6 | ||||
| 88688-60870 |
UZJ100..LHD |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60030 |
HDJ100,UZJ100 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 16363-64080 |
UZJ100..LHD |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60030 |
UZJ100..LHD |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-60100 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88688-6A340 | ||||
| 90091-20609 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90099-04500 | ||||
| 91631-G0830 | ||||
ILLUST NO. 1 OF 5(9801- )
CONDENSER(DEALER OPTION,SINGLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60271 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460-60260 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60030 |
HDJ100,UZJ100 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-60100 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 88688-6A200 | ||||
| 88688-6A210 | ||||
| 88688-6A220 | ||||
| 88688-6A230 | ||||
| 88688-6A240 | ||||
| 88688-6A340 | ||||
| 88895-60020 | ||||
| 88897-60060 | ||||
| 88897-60070 | ||||
| 90091-20636 | ||||
| 90091-20815 | ||||
| 90099-04502 | ||||

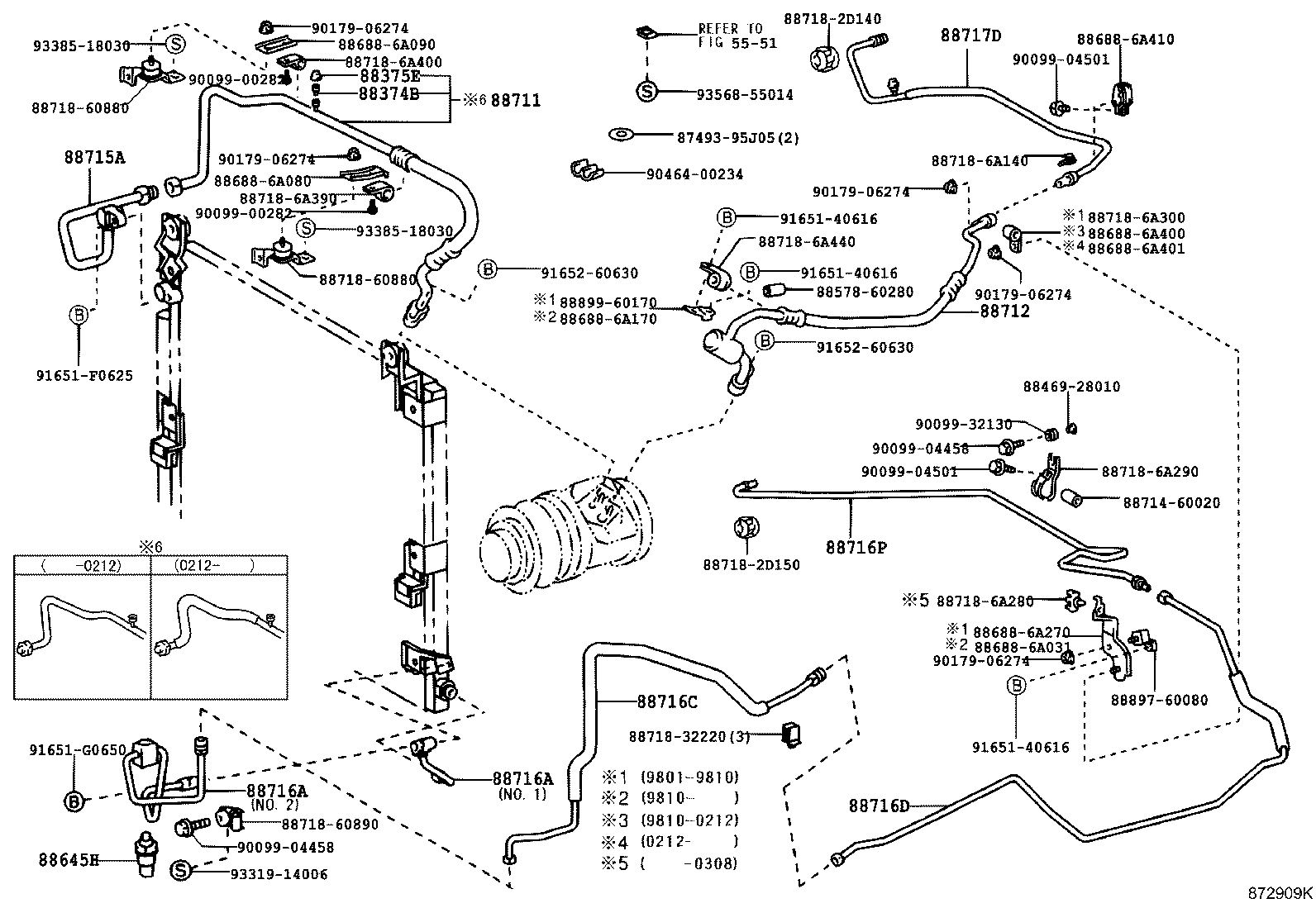

ILLUST NO. 2 OF 5(9801- )UZJ100..LHD
FRONT(DEALER OPTION,SINGLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88375E - PLUG | ||||
| 88375-30290 |
HDJ100,UZJ100 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
HDJ100,UZJ100..LHD |
1 | ||
| 88645-34010 |
HDJ100,UZJ100 |
1 | ||
| 88645-60030 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60470 |
UZJ100 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60790 |
UZJ100..LHD DEALER OPTION |
1 | ||
| 88712-60850 |
UZJ100..LHD |
1 | ||
| 88712-60790 |
UZJ100..LHD |
1 | ||
| 88712-60851 |
UZJ100..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60110 |
UZJ100 |
1 | ||
| 88715-60111 |
UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-60730 |
HDJ100,UZJ100..LHD..VX MAKER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88726-60520 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-6B040 |
HDJ100,UZJ100..LHD..VX DEALER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6B050 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88726-60740 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60570 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A151 |
UZJ100..LHD W(MAKER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(DEALER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A140 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A141 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 87493-95J05 | ||||
| 88469-28010 | ||||
| 88578-60280 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A170 | ||||
| 88688-6A270 | ||||
| 88688-6A400 | ||||
| 88688-6A401 | ||||
| 88688-6A410 | ||||
| 88714-60020 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-60880 | ||||
| 88718-60890 | ||||
| 88718-6A140 | ||||
| 88718-6A280 | ||||
| 88718-6A290 | ||||
| 88718-6A300 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 88899-60170 | ||||
| 90099-00282 | ||||
| 90099-04458 | ||||
| 90099-04501 | ||||
| 90099-32130 | ||||
| 90179-06274 | ||||
| 90464-00234 | ||||
| 91651-40616 | ||||
| 91651-F0625 | ||||
| 91651-G0650 | ||||
| 91652-60630 | ||||
| 93319-14006 | ||||
| 93385-18030 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 2 OF 5(0001- )UZJ100..LHD
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
HDJ100,UZJ100 |
1 | ||
| 88375E - PLUG | ||||
| 88375-30290 |
HDJ100,UZJ100 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
HDJ100,UZJ100..LHD |
1 | ||
| 88645-34010 |
HDJ100,UZJ100 |
1 | ||
| 88645-60030 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60470 |
UZJ100 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60790 |
UZJ100..LHD DEALER OPTION |
1 | ||
| 88712-60850 |
UZJ100..LHD |
1 | ||
| 88712-60790 |
UZJ100..LHD |
1 | ||
| 88712-60851 |
UZJ100..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60110 |
UZJ100 |
1 | ||
| 88715-60111 |
UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-60730 |
HDJ100,UZJ100..LHD..VX MAKER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88726-60520 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-6B040 |
HDJ100,UZJ100..LHD..VX DEALER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88726-60530 |
UZJ100..LHD |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88726-60580 |
UZJ100..LHD |
1 | ||
| 88716K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88726-60620 |
UZJ100..LHD |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88726-60740 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60570 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6A190 |
UZJ100..LHD |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A151 |
UZJ100..LHD W(MAKER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(DEALER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A140 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A141 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88578-60280 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A140 | ||||
| 88688-6A170 | ||||
| 88688-6A400 | ||||
| 88688-6A401 | ||||
| 88714-60050 | ||||
| 88714-95D00 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-60880 | ||||
| 88718-6A020 | ||||
| 88718-6A120 | ||||
| 88718-6A130 | ||||
| 88718-6A140 | ||||
| 88718-6A150 | ||||
| 88718-6A190 | ||||
| 88718-6A270 | ||||
| 88718-6A280 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90044-64009 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14140 | ||||
| 90099-32130 | ||||
| 90119-08867 | ||||
| 90159-60325 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90464-00074 | ||||
| 91626-40616 | ||||
| 91631-B0630 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60645 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93385-16010 | ||||
ILLUST NO. 2 OF 5(0001- )UZJ100..LHD
FRONT(DUAL & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
HDJ100,UZJ100 |
1 | ||
| 88375E - PLUG | ||||
| 88375-30290 |
HDJ100,UZJ100 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
HDJ100,UZJ100..LHD |
1 | ||
| 88645-34010 |
HDJ100,UZJ100 |
1 | ||
| 88645-60030 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-60230 |
UZJ100..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60470 |
UZJ100 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60790 |
UZJ100..LHD DEALER OPTION |
1 | ||
| 88712-60850 |
UZJ100..LHD |
1 | ||
| 88712-60790 |
UZJ100..LHD |
1 | ||
| 88712-60851 |
UZJ100..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60110 |
UZJ100 |
1 | ||
| 88715-60111 |
UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60680 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60440 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-60730 |
HDJ100,UZJ100..LHD..VX MAKER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88726-60520 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-6B040 |
HDJ100,UZJ100..LHD..VX DEALER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88726-60530 |
UZJ100..LHD |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88726-60580 |
UZJ100..LHD |
1 | ||
| 88716K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88726-60620 |
UZJ100..LHD |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88726-60740 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60570 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6A190 |
UZJ100..LHD |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A151 |
UZJ100..LHD W(MAKER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(DEALER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A140 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A141 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88578-60280 | ||||
| 88688-60880 | ||||
| 88688-60890 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A140 | ||||
| 88688-6A160 | ||||
| 88688-6A170 | ||||
| 88688-6A380 | ||||
| 88688-6A400 | ||||
| 88688-6A401 | ||||
| 88714-60050 | ||||
| 88714-95D00 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-60880 | ||||
| 88718-6A120 | ||||
| 88718-6A130 | ||||
| 88718-6A140 | ||||
| 88718-6A150 | ||||
| 88718-6A190 | ||||
| 88718-6A280 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90044-64009 | ||||
| 90099-00259 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14138 | ||||
| 90099-14140 | ||||
| 90119-08867 | ||||
| 90159-60325 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90464-00074 | ||||
| 91626-40616 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93385-15010 | ||||
ILLUST NO. 2 OF 5(0008- )UZJ100..LHD
FRONT(SINGLE & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
HDJ100,UZJ100 |
1 | ||
| 88375E - PLUG | ||||
| 88375-30290 |
HDJ100,UZJ100 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
HDJ100,UZJ100..LHD |
1 | ||
| 88645-34010 |
HDJ100,UZJ100 |
1 | ||
| 88645-60030 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88690K - VALVE ASSY, MAGNET | ||||
| 88690-60230 |
UZJ100..LHD |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60470 |
UZJ100 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60790 |
UZJ100..LHD DEALER OPTION |
1 | ||
| 88712-60850 |
UZJ100..LHD |
1 | ||
| 88712-60790 |
UZJ100..LHD |
1 | ||
| 88712-60851 |
UZJ100..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60110 |
UZJ100 |
1 | ||
| 88715-60111 |
UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88726-60680 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60440 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-60730 |
HDJ100,UZJ100..LHD..VX MAKER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88726-60520 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-6B040 |
HDJ100,UZJ100..LHD..VX DEALER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88726-60530 |
UZJ100..LHD |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88726-60580 |
UZJ100..LHD |
1 | ||
| 88716K - PIPE, COOLER REFRIGERANT LIQUID, K | ||||
| 88726-60620 |
UZJ100..LHD |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88726-60740 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60570 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-6A190 |
UZJ100..LHD |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A151 |
UZJ100..LHD W(MAKER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(DEALER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A140 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A141 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88467-30270 | ||||
| 88578-60280 | ||||
| 88688-60880 | ||||
| 88688-60890 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A140 | ||||
| 88688-6A160 | ||||
| 88688-6A170 | ||||
| 88688-6A380 | ||||
| 88688-6A400 | ||||
| 88688-6A401 | ||||
| 88714-60050 | ||||
| 88714-95D00 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-60880 | ||||
| 88718-6A120 | ||||
| 88718-6A130 | ||||
| 88718-6A140 | ||||
| 88718-6A150 | ||||
| 88718-6A190 | ||||
| 88718-6A280 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90044-64009 | ||||
| 90069-08012 | ||||
| 90099-00259 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14138 | ||||
| 90099-14140 | ||||
| 90119-08867 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90464-00074 | ||||
| 91626-40616 | ||||
| 91631-B0630 | ||||
| 91631-J0612 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60645 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93385-15010 | ||||
ILLUST NO. 4 OF 5(9801-0505)
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
| 90099-14126 | ||||
| 90099-14138 | ||||
| 90099-14139 | ||||
| 90099-14140 | ||||
ILLUST NO. 1 OF 5(9801- )
CONDENSER(MAKER OPTION,SINGLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60271 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460-60260 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88460-60261 |
HDJ100,UZJ100 |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60770 |
HDJ100,UZJ100 |
1 | ||
| 88688-60770 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-6A420 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88460C - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-60780 |
HDJ100,UZJ100 |
1 | ||
| 88688-60851 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88688-60780 |
HDJ100,UZJ100..LHD |
1 | ||
| 88460D - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-60790 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-60790 |
HDJ100,UZJ100 |
1 | ||
| 88460F - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-60800 |
HDJ100,UZJ100..LHD |
1 | ||
| 88688-60800 |
HDJ100,UZJ100 |
1 | ||
| 88688-6A190 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-60030 |
HDJ100,UZJ100 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88474-47010 |
HDJ100,UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-60100 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 88688-6A240 | ||||
| 88688-6A340 | ||||
| 90091-20609 | ||||
| 90099-04500 | ||||
| 90099-14119 | ||||
| 91631-G0830 | ||||
ILLUST NO. 3 OF 5(0001- )
REAR(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60230 |
UZJ100..LHD |
1 | ||
| 88716L - PIPE, COOLER REFRIGERANT LIQUID, L | ||||
| 88726-60640 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88726-60660 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88726-60630 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716M - PIPE, COOLER REFRIGERANT LIQUID, M | ||||
| 88726-60650 |
UZJ100..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6A220 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A200 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A230 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A210 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88717T - PIPE, COOLER REFRIGERANT SUCTION, T | ||||
| 88717-6A270 |
UZJ100..LHD |
1 | ||
| Common parts | ||||
| 88688-6A130 | ||||
| 88714-95D00 | ||||
| 88718-6A150 | ||||
| 88718-6A200 | ||||
| 88718-6A220 | ||||
| 88718-6A230 | ||||
| 88718-6A240 | ||||
| 88718-6A330 | ||||
| 88718-6A340 | ||||
| 88718-6A350 | ||||
| 88718-6A360 | ||||
| 90044-64009 | ||||
| 90119-06003 | ||||
| 90179-06161 | ||||
| 93315-14010 | ||||
| 93315-15010 | ||||
| 93381-16012 | ||||
ILLUST NO. 3 OF 5(0001- )
REAR(DUAL AIR CON. & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
UZJ100..LHD |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60230 |
UZJ100..LHD |
1 | ||
| 88716L - PIPE, COOLER REFRIGERANT LIQUID, L | ||||
| 88726-60640 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88726-60660 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88726-60630 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716M - PIPE, COOLER REFRIGERANT LIQUID, M | ||||
| 88726-60650 |
UZJ100..LHD |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6A220 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A200 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A230 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A210 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88717J - PIPE, COOLER REFRIGERANT SUCTION, J | ||||
| 88717-6A240 |
UZJ100..LHD |
1 | ||
| 88717T - PIPE, COOLER REFRIGERANT SUCTION, T | ||||
| 88717-6A270 |
UZJ100..LHD |
1 | ||
| Common parts | ||||
| 88688-6A130 | ||||
| 88714-95D00 | ||||
| 88718-6A150 | ||||
| 88718-6A200 | ||||
| 88718-6A220 | ||||
| 88718-6A230 | ||||
| 88718-6A240 | ||||
| 88718-6A330 | ||||
| 88718-6A340 | ||||
| 88718-6A350 | ||||
| 88718-6A360 | ||||
| 88718-6A430 | ||||
| 90044-64009 | ||||
| 90119-06003 | ||||
| 90179-06161 | ||||
| 93315-14010 | ||||
| 93315-15010 | ||||
| 93319-15010 | ||||
| 93381-16012 | ||||
ILLUST NO. 3 OF 5(0008- )
REAR(SINGLE AIR CON. & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
UZJ100..LHD |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-60230 |
UZJ100..LHD |
1 | ||
| 88716L - PIPE, COOLER REFRIGERANT LIQUID, L | ||||
| 88726-60640 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88726-60660 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88726-60630 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6A200 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A230 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A210 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88717J - PIPE, COOLER REFRIGERANT SUCTION, J | ||||
| 88717-6A240 |
UZJ100..LHD |
1 | ||
| 88717T - PIPE, COOLER REFRIGERANT SUCTION, T | ||||
| 88717-6A270 |
UZJ100..LHD |
1 | ||
| Common parts | ||||
| 88688-6A130 | ||||
| 88714-95D00 | ||||
| 88718-6A150 | ||||
| 88718-6A160 | ||||
| 88718-6A240 | ||||
| 88718-6A340 | ||||
| 88718-6A350 | ||||
| 88718-6A360 | ||||
| 88718-6A430 | ||||
| 90179-06161 | ||||
| 91631-B0630 | ||||
| 93315-14010 | ||||
| 93319-15010 | ||||
| 93381-16012 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 5(9801- )UZJ100..LHD
FRONT(MAKER OPTION,SINGLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
HDJ100,UZJ100 |
2 | ||
| 88374-30010 |
HDJ100;UZJ100..LHD |
2 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
HDJ100,UZJ100 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
HDJ100,UZJ100..LHD |
1 | ||
| 88645-34010 |
HDJ100,UZJ100 |
1 | ||
| 88645-60030 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60470 |
UZJ100 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60790 |
UZJ100..LHD DEALER OPTION |
1 | ||
| 88712-60850 |
UZJ100..LHD |
1 | ||
| 88712-60790 |
UZJ100..LHD |
1 | ||
| 88712-60851 |
UZJ100..LHD |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-60110 |
UZJ100 |
1 | ||
| 88715-60111 |
UZJ100 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-6A850 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 88726-60420 |
HDJ100,UZJ100 DEALER OPTION,NO.2 |
1 | ||
| 88726-60430 |
UZJ100..LHD W(COOL BOX & SINGLE AIR CONDITIONER),NO.2 |
1 | ||
| 88726-60421 |
UZJ100 MAKER OPTION,SINGLE AIR CONDITIONER,NO.2 |
1 | ||
| 88726-60692 |
UZJ100..LHD W(DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60671 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER) |
1 | ||
| 88716-6A850 |
UZJ100 NO.1 |
1 | ||
| 88726-60701 |
UZJ100..LHD W(COOL BOX & DUAL AIR CONDITIONER & WINCH) |
1 | ||
| 88726-60462 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88726-60730 |
HDJ100,UZJ100..LHD..VX MAKER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88726-60520 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88716-6B040 |
HDJ100,UZJ100..LHD..VX DEALER OPTION,SINGLE AIR CONDITIONER |
1 | ||
| 88716P - PIPE, COOLER REFRIGERANT LIQUID, P | ||||
| 88726-60740 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88726-60570 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-6A151 |
UZJ100..LHD W(MAKER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(DEALER OPTION SINGLE AIR CONDITIONER) |
1 | ||
| 88717-6A140 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A141 |
UZJ100..LHD W(DUAL AIR CONDITIONER) |
1 | ||
| 88717-6A150 |
UZJ100..LHD W(SINGLE AIR CONDITIONER) |
1 | ||
| Common parts | ||||
| 88469-28010 | ||||
| 88578-60280 | ||||
| 88688-6A031 | ||||
| 88688-6A080 | ||||
| 88688-6A090 | ||||
| 88688-6A170 | ||||
| 88688-6A400 | ||||
| 88688-6A401 | ||||
| 88688-6A410 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-32220 | ||||
| 88718-60880 | ||||
| 88718-60890 | ||||
| 88718-6A110 | ||||
| 88718-6A140 | ||||
| 88718-6A280 | ||||
| 88718-6A290 | ||||
| 88718-6A390 | ||||
| 88718-6A400 | ||||
| 88718-6A440 | ||||
| 88897-60080 | ||||
| 90099-00259 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14122 | ||||
| 90099-14140 | ||||
| 90099-32130 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 91626-40616 | ||||
| 91631-B0630 | ||||
| 91641-H0632 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60645 | ||||
| 91651-F0625 | ||||
| 93315-14010 | ||||
| 93319-14006 | ||||
ILLUST NO. 5 OF 5(9801- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
