UZJ100L-GNPEKW (1998)
Toyota Land Cruiser 100

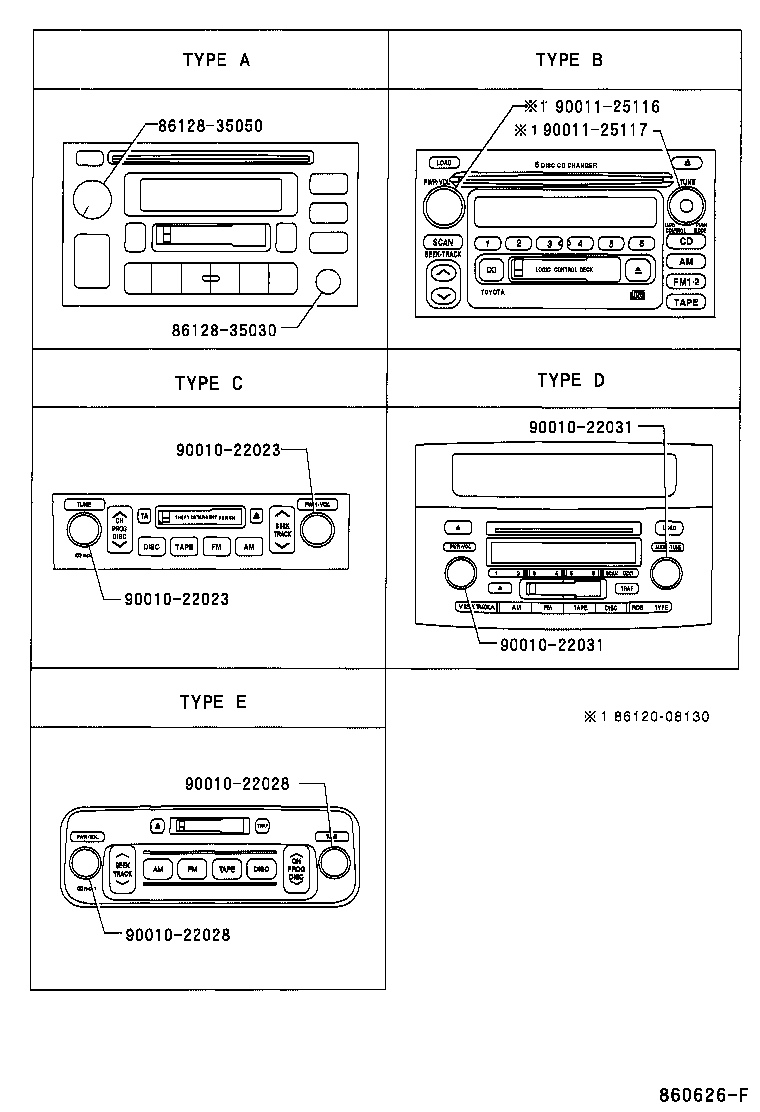

ILLUST NO. 2 OF 4(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-35030 | ||||
| 86128-35050 | ||||
| 90010-22023 | ||||
| 90010-22028 | ||||
| 90010-22031 | ||||
| 90011-25116 | ||||
| 90011-25117 | ||||
ILLUST NO. 1 OF 4(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06390 | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 91621-40612 | ||||
ILLUST NO. 4 OF 4(9801- )
CONDENSER
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 4(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 86128-02020 | ||||
| 86128-02030 | ||||
| 86128-35010 | ||||
| 86128-35030 | ||||
| 86128-35050 | ||||
| 90010-22023 | ||||
| 90011-23001 | ||||
| 90011-23002 | ||||

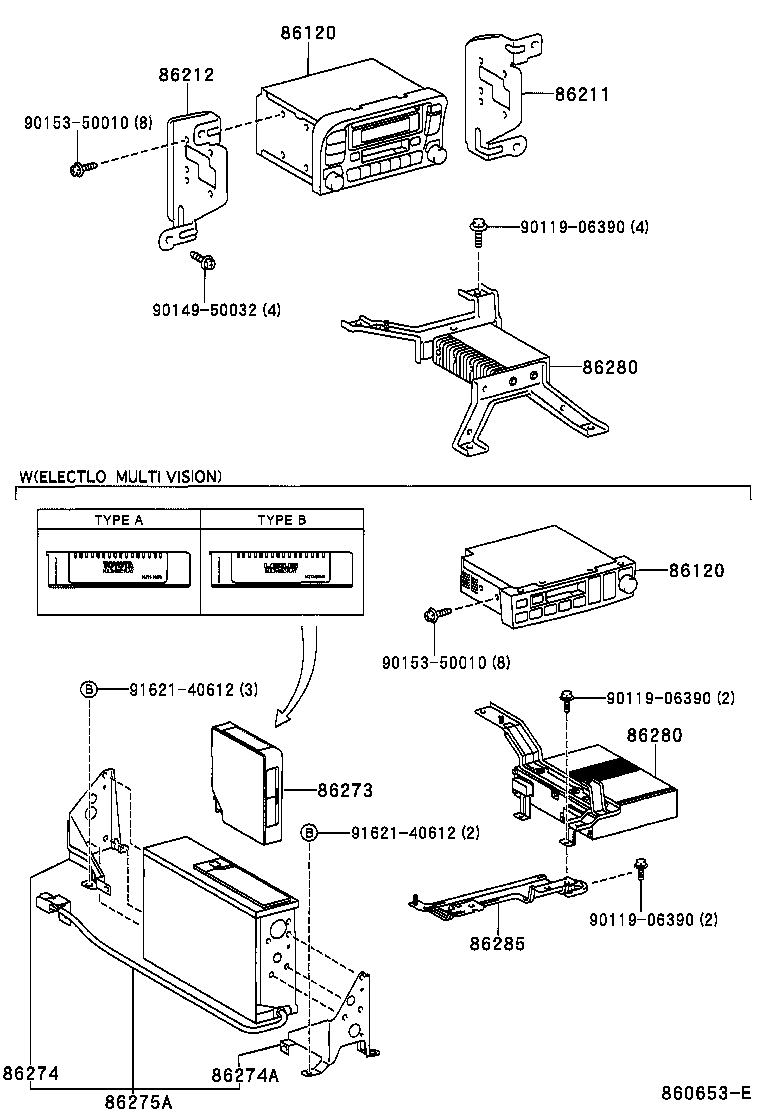

ILLUST NO. 1 OF 4(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60300 |
UZJ100..LHD MATSUSHITA, ID=52703,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B560 |
HDJ100,UZJ100 FUJITSU TEN,ID=18401,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
UZJ100..LHD;HDJ100..RHD..4FC FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60410 |
HDJ100,UZJ100..LHD..VX PIONEER,ID=P3726,50TH ANNIVERSARY & TYPE E:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
1 | ||
| 86120-2B610 |
UZJ100..LHD FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60260 |
HDJ100,UZJ100..VX FUJITSU TEN,ID=18403,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B620 |
HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57410,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) 4 SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60300 |
UZJ100..LHD MATSUSHITA, ID=52703,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B560 |
HDJ100,UZJ100 FUJITSU TEN,ID=18401,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
UZJ100..LHD;HDJ100..RHD..4FC FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60410 |
HDJ100,UZJ100..LHD..VX PIONEER,ID=P3726,50TH ANNIVERSARY & TYPE E:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
1 | ||
| 86120-2B610 |
UZJ100..LHD FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60260 |
HDJ100,UZJ100..VX FUJITSU TEN,ID=18403,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B620 |
HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57410,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) 4 SPEAKER |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-60300 |
UZJ100..LHD MATSUSHITA, ID=52703,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B560 |
HDJ100,UZJ100 FUJITSU TEN,ID=18401,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B610 |
UZJ100..LHD;HDJ100..RHD..4FC FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60410 |
HDJ100,UZJ100..LHD..VX PIONEER,ID=P3726,50TH ANNIVERSARY & TYPE E:REFER TO ILLUSTRATION & W(ELECTRO MULTI VISION) |
1 | ||
| 86120-2B610 |
UZJ100..LHD FUJITSU TEN,ID=17411,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=9KHZ STEP) 4 SPEAKER |
1 | ||
| 86120-60260 |
HDJ100,UZJ100..VX FUJITSU TEN,ID=18403,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-2B620 |
HDJ100,UZJ100..LHD..VX MATSUSHITA,ID=57410,TYPE B:REFER TO ILLUSTRATION & AM/FM (AM=10KHZ STEP) 4 SPEAKER |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-60020 |
HDJ100,UZJ100..VX |
1 | ||
| 86170-20050 |
HDJ100,UZJ100 |
1 | ||
| 86174 - CASE, SWITCH & VOLUME | ||||
| 86174-20010 |
HDJ100,UZJ100..VX |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60091 |
HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX W(ELECTRO MULTI VISION, NAVIGATION SYSTEM) |
1 | ||
| 86211-60071 |
HDJ100,UZJ100 |
1 | ||
| 86211-60070 |
HDJ100,UZJ100 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60070 |
HDJ100,UZJ100 |
1 | ||
| 86212-60091 |
HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX W(ELECTRO MULTI VISION, NAVIGATION SYSTEM) |
1 | ||
| 86212-60071 |
HDJ100,UZJ100 |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-60030 |
HDJ100,UZJ100..VX |
1 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-60040 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60240 |
HDJ100,UZJ100..LHD..VX 50TH ANNIVERSARY |
1 | ||
| 86280-60210 |
UZJ100..LHD |
1 | ||
| 86280-60270 |
UZJ100..LHD CHINA SPEC |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60240 |
HDJ100,UZJ100..LHD..VX 50TH ANNIVERSARY |
1 | ||
| 86280-60210 |
UZJ100..LHD |
1 | ||
| 86280-60270 |
UZJ100..LHD CHINA SPEC |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-60240 |
HDJ100,UZJ100..LHD..VX 50TH ANNIVERSARY |
1 | ||
| 86280-60210 |
UZJ100..LHD |
1 | ||
| 86280-60270 |
UZJ100..LHD CHINA SPEC |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-60010 |
HDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 90179-06161 | ||||
| 91621-40612 | ||||

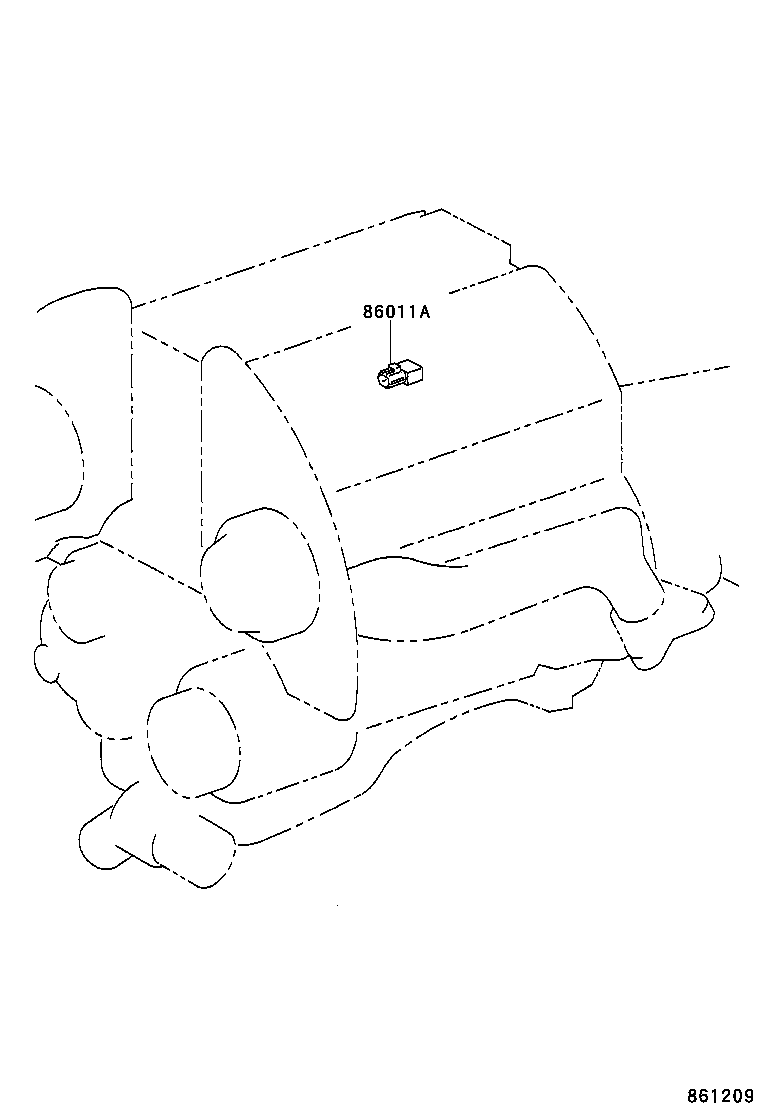

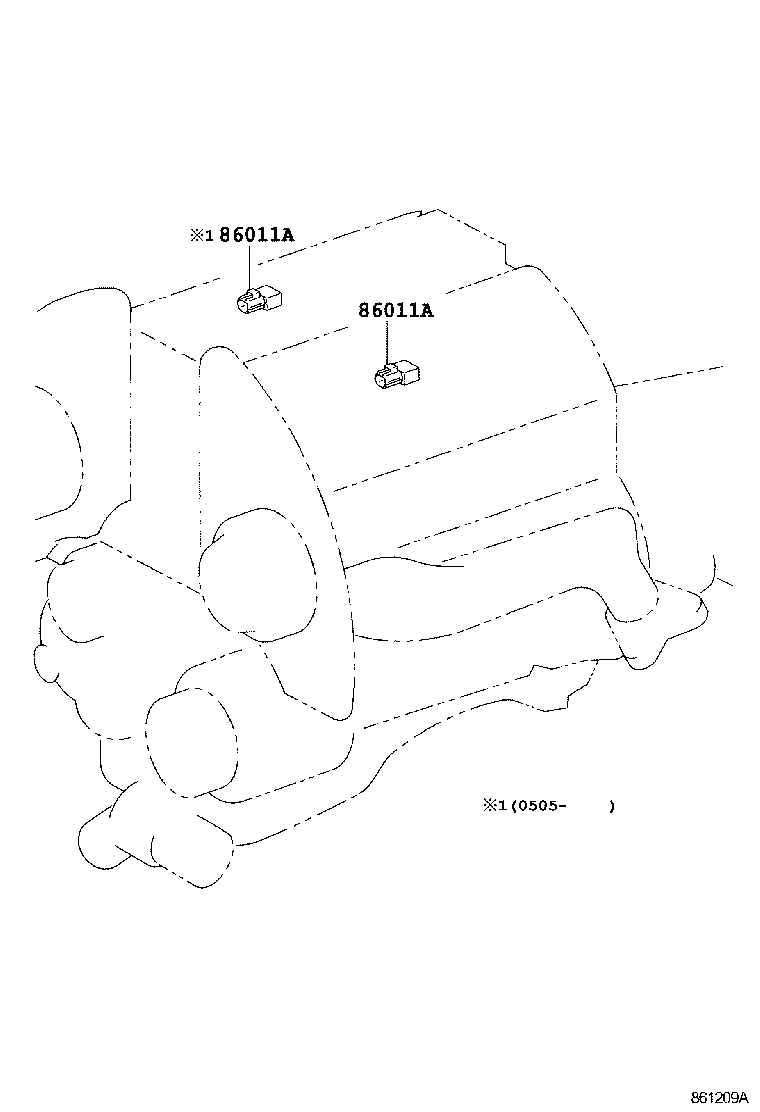

ILLUST NO. 4 OF 4(9801- )UZJ100
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
UZJ100 |
1 | ||
