UZJ100L-GNPEKW (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

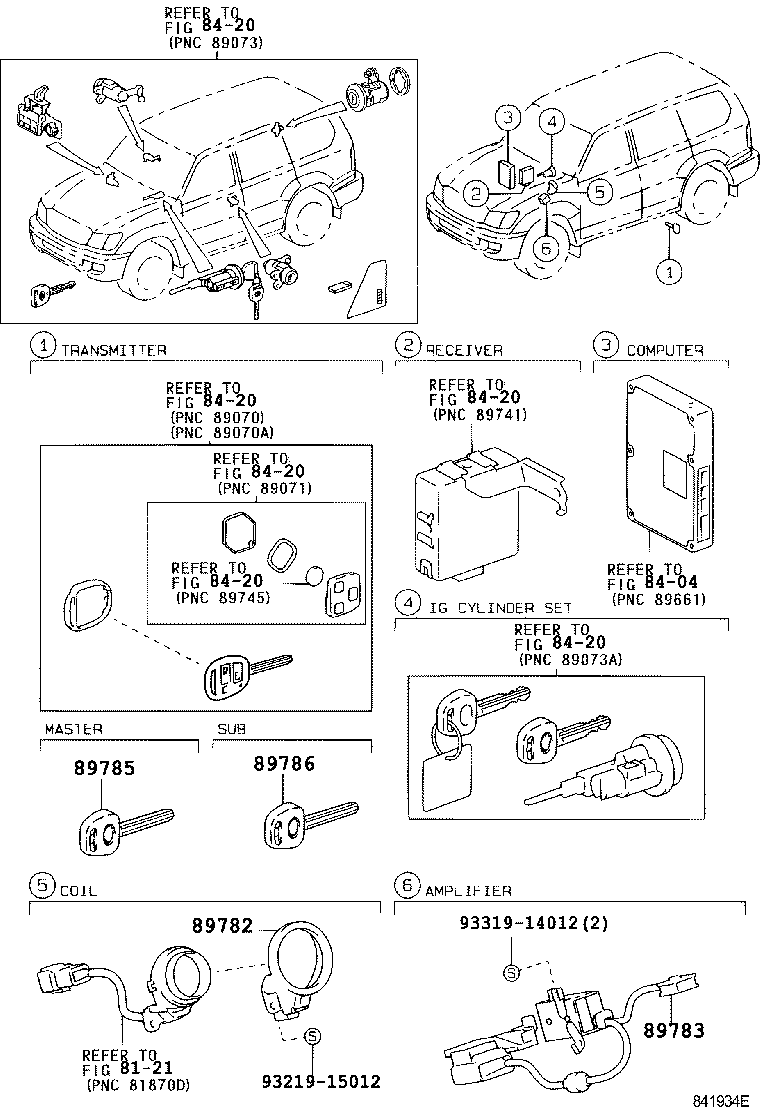

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93219-15012 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8404 | ||||
| 8420 | ||||

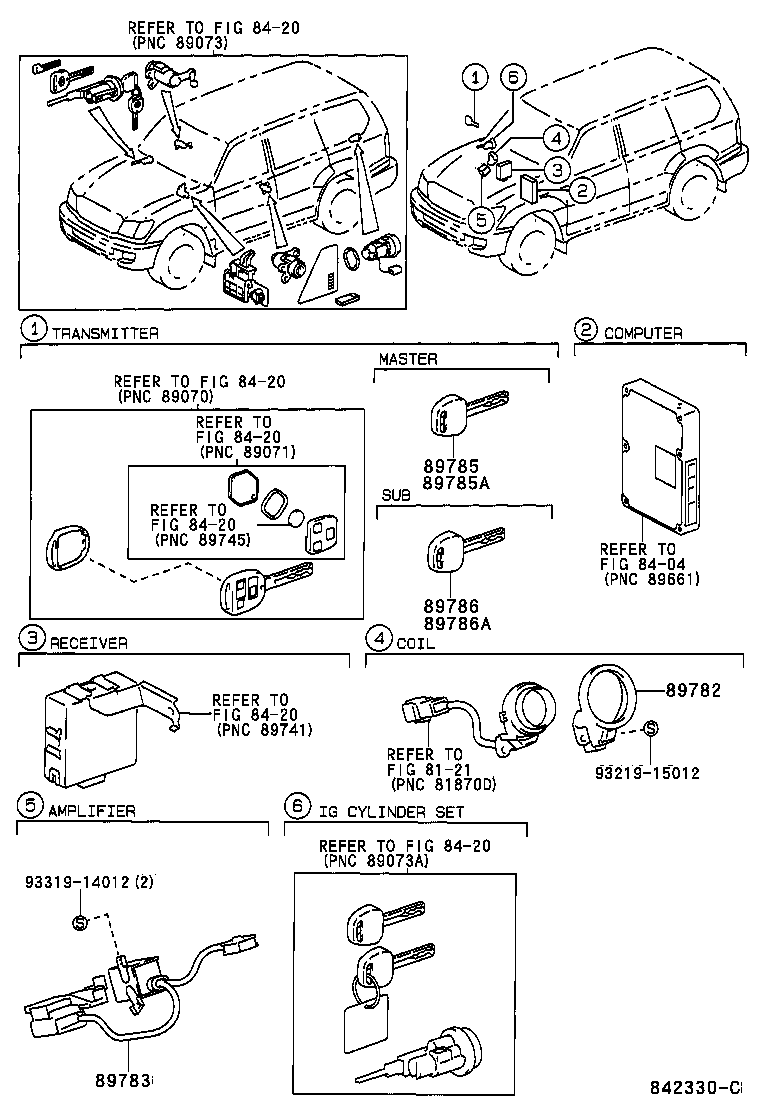

(9801-0208)UZJ100
Click highlighted areas on diagram
WIRELESS=KEY TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-33020 |
HDJ100,UZJ100..VX |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-60050 |
UZJ100..LHD |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60060 |
HDJ100,UZJ100 |
1 | ||
| 89785-50060 |
HDJ100,UZJ100..VX |
1 | ||
| 89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER | ||||
| 89785-60050 |
HDJ100,UZJ100 |
1 | ||
| 89785-50070 |
HDJ100,UZJ100..VX |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60090 |
HDJ100,UZJ100 |
1 | ||
| 89786-50060 |
HDJ100,UZJ100..VX |
1 | ||
| 89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB | ||||
| 89786-60080 |
HDJ100,UZJ100 |
1 | ||
| 89786-50070 |
HDJ100,UZJ100..VX |
1 | ||
| Common parts | ||||
| 93219-15012 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8404 | ||||
| 8420 | ||||

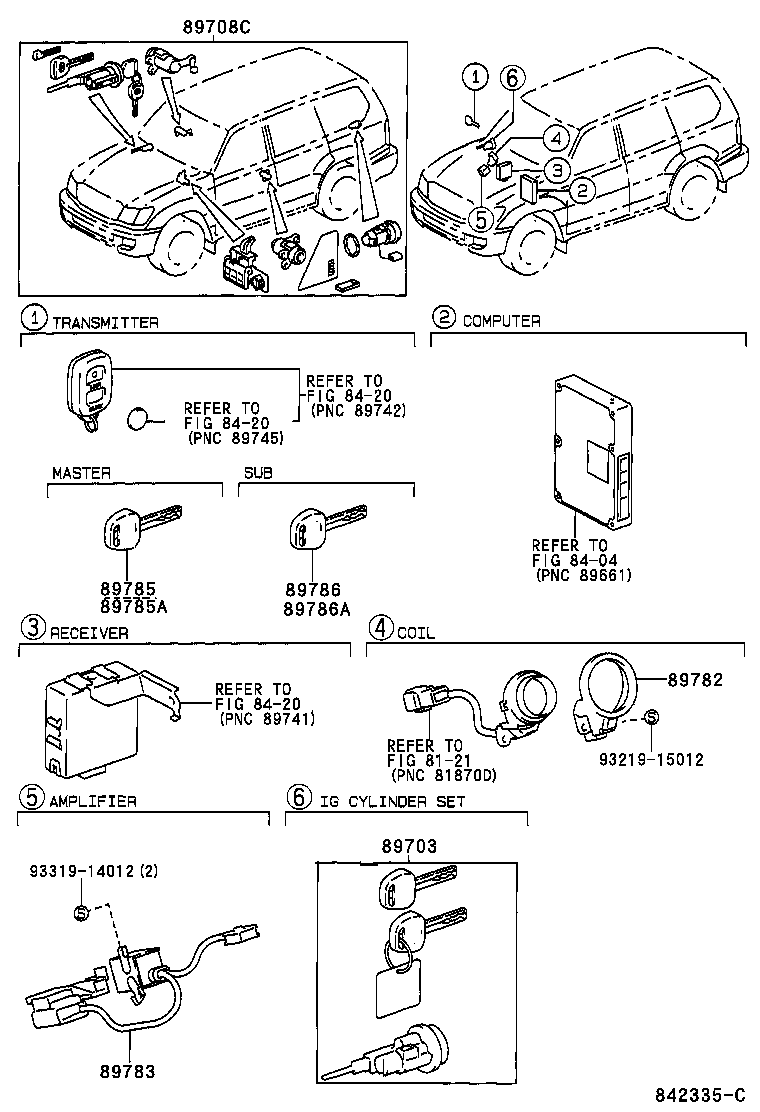

(9801-9808)UZJ100
Click highlighted areas on diagram
WIRE LESS=KEY HOLDER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER | ||||
| 89703-60380 |
UZJ100 |
1 | ||
| 89708C - CYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER | ||||
| 89708-60080 |
HDJ100,UZJ100 |
1 | ||
| 89782 - COIL, TRANSPONDER KEY | ||||
| 89782-33020 |
HDJ100,UZJ100..VX |
1 | ||
| 89783 - AMPLIFIER, TRANSPONDER KEY | ||||
| 89783-60050 |
UZJ100..LHD |
1 | ||
| 89785 - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-60060 |
HDJ100,UZJ100 |
1 | ||
| 89785-50060 |
HDJ100,UZJ100..VX |
1 | ||
| 89785A - TRANSMITTER, TRANSPONDER CUT KEY MASTER | ||||
| 89785-60050 |
HDJ100,UZJ100 |
1 | ||
| 89785-50070 |
HDJ100,UZJ100..VX |
1 | ||
| 89786 - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-60090 |
HDJ100,UZJ100 |
1 | ||
| 89786-50060 |
HDJ100,UZJ100..VX |
1 | ||
| 89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB | ||||
| 89786-60080 |
HDJ100,UZJ100 |
1 | ||
| 89786-50070 |
HDJ100,UZJ100..VX |
1 | ||
| Common parts | ||||
| 93219-15012 | ||||
| 93319-14012 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8404 | ||||
| 8420 | ||||
