UZJ100L-GNPEKW (1998)
Toyota Land Cruiser 100
(9801- )

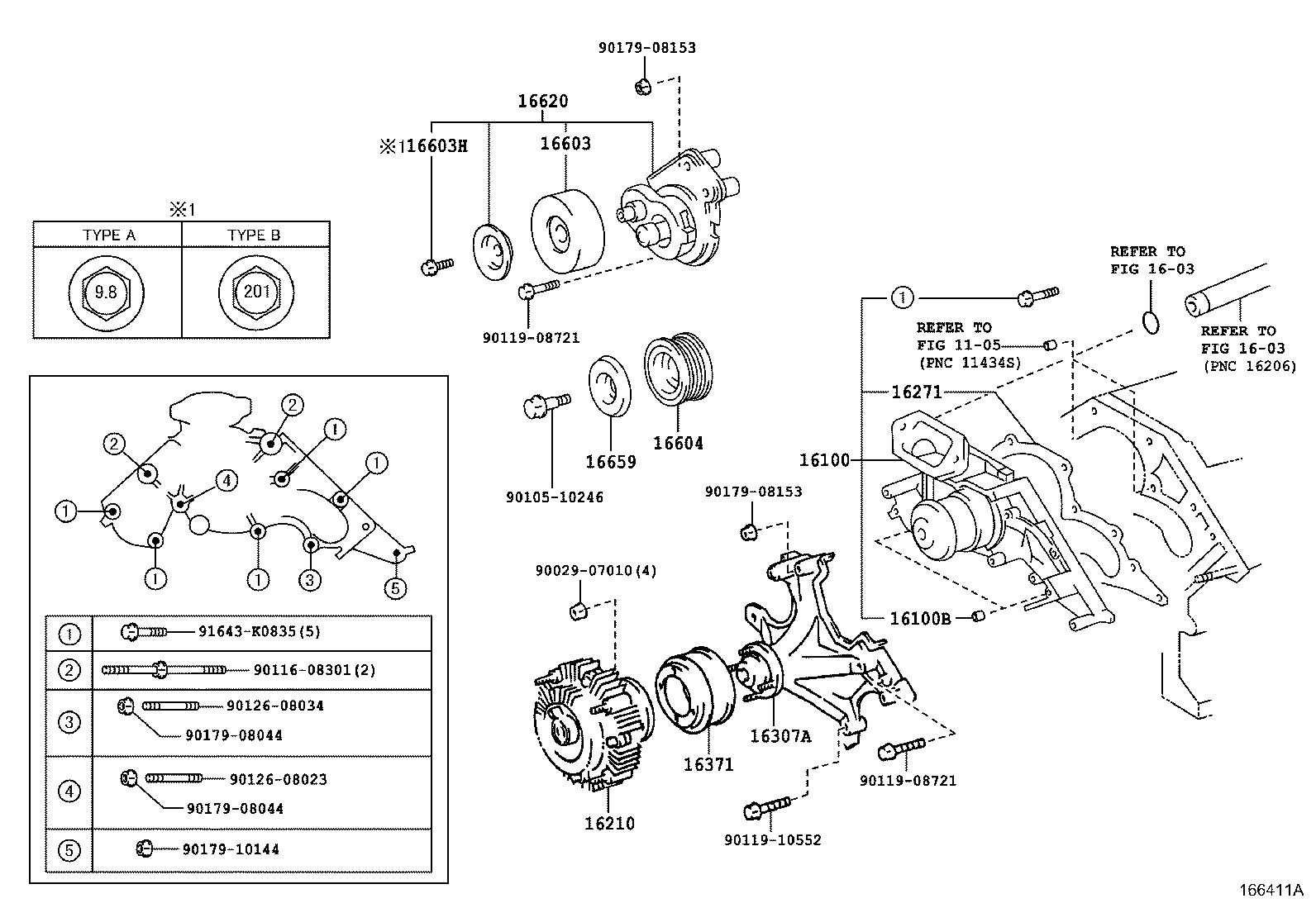

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59275 |
2UZFE..UZJ100 |
1 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
2UZFE..UZJ100 |
2 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-50071 |
2UZFE..UZJ100..LHD GREEN |
1 | ||
| 16210-50050 |
2UZFE..UZJ100 |
1 | ||
| 16210-50072 |
2UZFE..UZJ100..LHD GREEN |
1 | ||
| 16210-50051 |
2UZFE..UZJ100 DARK BLUE |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-50010 |
2UZFE..UZJ100 |
1 | ||
| 16307A - BRACKET SUB-ASSY, FAN | ||||
| 16307-50012 |
2UZFE..UZJ100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-50040 |
2UZFE..UZJ100 |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-0W030 |
2UZFE..UZJ100 PNC 16603H=TYPE B |
1 | ||
| 16603-0W010 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16603-0W010 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16603H - BOLT(FOR IDLER PULLEY) | ||||
| 90105-10247 |
2UZFE..UZJ100 TYPE A:REFER ILLUST. |
1 | ||
| 90080-10219 |
2UZFE..UZJ100 TYPE B:REFER ILLUST. |
1 | ||
| 16604 - PULLEY SUB-ASSY, IDLER, NO.2 | ||||
| 16604-50030 |
2UZFE..UZJ100 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W036 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16659 - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16659-50022 |
2UZFE..UZJ100 |
1 | ||
| Common parts | ||||
| 90029-07010 | ||||
| 90105-10246 | ||||
| 90116-08301 | ||||
| 90119-08721 | ||||
| 90119-10552 | ||||
| 90126-08023 | ||||
| 90126-08034 | ||||
| 90179-08044 | ||||
| 90179-08153 | ||||
| 90179-10144 | ||||
| 91643-K0835 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
(9801- )2UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-59275 |
2UZFE..UZJ100 |
1 | ||
| 16100B - PIN, RING(FOR WATER PUMP SET) | ||||
| 90253-11021 |
2UZFE..UZJ100 |
2 | ||
| 16210 - COUPLING ASSY, FLUID | ||||
| 16210-50071 |
2UZFE..UZJ100..LHD GREEN |
1 | ||
| 16210-50050 |
2UZFE..UZJ100 |
1 | ||
| 16210-50072 |
2UZFE..UZJ100..LHD GREEN |
1 | ||
| 16210-50051 |
2UZFE..UZJ100 DARK BLUE |
1 | ||
| 16271 - GASKET, WATER PUMP | ||||
| 16271-50010 |
2UZFE..UZJ100 |
1 | ||
| 16307A - BRACKET SUB-ASSY, FAN | ||||
| 16307-50012 |
2UZFE..UZJ100 |
1 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-50040 |
2UZFE..UZJ100 |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-0W030 |
2UZFE..UZJ100 PNC 16603H=TYPE B |
1 | ||
| 16603-0W010 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16603-0W010 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16603H - BOLT(FOR IDLER PULLEY) | ||||
| 90105-10247 |
2UZFE..UZJ100 TYPE A:REFER ILLUST. |
1 | ||
| 90080-10219 |
2UZFE..UZJ100 TYPE B:REFER ILLUST. |
1 | ||
| 16604 - PULLEY SUB-ASSY, IDLER, NO.2 | ||||
| 16604-50030 |
2UZFE..UZJ100 |
1 | ||
| 16620 - TENSIONER ASSY, V-RIBBED BELT | ||||
| 16620-0W036 |
2UZFE..UZJ100 PNC 16603H=TYPE A |
1 | ||
| 16659 - PLATE, IDLER PULLEY COVER, NO.2 | ||||
| 16659-50022 |
2UZFE..UZJ100 |
1 | ||
| Common parts | ||||
| 90029-07010 | ||||
| 90105-10246 | ||||
| 90116-08301 | ||||
| 90119-08721 | ||||
| 90119-10552 | ||||
| 90126-08023 | ||||
| 90126-08034 | ||||
| 90179-08044 | ||||
| 90179-08153 | ||||
| 90179-10144 | ||||
| 91643-K0835 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1603 | ||||
