UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(9801-0208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63204-60030 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63204-60031 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-60021 |
UZJ100 |
1 | ||
| 63202-60020 |
UZJ100 |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60060 |
UZJ100 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-60030 |
UZJ100 |
1 | ||
| 63209-60031 |
UZJ100 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-60030 |
UZJ100 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60040 |
UZJ100 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60040 |
UZJ100 |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-60030 |
UZJ100 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-60030 |
UZJ100 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-60030 |
UZJ100 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-60030 |
UZJ100 |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-60030 |
UZJ100 |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-60021 |
UZJ100 |
1 | ||
| 63233-60020 |
UZJ100 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-60010 |
UZJ100 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60150 |
UZJ100 LH |
1 | ||
| 63249-60120 |
UZJ100 RH |
1 | ||
| 63249-60120 |
UZJ100 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60130 |
UZJ100 L=1840 |
1 | ||
| 63249-60131 |
UZJ100 L=1940 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60141 |
UZJ100 L=2045 |
1 | ||
| 63249-60140 |
UZJ100 L=1930 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-60061 |
UZJ100 |
1 | ||
| 63251-60060 |
UZJ100 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-60020 |
UZJ100 |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-32020 |
UZJ100 |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-32020 |
UZJ100 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
UZJ100 |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-60010 |
UZJ100 |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-60010 |
UZJ100 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-60020 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90149-40031 | ||||
| 90154-40011 | ||||
| 90179-06161 | ||||
| 90179-06276 | ||||
| 90467-16038 | ||||
| 90469-15003 | ||||
| 90480-26014 | ||||
| 90959-01553 | ||||
| 91621-40616 | ||||
| 93219-13014 | ||||
(9801- )

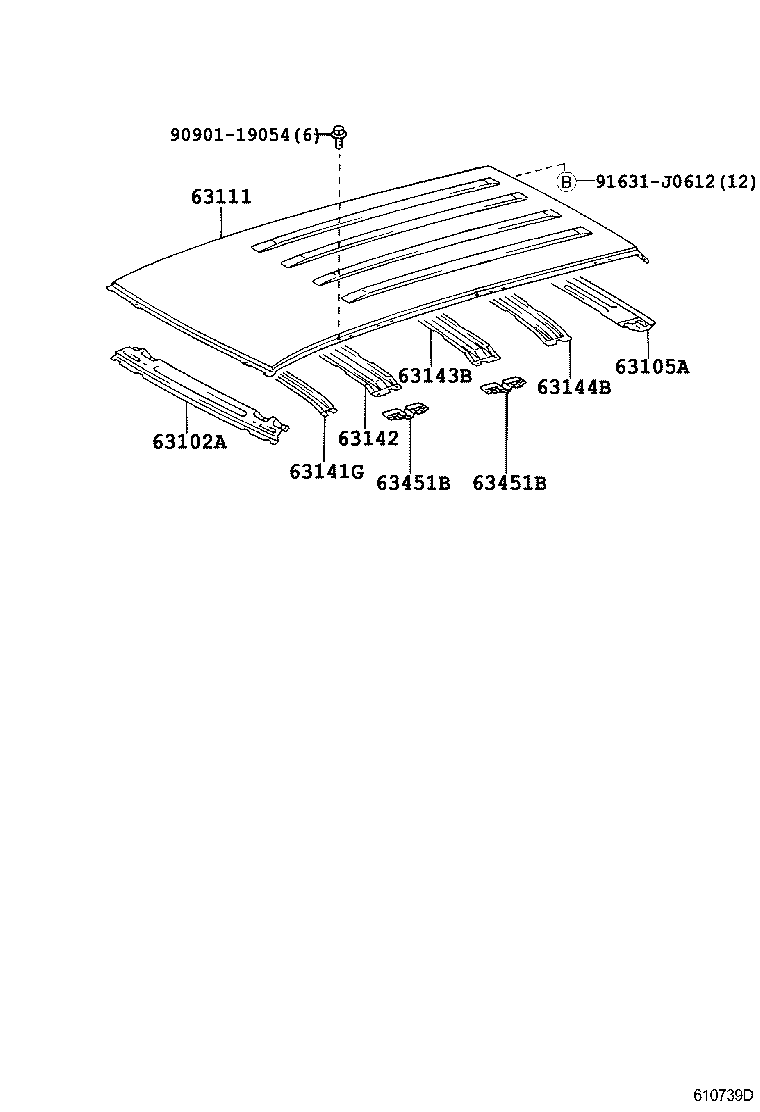

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60070 |
UZJ100 |
1 | ||
| 63102-60071 |
UZJ100 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60180 |
UZJ100 |
1 | ||
| 63105-60181 |
UZJ100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60460 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63111-60450 |
UZJ100 |
1 | ||
| 63111-60461 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63111-60451 |
UZJ100 |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-60060 |
UZJ100 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-60040 |
UZJ100 W(MOON ROOF & ROOF RACK) |
1 | ||
| 63143-60030 |
UZJ100 |
1 | ||
| 63104-60020 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-60050 |
UZJ100 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63127-60020 |
UZJ100 |
1 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60040 |
UZJ100 W(MOON ROOF) |
2 | ||
| 63451-60040 |
UZJ100 |
4 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60040 |
UZJ100 W(MOON ROOF) |
2 | ||
| 63451-60040 |
UZJ100 |
4 | ||
| Common parts | ||||
| 90901-19054 | ||||
| 91631-J0612 | ||||

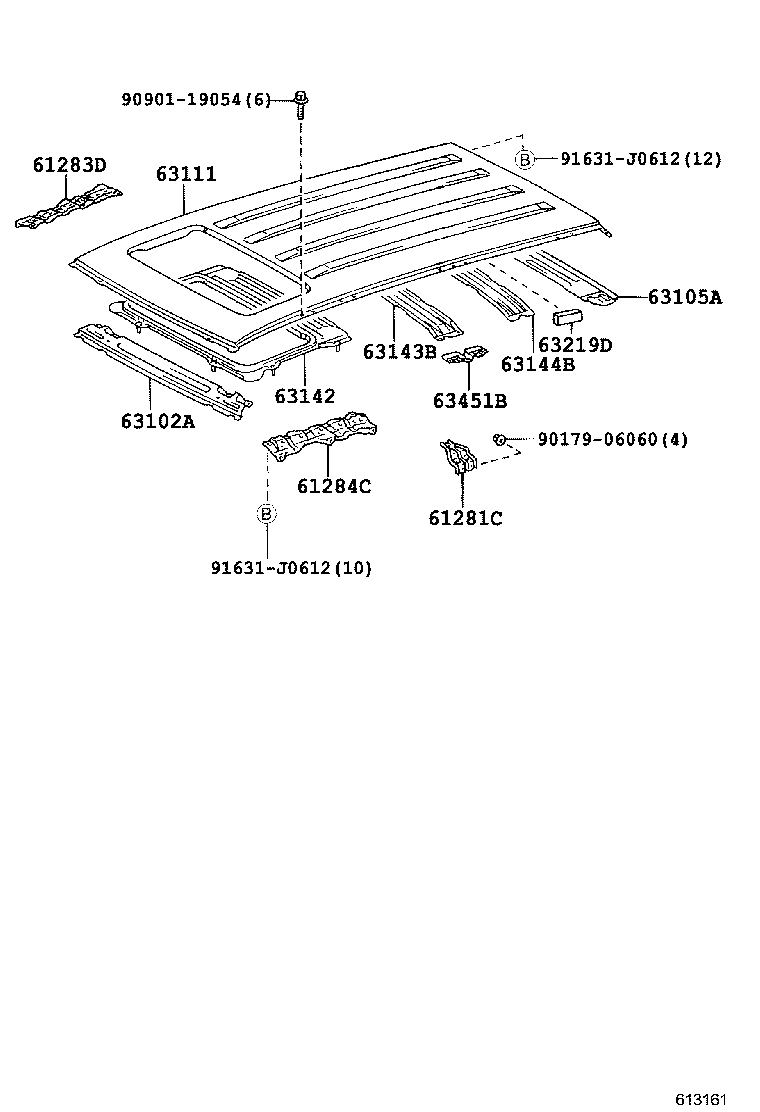

ILLUST NO. 1 OF 2(9801- )
Click highlighted areas on diagram
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61281C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1 | ||||
| 61281-60020 |
UZJ100 |
2 | ||
| 61283D - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, RH | ||||
| 61283-60020 |
UZJ100 |
1 | ||
| 61283-60021 |
UZJ100 |
1 | ||
| 61284C - BRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, LH | ||||
| 61284-60021 |
UZJ100 |
1 | ||
| 61284-60020 |
UZJ100 |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-60070 |
UZJ100 |
1 | ||
| 63102-60071 |
UZJ100 |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-60180 |
UZJ100 |
1 | ||
| 63105-60181 |
UZJ100 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-60460 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63111-60450 |
UZJ100 |
1 | ||
| 63111-60461 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63111-60451 |
UZJ100 |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63104-60040 |
UZJ100 W(MOON ROOF & ROOF RACK) |
1 | ||
| 63143-60030 |
UZJ100 |
1 | ||
| 63104-60020 |
UZJ100 W(MOON ROOF) |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63144-60050 |
UZJ100 |
1 | ||
| 63144B - REINFORCEMENT, ROOF PANEL, NO.4 | ||||
| 63127-60020 |
UZJ100 |
1 | ||
| 63219D - CUSHION, SLIDING ROOF GUIDE RAIL | ||||
| 63219-60040 |
UZJ100 |
2 | ||
| 63451B - REINFORCEMENT, ROOF RACK, NO.1 | ||||
| 63451-60040 |
UZJ100 W(MOON ROOF) |
2 | ||
| 63451-60040 |
UZJ100 |
4 | ||
| Common parts | ||||
| 90179-06060 | ||||
| 90901-19054 | ||||
| 91631-J0612 | ||||
ILLUST NO. 2 OF 2(9801-0208)
Click highlighted areas on diagram
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201G - GLASS SUB-ASSY, SLIDING ROOF | ||||
| 63204-60030 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63204-60031 |
UZJ100 *TEM,T=4.0,GRAY |
1 | ||
| 63202H - RAIL SUB-ASSY, SLIDE ROOF | ||||
| 63202-60021 |
UZJ100 |
1 | ||
| 63202-60020 |
UZJ100 |
1 | ||
| 63206G - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-60060 |
UZJ100 |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-60030 |
UZJ100 |
1 | ||
| 63209-60031 |
UZJ100 |
1 | ||
| 63214F - CHANNEL, ROOF DRIP, REAR | ||||
| 63214-60030 |
UZJ100 |
1 | ||
| 63217G - GARNISH, SLIDING ROOF SIDE, RH | ||||
| 63217-60040 |
UZJ100 |
1 | ||
| 63218G - GARNISH, SLIDING ROOF SIDE, LH | ||||
| 63218-60040 |
UZJ100 |
1 | ||
| 63219A - GARNISH, SLIDING ROOF, REAR | ||||
| 63219-60030 |
UZJ100 |
1 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-60030 |
UZJ100 |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-60030 |
UZJ100 |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-60030 |
UZJ100 |
1 | ||
| 63225C - SPRING, ROOF WIND DEFLECTOR | ||||
| 63225-60030 |
UZJ100 |
1 | ||
| 63233C - PANEL, SLIDING ROOF HOUSING | ||||
| 63233-60021 |
UZJ100 |
1 | ||
| 63233-60020 |
UZJ100 |
1 | ||
| 63239 - STOPPER, SLIDING ROOF PANEL | ||||
| 63239-60010 |
UZJ100 |
2 | ||
| 63249E - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60150 |
UZJ100 LH |
1 | ||
| 63249-60120 |
UZJ100 RH |
1 | ||
| 63249-60120 |
UZJ100 |
2 | ||
| 63249F - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60130 |
UZJ100 L=1840 |
1 | ||
| 63249-60131 |
UZJ100 L=1940 |
1 | ||
| 63249G - HOSE, SLIDING ROOF DRAIN | ||||
| 63249-60141 |
UZJ100 L=2045 |
1 | ||
| 63249-60140 |
UZJ100 L=1930 |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-60061 |
UZJ100 |
1 | ||
| 63251-60060 |
UZJ100 |
1 | ||
| 63257B - SEAL, SLIDING ROOF | ||||
| 63257-60020 |
UZJ100 |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-32020 |
UZJ100 |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-32020 |
UZJ100 |
1 | ||
| 63279D - STOPPER, SLIDING ROOF GUIDE RAIL | ||||
| 63279-12030 |
UZJ100 |
2 | ||
| 63625 - BLOCK, SLIDING ROOF GUIDE, RH | ||||
| 63625-60010 |
UZJ100 |
1 | ||
| 63626 - BLOCK, SLIDING ROOF GUIDE, LH | ||||
| 63626-60010 |
UZJ100 |
1 | ||
| 63635A - GARNISH, SLIDING ROOF, FRONT | ||||
| 63635-60020 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90149-40031 | ||||
| 90154-40011 | ||||
| 90179-06161 | ||||
| 90179-06276 | ||||
| 90467-16038 | ||||
| 90469-15003 | ||||
| 90480-26014 | ||||
| 90959-01553 | ||||
| 91621-40616 | ||||
| 93219-13014 | ||||
ILLUST NO. 1 OF 2(9801- )
Click highlighted areas on diagram
W(MOON ROOF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06060 | ||||
| 90901-19054 | ||||
| 91631-J0612 | ||||
(9801- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90901-19054 | ||||
| 90901-19055 | ||||
| 91631-J0612 | ||||
(9801- )
Click highlighted areas on diagram
W(ROOF RAIL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08B34 | ||||
| 90152-50030 | ||||
| 90467-09198 | ||||
