UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

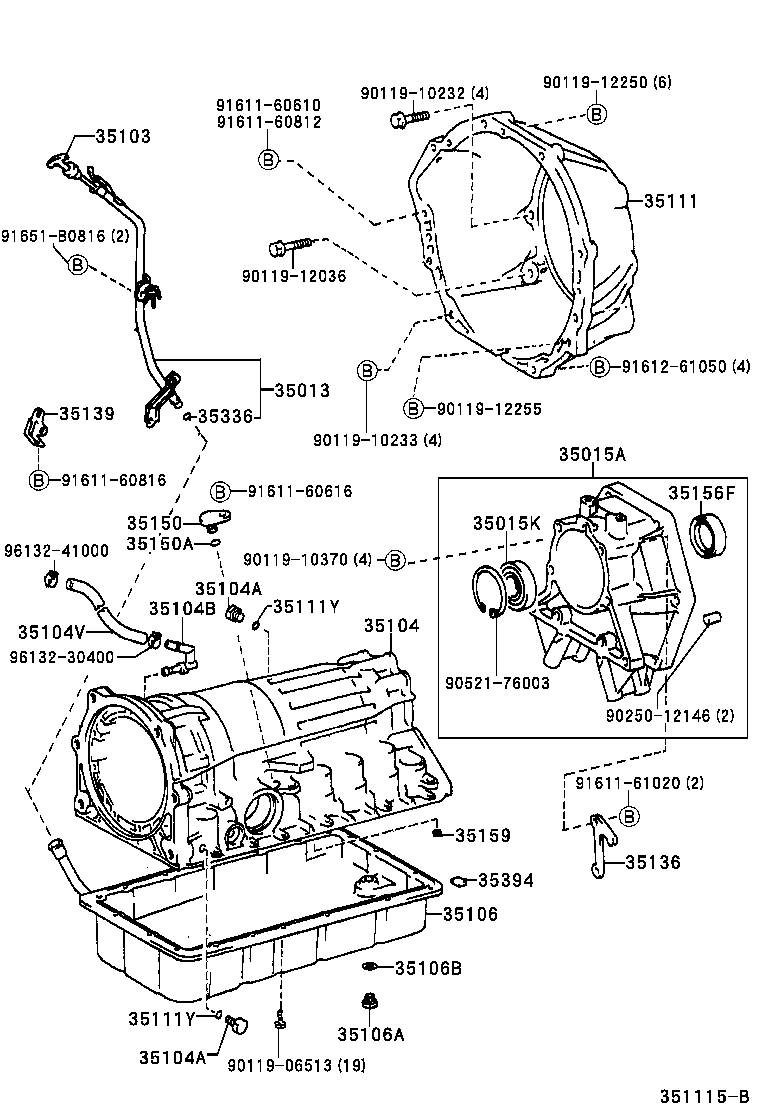

Click highlighted areas on diagram
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-60150 |
UZJ100 |
1 | ||
| 35015A - ADAPTER SUB-ASSY, TRANSMISSION CASE, REAR | ||||
| 35015-60100 |
UZJ100 |
1 | ||
| 35015K - BEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER) | ||||
| 90363-35042 |
UZJ100 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-60110 |
UZJ100 |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26060 |
UZJ100 |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UZJ100 |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
UZJ100 |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03098 |
UZJ100 |
1 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 90445-11141 |
UZJ100 |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-60110 |
UZJ100 |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
UZJ100 |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
UZJ100 |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-60100 |
UZJ100 |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UZJ100 |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
UZJ100 |
2 | ||
| 35136 - HANGER, TRANSMISSION,NO.1 | ||||
| 35136-60050 |
UZJ100 |
1 | ||
| 35139 - BRACKET, OIL FILLER TUBE | ||||
| 35139-60020 |
UZJ100 |
1 | ||
| 35150 - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-30010 |
UZJ100 |
1 | ||
| 35150A - RING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG) | ||||
| 90301-09012 |
UZJ100 |
1 | ||
| 35156F - SEAL, OIL(FOR TRANSMISSION CASE REAR ADAPTER COVER) | ||||
| 90311-48016 |
UZJ100 |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
UZJ100 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
UZJ100 |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
UZJ100 |
4 | ||
| Common parts | ||||
| 90119-06513 | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 90119-10370 | ||||
| 90119-12036 | ||||
| 90119-12250 | ||||
| 90119-12255 | ||||
| 90250-12146 | ||||
| 90521-76003 | ||||
| 91611-60610 | ||||
| 91611-60616 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91612-61050 | ||||
| 91651-B0816 | ||||
| 96132-30400 | ||||
| 96132-41000 | ||||
(9801-0208)UZJ100

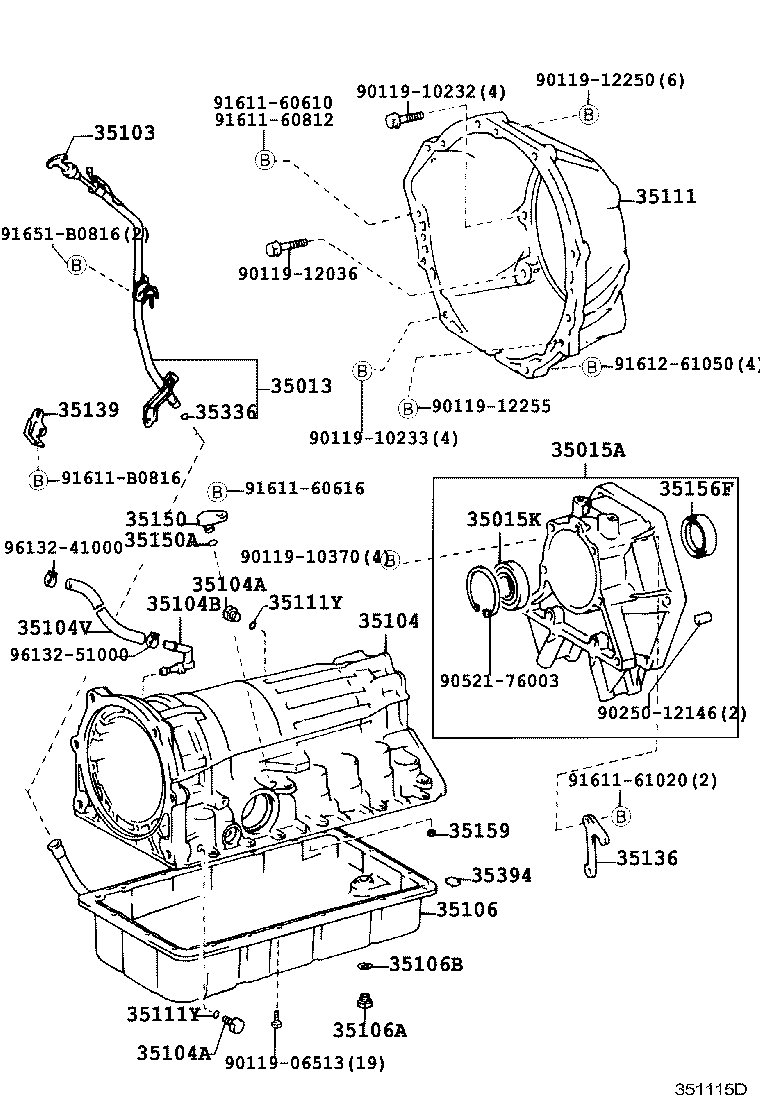

Click highlighted areas on diagram
A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06513 | ||||
| 90119-10232 | ||||
| 90119-10233 | ||||
| 90119-10370 | ||||
| 90119-12036 | ||||
| 90119-12250 | ||||
| 90119-12255 | ||||
| 90250-12146 | ||||
| 90521-76003 | ||||
| 91611-60610 | ||||
| 91611-60616 | ||||
| 91611-60812 | ||||
| 91611-61020 | ||||
| 91611-B0816 | ||||
| 91612-61050 | ||||
| 91651-B0816 | ||||
| 96132-41000 | ||||
| 96132-51000 | ||||
