UZJ100L-GNPEKA (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0505)

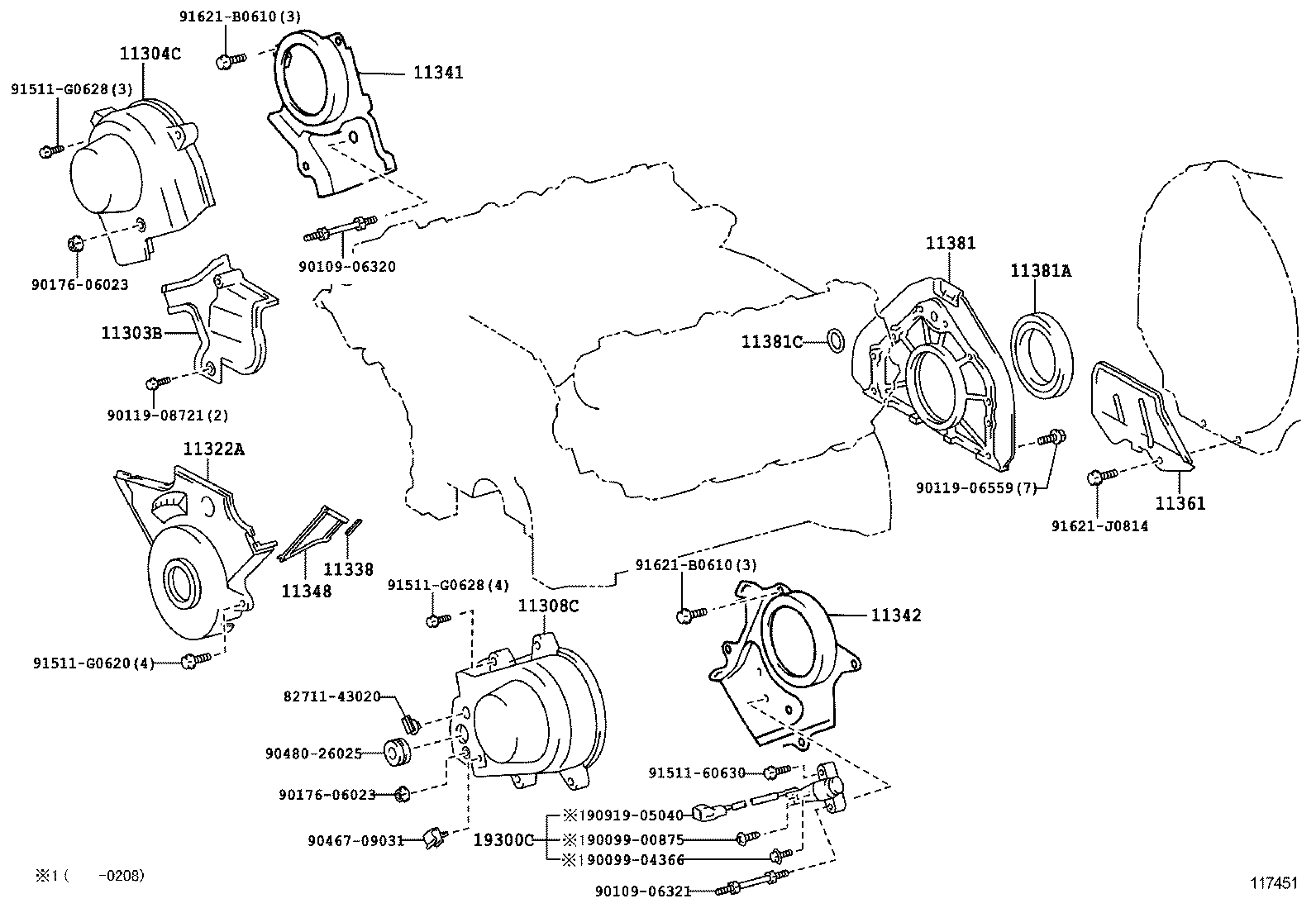

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11303B - COVER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 11303-50030 |
2UZFE..UZJ100 |
1 | ||
| 11304C - COVER SUB-ASSY, TIMING BELT, NO.3 RH | ||||
| 11304-50020 |
2UZFE..UZJ100 |
1 | ||
| 11308C - COVER SUB-ASSY, TIMING BELT, NO.3 LH | ||||
| 11308-50030 |
2UZFE..UZJ100 |
1 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11302-50040 |
2UZFE..UZJ100 |
1 | ||
| 11338 - GASKET, TIMING CHAIN COVER, NO.2 | ||||
| 11338-50010 |
2UZFE..UZJ100 |
1 | ||
| 11341 - PLATE, TIMING BELT, REAR RH | ||||
| 11341-50030 |
2UZFE..UZJ100 |
1 | ||
| 11342 - PLATE, TIMING BELT, REAR LH | ||||
| 11342-50030 |
2UZFE..UZJ100 |
1 | ||
| 11348 - SPACER, TIMING GEAR COVER | ||||
| 11348-50011 |
2UZFE..UZJ100 |
1 | ||
| 11361 - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-50030 |
2UZFE..UZJ100 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-50021 |
2UZFE..UZJ100 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95012 |
2UZFE..UZJ100 |
1 | ||
| 11381C - RING, O(FOR OIL SEAL RETAINER) | ||||
| 96721-24025 |
2UZFE..UZJ100 |
1 | ||
| 19300C - SENSOR ASSY, CAM POSITION | ||||
| 19300-50020 |
2UZFE..UZJ100 |
1 | ||
| Common parts | ||||
| 82711-43020 | ||||
| 90099-00875 | ||||
| 90099-04366 | ||||
| 90109-06320 | ||||
| 90109-06321 | ||||
| 90119-06559 | ||||
| 90119-08721 | ||||
| 90176-06023 | ||||
| 90467-09031 | ||||
| 90480-26025 | ||||
| 90919-05040 | ||||
| 91511-60630 | ||||
| 91511-G0620 | ||||
| 91511-G0628 | ||||
| 91512-81018 | ||||
| 91621-B0610 | ||||
| 91621-J0814 | ||||
(9801- )2UZFE

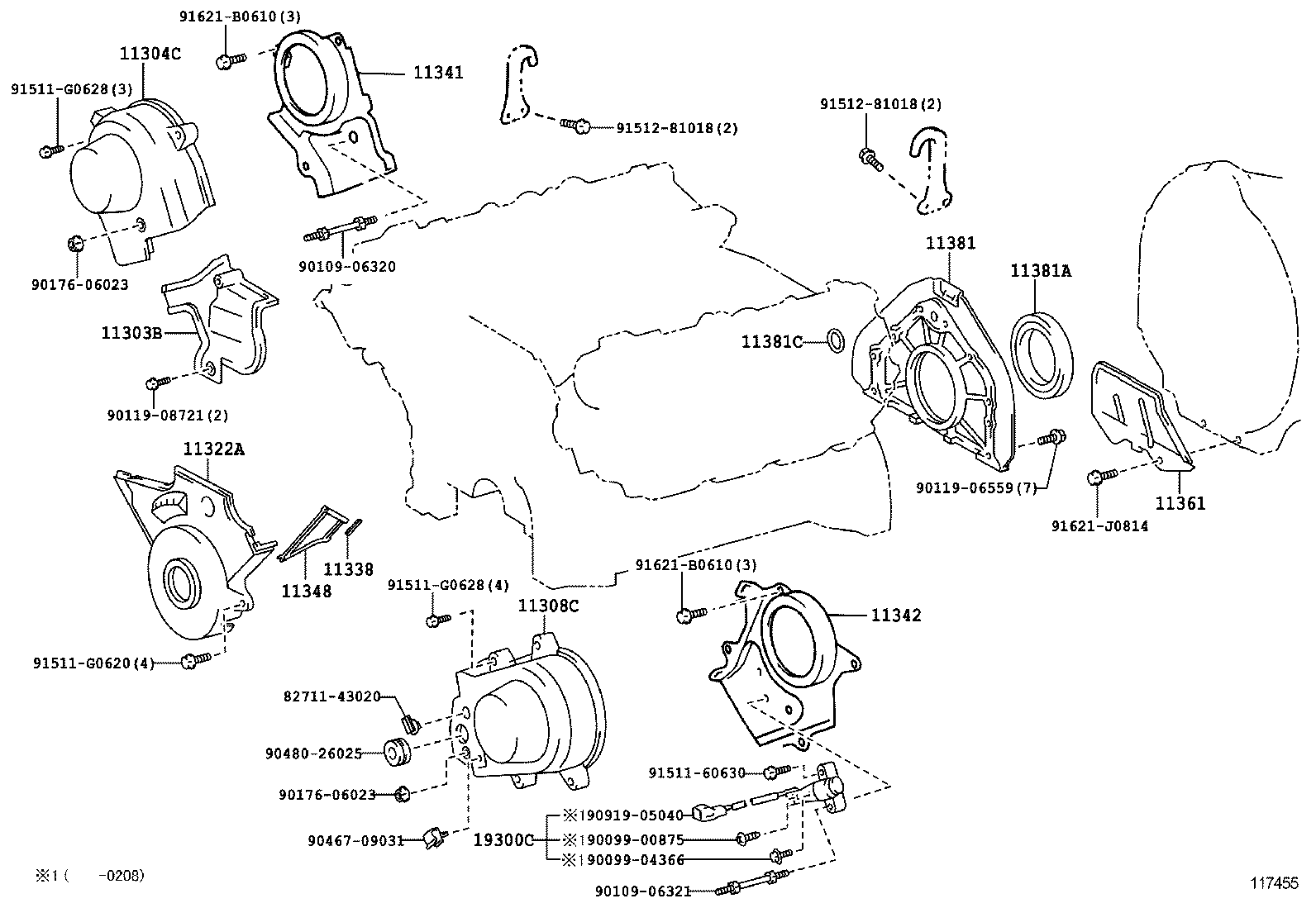

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-43020 | ||||
| 90099-00875 | ||||
| 90099-04366 | ||||
| 90109-06320 | ||||
| 90109-06321 | ||||
| 90119-06559 | ||||
| 90119-08721 | ||||
| 90176-06023 | ||||
| 90467-09031 | ||||
| 90480-26025 | ||||
| 90919-05040 | ||||
| 91511-60630 | ||||
| 91511-G0620 | ||||
| 91511-G0628 | ||||
| 91621-B0610 | ||||
| 91621-J0814 | ||||
