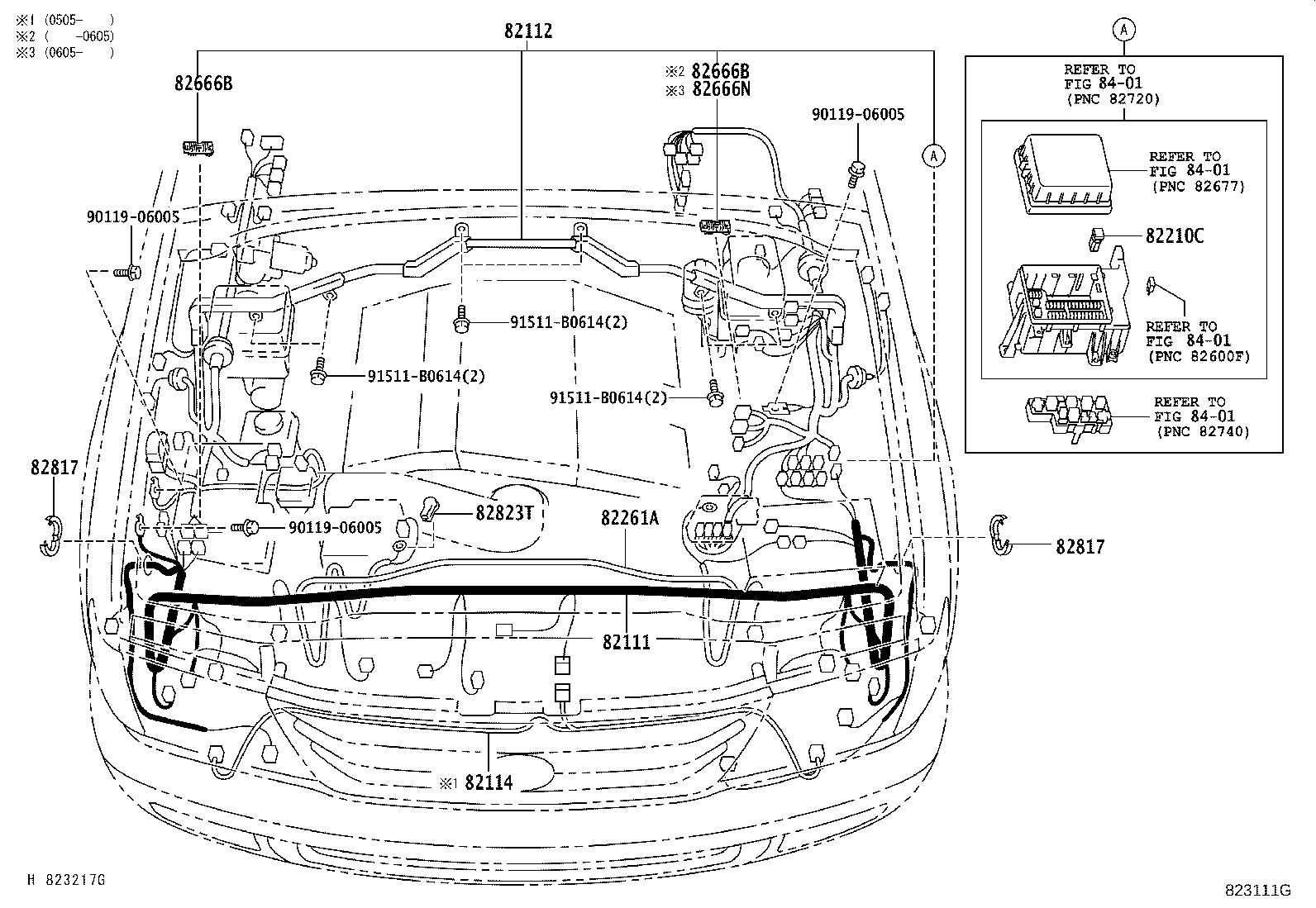

UZJ100L-GNAEKW (2002)
Toyota Land Cruiser 100

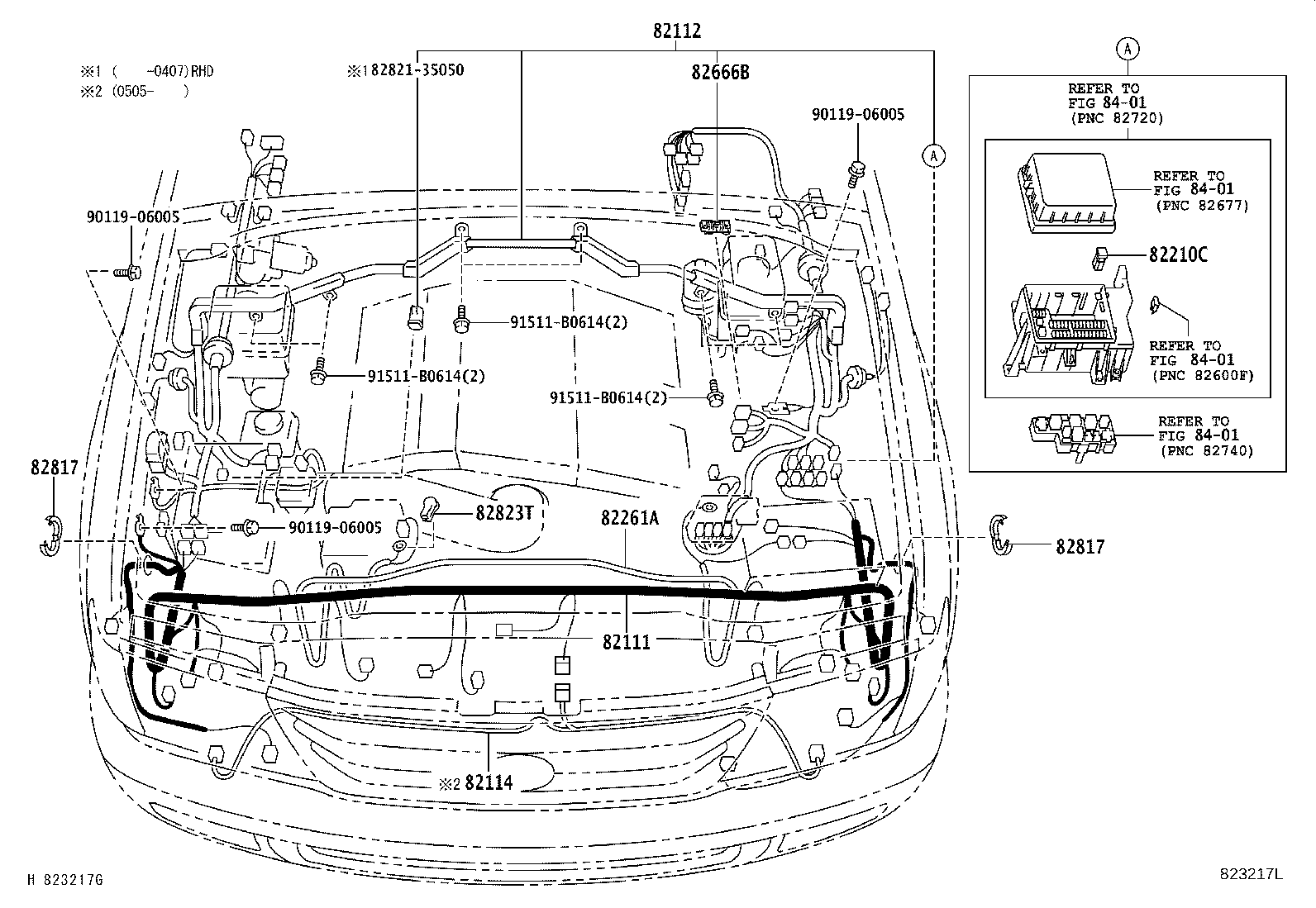

ILLUST NO. 1 OF10(0208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||

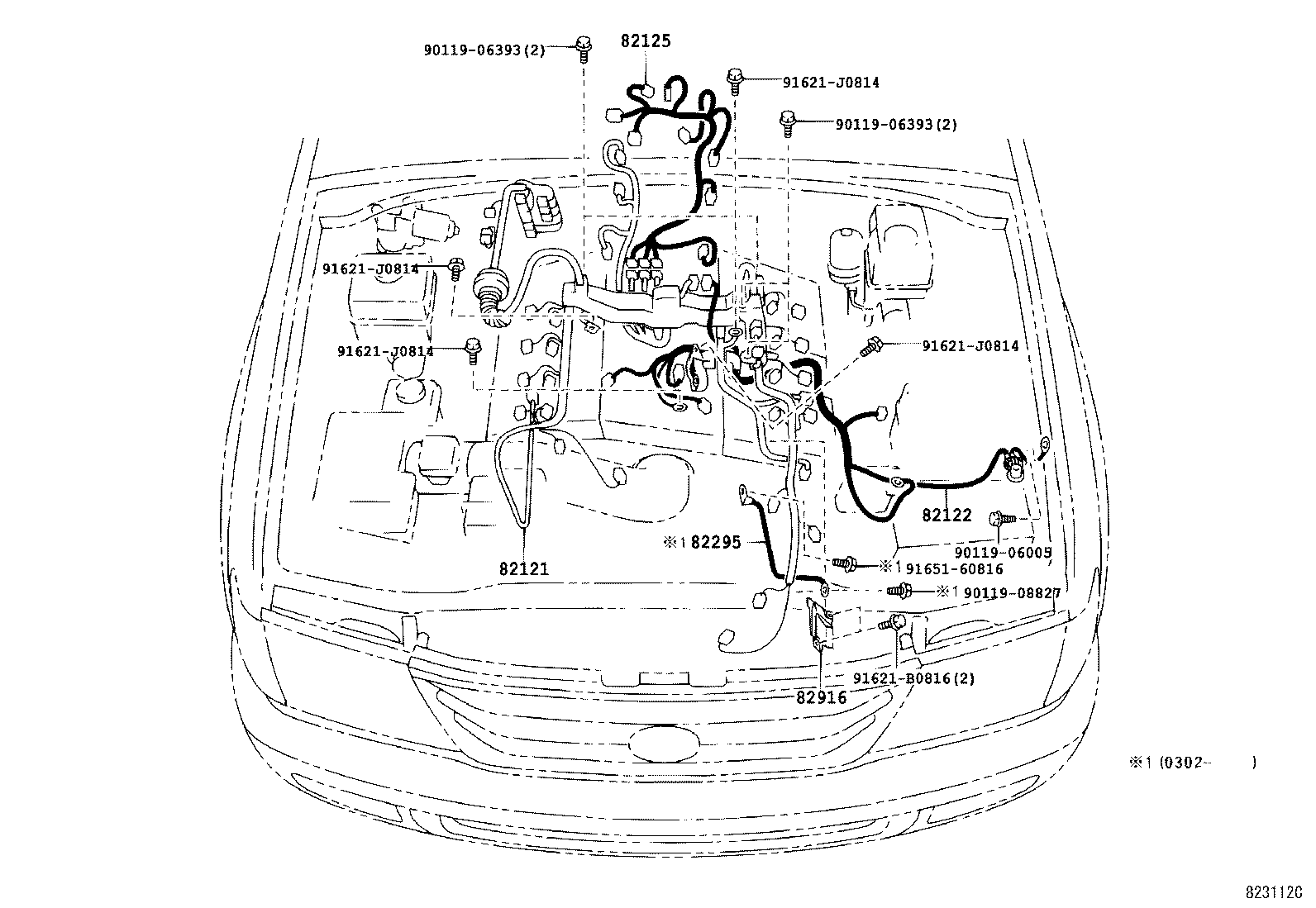

ILLUST NO. 2 OF10(0208-0505)
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06393 | ||||
| 90119-08827 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91651-60816 | ||||
ILLUST NO. 4 OF10(0208- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-50098 | ||||

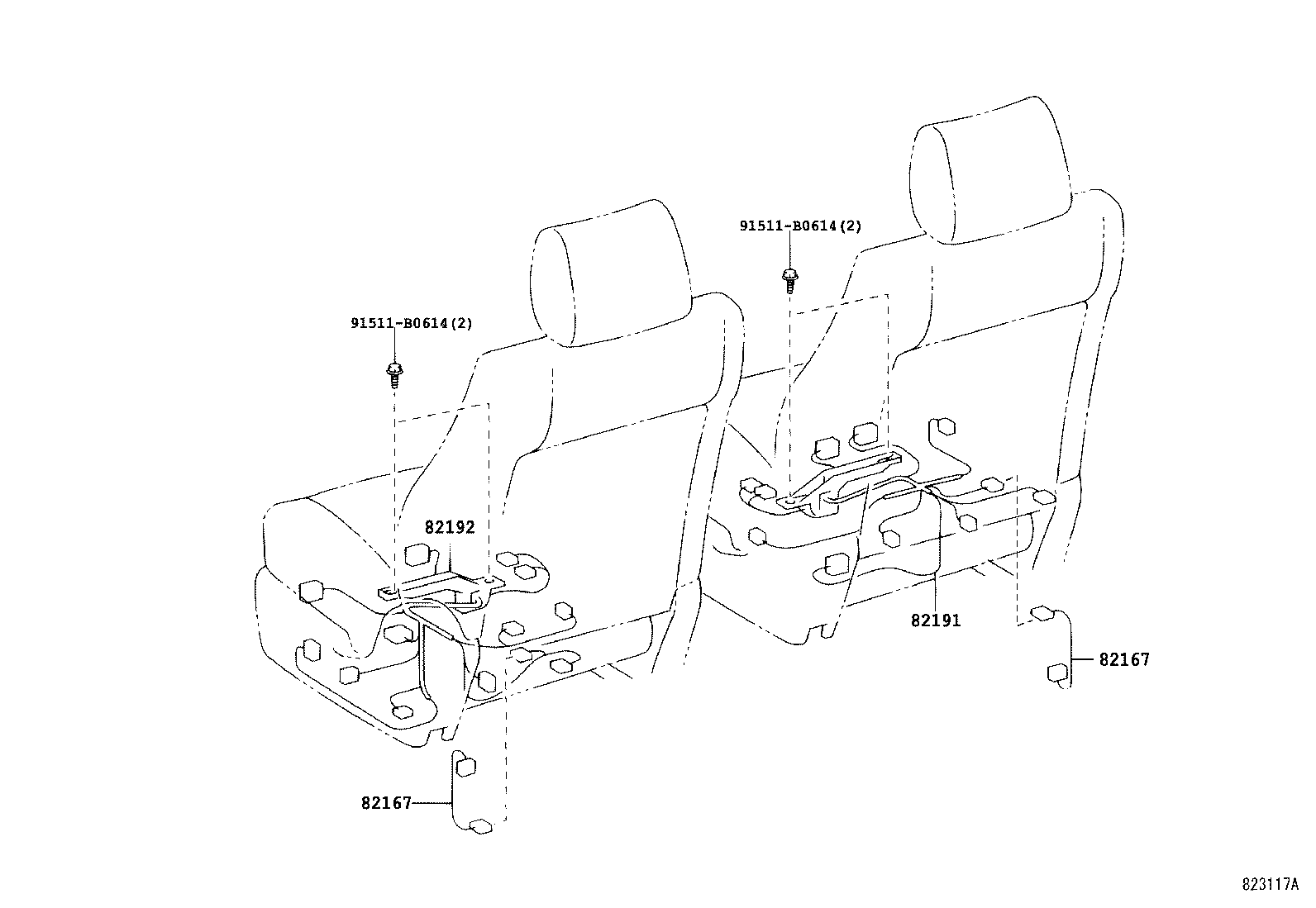

ILLUST NO. 6 OF10(0208- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-B0614 | ||||
ILLUST NO. 5 OF10(0208- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90467-09030 | ||||

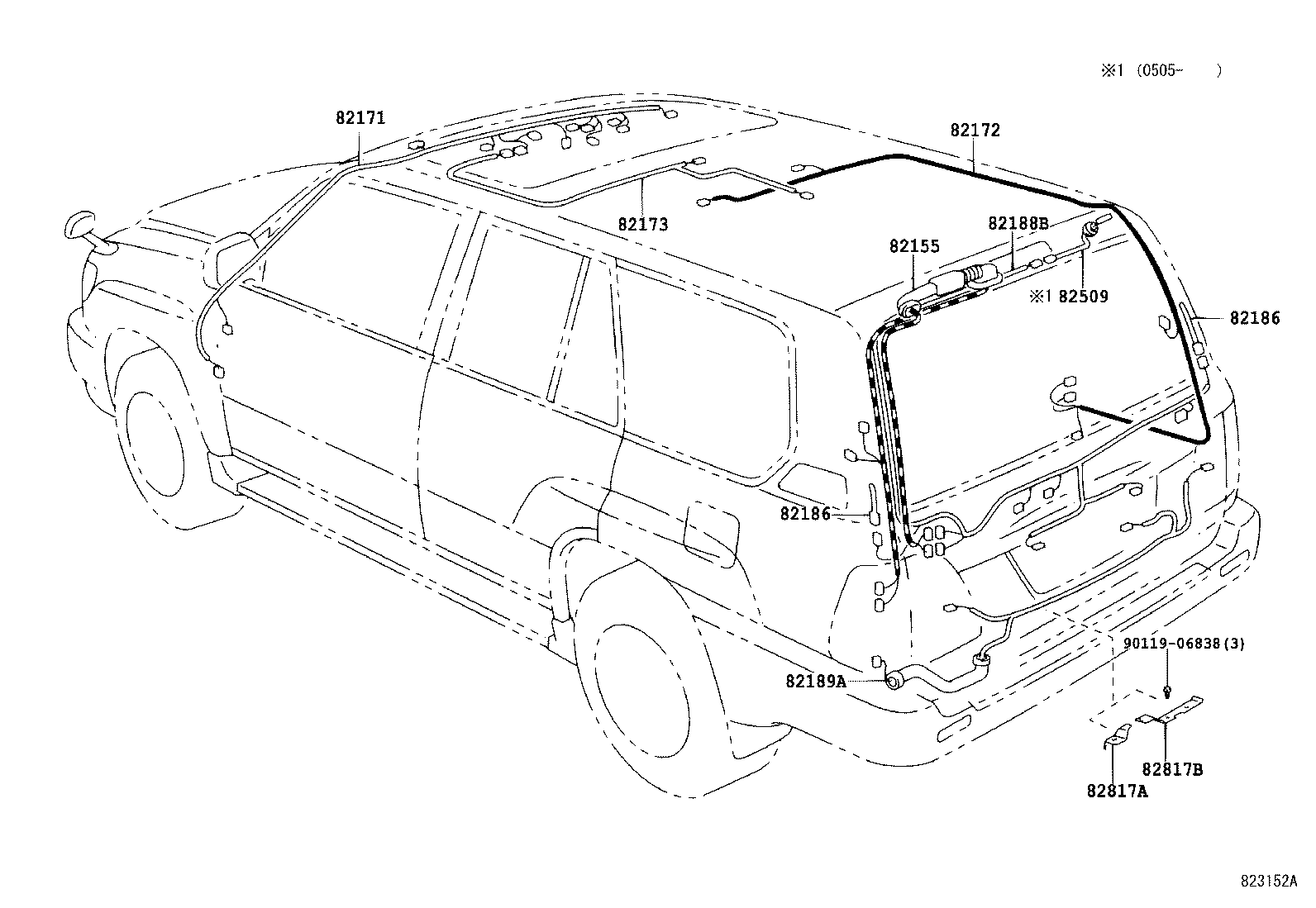

ILLUST NO. 7 OF10(0208- )
ROOF,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06838 | ||||

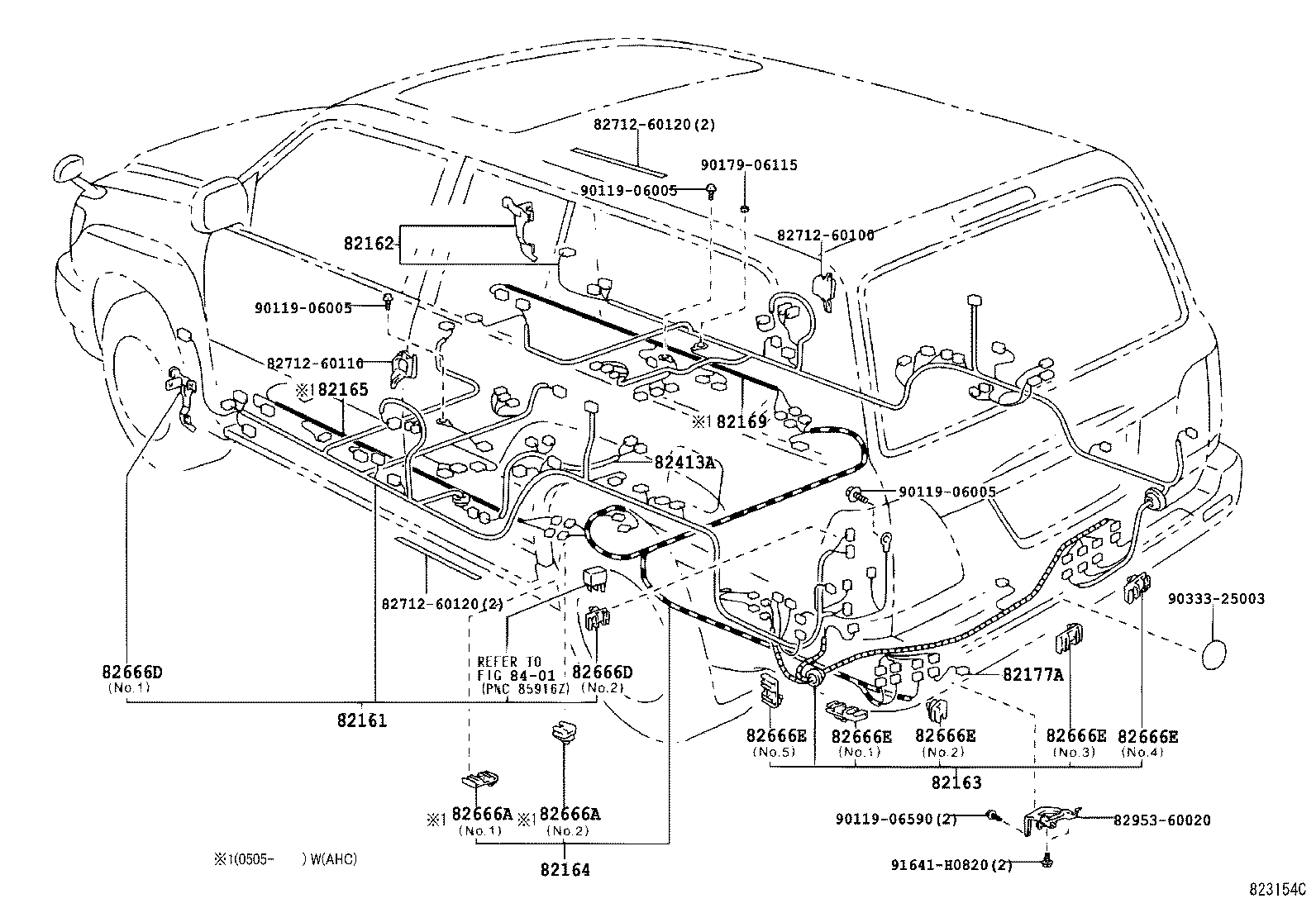

ILLUST NO. 7 OF10(0208- )
FLOOR,LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82953-60020 | ||||
| 90119-06005 | ||||
| 90119-06590 | ||||
| 90179-06115 | ||||
| 90333-25003 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(0208- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||

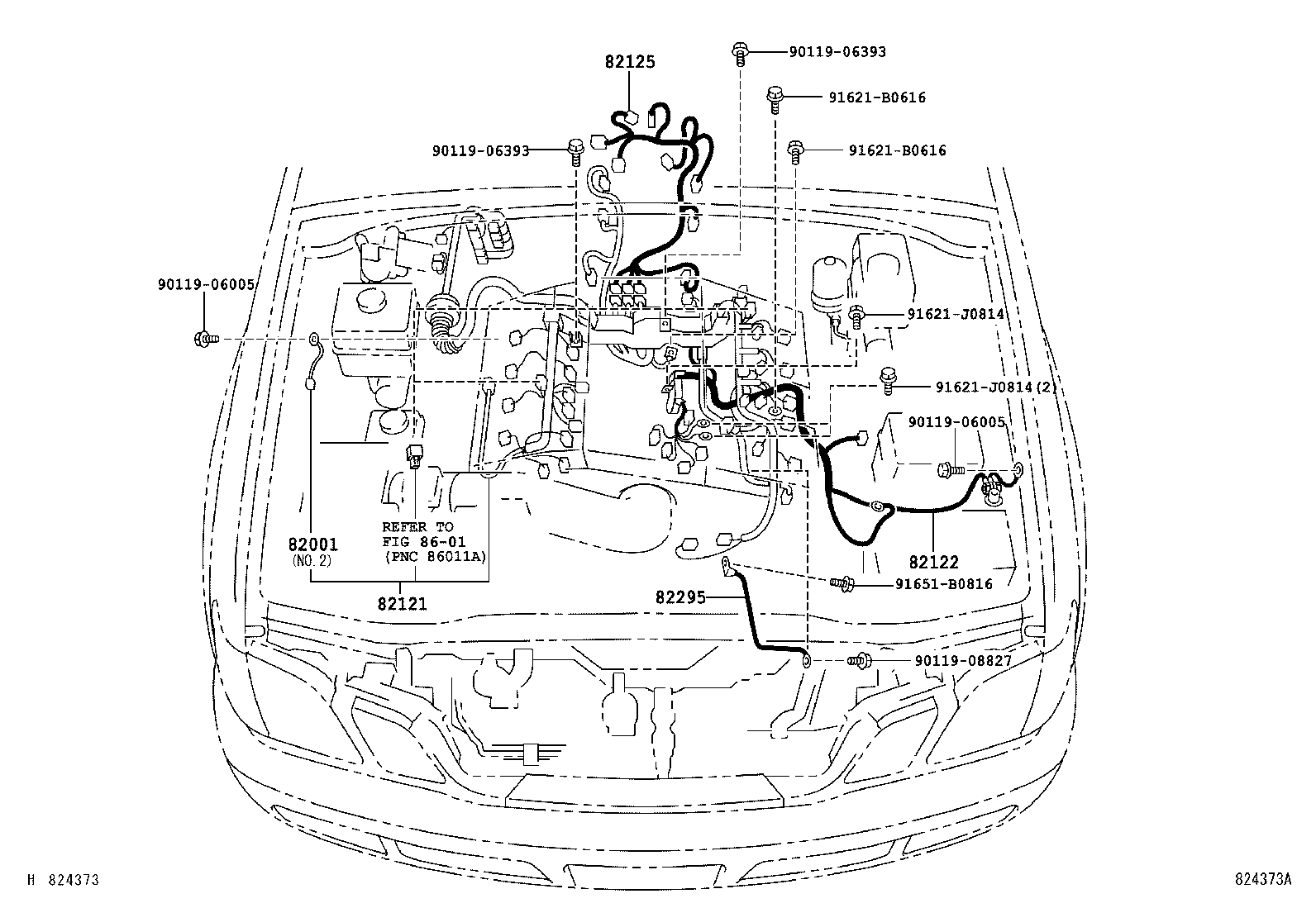

ILLUST NO. 2 OF10(0505- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06393 | ||||
| 90119-08827 | ||||
| 91621-B0616 | ||||
| 91621-J0814 | ||||
| 91651-B0816 | ||||
| Linked diagrams | ||||
| 8601 | ||||

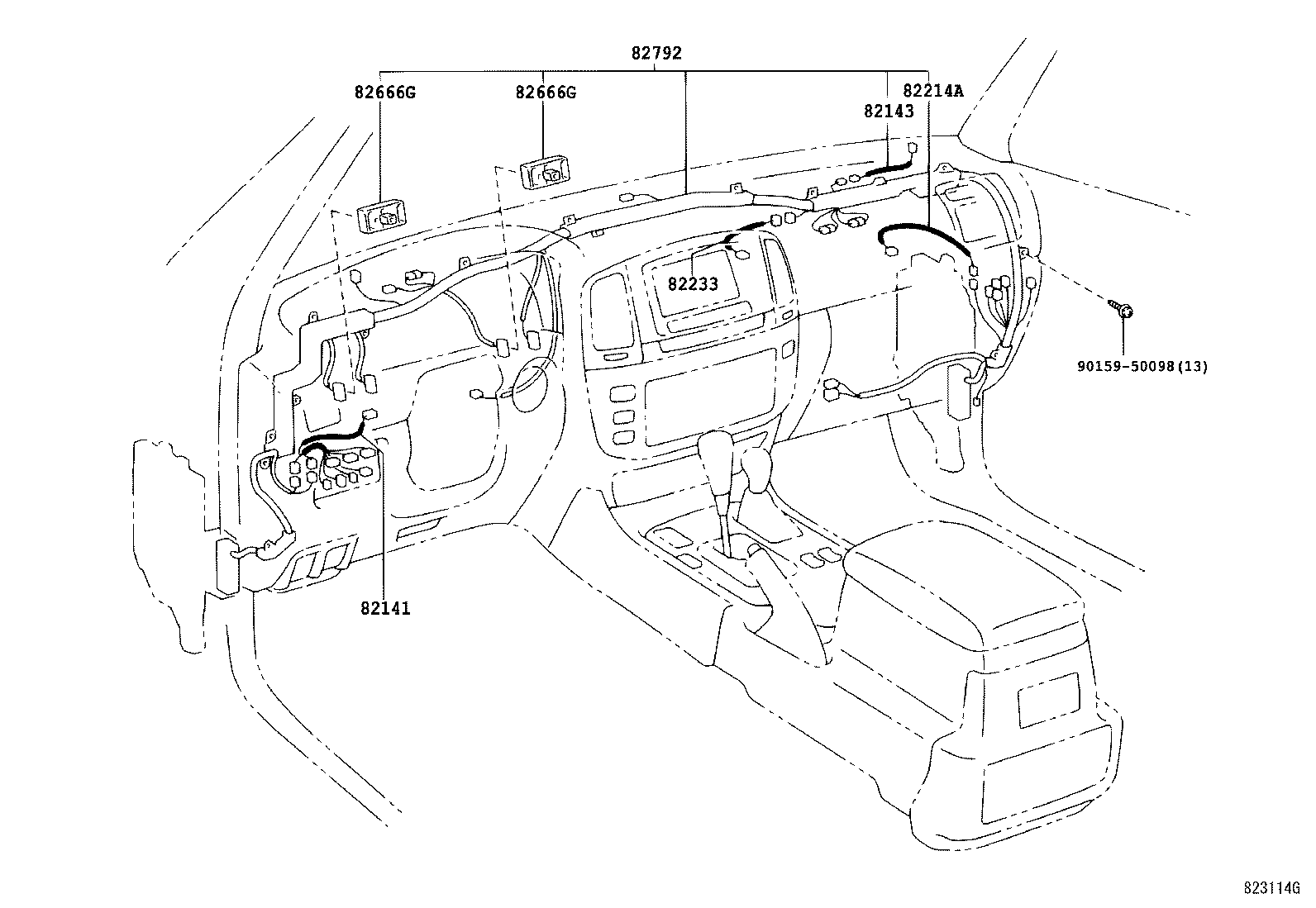

ILLUST NO. 4 OF10(0208- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60370 |
HDJ100,UZJ100..LHD LEATHER PACKAGE |
1 | ||
| 82141-60270 |
HDJ100,UZJ100..LHD |
1 | ||
| 82141-60272 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 82141-60372 |
HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
1 | ||
| 82141-60272 |
HDJ100,UZJ100..LHD |
1 | ||
| 82141-60372 |
HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60091 |
HDJ100,UZJ100..LHD..5FC |
1 | ||
| 82143-60091 |
HDJ100,UZJ100 |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60030 |
HDJ100,UZJ100 |
1 | ||
| 82214-60030 |
HDJ100,UZJ100 |
1 | ||
| 82214-60030 |
HDJ100,UZJ100..LHD..5FC |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-60011 |
HDJ100,UZJ100 |
1 | ||
| 82233-60011 |
HDJ100,UZJ100 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82792 - WIRE, INSTRUMENT PANEL INTEGRATION | ||||
| 82792-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60124 |
UZJ100..LHD |
1 | ||
| 82792-60125 |
UZJ100..LHD |
1 | ||
| 82792-60126 |
HDJ100,UZJ100..LHD W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82792-60127 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60126 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||

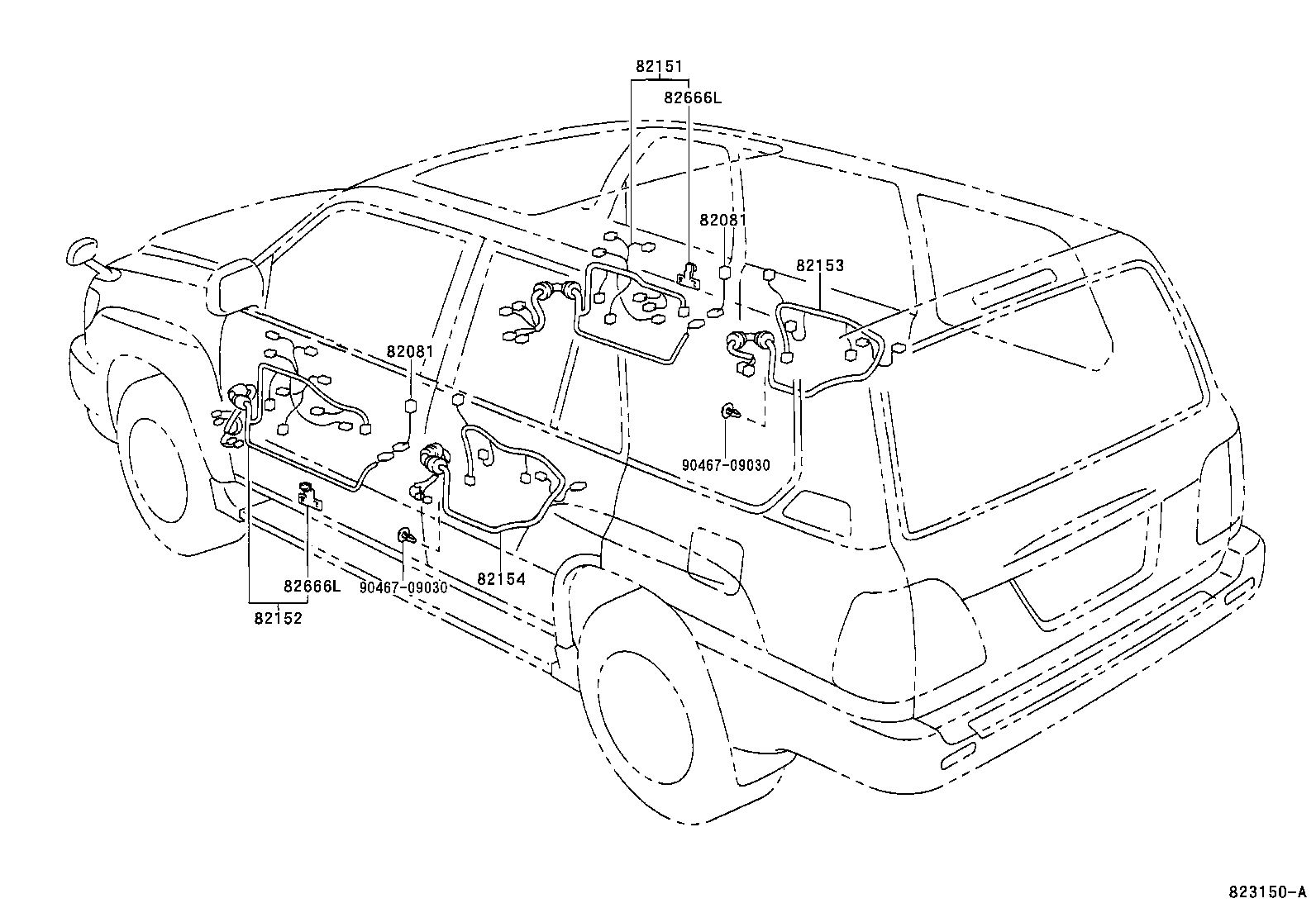

ILLUST NO. 5 OF10(0208- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60330 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60400 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82151-60343 |
HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
1 | ||
| 82151-60431 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60343 |
HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) |
1 | ||
| 82151-60431 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60330 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82152-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60333 |
HDJ100,UZJ100..LHD..VX W(MEMORY POWER SEAT) |
1 | ||
| 82152-60254 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60333 |
HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) |
1 | ||
| 82152-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60200 |
HDJ100,UZJ100..VX W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82153-60200 |
HDJ100,UZJ100 W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60200 |
HDJ100,UZJ100..VX W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-60200 |
HDJ100,UZJ100 W(POWER DOOR LOCK = DOUBLE LOCK) |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82505 - WIRING SUB-ASSY, FRONT DOOR, RH | ||||
| 82505-60050 |
HDJ100,UZJ100 |
1 | ||
| 82505-60050 |
HDJ100,UZJ100..VX |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90467-09030 | ||||

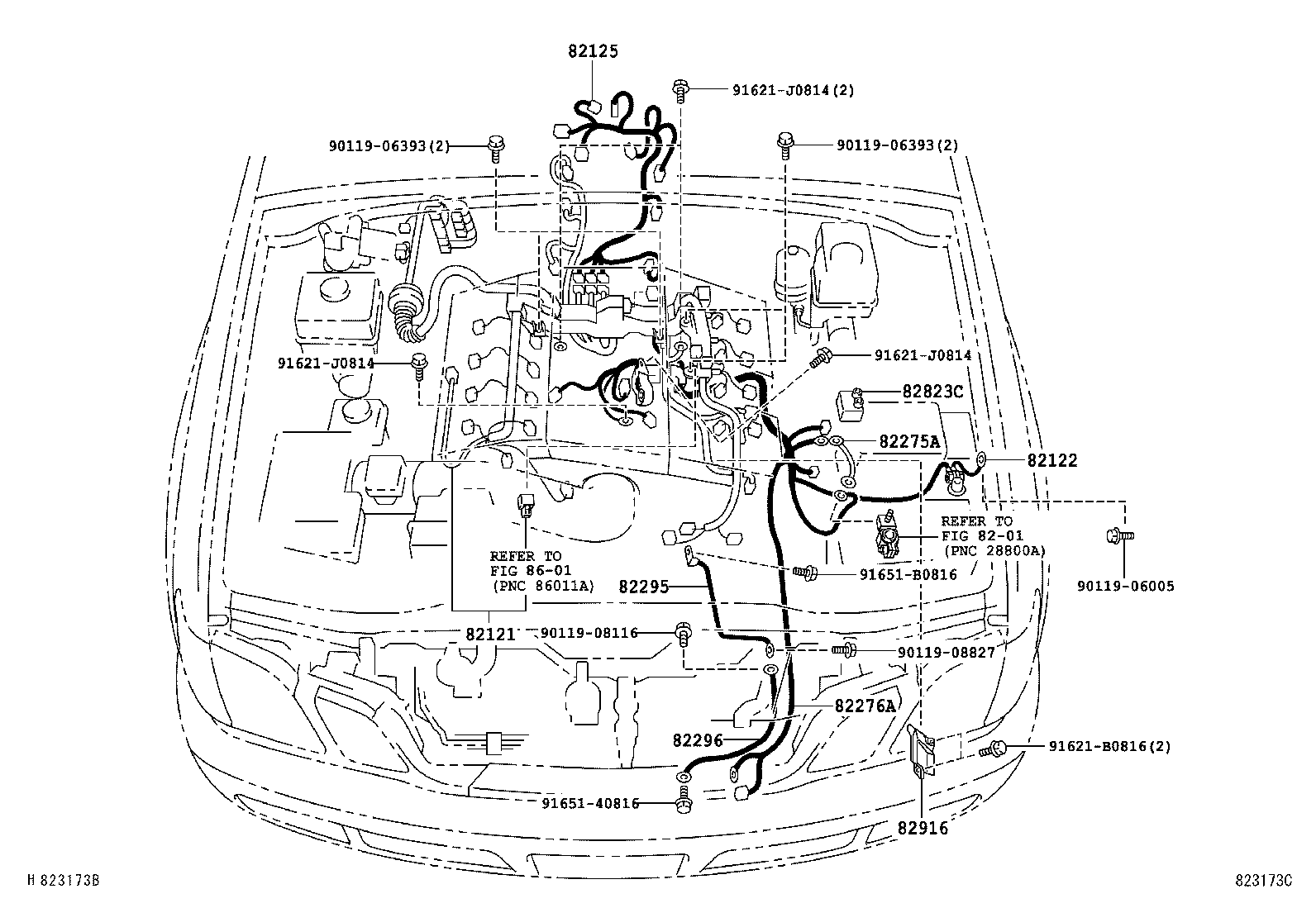

ILLUST NO. 2 OF10(0208- )UZJ100
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-6A010 |
UZJ100..LHD |
1 | ||
| 82121-60A10 |
UZJ100..LHD |
1 | ||
| 82121-6A303 |
UZJ100..LHD |
1 | ||
| 82121-6A303 |
UZJ100..LHD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60352 |
UZJ100 |
1 | ||
| 82122-60352 |
UZJ100 |
1 | ||
| 82122-60353 |
UZJ100 |
1 | ||
| 82122-60350 |
UZJ100 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60380 |
UZJ100 |
1 | ||
| 82125-60383 |
UZJ100 |
1 | ||
| 82125-60383 |
UZJ100 |
1 | ||
| 82125-60381 |
UZJ100 |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60100 |
UZJ100;HDJ100..5F |
1 | ||
| 82275-60100 |
UZJ100 |
1 | ||
| 82275-60100 |
UZJ100;HDJ100..5F |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60070 |
HDJ100,UZJ100 |
1 | ||
| 82276-60090 |
UZJ100 |
1 | ||
| 82276-60090 |
UZJ100 |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60020 |
UZJ100 |
1 | ||
| 82295-60020 |
UZJ100 |
1 | ||
| 82295-60020 |
UZJ100 |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60010 |
UZJ100;HDJ100..5F |
1 | ||
| 82296-60010 |
HDJ100,UZJ100 |
1 | ||
| 82296-60010 |
UZJ100;HDJ100..5F |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-90300 |
HDJ100,UZJ100 |
1 | ||
| 82823-90300 |
UZJ100;HDJ100..5F |
1 | ||
| 82823-90300 |
UZJ100;HDJ100..5F |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-60010 |
UZJ100 |
1 | ||
| 82916-60010 |
UZJ100 |
1 | ||
| 82916-60010 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06393 | ||||
| 90119-08116 | ||||
| 90119-08827 | ||||
| 91621-B0816 | ||||
| 91621-J0814 | ||||
| 91651-40816 | ||||
| 91651-B0816 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8601 | ||||
ILLUST NO. 3 OF10(0208- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82128 - WIRE, COLUMN | ||||
| 82128-60010 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60190 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82128-60110 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 82128-60103 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 82128-60113 |
UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX W(MEMORY POWER SEAT) |
1 | ||
| 82128-60014 |
UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY POWER SEAT) |
1 | ||
| 82128-60194 |
UZJ100..LHD;HDJ100..LHD..(4FC,5F)..VX DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82128-60015 |
HDJ100,UZJ100..LHD..VX W(DAY TIME RUNNING LIGHT SYSTEM & TILT & TELESCOPIC STEERING) |
1 | ||
| 82128-60195 |
HDJ100,UZJ100..LHD..VX W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82128-60015 |
HDJ100,UZJ100..LHD W(DAY TIME RUNNING LIGHT SYSTEM & TILT & TELESCOPIC STEERING) |
1 | ||
| 82128-60114 |
HDJ100,UZJ100..LHD W(TILT & TELESCOPIC STEERING) |
1 | ||
| 82128-60104 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 82128-60104 |
HDJ100,UZJ100..LHD |
1 | ||
| 82128-60114 |
HDJ100,UZJ100..LHD..VX W(TILT & TELESCOPIC STEERING) |
1 | ||
| 82128-60195 |
HDJ100,UZJ100..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-60030 |
UZJ100..LHD |
1 | ||
| 82136-60060 |
UZJ100..LHD W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82136-60065 |
UZJ100..LHD |
1 | ||
| 82136-6A030 |
UZJ100..LHD W(ELECTRO MULTI VISION) |
1 | ||
| 82136-60473 |
UZJ100..LHD W(AMPLIFIER) |
1 | ||
| 82136-60066 |
UZJ100..LHD |
1 | ||
| 82136-60474 |
UZJ100..LHD W(AMPLIFIER) |
1 | ||
| 82136-6A031 |
UZJ100..LHD W(ELECTRO MULTI VISION) |
1 | ||
| 82136-60067 |
UZJ100..LHD |
1 | ||
| 82136-60475 |
UZJ100..LHD W(7 SPEAKER) |
1 | ||
| 82136-60067 |
UZJ100..LHD |
1 | ||
| 82136-6A032 |
UZJ100..LHD W(EMV & 7 SPEAKER) |
1 | ||
| 82136-60476 |
UZJ100..LHD W(7 SPEAKER) |
1 | ||
| 82136-6A032 |
UZJ100..LHD W(7 SPEAKER & NAVIGATION SYSTEM) |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60020 |
HDJ100,UZJ100 |
1 | ||
| 82176-60060 |
HDJ100,UZJ100..VX W(REAR SEAT AUDIO) |
1 | ||
| 82176-60052 |
HDJ100,UZJ100 |
1 | ||
| 82176-60070 |
HDJ100,UZJ100 W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82176-60060 |
HDJ100,UZJ100 W(DUAL AUTO AIR CONDITIONER & REAR SEAT AUDIO) |
1 | ||
| 82176-60052 |
HDJ100,UZJ100 |
1 | ||
| 82176-60070 |
HDJ100,UZJ100..VX W/O(REAR SEAT AUDIO & REAR HEATER SWITCH) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF10(0208- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60121 |
HDJ100,UZJ100 |
1 | ||
| 82167-60121 |
HDJ100,UZJ100..VX |
1 | ||
| 82167-60120 |
HDJ100,UZJ100..VX |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-60121 |
HDJ100,UZJ100 |
1 | ||
| 82167-60121 |
HDJ100,UZJ100..VX |
1 | ||
| 82167-60120 |
HDJ100,UZJ100..VX |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60010 |
HDJ100,UZJ100..LHD..VX W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82191-60061 |
HDJ100,UZJ100..LHD..VX W(SEAT HEATER) |
1 | ||
| 82191-60060 |
HDJ100,UZJ100..LHD..VX W(SEAT HEATER) |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60011 |
HDJ100,UZJ100..LHD..VX W(POWER SEAT) |
1 | ||
| 82191-60011 |
HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) OR W(SEAT HEATER & MEMORY POWER SEAT) |
1 | ||
| 82191-60061 |
HDJ100,UZJ100..LHD W(SEAT HEATER) |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60010 |
HDJ100,UZJ100..LHD..VX W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82191-60061 |
HDJ100,UZJ100..LHD..VX W(SEAT HEATER) |
1 | ||
| 82191-60060 |
HDJ100,UZJ100..LHD..VX W(SEAT HEATER) |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60011 |
HDJ100,UZJ100..LHD..VX W(POWER SEAT) |
1 | ||
| 82191-60011 |
HDJ100,UZJ100..LHD W(MEMORY POWER SEAT) OR W(SEAT HEATER & MEMORY POWER SEAT) |
1 | ||
| 82191-60061 |
HDJ100,UZJ100..LHD W(SEAT HEATER) |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60030 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| 82192-60031 |
HDJ100,UZJ100..LHD |
1 | ||
| 82192-60050 |
HDJ100,UZJ100..LHD..VX W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82192-60031 |
HDJ100,UZJ100..LHD..VX |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(0208- )
ROOF,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-60021 |
HDJ100,UZJ100..VX |
1 | ||
| 82155-60022 |
HDJ100,UZJ100..VX |
1 | ||
| 82155-60022 |
HDJ100,UZJ100 |
1 | ||
| 82155-60010 |
HDJ100,UZJ100 |
1 | ||
| 82155-60040 |
HDJ100,UZJ100 W(NAVIGATION SYSTEM) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60540 |
HDJ100,UZJ100 |
1 | ||
| 82171-60542 |
HDJ100,UZJ100..VX |
1 | ||
| 82171-60620 |
HDJ100,UZJ100 W(SUN ROOF & OVERHEAD CONSOLE---SMALL TYPE) |
1 | ||
| 82171-6A270 |
HDJ100,UZJ100 W(MOON ROOF) |
1 | ||
| 82171-6A270 |
HDJ100,UZJ100..VX W(MOON ROOF) |
1 | ||
| 82171-60542 |
HDJ100,UZJ100 |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60110 |
HDJ100,UZJ100 |
1 | ||
| 82172-60110 |
HDJ100,UZJ100..VX |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60090 |
HDJ100,UZJ100..VX W(MOON ROOF) |
1 | ||
| 82173-60080 |
HDJ100,UZJ100..VX |
1 | ||
| 82173-60080 |
HDJ100,UZJ100 |
1 | ||
| 82173-60090 |
HDJ100,UZJ100 W(MOON ROOF) |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60040 |
HDJ100,UZJ100..VX |
2 | ||
| 82186-60040 |
HDJ100,UZJ100..VX |
2 | ||
| 82186-60040 |
HDJ100,UZJ100 |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60040 |
HDJ100,UZJ100..VX |
2 | ||
| 82186-60040 |
HDJ100,UZJ100..VX |
2 | ||
| 82186-60040 |
HDJ100,UZJ100 |
2 | ||
| 82188B - WIRE, BACK DOOR, UPPER | ||||
| 82188-60050 |
HDJ100,UZJ100..VX |
1 | ||
| 82188-60052 |
HDJ100,UZJ100 |
1 | ||
| 82188-60052 |
HDJ100,UZJ100..VX |
1 | ||
| 82188-60070 |
HDJ100,UZJ100 W(BACK MONITOR) |
1 | ||
| 82188-60051 |
HDJ100,UZJ100..VX |
1 | ||
| 82189A - WIRE, BACK DOOR, LOWER | ||||
| 82189-60032 |
HDJ100,UZJ100 |
1 | ||
| 82189-60030 |
HDJ100,UZJ100 |
1 | ||
| 82189-60032 |
HDJ100,UZJ100..VX |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-60440 |
HDJ100,UZJ100 |
1 | ||
| 82817-60440 |
HDJ100,UZJ100..VX |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-60450 |
HDJ100,UZJ100 |
1 | ||
| 82817-60450 |
HDJ100,UZJ100..VX |
1 | ||
| Common parts | ||||
| 90119-06838 | ||||
ILLUST NO. 1 OF10(0208- )UZJ100
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A060 |
UZJ100 |
1 | ||
| 82111-6A074 |
UZJ100 W(DUAL AIR CONDITIONER) |
1 | ||
| 82111-6A075 |
UZJ100 W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82111-6A062 |
UZJ100 W(SINGLE AIR CONDITIONER) |
1 | ||
| 82111-6A076 |
UZJ100 W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82111-6A063 |
UZJ100 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60130 |
UZJ100..LHD |
1 | ||
| 82112-60134 |
UZJ100..LHD W(ABS) |
1 | ||
| 82112-60444 |
UZJ100..LHD CHINA OR RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(VSC) |
1 | ||
| 82112-60434 |
UZJ100..LHD CHINA OR RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(ABS) |
1 | ||
| 82112-60135 |
UZJ100..LHD W(ABS) |
1 | ||
| 82112-60394 |
UZJ100..LHD W(VSC) |
1 | ||
| 82112-60435 |
UZJ100..LHD RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(ABS) |
1 | ||
| 82112-60393 |
UZJ100..LHD W(VSC) |
1 | ||
| 82112-60136 |
UZJ100..LHD |
1 | ||
| 82112-60436 |
UZJ100..LHD COSTA RICA OR RUSSIA OR SOUTH AFRICA SPEC |
1 | ||
| 82112-60445 |
UZJ100..LHD COSTA RICA SPEC & W(VSC) OR RUSSIA SPEC & W(VSC) OR SOUTH AMERICA SPEC & W(VSC) |
1 | ||
| 82112-60136 |
UZJ100..LHD |
1 | ||
| 82112-60445 |
UZJ100..LHD RUSSIA SPEC & W(VSC) OR SOUTH AFRICA SPEC & W(VSC);CHINA SPEC & W(VSC) OR COSTA RICA SPEC & W(VSC) |
1 | ||
| 82112-60436 |
UZJ100..LHD COSTA RICA OR RUSSIA OR SOUTH AMERICA SPEC |
1 | ||
| 82112-60394 |
UZJ100..LHD W(VSC) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60060 |
HDJ100,UZJ100 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60060 |
UZJ100 |
1 | ||
| 82261-60141 |
UZJ100 |
1 | ||
| 82261-60061 |
UZJ100 |
1 | ||
| 82261-60142 |
UZJ100 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
HDJ100,UZJ100..5FC |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 90119-06005 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(0208- )
FLOOR,LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-6A382 |
HDJ100,UZJ100..(5F,5FC)..VX W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82161-60660 |
HDJ100,UZJ100 |
1 | ||
| 82161-60664 |
HDJ100,UZJ100 |
1 | ||
| 82161-60665 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82161-6A380 |
HDJ100,UZJ100..VX W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82161-60666 |
HDJ100,UZJ100 |
1 | ||
| 82161-6A381 |
HDJ100,UZJ100..VX W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82161-6A384 |
HDJ100,UZJ100 W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82161-6A383 |
HDJ100,UZJ100..VX W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60480 |
HDJ100,UZJ100 |
1 | ||
| 82162-60483 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82162-60514 |
HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82162-60615 |
HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER & DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82162-60494 |
HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER) |
1 | ||
| 82162-6A330 |
HDJ100,UZJ100..(5F,5FC)..VX W(SIDE AIR BAG) |
1 | ||
| 82162-6A440 |
UZJ100..LHD;HDJ100..LHD..5F..VX W(NAVIGATION SYSTEM) |
1 | ||
| 82162-6A340 |
HDJ100,UZJ100..(5F,5FC)..VX W(AMPLIFIER & SIDE AIR BAG) |
1 | ||
| 82162-6A450 |
UZJ100..LHD;HDJ100..LHD..5F..VX W(DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM) |
1 | ||
| 82162-6A370 |
HDJ100,UZJ100..(5F,5FC)..VX W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
1 | ||
| 82162-6A380 |
UZJ100;HDJ100..5F..VX W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG & AMPLIFIER) |
1 | ||
| 82162-60484 |
HDJ100,UZJ100 |
1 | ||
| 82162-60495 |
HDJ100,UZJ100..VX W(AMPLIFIER) |
1 | ||
| 82162-6A341 |
HDJ100,UZJ100..VX W(AMPLIFIER & SIDE AIR BAG) |
1 | ||
| 82162-6A371 |
HDJ100,UZJ100..VX W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
1 | ||
| 82162-6A441 |
HDJ100,UZJ100..LHD..VX W(AMPLIFIER & NAVIGATION SYSTEM & SIDE AIR BAG) |
1 | ||
| 82162-6A451 |
HDJ100,UZJ100..LHD..VX W(AMPLIFIER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
1 | ||
| 82162-60495 |
HDJ100,UZJ100 W(7 SPEAKER) |
1 | ||
| 82162-60515 |
HDJ100,UZJ100..VX W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82162-60484 |
HDJ100,UZJ100 |
1 | ||
| 82162-6A331 |
HDJ100,UZJ100..VX W(SIDE AIR BAG) |
1 | ||
| 82162-60616 |
HDJ100,UZJ100..VX W(AMPLIFIER & DUAL AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82162-6A381 |
HDJ100,UZJ100..VX W(AMPLIFIER & DUAL AIR CONDITIONER & SIDE AIR BAG) |
1 | ||
| 82162-60515 |
HDJ100,UZJ100 W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82162-6A331 |
HDJ100,UZJ100 W(SIDE AIR BAG) |
1 | ||
| 82162-6A341 |
HDJ100,UZJ100 W(7 SPEAKER & SIDE AIR BAG) |
1 | ||
| 82162-60616 |
HDJ100,UZJ100 W(7 SPEAKER & DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82162-6A381 |
HDJ100,UZJ100 W(7 SPEAKER & DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
1 | ||
| 82162-6A453 |
HDJ100,UZJ100..LHD W(7 SPEAKER & DUAL AUTO AIR CONDITIONER & NAVIGATION SYSTEM & SIDE AIR BAG) |
1 | ||
| 82162-6A371 |
HDJ100,UZJ100 W(DUAL AUTO AIR CONDITIONER & SIDE AIR BAG) |
1 | ||
| 82162-6A441 |
HDJ100,UZJ100..LHD W(7 SPEAKER & NAVIGATION SYSTEM & SIDE AIR BAG) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60260 |
HDJ100,UZJ100..LHD W(TEMS) |
1 | ||
| 82163-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60324 |
HDJ100,UZJ100..LHD..(5F,5FC)..VX W(AHC & REAR HEATER) |
1 | ||
| 82163-60252 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60262 |
UZJ100..LHD;HDJ100..LHD..5F..VX W(AHC) |
1 | ||
| 82163-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60325 |
HDJ100,UZJ100..LHD..VX W(AHC & REAR HEATER) |
1 | ||
| 82163-60253 |
HDJ100,UZJ100..LHD W/O(AHC) & W(DUAL AUTO AIR CONDITIONER) OR W/O(AHC) |
1 | ||
| 82163-60264 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60263 |
HDJ100,UZJ100..LHD..VX W(AHC) |
1 | ||
| 82163-60326 |
HDJ100,UZJ100..LHD W(DUAL AUTO AIR CONDITIONER) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60170 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100 |
1 | ||
| 82164-60200 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK & TEMS) |
1 | ||
| 82164-60190 |
HDJ100,UZJ100..VX W(TEMS) |
1 | ||
| 82164-60191 |
HDJ100,UZJ100 W(AHC) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82164-60202 |
HDJ100,UZJ100..(5F,5FC)..VX W(REAR DIFFERENTIAL LOCK & AHC & ABS) |
1 | ||
| 82164-60171 |
HDJ100,UZJ100..5FC W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100 |
1 | ||
| 82164-60191 |
HDJ100,UZJ100..(5F,5FC)..VX W(ABS & AHC) |
1 | ||
| 82164-60171 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60202 |
HDJ100,UZJ100 W(AHC & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60192 |
HDJ100,UZJ100 W(AHC) |
1 | ||
| 82164-60203 |
HDJ100,UZJ100 W(AHC & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60130 |
HDJ100,UZJ100 |
1 | ||
| 82165-60131 |
HDJ100,UZJ100..VX |
1 | ||
| 82165-60131 |
HDJ100,UZJ100 |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60040 |
HDJ100,UZJ100..VX |
1 | ||
| 82169-60040 |
HDJ100,UZJ100..VX |
1 | ||
| 82169-60040 |
HDJ100,UZJ100 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-60010 |
HDJ100,UZJ100 |
1 | ||
| 82413-60011 |
HDJ100,UZJ100 |
1 | ||
| 82413-60011 |
HDJ100,UZJ100 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..VX NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60160 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..VX NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60030 |
UZJ100;HDJ100..RHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 82666-60270 |
UZJ100;HDJ100..RHD..5F NO.1 |
1 | ||
| 82666-60270 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60030 |
UZJ100;HDJ100..RHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 82666-60270 |
UZJ100;HDJ100..RHD..5F NO.1 |
1 | ||
| 82666-60270 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100,UZJ100..VX NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60060 |
HDJ100,UZJ100..(5F,5FC)..VX |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100..VX NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 & NO.4 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.2 & NO.5 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82712-60150 | ||||
| 90119-06005 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
