Toyota Land cruiser 100 UZJ100 ENGINE OIL PUMP

UZJ100L-GNAEKW (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007

Engine 2UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(0208-0505)

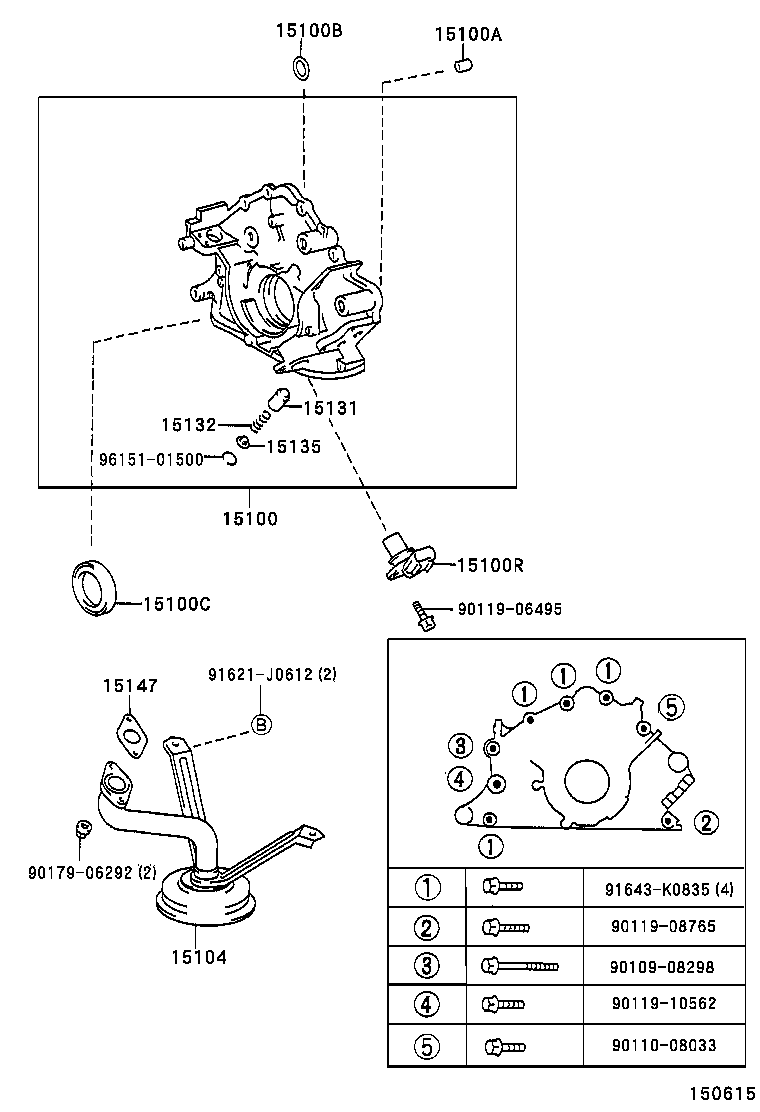

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-50050	2UZFE..UZJ100	01/1998 - 08/2002	1
15100-50050	2UZFE..UZJ100	05/2005 - 12/2999	1
15100-50050	2UZFE..UZJ100	08/2002 - 05/2005	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017	2UZFE..UZJ100	05/2005 - 12/2999	2
90253-13017	2UZFE..UZJ100	08/2002 - 05/2005	2
90253-13017	2UZFE..UZJ100	01/1998 - 08/2002	2
15100B - RING, O(FOR OIL PUMP)
96721-24025	2UZFE..UZJ100	01/1998 - 08/2002	1
96721-24025	2UZFE..UZJ100	05/2005 - 12/2999	1
96721-24025	2UZFE..UZJ100	08/2002 - 05/2005	1
15100C - SEAL(FOR OIL PUMP)
90311-43006	2UZFE..UZJ100	08/2002 - 05/2005	1
90311-43006	2UZFE..UZJ100	01/1998 - 08/2002	1
90311-43006	2UZFE..UZJ100	05/2005 - 12/2999	1
15100R - SENSOR, CRANK POSITION
90919-05035	2UZFE..UZJ100	05/2005 - 12/2999	1
90919-05035	2UZFE..UZJ100	01/1998 - 08/2002	1
90919-05035	2UZFE..UZJ100	08/2002 - 05/2005	1
15104 - STRAINER SUB-ASSY, OIL
15104-50160	2UZFE..UZJ100	01/1998 - 08/2002	1
15104-50160	2UZFE..UZJ100	05/2005 - 12/2999	1
15104-50160	2UZFE..UZJ100	08/2002 - 05/2005	1
15131 - VALVE, OIL PUMP RELIEF
15131-24010	2UZFE..UZJ100	01/1998 - 08/2002	1
15131-24010	2UZFE..UZJ100	08/2002 - 05/2005	1
15131-24010	2UZFE..UZJ100	05/2005 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010	2UZFE..UZJ100	01/1998 - 08/2002	1
15132-62010	2UZFE..UZJ100	08/2002 - 05/2005	1
15132-62010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010	2UZFE..UZJ100	08/2002 - 05/2005	1
15135-15010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135-15010	2UZFE..UZJ100	01/1998 - 08/2002	1
15147 - GASKET, OIL STRAINER
15147-50011	2UZFE..UZJ100	05/2005 - 12/2999	1
15147-50011	2UZFE..UZJ100	08/2002 - 05/2005	1
15147-50011	2UZFE..UZJ100	01/1998 - 08/2002	1
Common parts
90109-08298
90110-08033
90119-06495
90119-08765
90119-10562
90179-06292
91621-J0612
91643-K0835
96151-01500

(0505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90109-08298
90110-08033
90119-06495
90119-08765
90119-10562
90179-06292
91621-J0612
91643-K0835

(0208-0505)2UZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-50050	2UZFE..UZJ100	01/1998 - 08/2002	1
15100-50050	2UZFE..UZJ100	05/2005 - 12/2999	1
15100-50050	2UZFE..UZJ100	08/2002 - 05/2005	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017	2UZFE..UZJ100	05/2005 - 12/2999	2
90253-13017	2UZFE..UZJ100	08/2002 - 05/2005	2
90253-13017	2UZFE..UZJ100	01/1998 - 08/2002	2
15100B - RING, O(FOR OIL PUMP)
96721-24025	2UZFE..UZJ100	01/1998 - 08/2002	1
96721-24025	2UZFE..UZJ100	05/2005 - 12/2999	1
96721-24025	2UZFE..UZJ100	08/2002 - 05/2005	1
15100C - SEAL(FOR OIL PUMP)
90311-43006	2UZFE..UZJ100	08/2002 - 05/2005	1
90311-43006	2UZFE..UZJ100	01/1998 - 08/2002	1
90311-43006	2UZFE..UZJ100	05/2005 - 12/2999	1
15100R - SENSOR, CRANK POSITION
90919-05035	2UZFE..UZJ100	05/2005 - 12/2999	1
90919-05035	2UZFE..UZJ100	01/1998 - 08/2002	1
90919-05035	2UZFE..UZJ100	08/2002 - 05/2005	1
15104 - STRAINER SUB-ASSY, OIL
15104-50160	2UZFE..UZJ100	01/1998 - 08/2002	1
15104-50160	2UZFE..UZJ100	05/2005 - 12/2999	1
15104-50160	2UZFE..UZJ100	08/2002 - 05/2005	1
15131 - VALVE, OIL PUMP RELIEF
15131-24010	2UZFE..UZJ100	01/1998 - 08/2002	1
15131-24010	2UZFE..UZJ100	08/2002 - 05/2005	1
15131-24010	2UZFE..UZJ100	05/2005 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010	2UZFE..UZJ100	01/1998 - 08/2002	1
15132-62010	2UZFE..UZJ100	08/2002 - 05/2005	1
15132-62010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010	2UZFE..UZJ100	08/2002 - 05/2005	1
15135-15010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135-15010	2UZFE..UZJ100	01/1998 - 08/2002	1
15147 - GASKET, OIL STRAINER
15147-50011	2UZFE..UZJ100	05/2005 - 12/2999	1
15147-50011	2UZFE..UZJ100	08/2002 - 05/2005	1
15147-50011	2UZFE..UZJ100	01/1998 - 08/2002	1
Common parts
90109-08298
90110-08033
90119-06495
90119-08765
90119-10562
90179-06292
91621-J0612
91643-K0835
96151-01500

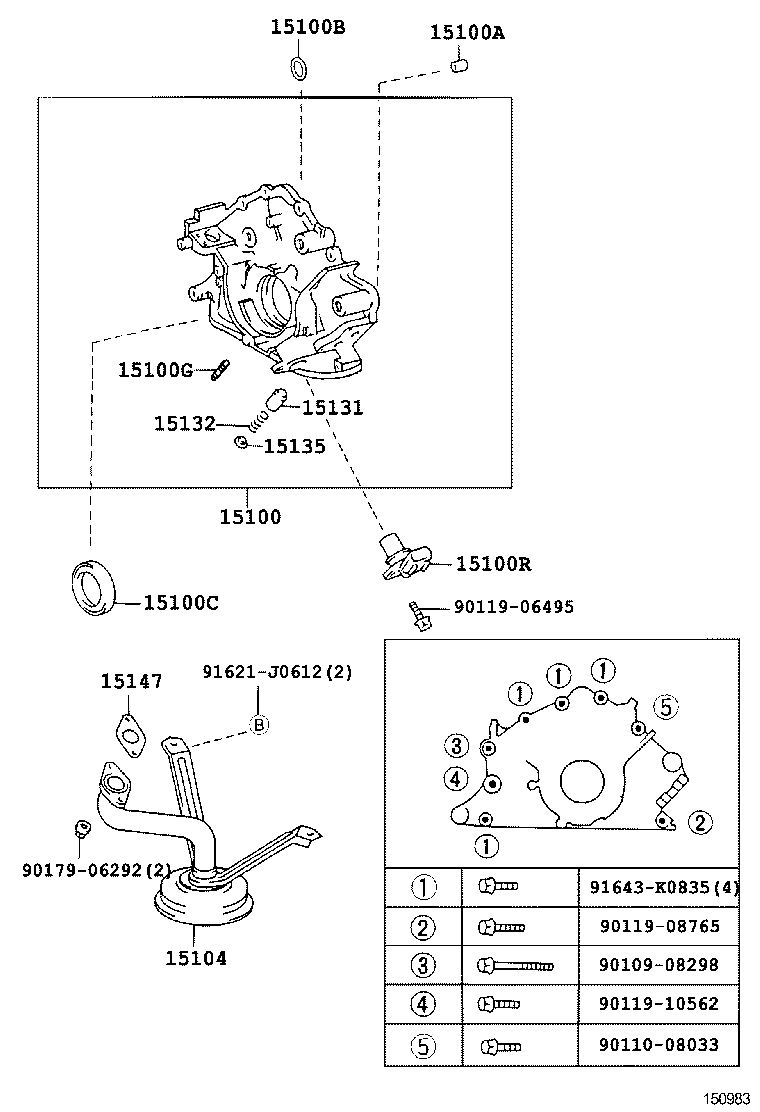

(0505- )2UZFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
15100 - PUMP ASSY, OIL
15100-50050	2UZFE..UZJ100	01/1998 - 08/2002	1
15100-50050	2UZFE..UZJ100	05/2005 - 12/2999	1
15100-50050	2UZFE..UZJ100	08/2002 - 05/2005	1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017	2UZFE..UZJ100	05/2005 - 12/2999	2
90253-13017	2UZFE..UZJ100	08/2002 - 05/2005	2
90253-13017	2UZFE..UZJ100	01/1998 - 08/2002	2
15100B - RING, O(FOR OIL PUMP)
96721-24025	2UZFE..UZJ100	01/1998 - 08/2002	1
96721-24025	2UZFE..UZJ100	05/2005 - 12/2999	1
96721-24025	2UZFE..UZJ100	08/2002 - 05/2005	1
15100C - SEAL(FOR OIL PUMP)
90311-43006	2UZFE..UZJ100	08/2002 - 05/2005	1
90311-43006	2UZFE..UZJ100	01/1998 - 08/2002	1
90311-43006	2UZFE..UZJ100	05/2005 - 12/2999	1
15100G - BOLT,STUD(FOR OIL PUMP)
16193-15010	2UZFE..UZJ100	01/1998 - 08/2002	2
16193-15010	2UZFE..UZJ100	05/2005 - 12/2999	2
15100R - SENSOR, CRANK POSITION
90919-05035	2UZFE..UZJ100	05/2005 - 12/2999	1
90919-05035	2UZFE..UZJ100	01/1998 - 08/2002	1
90919-05035	2UZFE..UZJ100	08/2002 - 05/2005	1
15104 - STRAINER SUB-ASSY, OIL
15104-50160	2UZFE..UZJ100	01/1998 - 08/2002	1
15104-50160	2UZFE..UZJ100	05/2005 - 12/2999	1
15104-50160	2UZFE..UZJ100	08/2002 - 05/2005	1
15131 - VALVE, OIL PUMP RELIEF
15131-24010	2UZFE..UZJ100	01/1998 - 08/2002	1
15131-24010	2UZFE..UZJ100	08/2002 - 05/2005	1
15131-24010	2UZFE..UZJ100	05/2005 - 12/2999	1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-62010	2UZFE..UZJ100	01/1998 - 08/2002	1
15132-62010	2UZFE..UZJ100	08/2002 - 05/2005	1
15132-62010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15135-15010	2UZFE..UZJ100	08/2002 - 05/2005	1
15135-15010	2UZFE..UZJ100	05/2005 - 12/2999	1
15135-15010	2UZFE..UZJ100	01/1998 - 08/2002	1
15147 - GASKET, OIL STRAINER
15147-50011	2UZFE..UZJ100	05/2005 - 12/2999	1
15147-50011	2UZFE..UZJ100	08/2002 - 05/2005	1
15147-50011	2UZFE..UZJ100	01/1998 - 08/2002	1
Common parts
90109-08298
90110-08033
90119-06495
90119-08765
90119-10562
90179-06292
91621-J0612
91643-K0835
