Toyota Land cruiser 100 UZJ100 RADIO RECEIVER & AMPLIFIER & CONDENSER

Manufacturers Home
Toyota
EU
LAND CRUISER 100
UZJ100L-GNAEKA (2002)
8601 - RADIO RECEIVER & AMPLIFIER & CONDENSER

UZJ100L-GNAEKA (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007

Engine 2UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

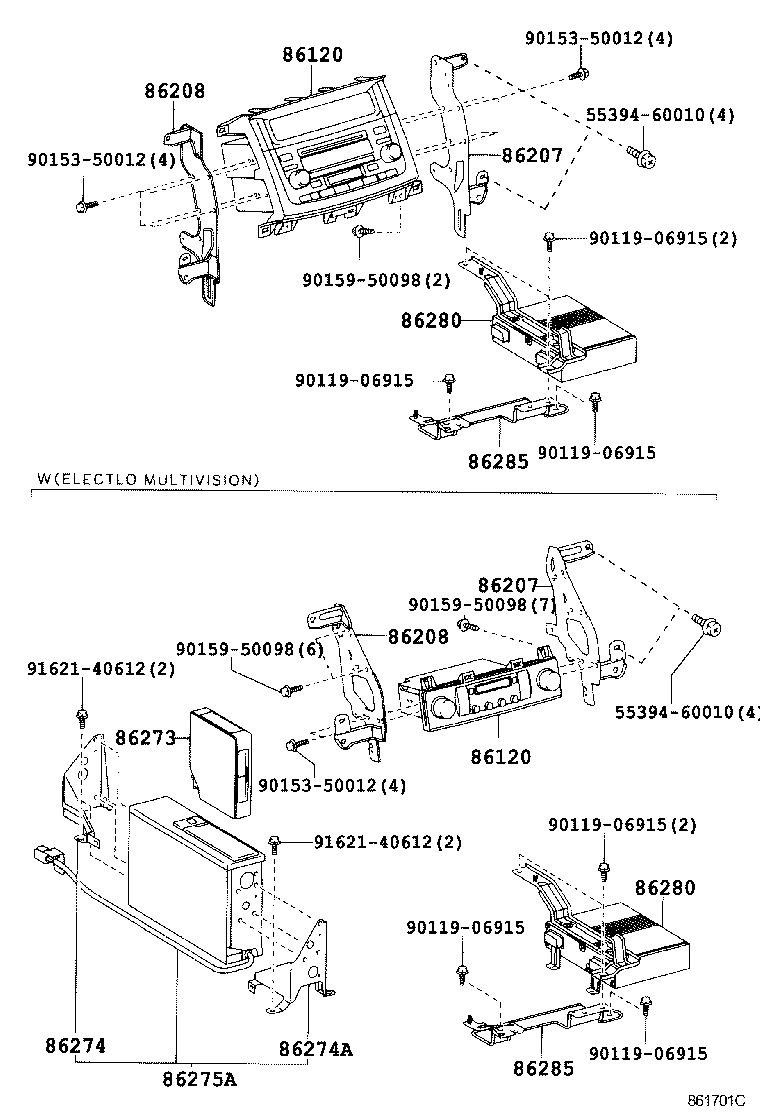

ILLUST NO. 1 OF 4(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86120 - RECEIVER ASSY, RADIO
86120-35170	UZJ100 MATSUSHITA, ID=56808	01/1998 - 07/1999	1
86120-60591	UZJ100 PIONEER,ID=P3843,TYPE D:REFER TO ILLUSTRATION	01/2003 - 08/2003	1
86120-60593	UZJ100 PIONEER,ID=P6855,TYPE D:REFER TO ILLUSTRATION	07/2004 - 05/2005	1
86120-60603	UZJ100 PIONEER,ID=P1757,TYPE E:REFER ILLUST.	05/2005 - 12/2999	1
86120-60592	UZJ100 PIONEER,ID=P6844,TYPE D:REFER TO ILLUSTRATION	08/2003 - 07/2004	1
86120-60602	UZJ100 PIONEER,ID=P1749,TYPE E:REFER TO ILLUSTRATION	08/2003 - 07/2004	1
86120-60593	UZJ100 PIONEER,ID=P6855,TYPE D:REFER ILLUST.	05/2005 - 12/2999	1
86120-60590	UZJ100 PIONEER,ID=P6825	08/2002 - 01/2003	1
86120-60603	UZJ100 PIONEER,ID=P1757,TYPE E:REFER TO ILLUSTRATION	07/2004 - 05/2005	1
86120-60601	UZJ100 PIONEER,ID=P1748,TYPE E:REFER TO ILLUSTRATION	01/2003 - 08/2003	1
86120-60600	UZJ100 PIONEER,ID=P1734,W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 01/2003	1
86120 - RECEIVER ASSY, RADIO
86120-35170	UZJ100 MATSUSHITA, ID=56808	01/1998 - 07/1999	1
86120-60591	UZJ100 PIONEER,ID=P3843,TYPE D:REFER TO ILLUSTRATION	01/2003 - 08/2003	1
86120-60593	UZJ100 PIONEER,ID=P6855,TYPE D:REFER TO ILLUSTRATION	07/2004 - 05/2005	1
86120-60603	UZJ100 PIONEER,ID=P1757,TYPE E:REFER ILLUST.	05/2005 - 12/2999	1
86120-60592	UZJ100 PIONEER,ID=P6844,TYPE D:REFER TO ILLUSTRATION	08/2003 - 07/2004	1
86120-60602	UZJ100 PIONEER,ID=P1749,TYPE E:REFER TO ILLUSTRATION	08/2003 - 07/2004	1
86120-60593	UZJ100 PIONEER,ID=P6855,TYPE D:REFER ILLUST.	05/2005 - 12/2999	1
86120-60590	UZJ100 PIONEER,ID=P6825	08/2002 - 01/2003	1
86120-60603	UZJ100 PIONEER,ID=P1757,TYPE E:REFER TO ILLUSTRATION	07/2004 - 05/2005	1
86120-60601	UZJ100 PIONEER,ID=P1748,TYPE E:REFER TO ILLUSTRATION	01/2003 - 08/2003	1
86120-60600	UZJ100 PIONEER,ID=P1734,W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 01/2003	1
86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH
86207-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2003 - 05/2005	1
86207-60030	UZJ100	08/2002 - 05/2005	1
86207-60030	UZJ100	05/2005 - 12/2999	1
86207-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	05/2005 - 12/2999	1
86207-60040	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 08/2003	1
86207 - BRACKET SUB-ASSY, RADIO RECEIVER, RH
86207-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2003 - 05/2005	1
86207-60030	UZJ100	08/2002 - 05/2005	1
86207-60030	UZJ100	05/2005 - 12/2999	1
86207-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	05/2005 - 12/2999	1
86207-60040	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 08/2003	1
86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH
86208-60030	UZJ100	08/2002 - 05/2005	1
86208-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2003 - 05/2005	1
86208-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	05/2005 - 12/2999	1
86208-60040	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 08/2003	1
86208-60030	UZJ100	05/2005 - 12/2999	1
86208 - BRACKET SUB-ASSY, RADIO RECEIVER, LH
86208-60030	UZJ100	08/2002 - 05/2005	1
86208-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2003 - 05/2005	1
86208-60041	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	05/2005 - 12/2999	1
86208-60040	UZJ100 W(ELECTRO MULTI VISION, NAVIGATION SYSTEM)	08/2002 - 08/2003	1
86208-60030	UZJ100	05/2005 - 12/2999	1
86273 - MAGAZINE, DISC PLAYER
86273-50070	UZJ100	08/2002 - 07/2004	1
86273-60050	UZJ100	05/2005 - 12/2999	1
86273-60050	UZJ100	07/2004 - 05/2005	1
86274 - BRACKET, DISC PLAYER
86274-60080	UZJ100	08/2002 - 05/2005	1
86274-60080	UZJ100	05/2005 - 12/2999	1
86274A - BRACKET, DISC PLAYER
86274-60090	UZJ100	08/2002 - 05/2005	1
86274-60090	UZJ100	05/2005 - 12/2999	1
86275A - CHANGER, DISC PLAYER
86270-60110	UZJ100	08/2002 - 01/2003	1
86270-60111	UZJ100	01/2003 - 08/2003	1
86270-60113	UZJ100	07/2004 - 05/2005	1
86270-60112	UZJ100	08/2003 - 07/2004	1
86270-60114	UZJ100	05/2005 - 12/2999	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W061	UZJ100	08/2002 - 05/2005	1
86280-60210	UZJ100	01/1998 - 08/2000	1
86280-0W061	UZJ100	05/2005 - 12/2999	1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0W061	UZJ100	08/2002 - 05/2005	1
86280-60210	UZJ100	01/1998 - 08/2000	1
86280-0W061	UZJ100	05/2005 - 12/2999	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60020	UZJ100	08/2002 - 08/2003	1
86285-60021	UZJ100	08/2003 - 05/2005	1
86285-60021	UZJ100	05/2005 - 12/2999	1
86285 - BRACKET, AMPLIFIER, NO.1
86285-60020	UZJ100	08/2002 - 08/2003	1
86285-60021	UZJ100	08/2003 - 05/2005	1
86285-60021	UZJ100	05/2005 - 12/2999	1
Common parts
55394-60010
90119-06915
90153-50012
90159-50098
91621-40612

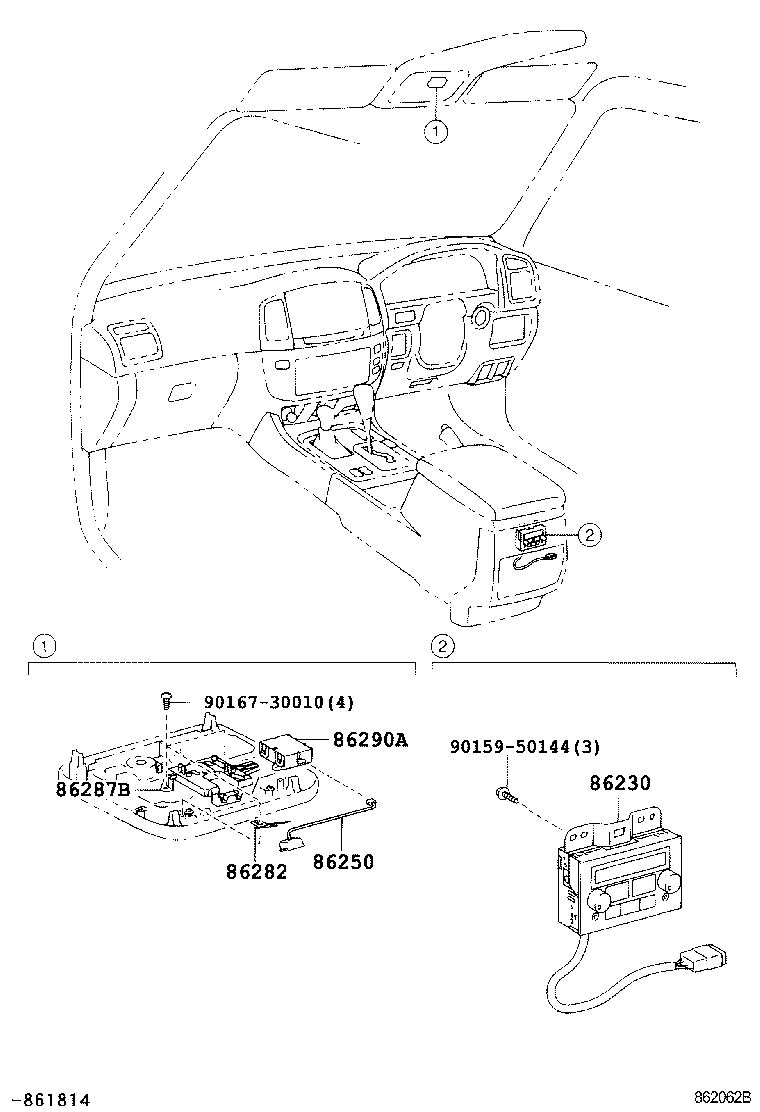

ILLUST NO. 3 OF 4(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
86230 - CONTROLLER ASSY, STEREO COMPONENT
86230-60010	UZJ100	08/2002 - 06/2003	1
86230-60012	UZJ100	07/2004 - 05/2005	1
86230-60011	UZJ100	06/2003 - 07/2004	1
86230-60013	UZJ100	05/2005 - 12/2999	1
86250 - MICROPHONE ASSY, AMPLIFIER
86250-60040	UZJ100	08/2002 - 05/2003	1
86250-60060	UZJ100	05/2003 - 05/2005	1
86250-60060	UZJ100	05/2005 - 08/2007	1
86282 - BRACKET, MICROPHONE
86282-60010	UZJ100	05/2005 - 08/2007	1
86282-60010	UZJ100	08/2002 - 05/2005	1
86287B - COVER, AMPLIFIER
86287-60040	UZJ100	05/2005 - 08/2007	1
86287-60040	UZJ100	08/2002 - 05/2005	1
86290A - AMPLIFIER ASSY, MICROPHONE
86290-47010	UZJ100	05/2005 - 08/2007	1
86290-60010	UZJ100	08/2002 - 05/2003	1
86290-47010	UZJ100	05/2003 - 05/2005	1
Common parts
90159-50144
90167-30010

ILLUST NO. 1 OF 4(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
55394-60010
90119-06915
90153-50012
90159-50098
91621-40612

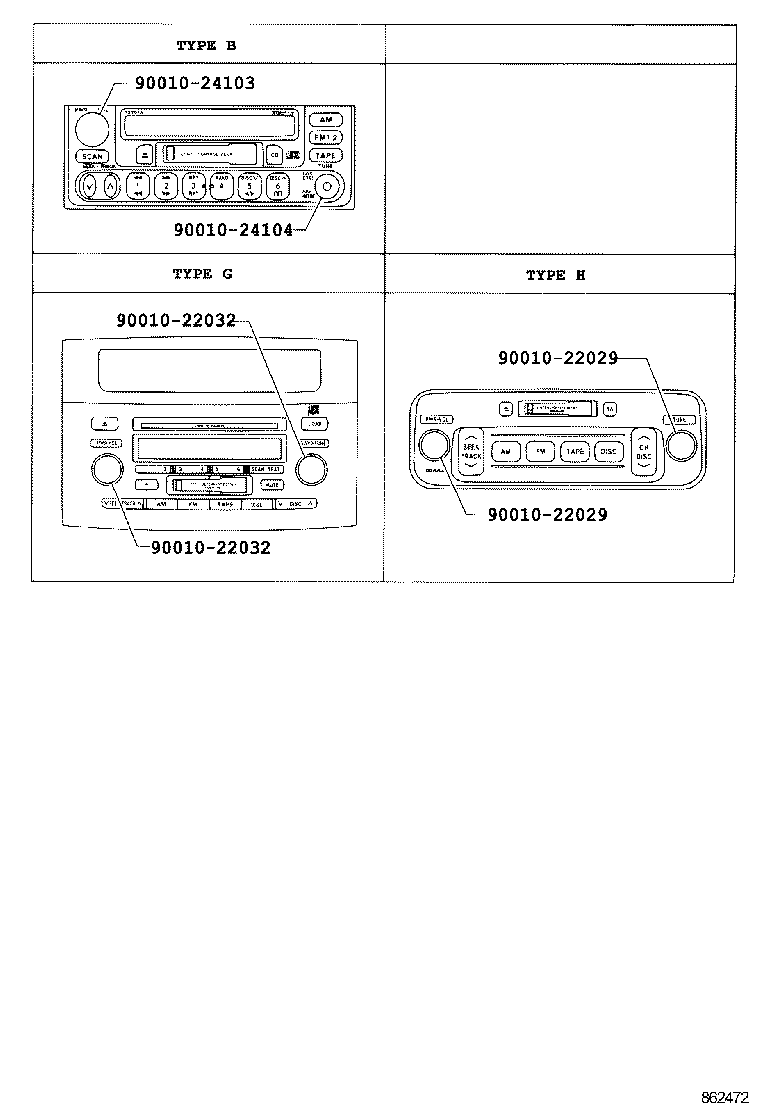

ILLUST NO. 2 OF 4(0208-0505)

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90010-22029
90010-22031
90010-22032
90010-24103
90010-24104

ILLUST NO. 3 OF 4(0208- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90159-50144
90167-30010

ILLUST NO. 2 OF 4(0505- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90010-22029
90010-22032
90010-24103
90010-24104
