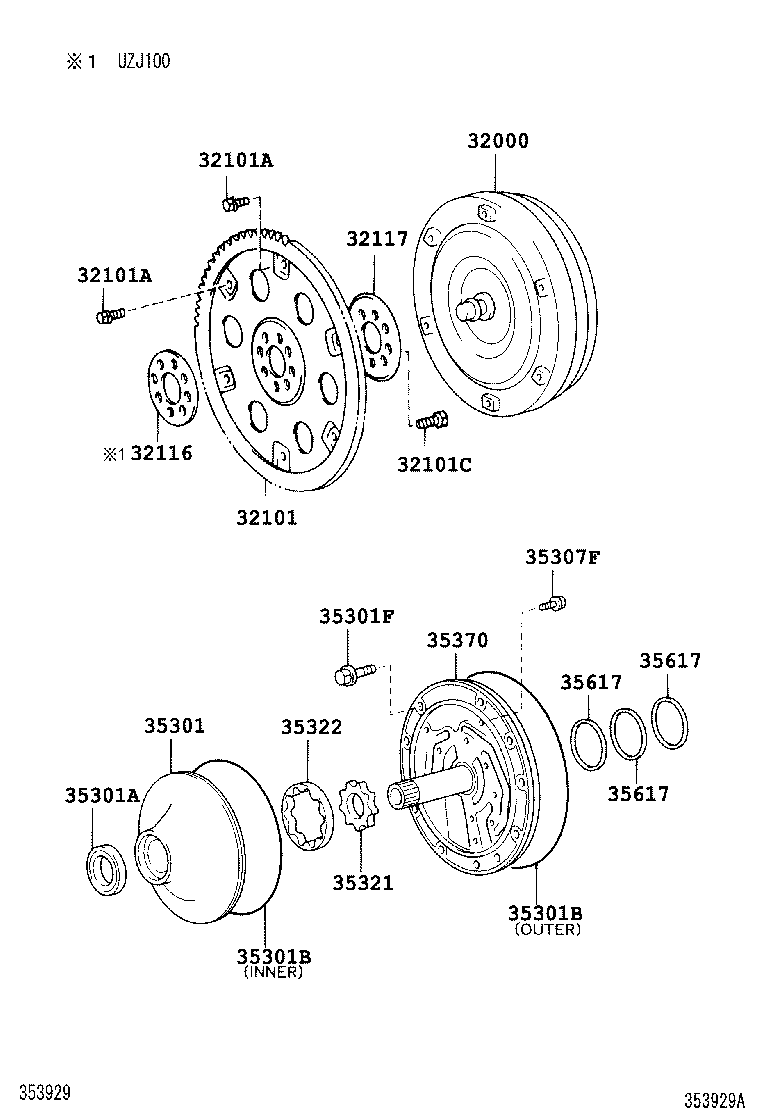

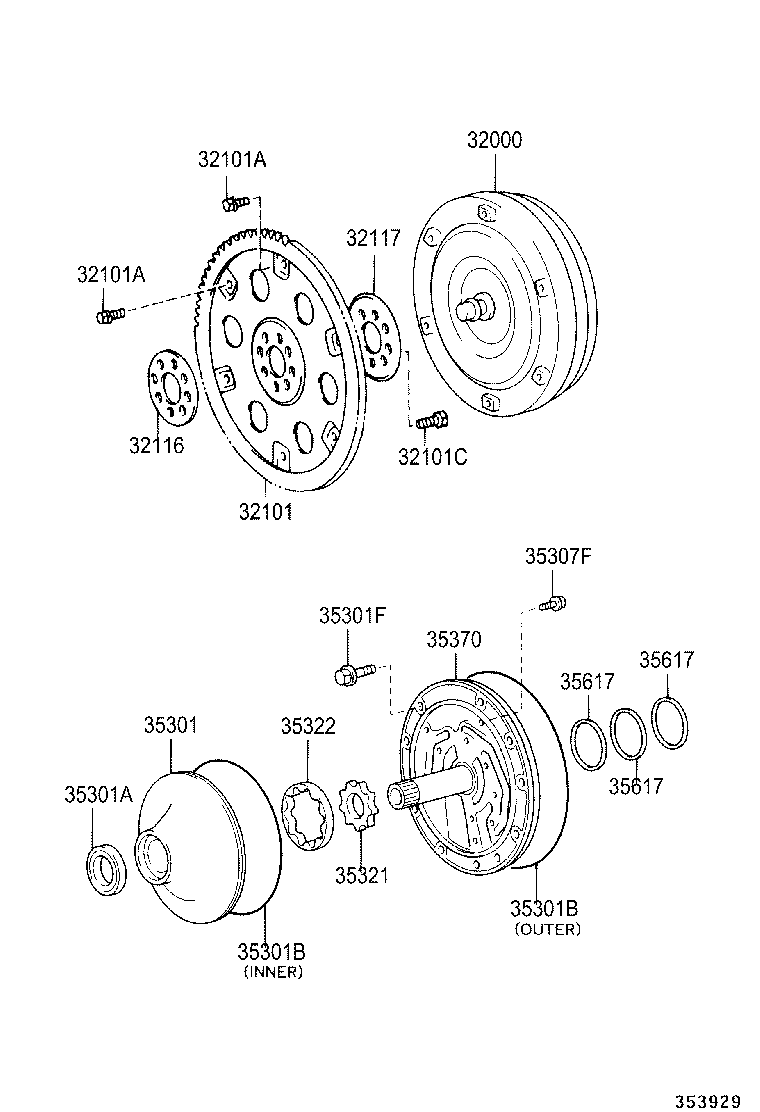

Toyota Land cruiser 100 UZJ100 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
32000 - CONVERTER ASSY, TORQUE
32000-60280	UZJ100	05/2005 - 08/2007	1
32000-60280	UZJ100	08/2003 - 05/2005	1
32000-60250	UZJ100	08/2002 - 08/2003	1
32000-60120	UZJ100	01/1998 - 08/2002	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-50010	UZJ100	05/2005 - 12/2999	1
32101-50010	UZJ100	01/1998 - 08/2002	1
32101-50010	UZJ100	08/2002 - 05/2005	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027	UZJ100 *9-1.25PX12.8-8.8,YELLOW OR SILVER	08/2002 - 05/2005	5
90119-09026	UZJ100 *9-1.25PX12.8-9,GREEN OR BLACK	08/2002 - 05/2005	1
90119-09026	UZJ100 *9-1.25PX12.8-9,GREEN	01/1998 - 08/2002	1
90119-09027	UZJ100 *9-1.25PX12.8-8.8,YELLOW	01/1998 - 08/2002	5
90119-09026	UZJ100 *9-1.25PX12.8-9,BLACK	05/2005 - 12/2999	1
90119-09027	UZJ100 *9-1.25PX12.8-8.8,SILVER	05/2005 - 12/2999	5
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09027	UZJ100 *9-1.25PX12.8-8.8,YELLOW OR SILVER	08/2002 - 05/2005	5
90119-09026	UZJ100 *9-1.25PX12.8-9,GREEN OR BLACK	08/2002 - 05/2005	1
90119-09026	UZJ100 *9-1.25PX12.8-9,GREEN	01/1998 - 08/2002	1
90119-09027	UZJ100 *9-1.25PX12.8-8.8,YELLOW	01/1998 - 08/2002	5
90119-09026	UZJ100 *9-1.25PX12.8-9,BLACK	05/2005 - 12/2999	1
90119-09027	UZJ100 *9-1.25PX12.8-8.8,SILVER	05/2005 - 12/2999	5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90910-02129	UZJ100 *10-1.25PX23-16	08/2002 - 05/2005	8
90910-02129	UZJ100 *10-1.25PX23-16	01/1998 - 08/2002	8
90910-02129	UZJ100 *10-1.25PX23-16	05/2005 - 12/2999	8
32116 - SPACER, DRIVE PLATE, FRONT
32116-50010	UZJ100	05/2005 - 12/2999	1
32116-50010	UZJ100	01/1998 - 08/2002	1
32116-50010	UZJ100	08/2002 - 05/2005	1
32117 - SPACER, DRIVE PLATE, REAR
32117-50010	UZJ100	01/1998 - 08/2002	1
32117-50010	UZJ100	05/2005 - 12/2999	1
32117-50010	UZJ100	08/2002 - 05/2005	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-60030	UZJ100	08/2002 - 05/2005	1
35301-60030	UZJ100	05/2005 - 12/2999	1
35301-35010	UZJ100	01/1998 - 08/2002	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029	UZJ100	01/1998 - 08/2002	1
90311-38083	UZJ100	05/2005 - 12/2999	1
90311-38083	UZJ100	08/2002 - 05/2005	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99139	UZJ100 OUTER	08/2002 - 05/2005	1
90301-99139	UZJ100 OUTER	05/2005 - 12/2999	1
90301-99148	UZJ100 INNER	05/2005 - 12/2999	1
90301-99033	UZJ100	01/1998 - 08/2002	1
90301-99148	UZJ100 INNER	08/2002 - 05/2005	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99139	UZJ100 OUTER	08/2002 - 05/2005	1
90301-99139	UZJ100 OUTER	05/2005 - 12/2999	1
90301-99148	UZJ100 INNER	05/2005 - 12/2999	1
90301-99033	UZJ100	01/1998 - 08/2002	1
90301-99148	UZJ100 INNER	08/2002 - 05/2005	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091	UZJ100 *8-1.25PX35-35	01/1998 - 08/2002	7
91511-K0840	UZJ100 *8-1.25PX40-30	08/2002 - 05/2005	10
90105-08451	UZJ100 *8-1.25PX40-30	10/2006 - 12/2999	10
91511-K0840	UZJ100 *8-1.25PX40-30	05/2005 - 09/2006	10
35307F - BOLT (FOR STATOR SHAFT)
90148-60027	UZJ100	08/2002 - 07/2003	14
90148-60079	UZJ100	07/2003 - 05/2005	14
90148-60079	UZJ100	05/2005 - 12/2999	14
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12020	UZJ100 T=10.690-10.699	01/1998 - 08/2002	1
35321-12050	UZJ100 T=10.721-10.730	01/1998 - 08/2002	1
35321-60110	UZJ100 T=10.740-10.749	08/2002 - 08/2003	1
35321-12040	UZJ100 T=10.710-10.720	01/1998 - 08/2002	1
35321-12030	UZJ100 T=10.700-10.709	01/1998 - 08/2002	1
35321-50060	UZJ100 T=10.771-10.777	08/2003 - 05/2005	1
35321-50050	UZJ100 T=10.764-10.770	08/2003 - 05/2005	1
35321-60130	UZJ100 T=10.760-10.770	08/2002 - 08/2003	1
35321-50030	UZJ100 T=10.750-10.756	05/2005 - 12/2999	1
35321-60140	UZJ100 T=10.771-10.780	08/2002 - 08/2003	1
35321-60120	UZJ100 T=10.750-10.759	08/2002 - 08/2003	1
35321-12060	UZJ100 T=10.731-10.740	01/1998 - 08/2002	1
35321-60150	UZJ100 T=10.781-10.790	08/2002 - 08/2003	1
35321-50070	UZJ100 T=10.778-10.784	08/2003 - 05/2005	1
35321-50020	UZJ100 T=10.743-10.749	08/2003 - 05/2005	1
35321-50030	UZJ100 T=10.750-10.756	08/2003 - 05/2005	1
35321-50060	UZJ100 T=10.771-10.777	05/2005 - 12/2999	1
35321-50070	UZJ100 T=10.778-10.784	05/2005 - 12/2999	1
35321-50050	UZJ100 T=10.764-10.770	05/2005 - 12/2999	1
35321-50010	UZJ100 T=10.736-10.742	09/2003 - 05/2005	1
35321-50020	UZJ100 T=10.743-10.749	05/2005 - 12/2999	1
35321-50040	UZJ100 T=10.757-10.763	09/2003 - 05/2005	1
35321-50010	UZJ100 T=10.736-10.742	05/2005 - 12/2999	1
35321-50040	UZJ100 T=10.757-10.763	05/2005 - 12/2999	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12040	UZJ100 T=10.721-10.730	01/1998 - 08/2002	1
35322-12050	UZJ100 T=10.731-10.740	01/1998 - 08/2002	1
35322-60120	UZJ100 T=10.750-10.759	08/2002 - 08/2003	1
35322-60130	UZJ100 T=10.760-10.770	08/2002 - 08/2003	1
35322-50030	UZJ100 T=10.750-10.756	08/2003 - 05/2005	1
35322-12030	UZJ100 T=10.710-10.720	01/1998 - 08/2002	1
35322-60140	UZJ100 T=10.771-10.780	08/2002 - 08/2003	1
35322-50020	UZJ100 T=10.743-10.749	08/2003 - 05/2005	1
35322-60150	UZJ100 T=10.781-10.790	08/2002 - 08/2003	1
35322-12020	UZJ100 T=10.700-10.709	01/1998 - 08/2002	1
35322-60110	UZJ100 T=10.740-10.749	08/2002 - 08/2003	1
35322-12010	UZJ100 T=10.690-10.699	01/1998 - 08/2002	1
35322-50060	UZJ100 T=10.771-10.777	08/2003 - 05/2005	1
35322-50010	UZJ100 T=10.736-10.742	05/2005 - 12/2999	1
35322-50050	UZJ100 T=10.764-10.770	08/2003 - 05/2005	1
35322-50040	UZJ100 T=10.757-10.763	05/2005 - 12/2999	1
35322-50010	UZJ100 T=10.736-10.742	09/2003 - 05/2005	1
35322-50070	UZJ100 T=10.778-10.784	05/2005 - 12/2999	1
35322-50060	UZJ100 T=10.771-10.777	05/2005 - 12/2999	1
35322-50050	UZJ100 T=10.764-10.770	05/2005 - 12/2999	1
35322-50020	UZJ100 T=10.743-10.749	05/2005 - 12/2999	1
35322-50040	UZJ100 T=10.757-10.763	09/2003 - 05/2005	1
35322-50070	UZJ100 T=10.778-10.784	08/2003 - 05/2005	1
35322-50030	UZJ100 T=10.750-10.756	05/2005 - 12/2999	1
35370 - SHAFT ASSY, STATOR
35370-60010	UZJ100	08/2002 - 09/2003	1
35370-50010	UZJ100	01/1998 - 08/2002	1
35370-50030	UZJ100	09/2003 - 05/2005	1
35370-50030	UZJ100	05/2005 - 12/2999	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60020	UZJ100	05/2005 - 08/2007	3
35617-60020	UZJ100	08/2002 - 05/2005	3
35617-30020	UZJ100	01/1998 - 08/2002	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60020	UZJ100	05/2005 - 08/2007	3
35617-60020	UZJ100	08/2002 - 05/2005	3
35617-30020	UZJ100	01/1998 - 08/2002	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-60020	UZJ100	05/2005 - 08/2007	3
35617-60020	UZJ100	08/2002 - 05/2005	3
35617-30020	UZJ100	01/1998 - 08/2002	2

UZJ100L-GNAEKA (2002)

(0208- )

(0208- )5FC
