Toyota Land cruiser 100 UZJ100 AIR CLEANER

UZJ100L-GNAEKA (2002)

Toyota Land Cruiser 100

Production Aug 2002 - Aug 2007

Engine 2UZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

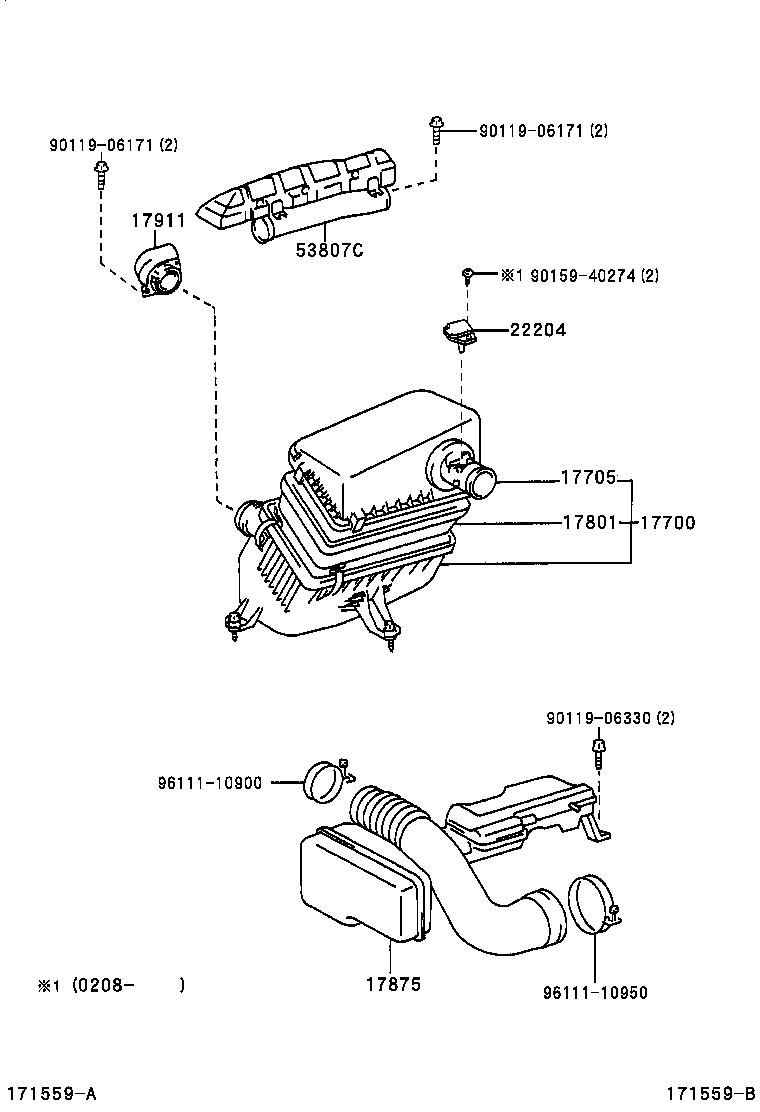

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-50170	2UZFE..UZJ100	01/1998 - 08/2002	1
17700-50170	2UZFE..UZJ100	08/2002 - 05/2005	1
17700-50310	2UZFE..UZJ100	05/2005 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50080	2UZFE..UZJ100	01/1998 - 08/2002	1
17705-50080	2UZFE..UZJ100	08/2002 - 05/2005	1
17705-50210	2UZFE..UZJ100	05/2005 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50040	2UZFE..UZJ100	01/1998 - 08/2002	1
17801-50040	2UZFE..UZJ100	08/2002 - 05/2005	1
17801-50040	2UZFE..UZJ100	05/2005 - 12/2999	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-50190	2UZFE..UZJ100	01/1998 - 08/2002	1
17875-50330	2UZFE..UZJ100	05/2005 - 12/2999	1
17875-50190	2UZFE..UZJ100	08/2002 - 05/2005	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-60030	2UZFE..UZJ100	05/2005 - 12/2999	1
52810-60010	2UZFE..UZJ100	01/1998 - 08/2002	1
52810-60010	2UZFE..UZJ100	08/2002 - 05/2005	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030	2UZFE..UZJ100	05/2005 - 12/2999	1
22204-75020	2UZFE..UZJ100	01/1998 - 08/2002	1
22204-75020	2UZFE..UZJ100	08/2002 - 05/2005	1
53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH
53807-60050	UZJ100	01/1998 - 08/2002	1
53807-60050	UZJ100	08/2002 - 05/2005	1
Common parts
90119-06171
90119-06330
90159-40274
96111-10900
96111-10950

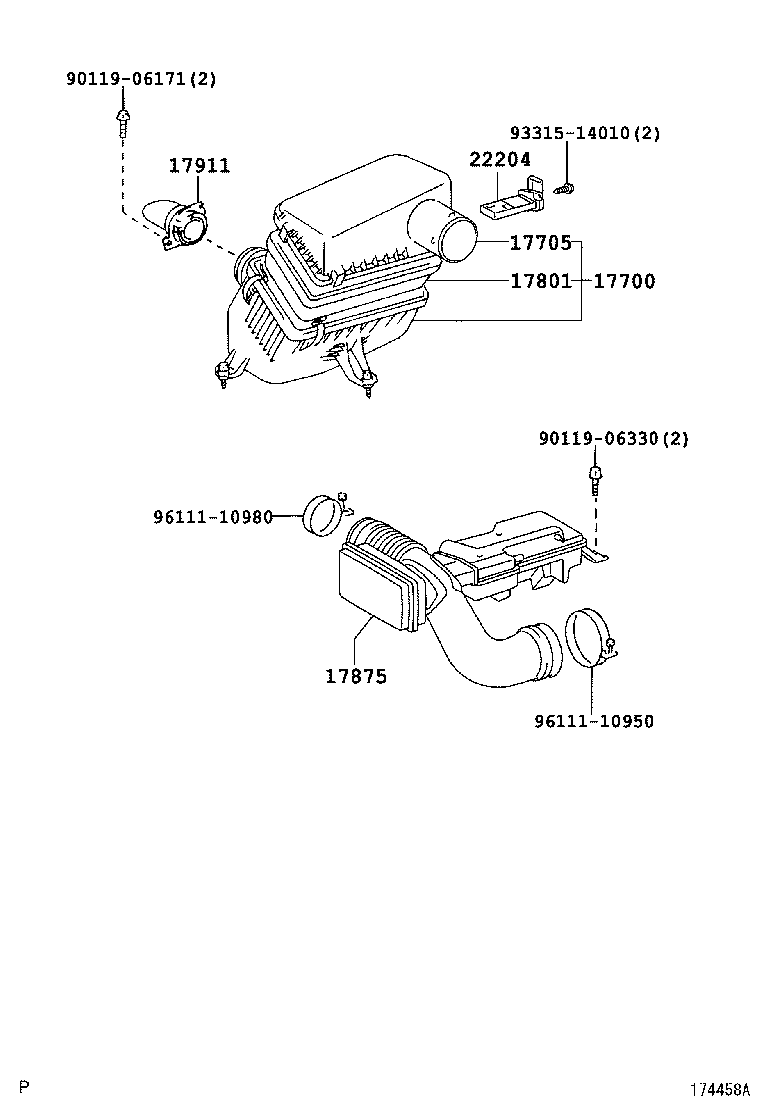

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-50170	2UZFE..UZJ100	01/1998 - 08/2002	1
17700-50170	2UZFE..UZJ100	08/2002 - 05/2005	1
17700-50310	2UZFE..UZJ100	05/2005 - 12/2999	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-50080	2UZFE..UZJ100	01/1998 - 08/2002	1
17705-50080	2UZFE..UZJ100	08/2002 - 05/2005	1
17705-50210	2UZFE..UZJ100	05/2005 - 12/2999	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-50040	2UZFE..UZJ100	01/1998 - 08/2002	1
17801-50040	2UZFE..UZJ100	08/2002 - 05/2005	1
17801-50040	2UZFE..UZJ100	05/2005 - 12/2999	1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-50190	2UZFE..UZJ100	01/1998 - 08/2002	1
17875-50330	2UZFE..UZJ100	05/2005 - 12/2999	1
17875-50190	2UZFE..UZJ100	08/2002 - 05/2005	1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-60030	2UZFE..UZJ100	05/2005 - 12/2999	1
52810-60010	2UZFE..UZJ100	01/1998 - 08/2002	1
52810-60010	2UZFE..UZJ100	08/2002 - 05/2005	1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-75030	2UZFE..UZJ100	05/2005 - 12/2999	1
22204-75020	2UZFE..UZJ100	01/1998 - 08/2002	1
22204-75020	2UZFE..UZJ100	08/2002 - 05/2005	1
Common parts
90119-06171
90119-06330
93315-14010
96111-10950
96111-10980
