UZJ100L-GNAEKA (2002)
Toyota Land Cruiser 100

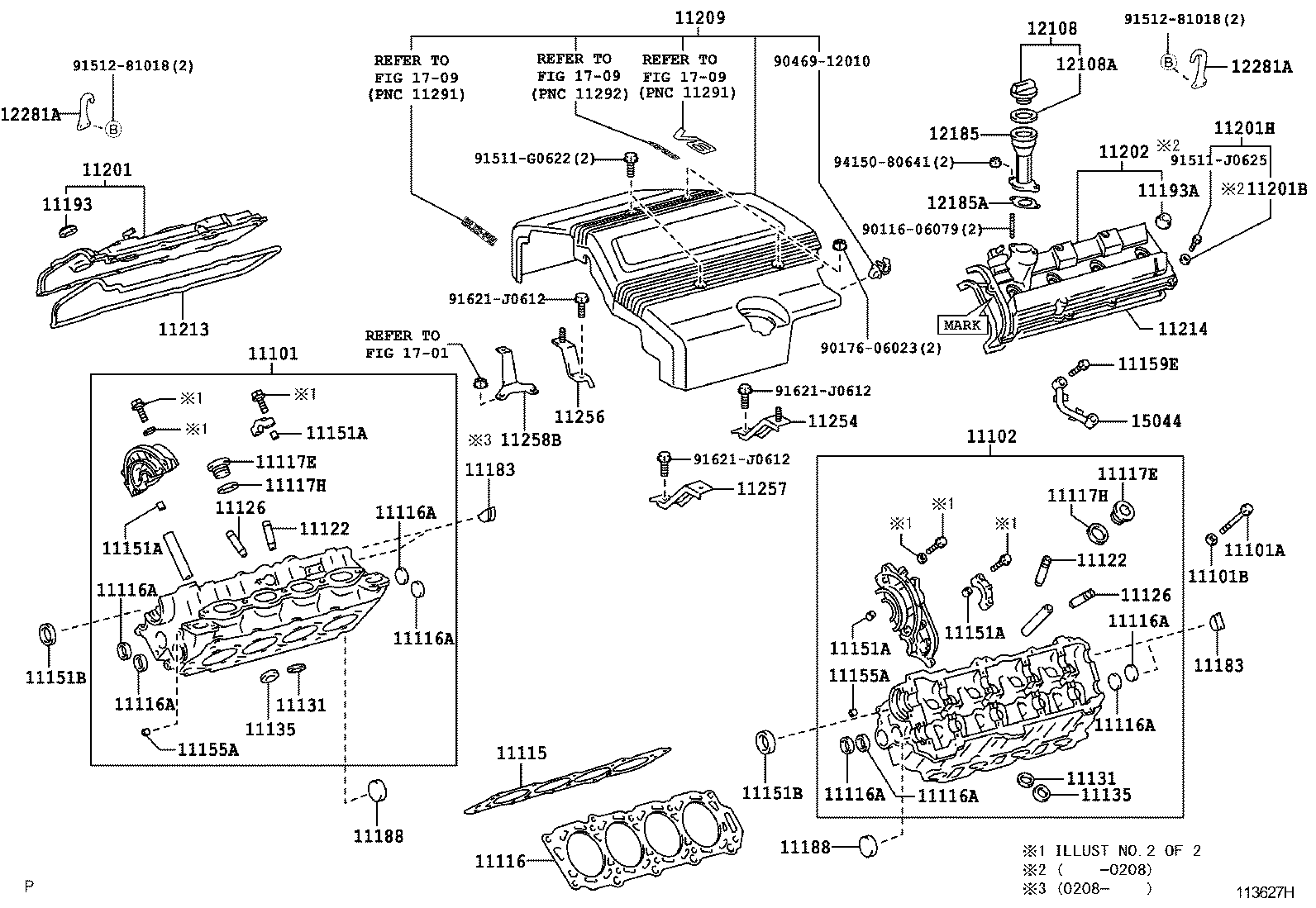

ILLUST NO. 1 OF 2(9801-0505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59167 |
2UZFE..UZJ100 |
1 | ||
| 11101-59195 |
2UZFE..UZJ100 |
1 | ||
| 11101-59235 |
2UZFE..UZJ100 PNC 13715=MARK U,Y |
1 | ||
| 11101-59167 |
2UZFE..UZJ100 PNC 13715=MARK U,M |
1 | ||
| 11101-59165 |
2UZFE..UZJ100 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-59025 |
2UZFE..UZJ100 |
1 | ||
| 11102-59105 |
2UZFE..UZJ100 |
1 | ||
| 11102-59055 |
2UZFE..UZJ100 |
1 | ||
| 11102-59095 |
2UZFE..UZJ100 |
1 | ||
| 11102-59027 |
2UZFE..UZJ100 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-50050 |
2UZFE..UZJ100 |
1 | ||
| 11115-50050 |
2UZFE..UZJ100 |
1 | ||
| 11115-50080 |
2UZFE..UZJ100 |
1 | ||
| 11115-50080 |
2UZFE..UZJ100 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-50040 |
2UZFE..UZJ100 |
1 | ||
| 11116-50040 |
2UZFE..UZJ100 |
1 | ||
| 11116-50070 |
2UZFE..UZJ100 |
1 | ||
| 11116-50070 |
2UZFE..UZJ100 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UZJ100 STD,NO.1 RH |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UZJ100 STD,NO.1 RH |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11132-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11132-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 90311-71002 |
2UZFE..UZJ100 |
2 | ||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 90311-71002 |
2UZFE..UZJ100 |
2 | ||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
2UZFE..UZJ100 |
4 | ||
| 90119-07012 |
2UZFE..UZJ100 |
4 | ||
| 90119-07012 |
2UZFE..UZJ100 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-16010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-16010 |
2UZFE..UZJ100 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-50030 |
2UZFE..UZJ100 |
1 | ||
| 11201-50031 |
2UZFE..UZJ100 |
1 | ||
| 11201-50041 |
2UZFE..UZJ100 |
1 | ||
| 11201-50031 |
2UZFE..UZJ100 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
2UZFE..UZJ100 |
18 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-50040 |
2UZFE..UZJ100 |
1 | ||
| 11202-50051 |
2UZFE..UZJ100 NO MARK |
1 | ||
| 11202-50041 |
2UZFE..UZJ100 |
1 | ||
| 11202-50051 |
2UZFE..UZJ100 |
1 | ||
| 11202-50041 |
2UZFE..UZJ100 |
1 | ||
| 11202-50080 |
2UZFE..UZJ100 MARK UZVL |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-50080 |
2UZFE..UZJ100 |
1 | ||
| 11209-50210 |
2UZFE..UZJ100 |
1 | ||
| 11209-50081 |
2UZFE..UZJ100 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-50030 |
2UZFE..UZJ100 |
1 | ||
| 11213-50031 |
2UZFE..UZJ100 |
1 | ||
| 11213-50031 |
2UZFE..UZJ100 |
1 | ||
| 11213-50030 |
2UZFE..UZJ100 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-50011 |
2UZFE..UZJ100 |
1 | ||
| 11214-50010 |
2UZFE..UZJ100 |
1 | ||
| 11214-50010 |
2UZFE..UZJ100 |
1 | ||
| 11214-50011 |
2UZFE..UZJ100 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-50030 |
2UZFE..UZJ100 |
1 | ||
| 11254-50030 |
2UZFE..UZJ100 |
1 | ||
| 11254-50060 |
2UZFE..UZJ100 |
1 | ||
| 11256 - BRACKET, V-BANK COVER, NO.2 | ||||
| 11256-50020 |
2UZFE..UZJ100 |
1 | ||
| 11256-50050 |
2UZFE..UZJ100 |
1 | ||
| 11256-50020 |
2UZFE..UZJ100 |
1 | ||
| 11257 - BRACKET, V-BANK COVER, NO.3 | ||||
| 11257-50020 |
2UZFE..UZJ100 |
1 | ||
| 11257-50070 |
2UZFE..UZJ100 |
1 | ||
| 11257-50020 |
2UZFE..UZJ100 |
1 | ||
| 11258B - BRACKET, V-BANK COVER, NO.4 | ||||
| 11258-50030 |
2UZFE..UZJ100 |
1 | ||
| 11258-50020 |
2UZFE..UZJ100 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50031 |
2UZFE..UZJ100 |
1 | ||
| 12180-50030 |
2UZFE..UZJ100 |
1 | ||
| 12180-50031 |
2UZFE..UZJ100 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| Common parts | ||||
| 90116-06079 | ||||
| 90176-06023 | ||||
| 90469-12010 | ||||
| 91511-G0622 | ||||
| 91511-J0625 | ||||
| 91512-81018 | ||||
| 91621-J0612 | ||||
| 94150-80641 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||

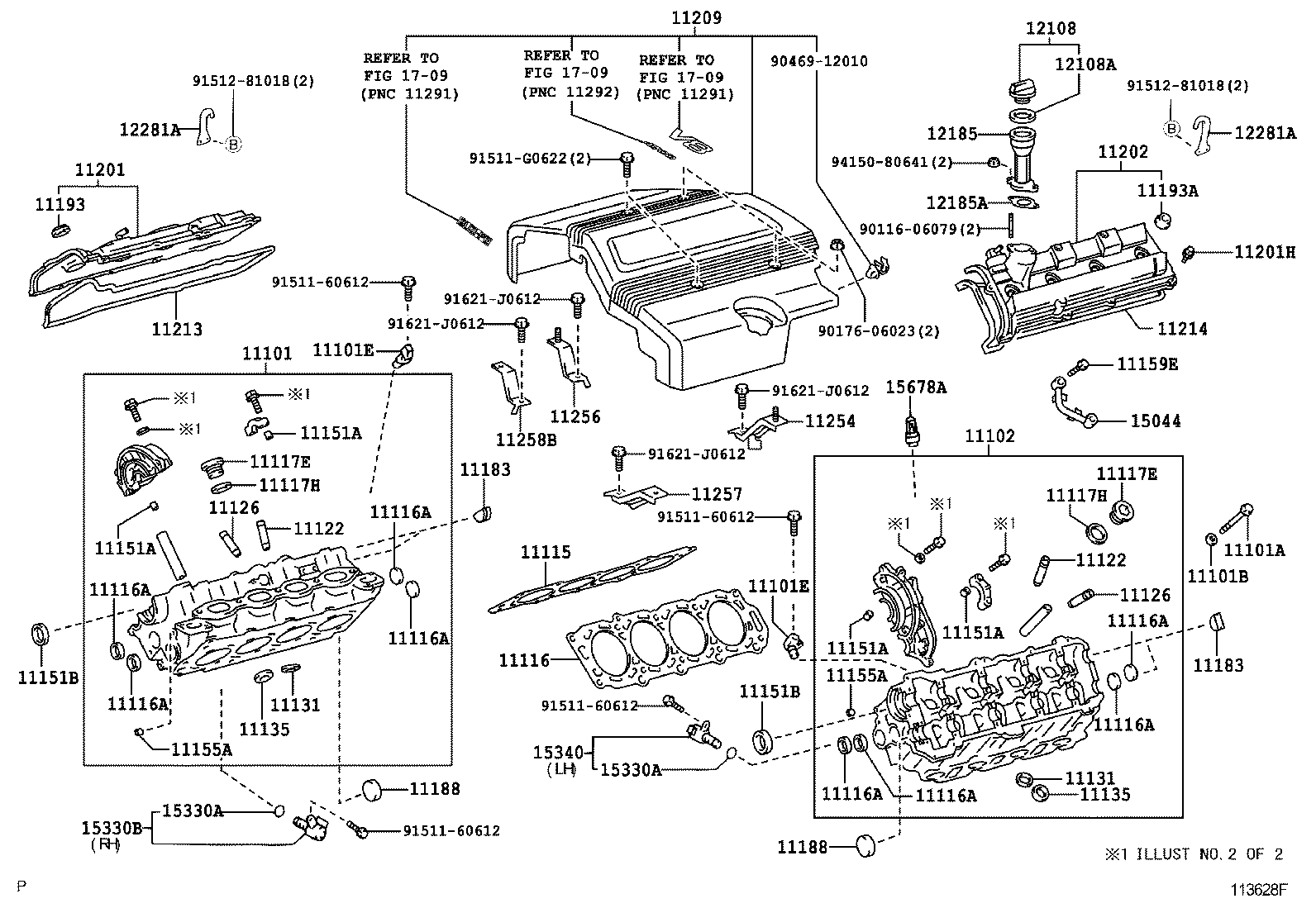

ILLUST NO. 1 OF 2(0505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-59167 |
2UZFE..UZJ100 |
1 | ||
| 11101-59195 |
2UZFE..UZJ100 |
1 | ||
| 11101-59235 |
2UZFE..UZJ100 PNC 13715=MARK U,Y |
1 | ||
| 11101-59167 |
2UZFE..UZJ100 PNC 13715=MARK U,M |
1 | ||
| 11101-59165 |
2UZFE..UZJ100 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 90910-02132 |
2UZFE..UZJ100 |
20 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 90201-10133 |
2UZFE..UZJ100 |
20 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
2UZFE..UZJ100 |
2 | ||
| 11101E - SENSOR, CAM POSITION | ||||
| 90919-05036 |
2UZFE..UZJ100 |
2 | ||
| 11102 - HEAD, CYLINDER, LH | ||||
| 11102-59025 |
2UZFE..UZJ100 |
1 | ||
| 11102-59105 |
2UZFE..UZJ100 |
1 | ||
| 11102-59055 |
2UZFE..UZJ100 |
1 | ||
| 11102-59095 |
2UZFE..UZJ100 |
1 | ||
| 11102-59027 |
2UZFE..UZJ100 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-50050 |
2UZFE..UZJ100 |
1 | ||
| 11115-50050 |
2UZFE..UZJ100 |
1 | ||
| 11115-50080 |
2UZFE..UZJ100 |
1 | ||
| 11115-50080 |
2UZFE..UZJ100 |
1 | ||
| 11116 - GASKET, CYLINDER HEAD, NO.2 | ||||
| 11116-50040 |
2UZFE..UZJ100 |
1 | ||
| 11116-50040 |
2UZFE..UZJ100 |
1 | ||
| 11116-50070 |
2UZFE..UZJ100 |
1 | ||
| 11116-50070 |
2UZFE..UZJ100 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-63000 |
2UZFE..UZJ100 |
8 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 90341-27006 |
2UZFE..UZJ100 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 11117H - GASKET(FOR WATER HOLE) | ||||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 90430-27005 |
2UZFE..UZJ100 |
2 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UZJ100 STD,NO.1 RH |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-20020 |
2UZFE..UZJ100 STD,NO.1 RH |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11122-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11123-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11126-20020 |
2UZFE..UZJ100 STD |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11127-20020 |
2UZFE..UZJ100 O/S 0.05 |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11132-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11131-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11132-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11132-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11131-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-50030 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50030 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11135-50040 |
2UZFE..UZJ100 STD |
16 | ||
| 11136-50040 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11136-50050 |
2UZFE..UZJ100 O/S 0.03 |
16 | ||
| 11135-50050 |
2UZFE..UZJ100 STD |
16 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 90253-10006 |
2UZFE..UZJ100 L=7,OD=10 |
36 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 90311-71002 |
2UZFE..UZJ100 |
2 | ||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 90311-71002 |
2UZFE..UZJ100 |
2 | ||
| 90311-38065 |
2UZFE..UZJ100 |
2 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 90253-09001 |
2UZFE..UZJ100 |
3 | ||
| 11159E - BOLT(FOR CAMSHAFT OIL FEED PIPE) | ||||
| 90119-07006 |
2UZFE..UZJ100 |
4 | ||
| 90119-07012 |
2UZFE..UZJ100 |
4 | ||
| 90119-07012 |
2UZFE..UZJ100 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11183-50020 |
2UZFE..UZJ100 |
4 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188 - PLUG, CAMSHAFT HOUSING | ||||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11188-50010 |
2UZFE..UZJ100 |
2 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-16010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193A - GASKET, SPARK PLUG TUBE, LH | ||||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-50010 |
2UZFE..UZJ100 |
4 | ||
| 11193-16010 |
2UZFE..UZJ100 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-50030 |
2UZFE..UZJ100 |
1 | ||
| 11201-50031 |
2UZFE..UZJ100 |
1 | ||
| 11201-50041 |
2UZFE..UZJ100 |
1 | ||
| 11201-50031 |
2UZFE..UZJ100 |
1 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 90109-06163 |
2UZFE..UZJ100 |
18 | ||
| 11202 - COVER SUB-ASSY, CYLINDER HEAD, LH | ||||
| 11202-50040 |
2UZFE..UZJ100 |
1 | ||
| 11202-50051 |
2UZFE..UZJ100 NO MARK |
1 | ||
| 11202-50041 |
2UZFE..UZJ100 |
1 | ||
| 11202-50051 |
2UZFE..UZJ100 |
1 | ||
| 11202-50041 |
2UZFE..UZJ100 |
1 | ||
| 11202-50080 |
2UZFE..UZJ100 MARK UZVL |
1 | ||
| 11209 - COVER SUB-ASSY, V-BANK | ||||
| 11209-50080 |
2UZFE..UZJ100 |
1 | ||
| 11209-50210 |
2UZFE..UZJ100 |
1 | ||
| 11209-50081 |
2UZFE..UZJ100 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-50030 |
2UZFE..UZJ100 |
1 | ||
| 11213-50031 |
2UZFE..UZJ100 |
1 | ||
| 11213-50031 |
2UZFE..UZJ100 |
1 | ||
| 11213-50030 |
2UZFE..UZJ100 |
1 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11214-50011 |
2UZFE..UZJ100 |
1 | ||
| 11214-50010 |
2UZFE..UZJ100 |
1 | ||
| 11214-50010 |
2UZFE..UZJ100 |
1 | ||
| 11214-50011 |
2UZFE..UZJ100 |
1 | ||
| 11254 - BRACKET, V-BANK COVER, NO.1 | ||||
| 11254-50030 |
2UZFE..UZJ100 |
1 | ||
| 11254-50030 |
2UZFE..UZJ100 |
1 | ||
| 11254-50060 |
2UZFE..UZJ100 |
1 | ||
| 11256 - BRACKET, V-BANK COVER, NO.2 | ||||
| 11256-50020 |
2UZFE..UZJ100 |
1 | ||
| 11256-50050 |
2UZFE..UZJ100 |
1 | ||
| 11256-50020 |
2UZFE..UZJ100 |
1 | ||
| 11257 - BRACKET, V-BANK COVER, NO.3 | ||||
| 11257-50020 |
2UZFE..UZJ100 |
1 | ||
| 11257-50070 |
2UZFE..UZJ100 |
1 | ||
| 11257-50020 |
2UZFE..UZJ100 |
1 | ||
| 11258B - BRACKET, V-BANK COVER, NO.4 | ||||
| 11258-50030 |
2UZFE..UZJ100 |
1 | ||
| 11258-50020 |
2UZFE..UZJ100 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-50031 |
2UZFE..UZJ100 |
1 | ||
| 12180-50030 |
2UZFE..UZJ100 |
1 | ||
| 12180-50031 |
2UZFE..UZJ100 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12195-50010 |
2UZFE..UZJ100 |
1 | ||
| 12185 - HOUSING, OIL FILLER CAP | ||||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185-50020 |
2UZFE..UZJ100 |
1 | ||
| 12185A - GASKET, OIL FILLER CAP HOUSING | ||||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12196-50010 |
2UZFE..UZJ100 |
1 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281A - HANGER, ENGINE, NO.1 | ||||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 12281-50050 |
2UZFE..UZJ100 |
2 | ||
| 15044 - PIPE SUB-ASSY, CAMSHAFT OIL FEED | ||||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| 15044-50020 |
2UZFE..UZJ100 |
2 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2UZFE..UZJ100 |
6 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
2UZFE..UZJ100 |
6 | ||
| 15330B - VALVE ASSY, CAM TIMING OIL CONTROL, RH | ||||
| 15330-50011 |
2UZFE..UZJ100 |
1 | ||
| 15340 - VALVE ASSY, CAM TIMING OIL CONTROL, LH | ||||
| 15340-50011 |
2UZFE..UZJ100 |
1 | ||
| 15678A - FILTER, OIL CONTROL VALVE | ||||
| 15678-46020 |
2UZFE..UZJ100 |
2 | ||
| Common parts | ||||
| 90116-06079 | ||||
| 90176-06023 | ||||
| 90469-12010 | ||||
| 91511-60612 | ||||
| 91511-G0622 | ||||
| 91512-81018 | ||||
| 91621-J0612 | ||||
| 94150-80641 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
