HDJ100R-GNPEZW (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Jul 2003
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-0308)HDJ100..RHD..4FC,5F

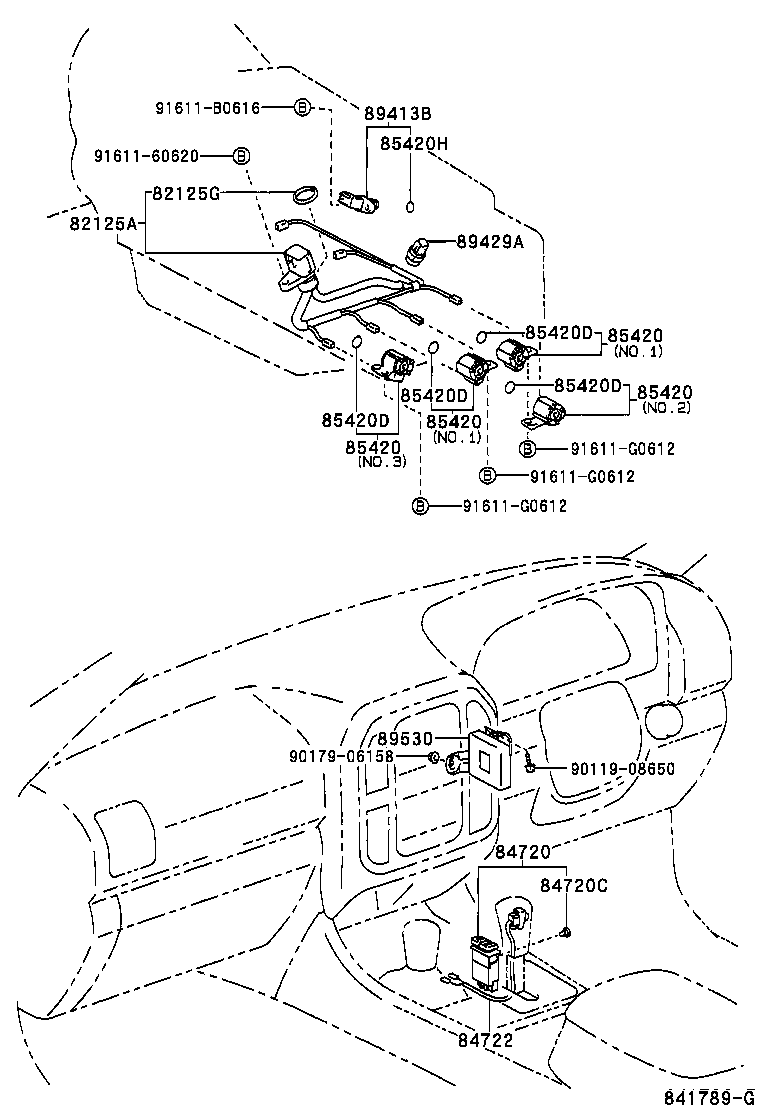

Click highlighted areas on diagram

diagram 82125A 82125G 84720 84720C 84722 85420 85420 85420 85420 85420D 85420D 85420D 85420D 85420H 89413B 89429A 89530 9011908650 9017906158 9161160620 91611B0616 91611G0612 91611G0612 91611G0612
Part # Description Qty Price
82125A - WIRE, TRANSMISSION
82125-60421

HDJ100..4FC

TEMPERATURE SENSOR HOUSING = GRAY

 1
82125-60431

HDJ100..4FC

TEMPERATURE SENSOR HOUSING = BLACK

 1
82125-60420

HDJ100..4FC;UZJ100..LHD

TEMPERATURE SENSOR HOUSING = GRAY

 1
82125-60430

HDJ100..4FC;UZJ100..LHD

TEMPERATURE SENSOR HOUSING = BLACK

 1
82125-60421

HDJ100..4FC

TEMPERATURE SENSOR HOUSING = GRAY

 1
82125-60431

HDJ100..4FC

TEMPERATURE SENSOR HOUSING = BLACK

 1
82125G - RING, O(FOR TRANSMISSION WIRE)
96721-24020

HDJ100..4FC

 1
96721-24020

HDJ100..4FC

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-60110

HDJ100,UZJ100..RHD..4FC

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
90010-01039

HDJ100,UZJ100..4FC

14V0.91W,W(GREEN CAP

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-60140C0

HDJ100,UZJ100..RHD..4FC

BLACK,TRIM1#,40,41

 1
84722-60140C0

HDJ100..RHD..4FC

BLACK,TRIM1#,40,41

 1
84722-60160

HDJ100,UZJ100..4FC

WOOD KNOB

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420 - SOLENOID ASSY, TRANSMISSION
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420-60070

HDJ100..4FC

NO.3

 1
85420-60050

HDJ100..4FC

NO.1

 2
85420-60060

HDJ100..4FC

NO.2

 1
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HDJ100..4FC

 4
90301-06004

HDJ100..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HDJ100..4FC

 4
90301-06004

HDJ100..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HDJ100..4FC

 4
90301-06004

HDJ100..4FC

 4
85420D - RING, O (FOR TRANSMISSION SOLENOID)
90301-06004

HDJ100..4FC

 4
90301-06004

HDJ100..4FC

 4
85420H - RING, O(FOR SPEED SENSOR)
90301-11008

HDJ100..4FC

 1
90301-11008

HDJ100,UZJ100..4FC

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-32010

HDJ100..4FC

 1
89413-32010

HDJ100,UZJ100..4FC

 1
89429A - SENSOR, TEMPERATURE
89428-60090

HDJ100..4FC

 1
89428-60090

HDJ100..4FC

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-60240

HDJ100..RHD..4FC

 1
89530-60241

HDJ100..RHD..4FC

 1
89530-60241

HDJ100..RHD..4FC

 1
Common parts
90119-08650
90179-06158
91611-60620
91611-B0616
91611-G0612
