HDJ100L-GNPEZW (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Jul 2003
Engine 1HDFTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )HDJ100..4FC

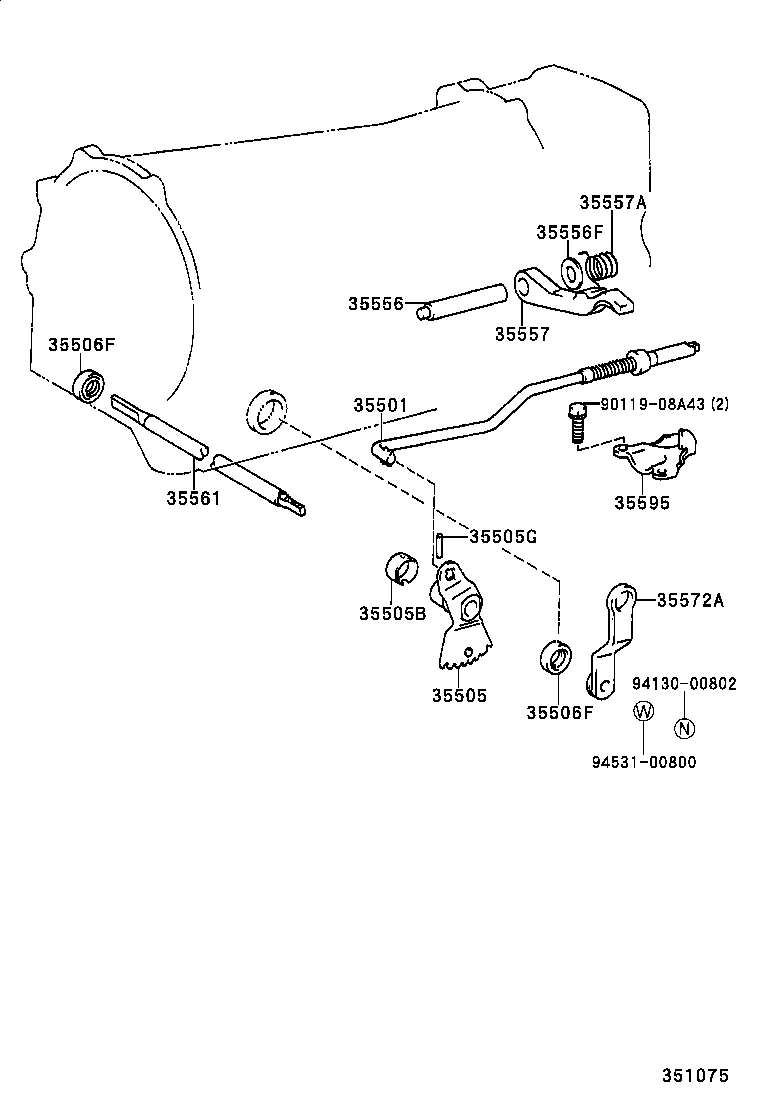

Click highlighted areas on diagram

A442F

diagram 35501 35505 35505B 35505G 35506F 35506F 35556 35556F 35557 35557A 35561 35572A 35595 9011908A43 9413000802 9453100800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-36010

HDJ100..4FC

 1
35501-36010

HDJ100..4FC

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-60020

HDJ100..4FC

 1
35505-60020

HDJ100..4FC

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20008

HDJ100..4FC

 1
90560-20008

HDJ100..4FC

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04012

HDJ100..4FC

 1
90254-04012

HDJ100..4FC

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

HDJ100,UZJ100..4FC

 2
90311-12002

HDJ100..4FC

 2
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

HDJ100,UZJ100..4FC

 2
90311-12002

HDJ100..4FC

 2
35556 - SHAFT, PARKING LOCK PAWL
35556-36010

HDJ100..4FC

 1
35556-36010

HDJ100..4FC

 1
35556F - WASHER, PLATE (FOR PARKING LOCK PAWL SHAFT)
90201-16012

HDJ100..4FC

 1
90201-16012

HDJ100..4FC

 1
90201-16012

HDJ100..4FC;UZJ100..LHD

 1
35557 - PAWL, PARKING LOCK
35557-60030

HDJ100..4FC

 1
35557-60030

HDJ100..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-30010

HDJ100..4FC

 1
90508-30010

HDJ100..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-60020

HDJ100..4FC

 1
35561-60020

HDJ100..4FC

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-60050

HDJ100..4FC

 1
35572-60050

HDJ100..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-60020

HDJ100..4FC

 1
35595-60020

HDJ100..4FC

 1
Common parts
90119-08A43
94130-00802
94531-00800
