8719 - HEATING & AIR CONDITIONING - COMPRESSOR

HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005

Engine 1HDFTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9801- )HDJ100

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-6A020	HDJ100	01/1998 - 08/2002	1
88412-6A020	HDJ100	08/2002 - 05/2005	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030	HDJ100	08/2002 - 05/2005	1
88411-2A030	HDJ100	01/1998 - 08/2002	1
88320 - COMPRESSOR ASSY, COOLER
88320-60700	HDJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 08/2002	1
88320-60700	HDJ100 W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	HDJ100;UZJ100..LHD	08/2000 - 08/2002	1
88335-14020	HDJ100,UZJ100	01/1998 - 08/2000	1
88335-14020	HDJ100,UZJ100	08/2002 - 05/2005	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290	HDJ100,UZJ100	01/1998 - 08/2000	1
88403-30290	HDJ100;UZJ100..LHD	08/2000 - 08/2002	1
88403-30290	HDJ100	08/2002 - 05/2005	1
88410 - CLUTCH ASSY, MAGNET
88410-6A010	HDJ100	01/1998 - 08/2002	1
88410-6A010	HDJ100	08/2002 - 05/2005	1
88410 - CLUTCH ASSY, MAGNET
88410-6A010	HDJ100	01/1998 - 08/2002	1
88410-6A010	HDJ100	08/2002 - 05/2005	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-60260	HDJ100	08/2002 - 05/2005	1
88431-60260	HDJ100	01/1998 - 08/2002	1
88444 - BRACKET, IDLE PULLEY
88444-60120	HDJ100	01/1998 - 08/2002	1
88444-60120	HDJ100	08/2002 - 05/2005	1
88446 - BOLT, IDLE PULLEY
88446-60030	HDJ100	01/1998 - 08/2000	1
90109-08253	HDJ100 W(VISCOUS HEATER)	08/2002 - 05/2005	1
90109-08253	HDJ100..STD	08/2000 - 08/2002	1
90109-08253	HDJ100 W(VISCOUS HEATER)	01/1998 - 08/2000	1
88545 - PULLEY ASSY, IDLE
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60060	HDJ100 W/O(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2002 - 05/2005	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2000 - 08/2002	1
88545 - PULLEY ASSY, IDLE
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60060	HDJ100 W/O(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2002 - 05/2005	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2000 - 08/2002	1
88545 - PULLEY ASSY, IDLE
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60060	HDJ100 W/O(VISCOUS HEATER), REFER TO ILLUSTRATION	01/1998 - 08/2000	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2002 - 05/2005	1
88440-60070	HDJ100 W(VISCOUS HEATER), REFER TO ILLUSTRATION	08/2000 - 08/2002	1
Common parts
88688-2D770
88899-60080
90099-04349
90099-07065
90099-07114
91511-B1025
91512-61045
91512-G1025
93319-15008

ILLUST NO. 2 OF 2(9801-0412) ; (0412-0505)HDJ100

Click highlighted areas on diagram

Part #	Description	Period	Qty

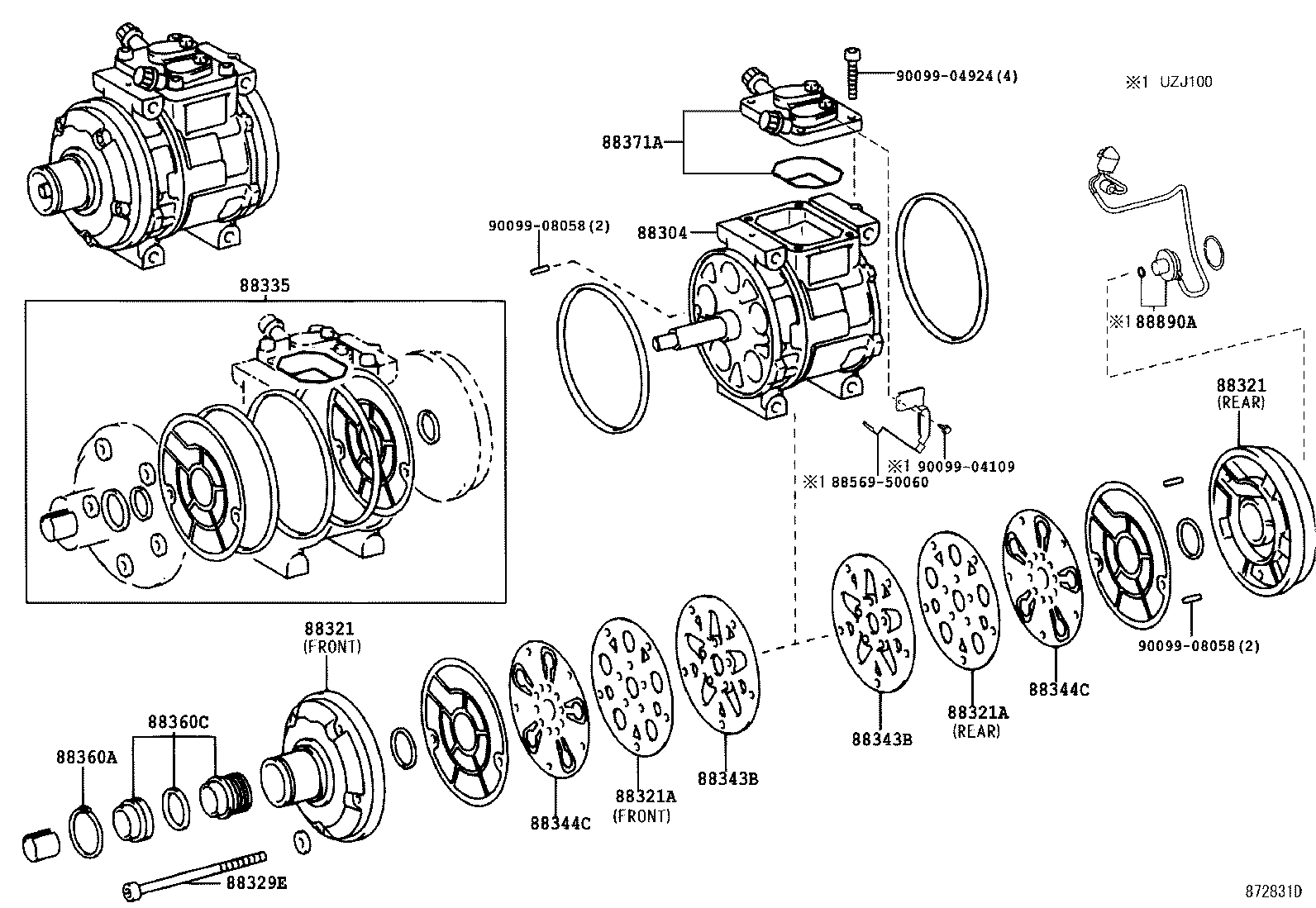

88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-2B010	HDJ100 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88321-2B010	HDJ100 W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88322-32040	HDJ100 REAR	01/1998 - 08/2002	1
88322-32040	HDJ100 REAR	08/2002 - 05/2005	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-2B010	HDJ100 W(SINGLE AIR CONDITIONER),FRONT	01/1998 - 08/2002	1
88321-2B010	HDJ100 W(SINGLE AIR CONDITIONER),FRONT	08/2002 - 05/2005	1
88322-32040	HDJ100 REAR	01/1998 - 08/2002	1
88322-32040	HDJ100 REAR	08/2002 - 05/2005	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	HDJ100 REAR	01/1998 - 08/2002	1
88341-22010	HDJ100 FRONT	01/1998 - 08/2002	1
88342-22010	HDJ100 REAR	08/2002 - 05/2005	1
88341-22010	HDJ100 FRONT	08/2002 - 05/2005	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	HDJ100 REAR	01/1998 - 08/2002	1
88341-22010	HDJ100 FRONT	01/1998 - 08/2002	1
88342-22010	HDJ100 REAR	08/2002 - 05/2005	1
88341-22010	HDJ100 FRONT	08/2002 - 05/2005	1
88329E - BOLT, COMPRESSOR, NO.1
90099-04370	HDJ100 W(SINGLE AIR CONDITIONER)	01/1998 - 08/2002	5
90099-04370	HDJ100 W(SINGLE AIR CONDITIONER)	08/2002 - 05/2005	5
88335 - GASKET KIT, OVERHAUL
88335-2B030	HDJ100	01/1998 - 08/2002	1
88335-2B030	HDJ100	08/2002 - 05/2005	1
88343B - REED, SUCTION VALVE
88343-14020	HDJ100	08/2002 - 05/2005	2
88343-14020	HDJ100	01/1998 - 08/2002	2
88343B - REED, SUCTION VALVE
88343-14020	HDJ100	08/2002 - 05/2005	2
88343-14020	HDJ100	01/1998 - 08/2002	2
88344C - REED, DISCHARGE VALVE
88344-22010	HDJ100	01/1998 - 08/2002	2
88344-22010	HDJ100	08/2002 - 05/2005	2
88344C - REED, DISCHARGE VALVE
88344-22010	HDJ100	01/1998 - 08/2002	2
88344-22010	HDJ100	08/2002 - 05/2005	2
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	HDJ100,UZJ100	01/1998 - 08/2000	1
90096-90022	HDJ100;UZJ100..LHD	08/2000 - 08/2002	1
90096-90022	HDJ100	08/2002 - 05/2005	1
88360C - SEAL ASSY, SHAFT
88360-2B020	HDJ100,UZJ100	01/1998 - 08/2000	1
88360-2B020	HDJ100	08/2002 - 05/2005	1
88360-2B020	HDJ100;UZJ100..LHD	08/2000 - 08/2002	1
88371A - VALVE, SUCTION
88371-60410	HDJ100	01/1998 - 08/2002	1
88371-60410	HDJ100	08/2002 - 05/2005	1
Common parts
88569-50060
90099-04109
90099-04924
90099-08058

HDJ100L-GCMRZW (2000)

ILLUST NO. 1 OF 2(9801- )HDJ100

ILLUST NO. 2 OF 2(9801-0412) ; (0412-0505)HDJ100
