HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100

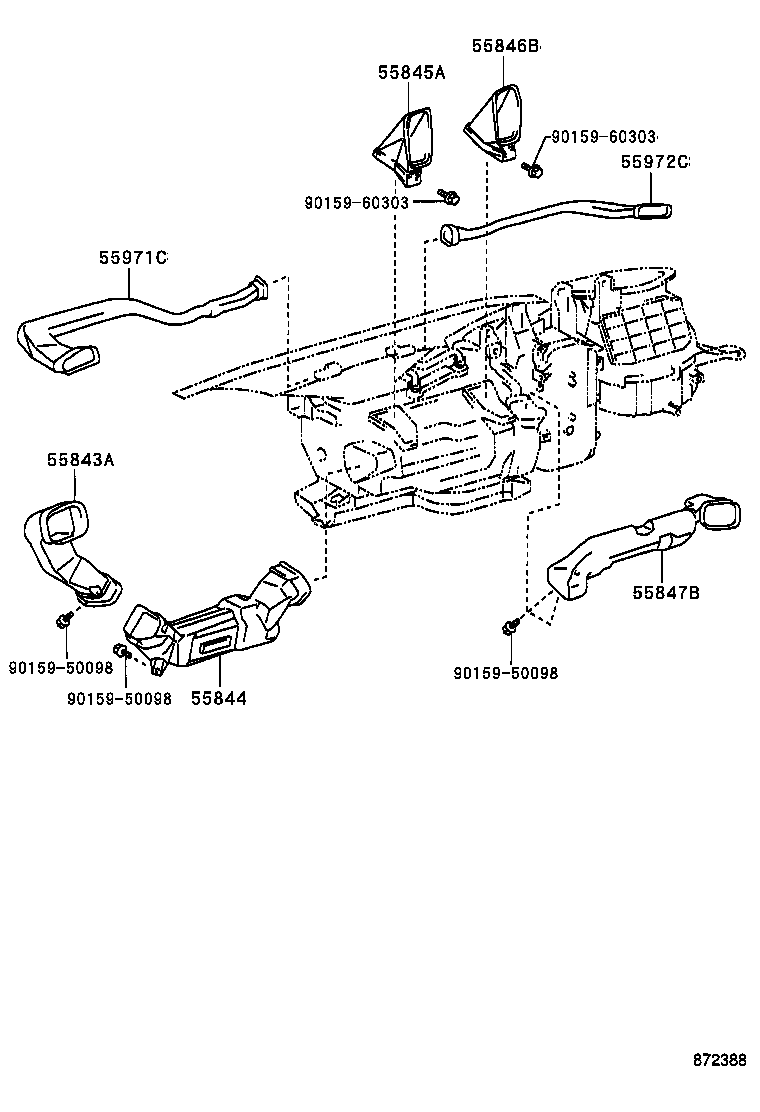

ILLUST NO. 3 OF 5(9801- )LHD
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 55843-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60130 |
HDJ100,UZJ100..LHD |
1 | ||
| 55844-60120 |
HDJ100,UZJ100..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60110 |
HDJ100,UZJ100 |
1 | ||
| 55845-60080 |
HDJ100,UZJ100 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-60080 |
HDJ100,UZJ100 |
1 | ||
| 55846-60090 |
HDJ100,UZJ100 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 55847-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 55971-60070 |
HDJ100,UZJ100..LHD |
1 | ||
| 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55972-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||

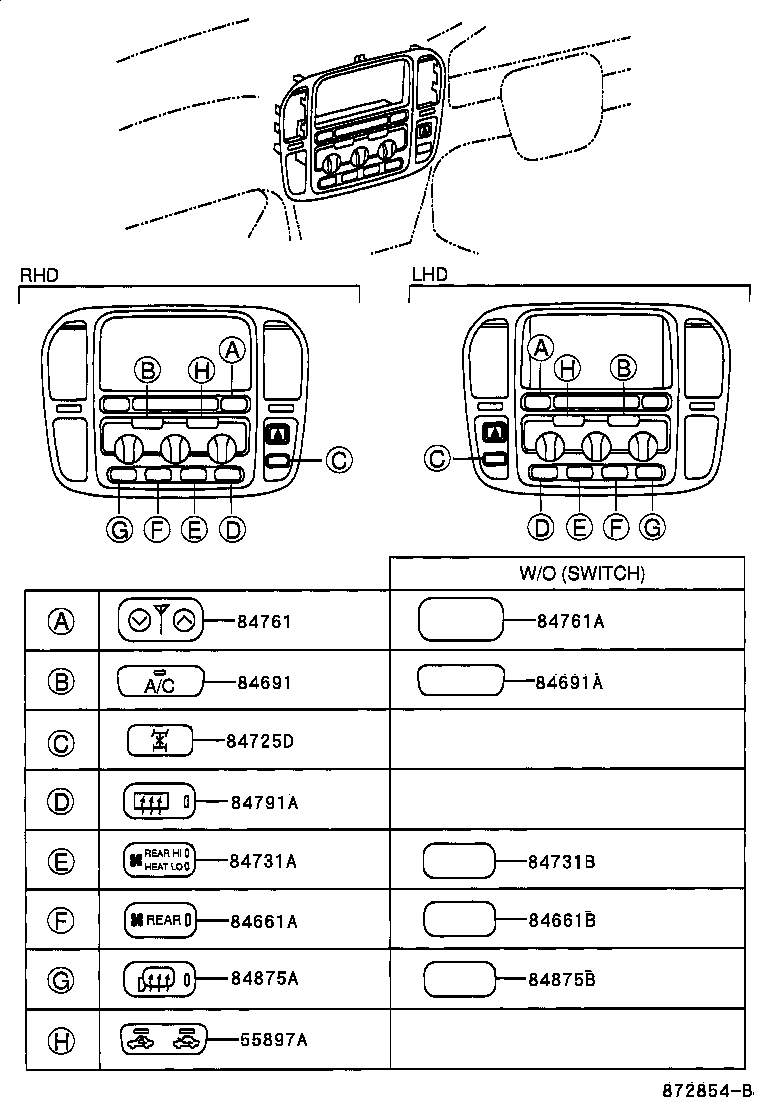

ILLUST NO. 1 OF 5(9801-0208)
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55897A - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-60010 |
HDJ100..STD |
1 | ||
| 55897-60010 |
HDJ100,UZJ100 |
1 | ||
| 84661B - BEZEL, SWITCH | ||||
| 84656-60020 |
HDJ100,UZJ100 |
1 | ||
| 84656-60070 |
HDJ100,UZJ100 |
1 | ||
| 84691 - KNOB, CONDITION INDICATOR | ||||
| 84691-60010 |
HDJ100,UZJ100 |
1 | ||
| 84691-60010 |
HDJ100..STD |
1 | ||
| 84691A - BEZEL, SWITCH | ||||
| 84656-60040 |
HDJ100,UZJ100 |
1 | ||
| 84656-60040 |
HDJ100..STD |
1 | ||
| 84656-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 84725D - KNOB, DIFFERENTIAL LOCK SWITCH | ||||
| 84725-60090 |
HDJ100,UZJ100 |
1 | ||
| 84725-60050 |
HDJ100,UZJ100 |
1 | ||
| 84731A - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-60010 |
HDJ100,UZJ100 |
1 | ||
| 84731-60020 |
HDJ100,UZJ100 |
1 | ||
| 84761A - BEZEL, SWITCH | ||||
| 84656-60030 |
HDJ100,UZJ100 |
1 | ||
| 84656-60030 |
HDJ100..STD |
1 | ||
| 84791A - KNOB, DEFOGGER TIME SWITCH | ||||
| 84791-60040 |
HDJ100,UZJ100..LHD..(5F,5FC) |
1 | ||
| 84791-60010 |
HDJ100,UZJ100 |
1 | ||

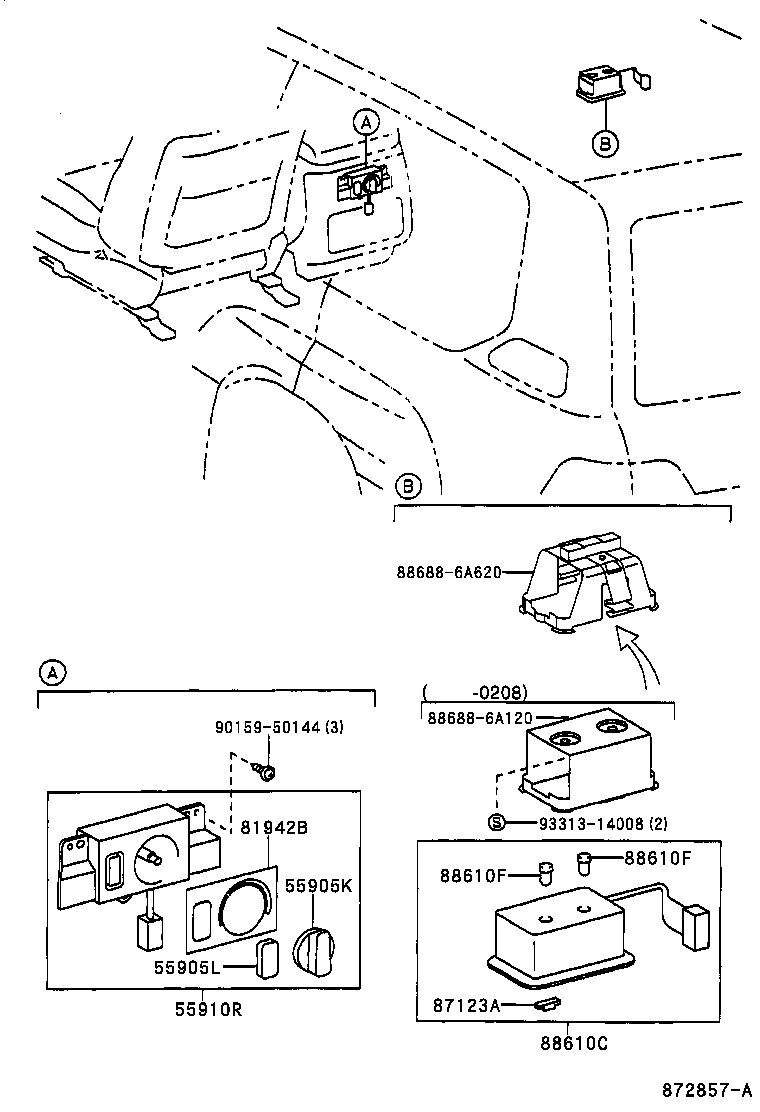

ILLUST NO. 2 OF 5(9801- )
REAR HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905K - KNOB, HEATER CONTROL, NO.4 | ||||
| 55905-60250 |
HDJ100,UZJ100 |
1 | ||
| 55905-60250 |
HDJ100,UZJ100 |
1 | ||
| 55905L - KNOB, HEATER CONTROL, NO.5 | ||||
| 55905-60260 |
HDJ100,UZJ100 |
1 | ||
| 55905-60260 |
HDJ100,UZJ100 |
1 | ||
| 55910R - CONTROL ASSY, HEATER | ||||
| 55900-60490 |
HDJ100,UZJ100 |
1 | ||
| 55900-60490 |
HDJ100,UZJ100 |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-60050 |
HDJ100,UZJ100 |
1 | ||
| 81942-60050 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 88688-6A120 | ||||
| 88688-6A620 | ||||
| 90159-50144 | ||||
| 93313-14008 | ||||
ILLUST NO. 4 OF 5(9801-0208)
REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-60121 |
HDJ100,UZJ100 |
1 | ||
| 87212-60122 |
HDJ100,UZJ100 |
1 | ||
| 87212-60120 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90467-08056C0 | ||||
| 90467-1001711 | ||||
| 91635-40618 | ||||

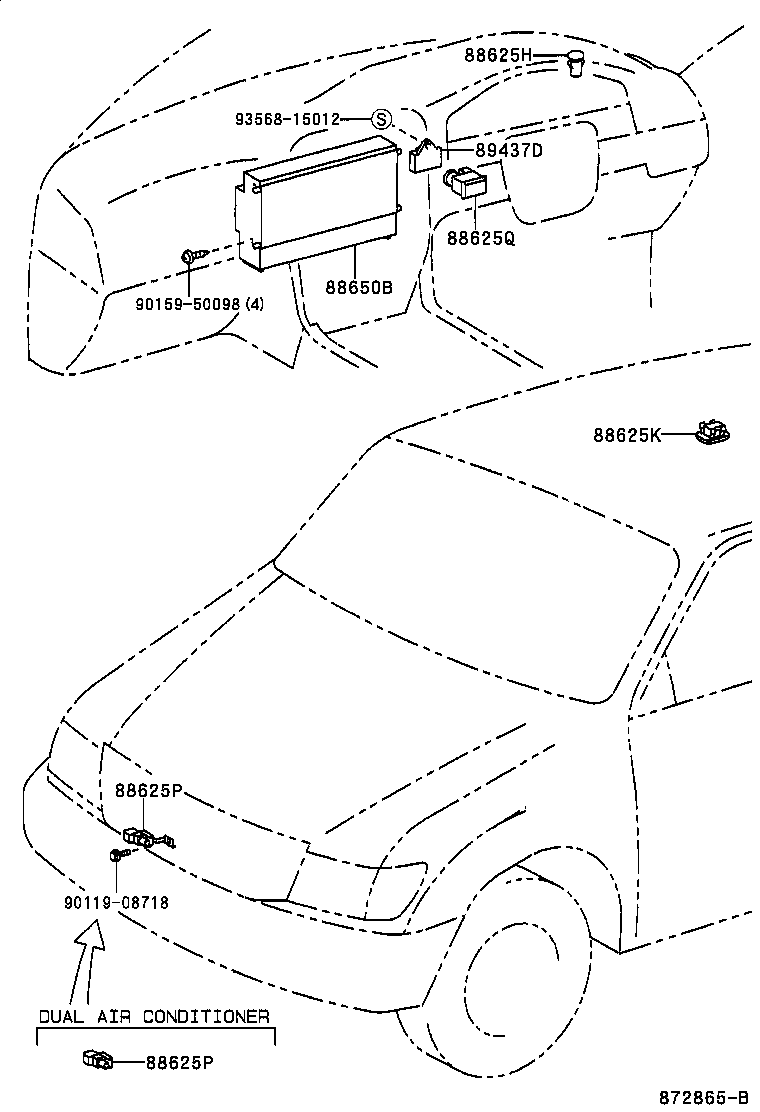

ILLUST NO. 5 OF 5(9801-0208)
SENSOR & AMPLIFIER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-60780 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90119-08718 | ||||
| 90159-50098 | ||||
| 93568-15012 | ||||
ILLUST NO. 4 OF 5(0208- )
REAR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-60121 |
HDJ100,UZJ100 |
1 | ||
| 87212-60122 |
HDJ100,UZJ100 |
1 | ||
| 87212-60120 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90168-40108 | ||||
| 90467-08056C0 | ||||
| 90467-10017 | ||||
| 90467-10017B0 | ||||
| 91635-40618 | ||||
| Linked diagrams | ||||
| 8714 | ||||

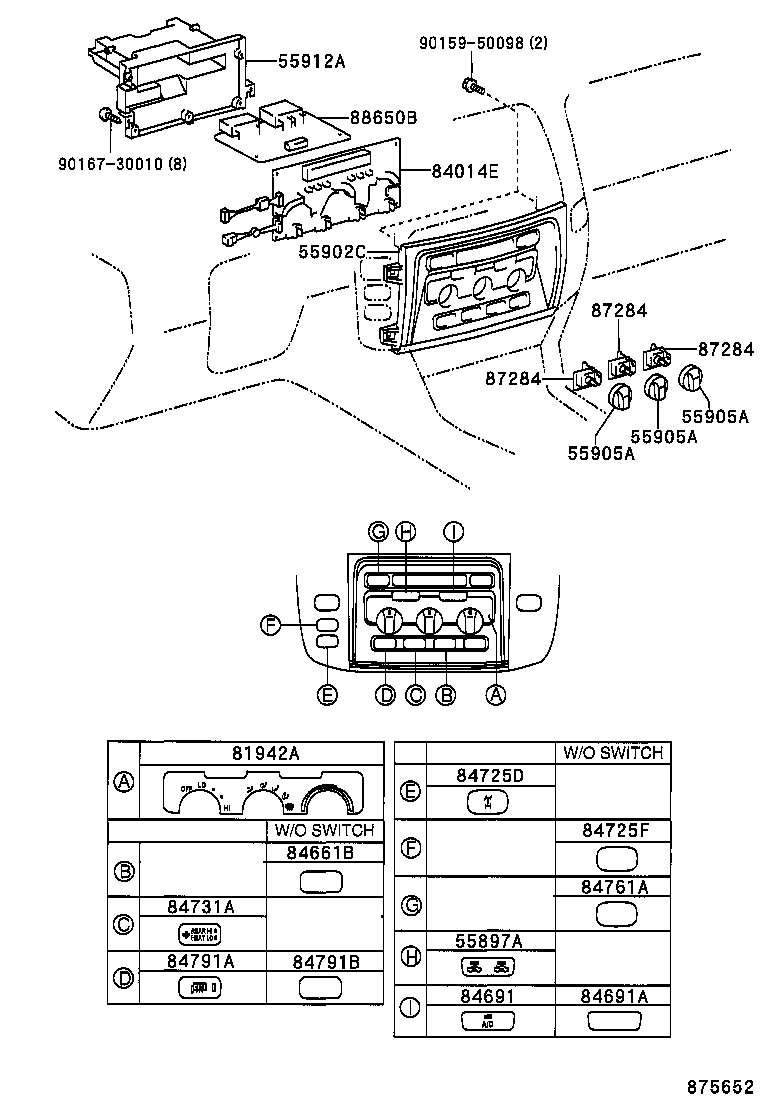

ILLUST NO. 1 OF 5(0208-0505)STD
FRONT HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55897A - KNOB, AIR DAMPER CONTROL LEVER | ||||
| 55897-60010 |
HDJ100..STD |
1 | ||
| 55897-60010 |
HDJ100,UZJ100 |
1 | ||
| 55902C - PANEL SUB-ASSY, AIR CONDITIONER | ||||
| 55902-60090 |
HDJ100..STD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60270 |
HDJ100..STD |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60270 |
HDJ100..STD |
3 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-60270 |
HDJ100..STD |
3 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-60130 |
HDJ100..STD |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-60060 |
HDJ100..STD |
1 | ||
| 84014E - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-60170 |
HDJ100..STD |
1 | ||
| 84661B - BEZEL, SWITCH | ||||
| 84656-60020 |
HDJ100,UZJ100 |
1 | ||
| 84656-60070 |
HDJ100,UZJ100 |
1 | ||
| 84691 - KNOB, CONDITION INDICATOR | ||||
| 84691-60010 |
HDJ100,UZJ100 |
1 | ||
| 84691-60010 |
HDJ100..STD |
1 | ||
| 84691A - BEZEL, SWITCH | ||||
| 84656-60040 |
HDJ100,UZJ100 |
1 | ||
| 84656-60040 |
HDJ100..STD |
1 | ||
| 84656-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 84725D - KNOB, DIFFERENTIAL LOCK SWITCH | ||||
| 84725-60090 |
HDJ100,UZJ100 |
1 | ||
| 84725-60050 |
HDJ100,UZJ100 |
1 | ||
| 84725F - BEZEL, SWITCH | ||||
| 84656-60080 |
HDJ100,UZJ100 |
1 | ||
| 84731A - KNOB, HEATER BLOWER SWITCH | ||||
| 84731-60010 |
HDJ100,UZJ100 |
1 | ||
| 84731-60020 |
HDJ100,UZJ100 |
1 | ||
| 84761A - BEZEL, SWITCH | ||||
| 84656-60030 |
HDJ100,UZJ100 |
1 | ||
| 84656-60030 |
HDJ100..STD |
1 | ||
| 84791A - KNOB, DEFOGGER TIME SWITCH | ||||
| 84791-60040 |
HDJ100,UZJ100..LHD..(5F,5FC) |
1 | ||
| 84791-60010 |
HDJ100,UZJ100 |
1 | ||
| 84791B - BEZEL, SWITCH | ||||
| 84656-60060 |
HDJ100..STD |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-60050 |
HDJ100..STD FOR BLOWER CONTROL & MODE CONTROL |
2 | ||
| 88032-60070 |
HDJ100..STD FOR TEMPERATURE CONTROL |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-60050 |
HDJ100..STD FOR BLOWER CONTROL & MODE CONTROL |
2 | ||
| 88032-60070 |
HDJ100..STD FOR TEMPERATURE CONTROL |
1 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-60050 |
HDJ100..STD FOR BLOWER CONTROL & MODE CONTROL |
2 | ||
| 88032-60070 |
HDJ100..STD FOR TEMPERATURE CONTROL |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-60780 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90167-30010 | ||||

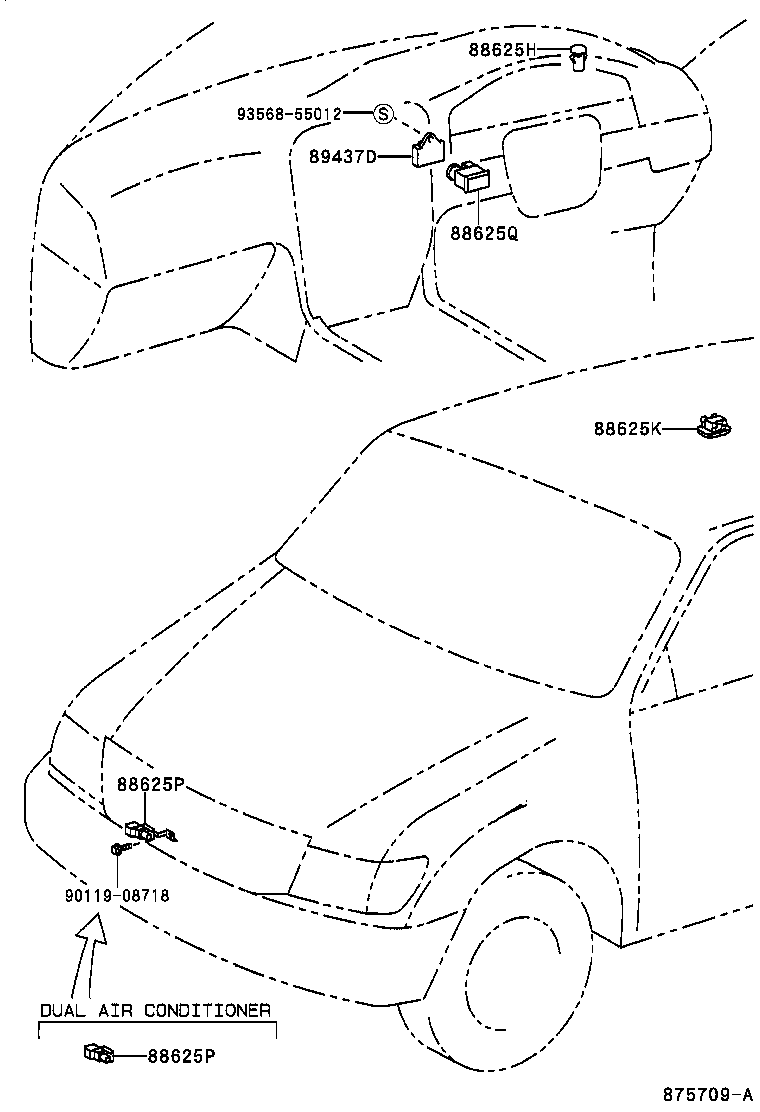

ILLUST NO. 5 OF 5(0208- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08718 | ||||
| 93568-55012 | ||||
