HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801-0208)

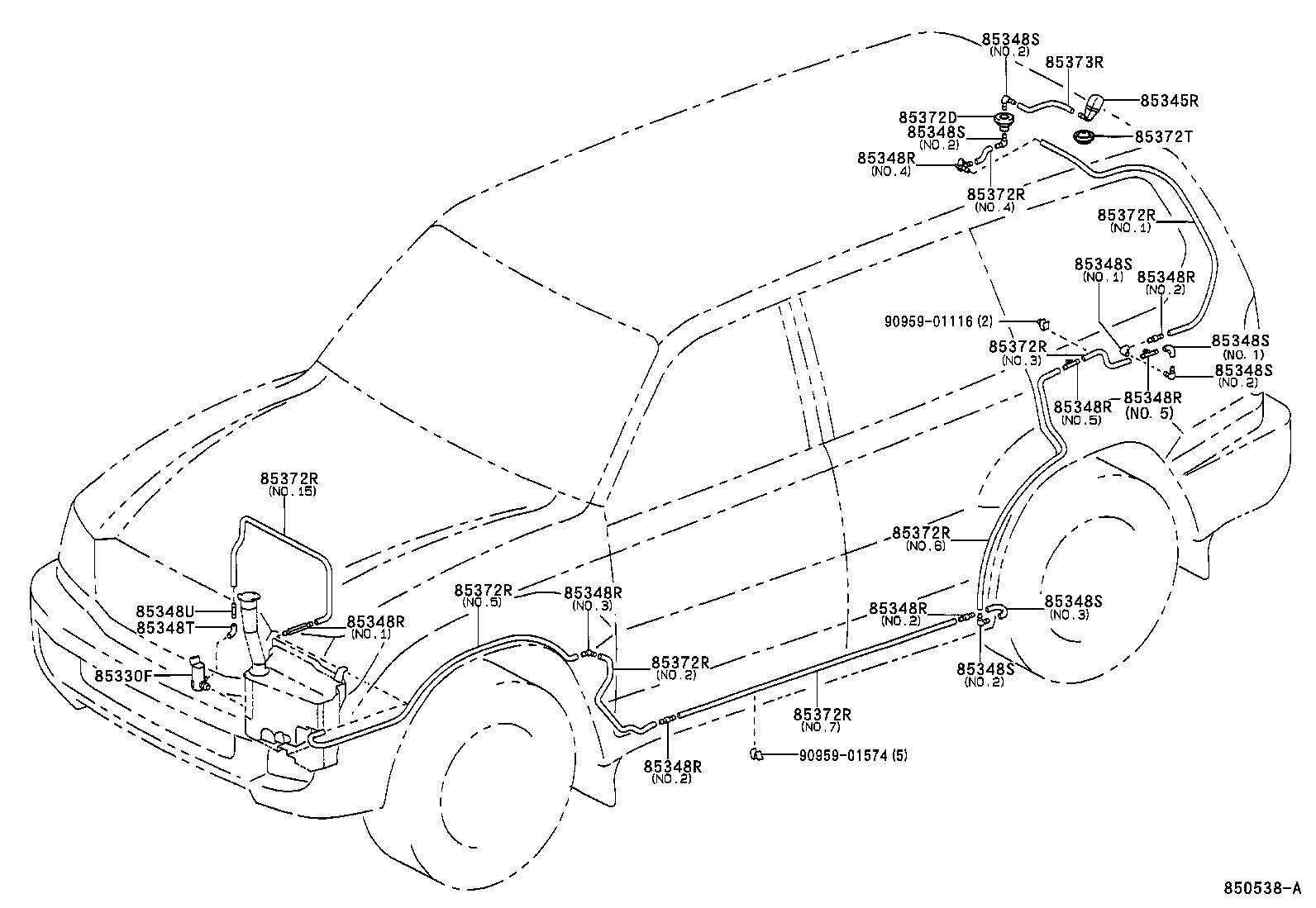

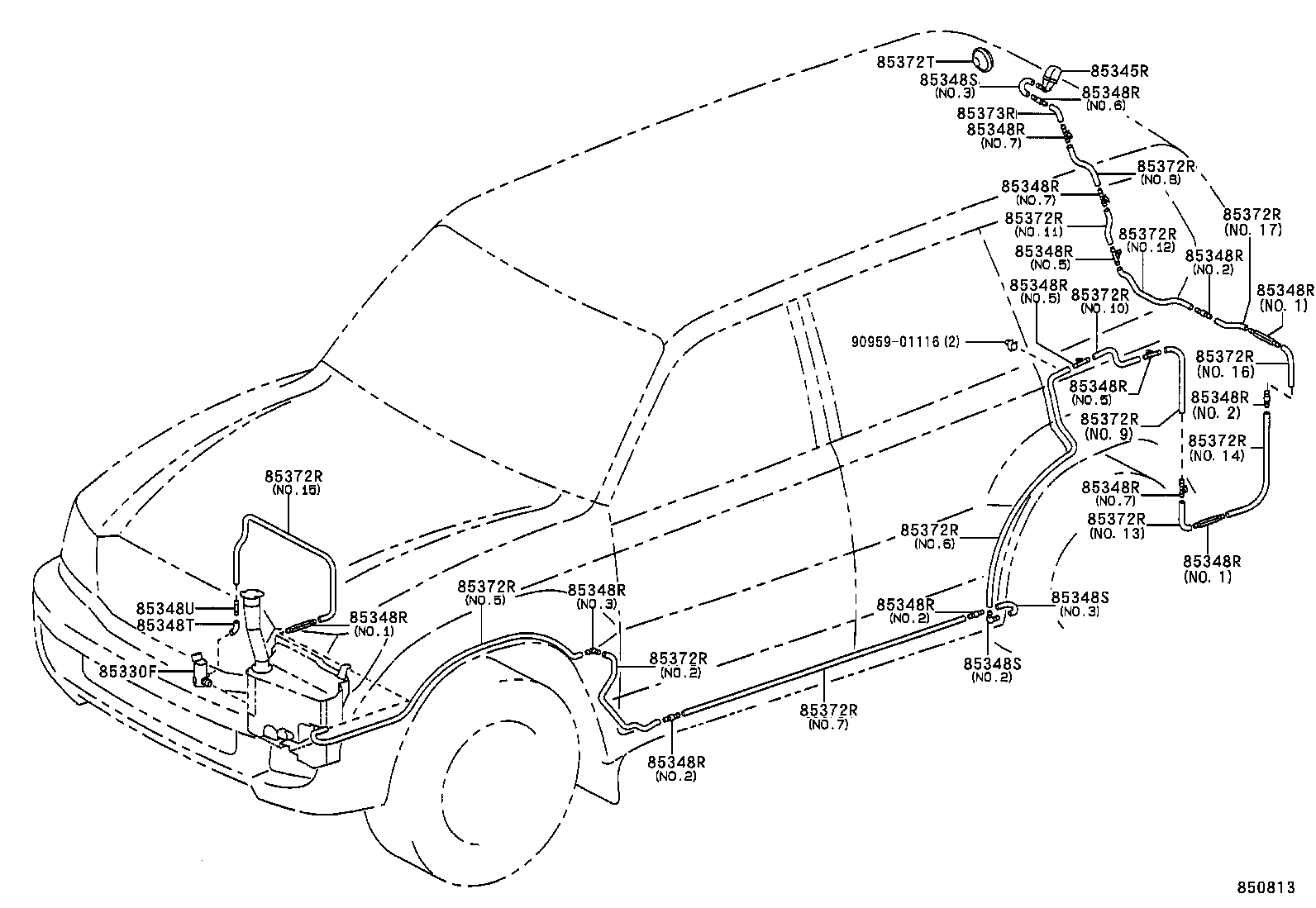

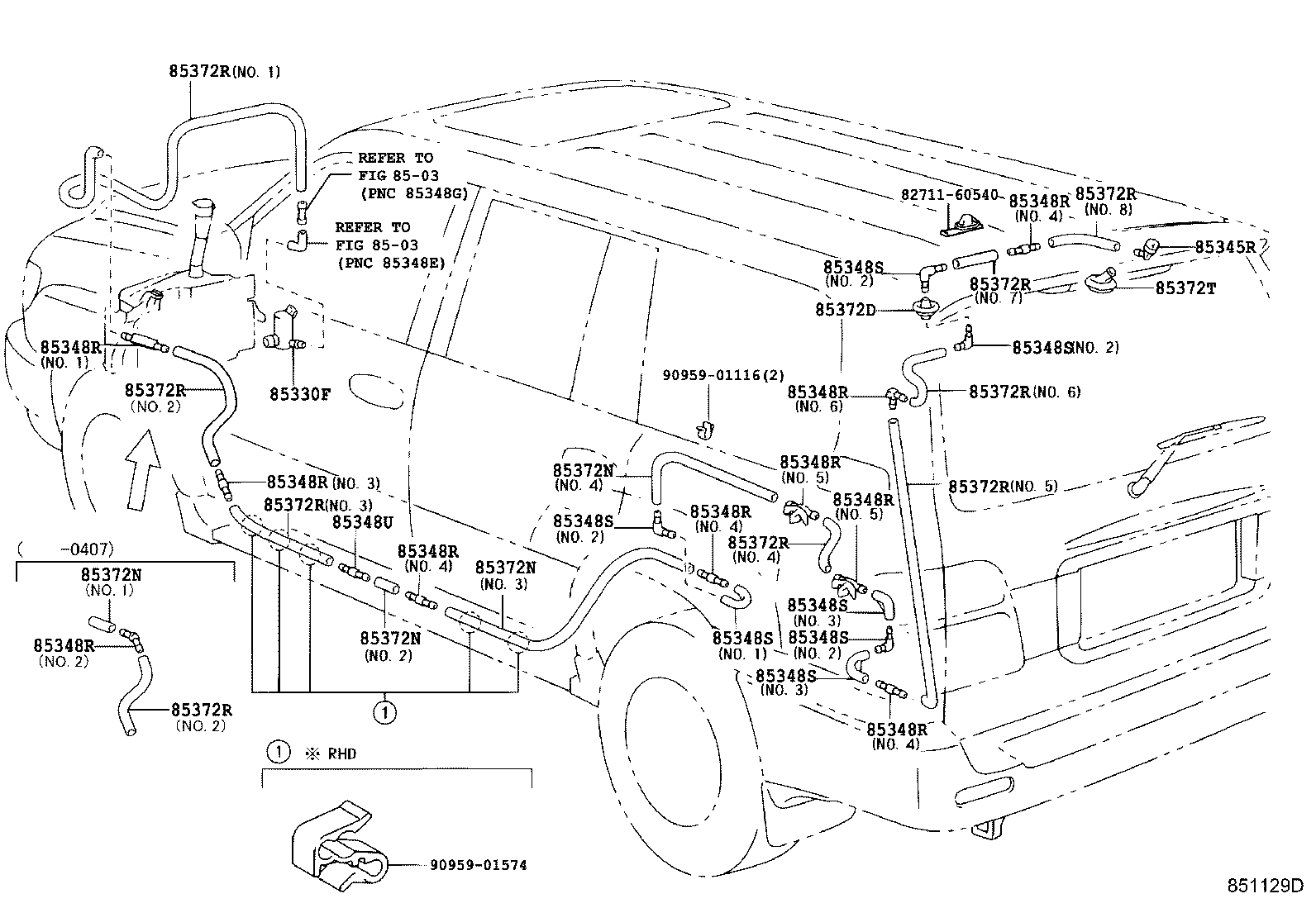

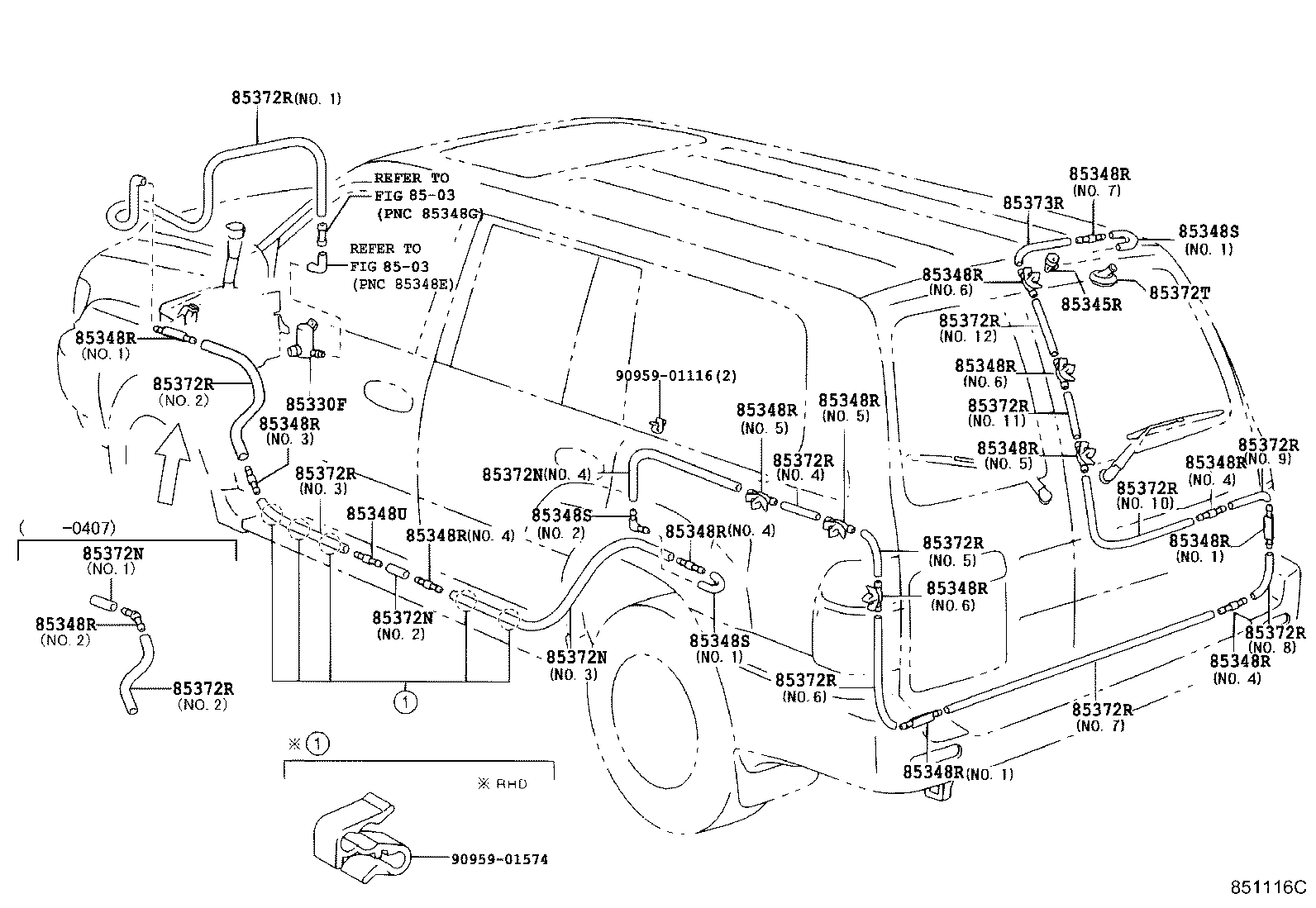

VERTICAL DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-35080 |
HDJ100,UZJ100 |
1 | ||
| 85330-50030 |
HDJ100,UZJ100 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-60060 |
HDJ100..STD |
1 | ||
| 85391-60060 |
HDJ100,UZJ100 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-14481 |
HDJ100,UZJ100 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
HDJ100,UZJ100 |
1 | ||
| 85334-22470 |
HDJ100,UZJ100 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
HDJ100,UZJ100 |
1 | ||
| 85373-32020 |
HDJ100,UZJ100 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
HDJ100,UZJ100 *H,L=205 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| Common parts | ||||
| 90959-01116 | ||||
| 90959-01574 | ||||
(9801-0208)
DOUBLE-LEAF DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-35080 |
HDJ100,UZJ100 |
1 | ||
| 85330-50030 |
HDJ100,UZJ100 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-60060 |
HDJ100..STD |
1 | ||
| 85391-60060 |
HDJ100,UZJ100 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85355-14481 |
HDJ100,UZJ100 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
HDJ100,UZJ100 |
1 | ||
| 85334-22470 |
HDJ100,UZJ100 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
HDJ100,UZJ100 |
1 | ||
| 85373-32020 |
HDJ100,UZJ100 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
HDJ100,UZJ100 *H,L=205 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| Common parts | ||||
| 90959-01116 | ||||
(0208-0505)STD
DOUBLE-LEAF DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-35080 |
HDJ100,UZJ100 |
1 | ||
| 85330-50030 |
HDJ100,UZJ100 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-60060 |
HDJ100..STD |
1 | ||
| 85391-60060 |
HDJ100,UZJ100 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
HDJ100,UZJ100 |
1 | ||
| 85334-22470 |
HDJ100,UZJ100 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
HDJ100,UZJ100 |
1 | ||
| 85373-32020 |
HDJ100,UZJ100 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
HDJ100,UZJ100 *H,L=205 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=140 |
1 | ||
| Common parts | ||||
| 90959-01116 | ||||
| 90959-01574 | ||||
| Linked diagrams | ||||
| 8503 | ||||
(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85330F - MOTOR & PUMP ASSY, RR WASHER | ||||
| 85330-35080 |
HDJ100,UZJ100 |
1 | ||
| 85330-50030 |
HDJ100,UZJ100 |
1 | ||
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-60060 |
HDJ100..STD |
1 | ||
| 85391-60060 |
HDJ100,UZJ100 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-14560 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85375-10260 |
HDJ100..STD NO.2 |
3 | ||
| 85375-14560 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85375-17050 |
HDJ100..STD NO.7 |
3 | ||
| 85349-32150 |
HDJ100..STD NO.1 |
3 | ||
| 85334-22480 |
HDJ100,UZJ100 NO.3 |
1 | ||
| 85375-17050 |
HDJ100..STD NO.6 |
3 | ||
| 85349-89122 |
HDJ100..STD NO.6 |
1 | ||
| 85375-10260 |
HDJ100,UZJ100 NO.4 |
4 | ||
| 85349-89122 |
HDJ100..STD NO.7 |
1 | ||
| 85375-20800 |
HDJ100..STD NO.5 |
3 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85375-33040 |
HDJ100..STD NO.3 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85375-33040 |
HDJ100..STD NO.1 |
2 | ||
| 85355-20200 |
HDJ100..STD NO.2 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
HDJ100,UZJ100 |
1 | ||
| 85334-22470 |
HDJ100,UZJ100 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33803 |
HDJ100,UZJ100 *H,L=2250,NO.3 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=70,NO.1 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=80,NO.4,NO.2 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE) | ||||
| 90099-59237 |
HDJ100,UZJ100 L=2300,NO.7 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=720,NO.15 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=1030,NO.1 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.12 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-59232 |
HDJ100,UZJ100 L=1150,NO.5 |
1 | ||
| 90099-59234 |
HDJ100,UZJ100 L=870,NO.6 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=290,NO.9 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=270,NO.5 |
1 | ||
| 90099-33075 |
HDJ100,UZJ100 *H,L=720,NO.1 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.11 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=300,NO.8 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=330,NO.6 |
1 | ||
| 90099-33080 |
HDJ100,UZJ100 *H,L=500,NO.2 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.14 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=340,NO.12 |
1 | ||
| 90099-33803 |
HDJ100..STD *H,L=1530,NO.7 |
1 | ||
| 90099-33299 |
HDJ100,UZJ100 *H,L=580,NO.2 |
1 | ||
| 90099-33224 |
HDJ100..STD L=1200,NO.10 |
1 | ||
| 90446-06013 |
HDJ100,UZJ100 *H,L=970,NO.3 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=250,NO.17,NO.16,NO.13,NO.8,NO.11,NO.10 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=150,NO.4 |
1 | ||
| 90099-33080 |
HDJ100..STD *H,L=170,NO.9 |
1 | ||
| 85372T - GROMMET, WASHER | ||||
| 85372-20020 |
HDJ100,UZJ100 |
1 | ||
| 85373-32020 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 82711-60540 | ||||
| 90959-01116 | ||||
| 90959-01574 | ||||
| Linked diagrams | ||||
| 8503 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
