HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008-0505)

Click highlighted areas on diagram

DOUBLE-LEAF DOOR

diagram 8401 8401 85110R 85120R 85132A 85143R 85160R 85168R 85169R 85178R 85178R 85190R 85192R 85192R 85214D 85214R 85220R 85220R 85224E 85224F 85224J 85224K 85241A
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-60180

HDJ100..STD

 1
85130-60210

HDJ100..STD

 1
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-60180

HDJ100..STD

 1
85080-60190

HDJ100..STD

 1
85132A - COVER, REAR WIPER SHAFT
85132-28040

HDJ100..STD

 1
85132-28040

HDJ100..STD

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-60110

HDJ100,UZJ100

 1
85143-60110

HDJ100,UZJ100

 1
85160R - LINK ASSY, REAR WIPER
85170-60100

HDJ100..STD

 1
85170-60100

HDJ100..STD

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
85168-95700

HDJ100..STD

 1
85168-95700

HDJ100..STD

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85134-60120

HDJ100..STD

 1
85134-60120

HDJ100..STD

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

HDJ100..STD

 2
90179-06158

HDJ100..STD

 2
90179-06070

HDJ100,UZJ100

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

HDJ100..STD

 2
90179-06158

HDJ100..STD

 2
90179-06070

HDJ100,UZJ100

 1
85190R - ARM ASSY, REAR WIPER
85241-60080

HDJ100..STD

 1
85241-60080

HDJ100..STD

 1
85192R - COVER, REAR WIPER ARM
85192-13060

HDJ100..STD

 2
85192-13060

HDJ100..STD

 2
85192R - COVER, REAR WIPER ARM
85192-13060

HDJ100..STD

 2
85192-13060

HDJ100..STD

 2
85214D - RUBBER, WIPER BLADE, RH
85214-10100

HDJ100..STD

 1
85214-10100

HDJ100..STD

 1
85214R - RUBBER, REAR WIPER
85214-30280

HDJ100..STD

 1
85214-30280

HDJ100..STD

 1
85220R - BLADE ASSY, REAR WIPER
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85220R - BLADE ASSY, REAR WIPER
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-30460

HDJ100..STD

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-30460

HDJ100..STD

 1
85224J - PLATE, WIPER BLADE RUBBER BACKING, NO.3
85224-10200

HDJ100..STD

 1
85224K - PLATE, WIPER BLADE RUBBER BACKING, NO.4
85224-10200

HDJ100..STD

 1
85241A - ARM, REAR WIPER
85241-60090

HDJ100..STD

 1
85241-60090

HDJ100..STD

 1
Linked diagrams
8401

(9801- )

Click highlighted areas on diagram

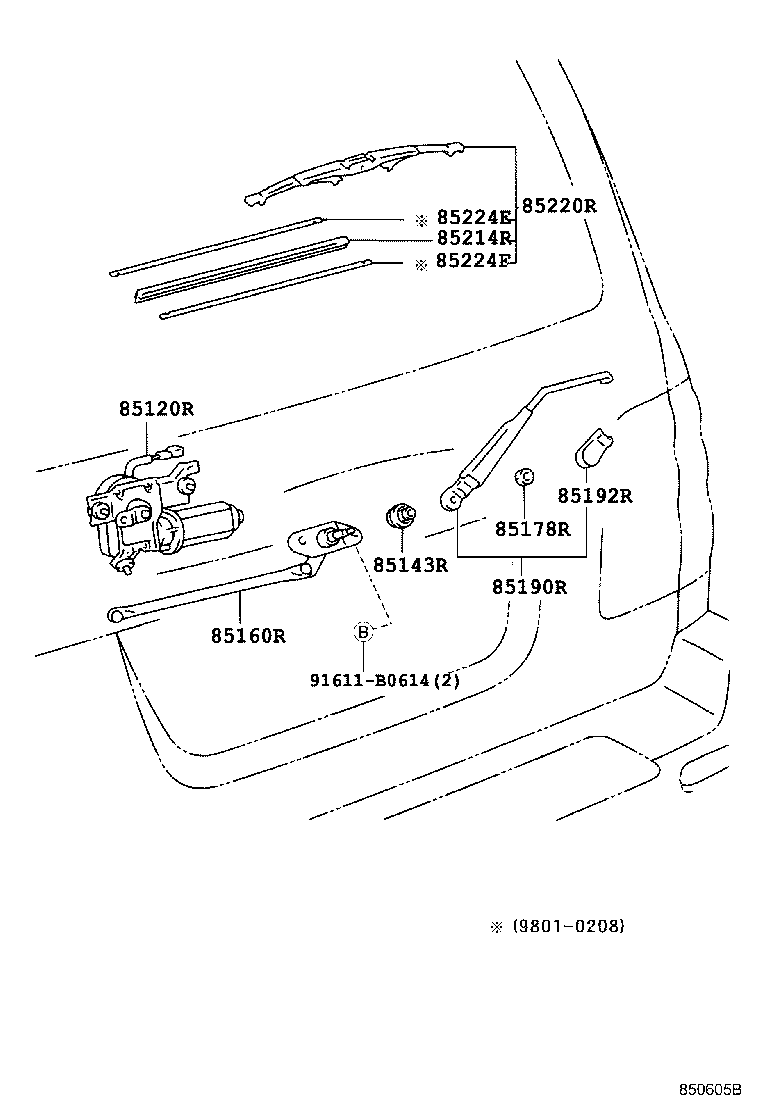

VERTICAL DOOR

diagram 85120R 85143R 85160R 85178R 85190R 85192R 85214R 85220R 85224E 85224F 91611B0614
Part # Description Qty Price
85120R - MOTOR AND BRACKET ASSY, REAR WIPER
85080-60180

HDJ100..STD

 1
85080-60190

HDJ100..STD

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-60110

HDJ100,UZJ100

 1
85143-60110

HDJ100,UZJ100

 1
85160R - LINK ASSY, REAR WIPER
85170-60100

HDJ100..STD

 1
85170-60100

HDJ100..STD

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

HDJ100..STD

 2
90179-06158

HDJ100..STD

 2
90179-06070

HDJ100,UZJ100

 1
85190R - ARM ASSY, REAR WIPER
85241-60080

HDJ100..STD

 1
85241-60080

HDJ100..STD

 1
85192R - COVER, REAR WIPER ARM
85192-13060

HDJ100..STD

 2
85192-13060

HDJ100..STD

 2
85214R - RUBBER, REAR WIPER
85214-30280

HDJ100..STD

 1
85214-30280

HDJ100..STD

 1
85220R - BLADE ASSY, REAR WIPER
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85242-30040

HDJ100..STD

LH

 1
85242-60050

HDJ100..STD

RH

 1
85224E - PLATE, REAR WIPER RUBBER BACKING, NO.1
85224-30460

HDJ100..STD

 1
85224F - PLATE, REAR WIPER RUBBER BACKING, NO.2
85224-30460

HDJ100..STD

 1
Common parts
91611-B0614
