Toyota Land cruiser 100 HDJ100 WIRELESS DOOR LOCK

HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005

Engine 1HDFTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9801-0208)LHD

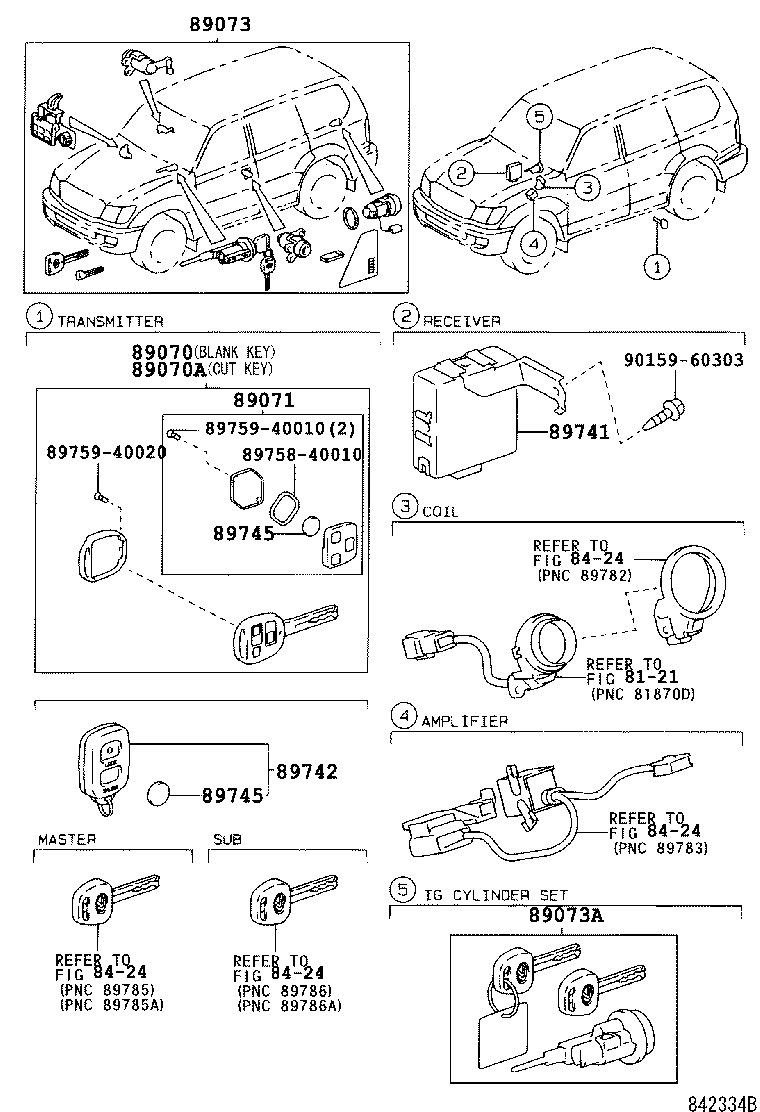

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60480	HDJ100..STD	07/2001 - 08/2002	1
89070-60130	HDJ100..STD	08/2000 - 07/2001	1
89070-60790	HDJ100..STD	08/2002 - 05/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60030	HDJ100..STD	07/2001 - 08/2002	2
89071-60010	HDJ100..STD	08/2000 - 07/2001	2
89071-50251	HDJ100..STD	08/2002 - 05/2003	1
89071-42050	HDJ100..STD	05/2003 - 05/2005	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60660	HDJ100..STD	07/2001 - 08/2002	1
69005-6C510	HDJ100..STD	08/2002 - 05/2005	1
89073-60201	HDJ100..STD	08/2000 - 07/2001	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60060	HDJ100..STD	08/2000 - 07/2001	1
89073-60640	HDJ100..STD	07/2001 - 08/2002	1
69057-60560	HDJ100..STD	08/2002 - 05/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-60061	HDJ100..STD	08/2000 - 07/2001	1
89741-60100	HDJ100..STD	07/2001 - 08/2002	1
89741-60130	HDJ100,UZJ100..LHD	01/1998 - 08/1998	1
89741-60390	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	1
89742 - TRANSMITTER, DOOR CONTROL
89742-12140	HDJ100,UZJ100..LHD DENMARK SPEC	01/1998 - 08/1998	2
89742-12150	HDJ100,UZJ100..LHD SWEDEN SPEC	01/1998 - 08/1998	2
89742-12130	HDJ100,UZJ100..LHD GERMAN SPEC	01/1998 - 08/1998	2
89742-12120	HDJ100,UZJ100..LHD	01/1998 - 08/1998	2
89742-12170	HDJ100,UZJ100..LHD FRANCE SPEC	01/1998 - 08/1998	2
89745 - BATTERY, TRANSMITTER
89745-50010	HDJ100,UZJ100	01/1998 - 08/1998	2
89745-40010	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	2
89745 - BATTERY, TRANSMITTER
89745-50010	HDJ100,UZJ100	01/1998 - 08/1998	2
89745-40010	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	2
Common parts
89758-40010
89759-40010
89759-40020
90159-60303
Linked diagrams
8121
8424

(0208- )

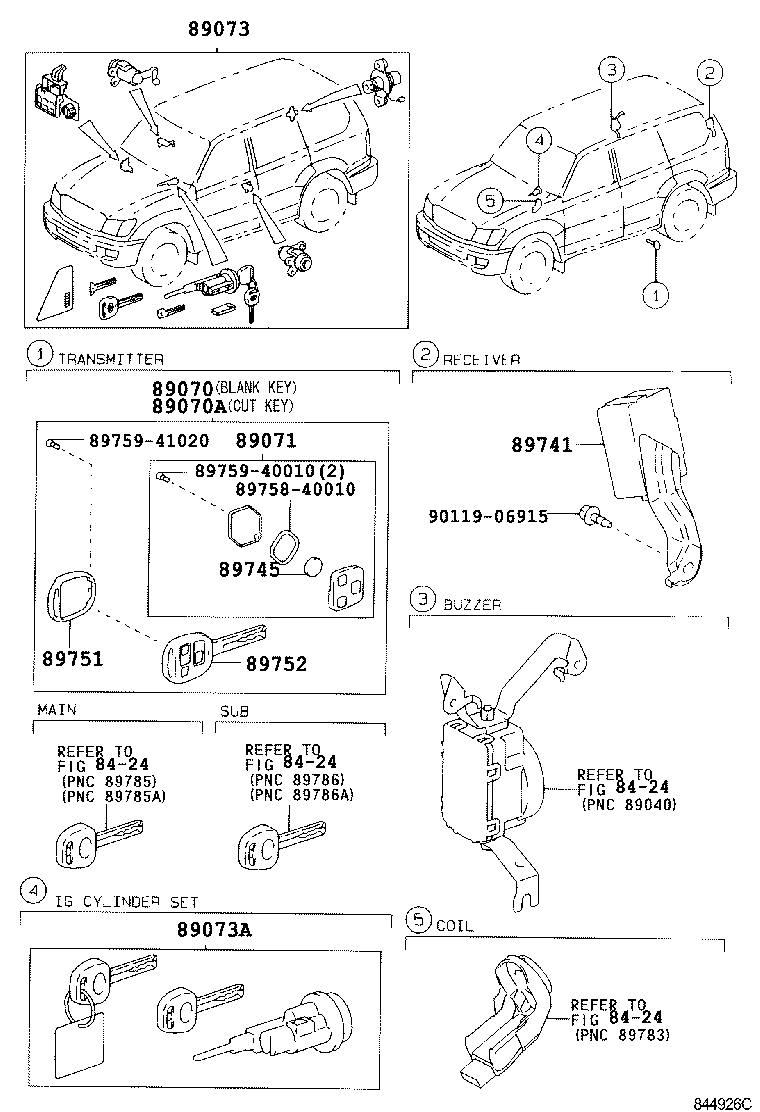

Click highlighted areas on diagram

Part #	Description	Period	Qty
89070 - TRANSMITTER ASSY, DOOR CONTROL
89070-60480	HDJ100..STD	07/2001 - 08/2002	1
89070-60130	HDJ100..STD	08/2000 - 07/2001	1
89070-60790	HDJ100..STD	08/2002 - 05/2005	1
89071 - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-60030	HDJ100..STD	07/2001 - 08/2002	2
89071-60010	HDJ100..STD	08/2000 - 07/2001	2
89071-50251	HDJ100..STD	08/2002 - 05/2003	1
89071-42050	HDJ100..STD	05/2003 - 05/2005	1
89073 - CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89073-60660	HDJ100..STD	07/2001 - 08/2002	1
69005-6C510	HDJ100..STD	08/2002 - 05/2005	1
89073-60201	HDJ100..STD	08/2000 - 07/2001	1
89073A - IGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
89073-60060	HDJ100..STD	08/2000 - 07/2001	1
89073-60640	HDJ100..STD	07/2001 - 08/2002	1
69057-60560	HDJ100..STD	08/2002 - 05/2005	1
89741 - RECEIVER, DOOR CONTROL
89741-60061	HDJ100..STD	08/2000 - 07/2001	1
89741-60100	HDJ100..STD	07/2001 - 08/2002	1
89741-60130	HDJ100,UZJ100..LHD	01/1998 - 08/1998	1
89741-60390	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	1
89745 - BATTERY, TRANSMITTER
89745-50010	HDJ100,UZJ100	01/1998 - 08/1998	2
89745-40010	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	2
89751 - COVER, TRANSMITTER HOUSING
89751-13010	HDJ100,UZJ100..5F,5FC	08/2002 - 05/2005	2
Common parts
89758-40010
89759-40010
89759-41020
90119-06915
Linked diagrams
8424
