HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100

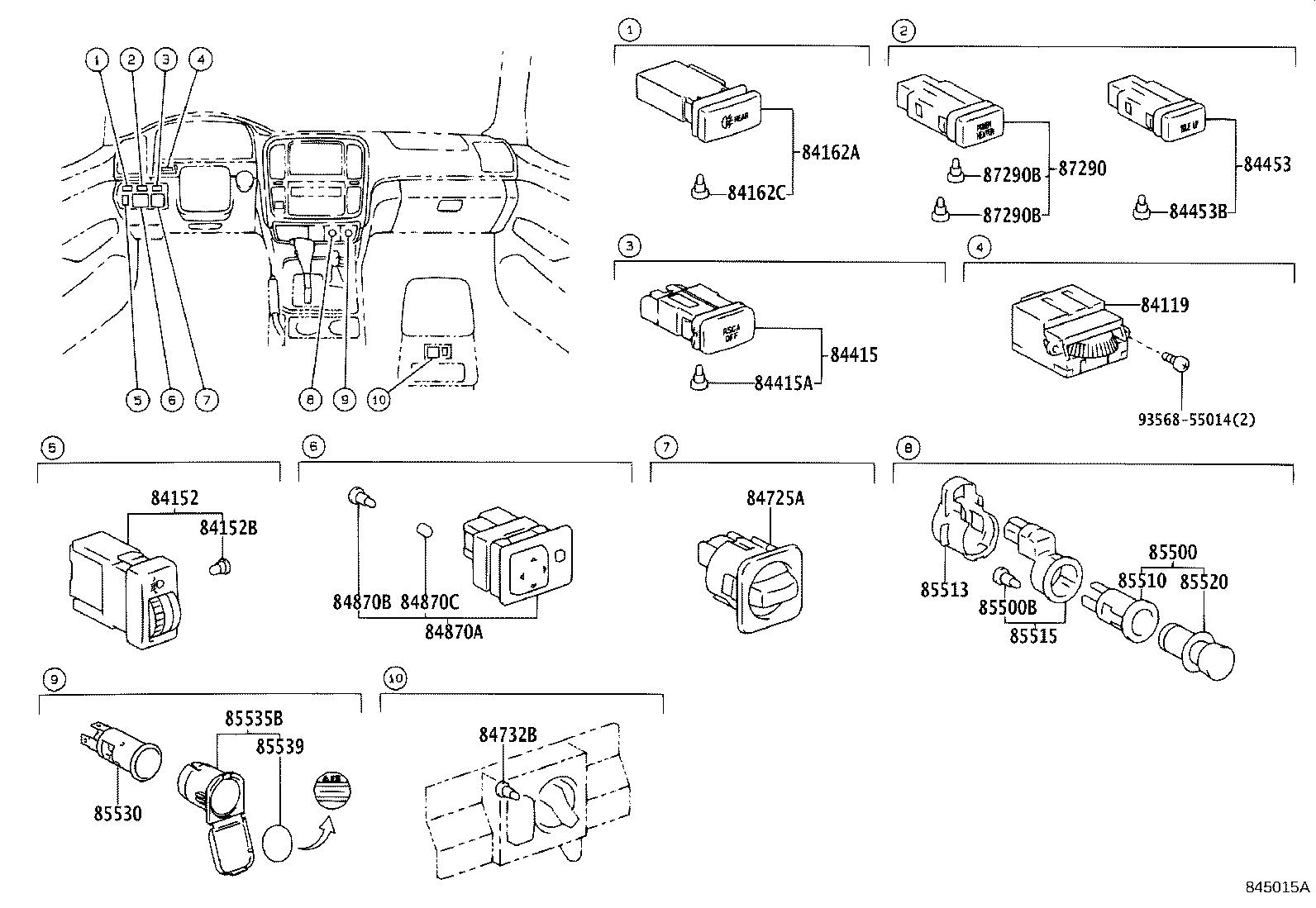

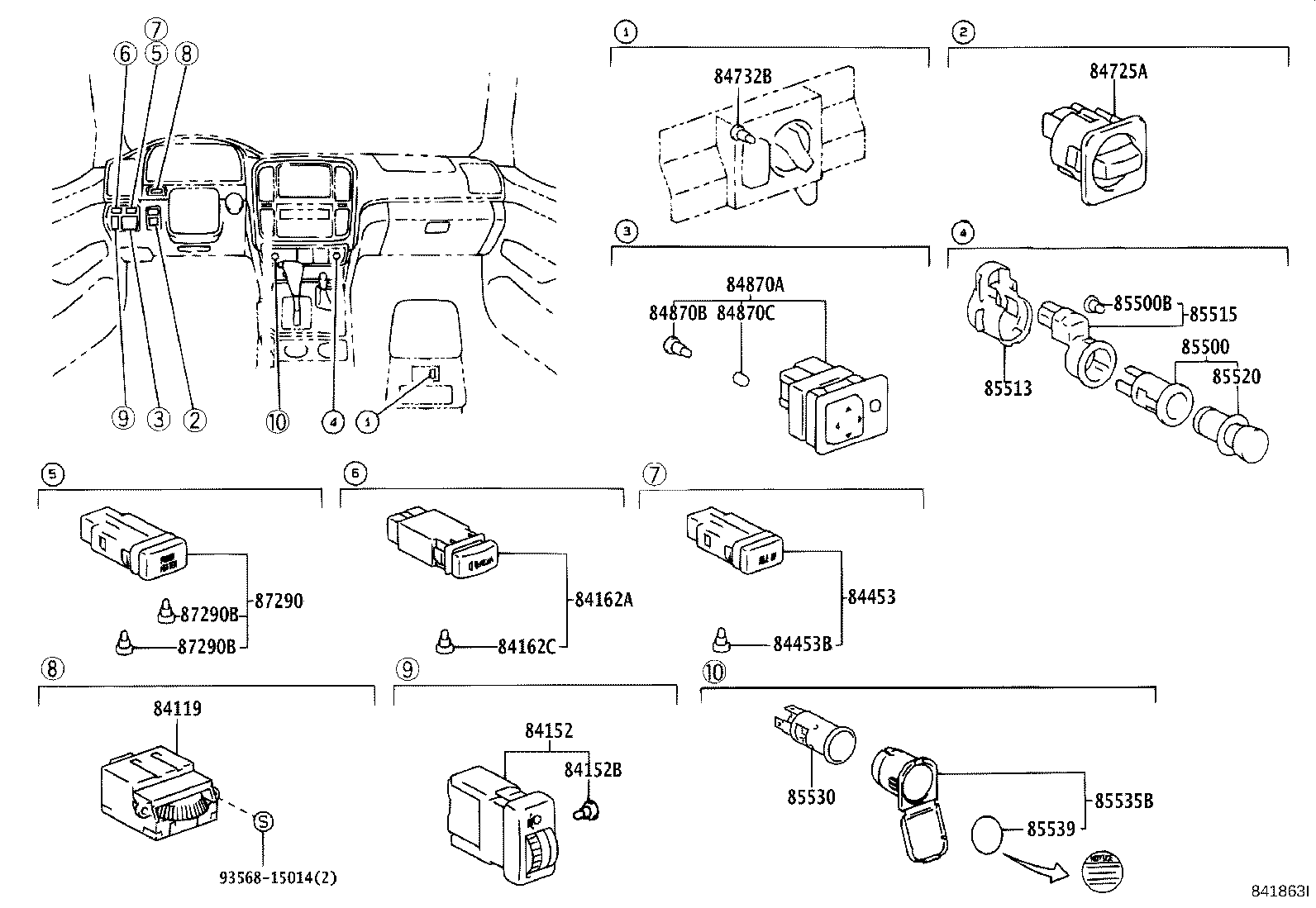

ILLUST NO. 4 OF 9(9801-0208)LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60040 |
HDJ100,UZJ100 |
1 | ||
| 84152-60040 |
HDJ100,UZJ100 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
HDJ100,UZJ100 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
HDJ100,UZJ100 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
HDJ100,UZJ100..5F,5FC 14V 40MA, GREEN |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84165-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 84165-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01039 |
HDJ100,UZJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
HDJ100,UZJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60030 |
HDJ100 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
HDJ100,UZJ100 |
1 | ||
| 84725-60030 |
HDJ100,UZJ100 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
1 | ||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60050 |
UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F LEATHER PACKAGE |
1 | ||
| 84870-60030 |
UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
HDJ100,UZJ100 |
1 | ||
| 85500-89106 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
HDJ100,UZJ100..5F,5FC 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
HDJ100,UZJ100 14V1.4W,W(GREEN CAP) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
HDJ100,UZJ100 |
1 | ||
| 85513-12020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-60010 |
HDJ100,UZJ100 |
1 | ||
| 85515-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85520-89101 |
HDJ100,UZJ100 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
HDJ100,UZJ100 |
1 | ||
| 85530-33020 |
HDJ100,UZJ100 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60040C0 |
HDJ100,UZJ100 BLACK,TRIM1#,40,41 |
1 | ||
| 85535-60040C0 |
HDJ100,UZJ100 BLACK,TRIM00,10 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-60060 |
HDJ100 |
1 | ||
| 87290-60060 |
HDJ100 |
1 | ||
| 87290-60050 |
HDJ100 |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
HDJ100..STD 14V 0.91W |
1 | ||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 90010-01039 |
HDJ100..4FC,5F 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 84999-10310 |
HDJ100..5FC;HDJ100..STD 14V 0.91W |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
HDJ100..STD 14V 0.91W |
1 | ||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 90010-01039 |
HDJ100..4FC,5F 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 84999-10310 |
HDJ100..5FC;HDJ100..STD 14V 0.91W |
1 | ||
| Common parts | ||||
| 93568-15014 | ||||

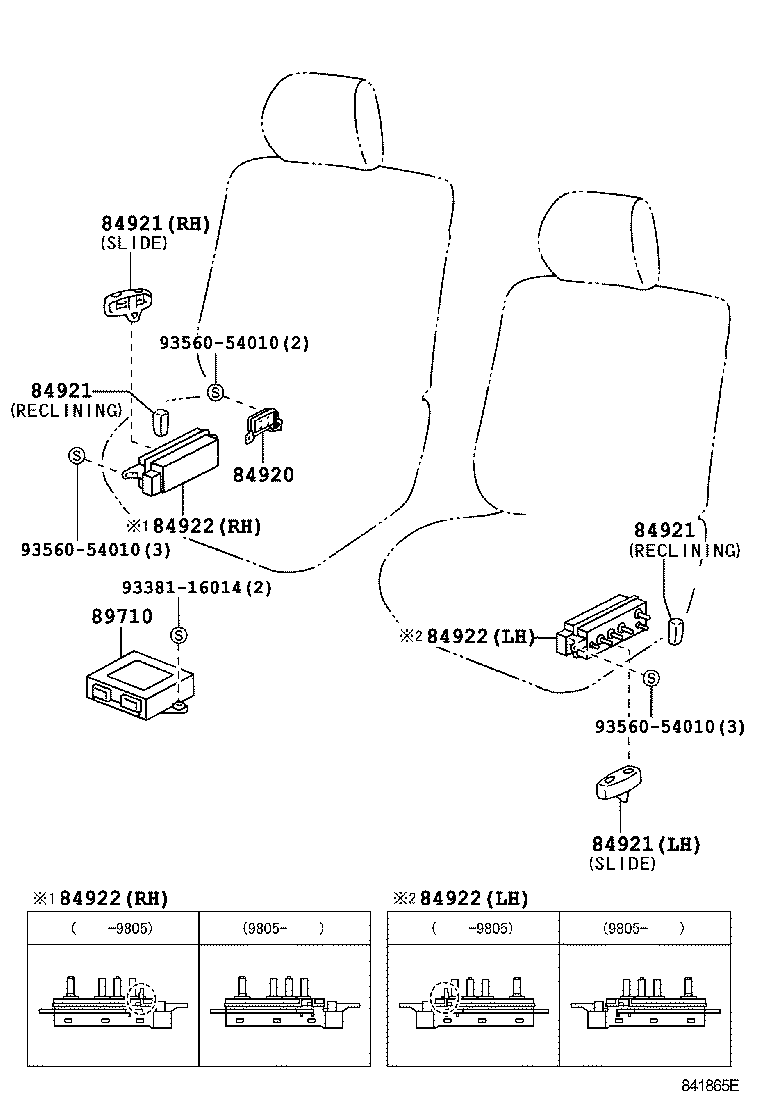

ILLUST NO. 9 OF 9(9801-0208)
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| Common parts | ||||
| 93381-16014 | ||||
| 93560-54010 | ||||

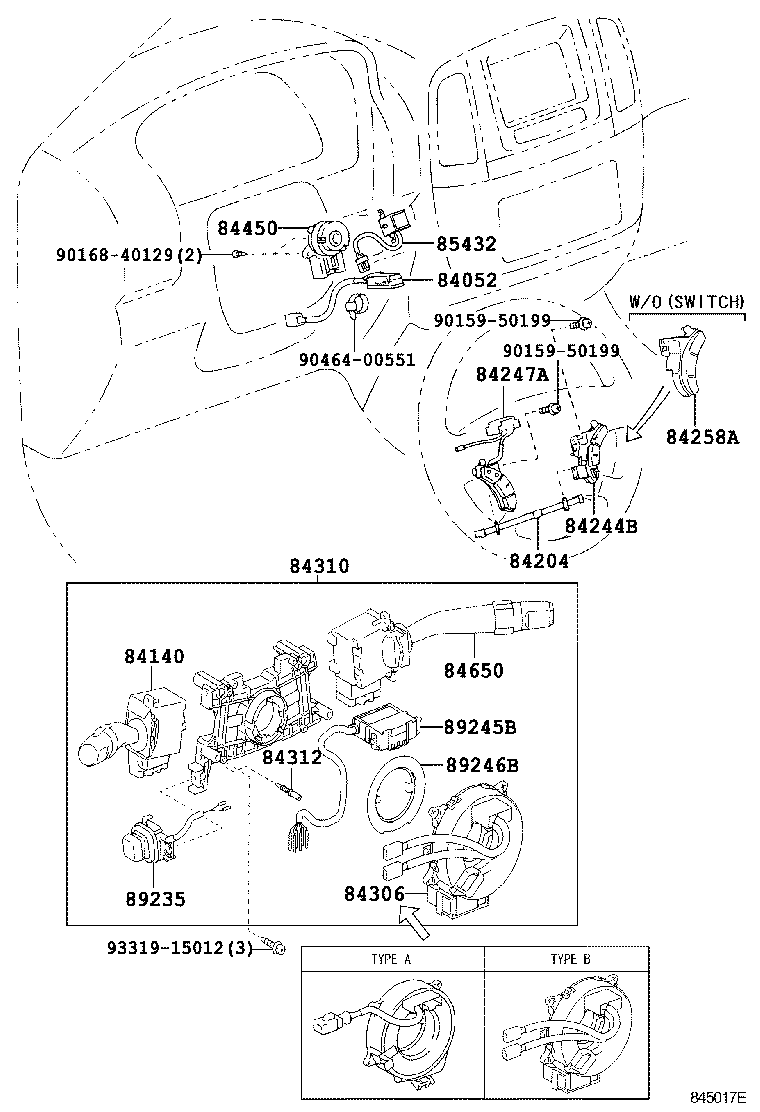

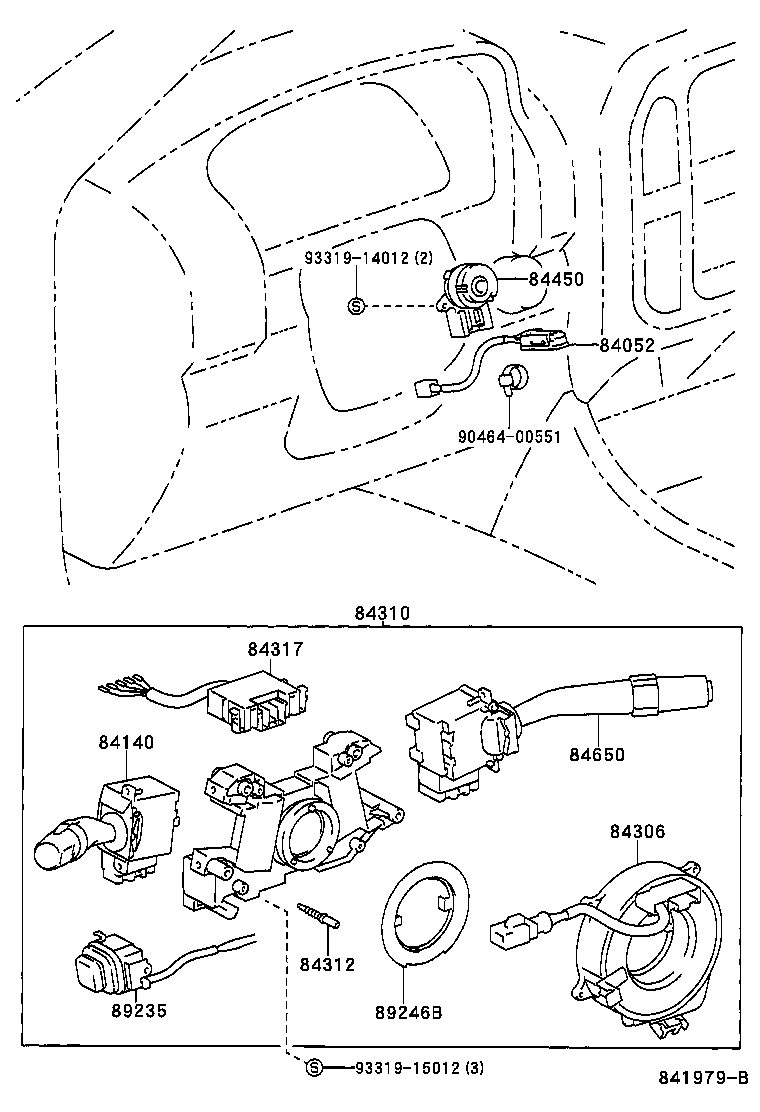

ILLUST NO. 6 OF 9(9801-0208)LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
HDJ100,UZJ100 |
1 | ||
| 84052-33040 |
HDJ100,UZJ100 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
HDJ100,UZJ100 |
1 | ||
| 84140-26140 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
HDJ100,UZJ100 |
1 | ||
| 84306-60071 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84306-60090 |
HDJ100,UZJ100..5F,5FC TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A390 |
HDJ100,UZJ100..LHD |
1 | ||
| 84310-6A430 |
HDJ100,UZJ100..LHD W(FOG LAMP) |
1 | ||
| 84310-6A450 |
HDJ100,UZJ100..LHD W(FOG LAMP & TEMS) |
1 | ||
| 84310-6A460 |
HDJ100,UZJ100..LHD W(FOG LAMP & FRONT POWER SEAT & TEMS) |
1 | ||
| 84310-6A500 |
HDJ100,UZJ100 W(HEADLAMP CLEANER) |
1 | ||
| 84310-6A400 |
HDJ100,UZJ100..LHD W(FRONT POWER SEAT) |
1 | ||
| 84310-6A440 |
HDJ100,UZJ100..LHD W(FOG LAMP & FRONT POWER SEAT) |
1 | ||
| 84310-6A520 |
HDJ100,UZJ100 W(HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A410 |
HDJ100,UZJ100..LHD W(TEMS) |
1 | ||
| 84310-6A560 |
HDJ100,UZJ100 W(FOG LAMP & HEAD LAMP CLEANER & TEMS) |
1 | ||
| 84310-6A510 |
HDJ100,UZJ100 W(FRONT POWER SEAT & HEADLAMP CLEANER) |
1 | ||
| 84310-6A530 |
HDJ100,UZJ100 W(FRONT POWER SEAT & HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A420 |
HDJ100,UZJ100..LHD W(FRONT POWER SEAT & TEMS) |
1 | ||
| 84310-6A570 |
HDJ100,UZJ100 W(FOG LAMP & FRONT POWER SEAT & HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A501 |
HDJ100..STD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-6A330 |
HDJ100..STD |
1 | ||
| 84310-6A550 |
HDJ100,UZJ100 W(FOG LAMP & FRONT POWER SEAT & HEAD LAMP CLEANER) |
1 | ||
| 84310-6A540 |
HDJ100,UZJ100 W(FOG LAMP & HEADLAMP CLEANER) |
1 | ||
| 84310-6A330 |
HDJ100..STD PART NUMBER LABEL=84310-6A330 |
1 | ||
| 84310-6B751 |
HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
HDJ100..STD |
1 | ||
| 84312-26010 |
HDJ100..STD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
HDJ100,UZJ100 |
1 | ||
| 84450-12200 |
HDJ100,UZJ100 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-60810 |
HDJ100..STD |
1 | ||
| 84652-60810 |
HDJ100..STD;HDJ100,UZJ100..RHD |
1 | ||
| 84652-6A020 |
HDJ100,UZJ100..5F,5FC W(HEADLAMP CLEANER) |
1 | ||
| Common parts | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||

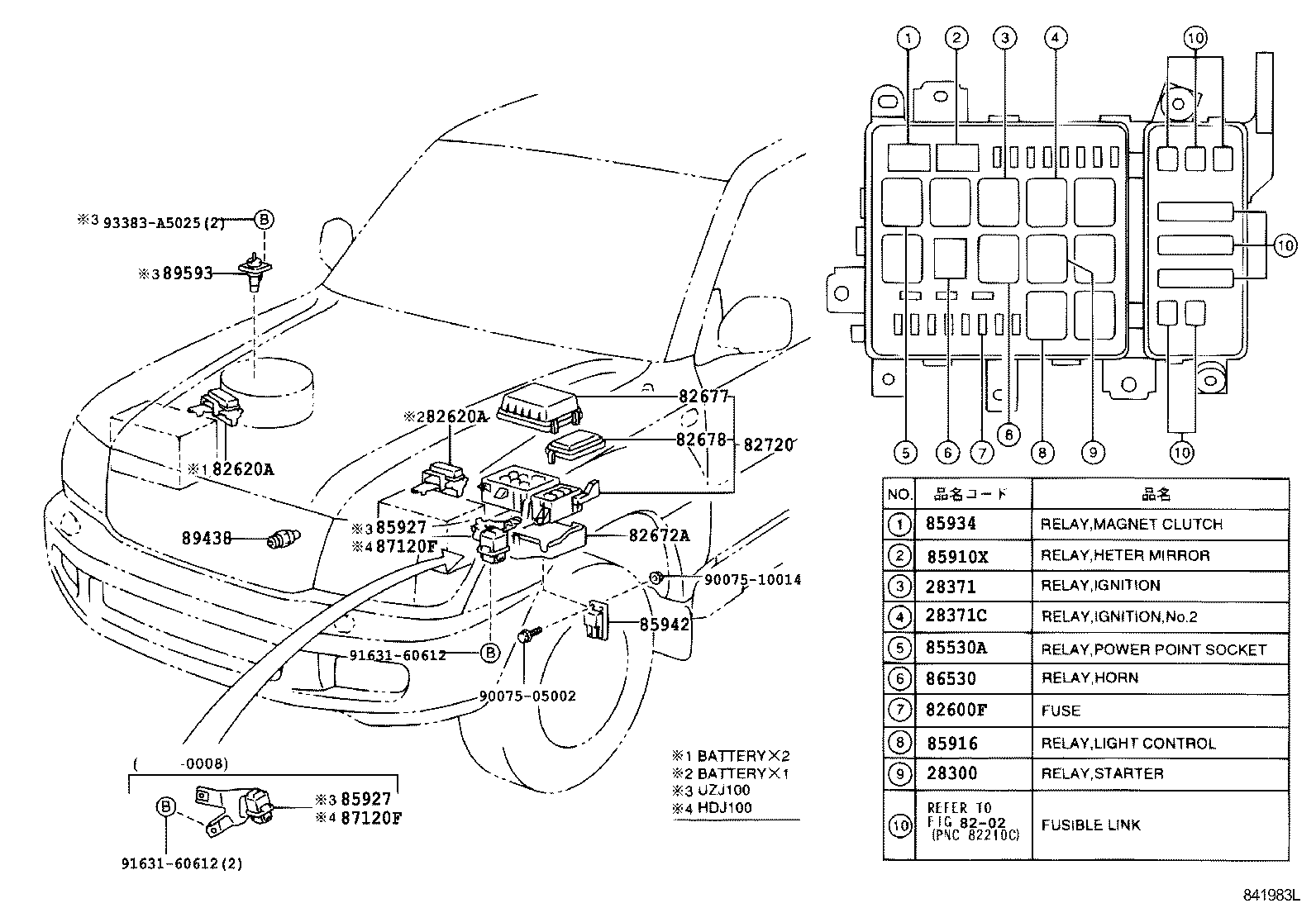

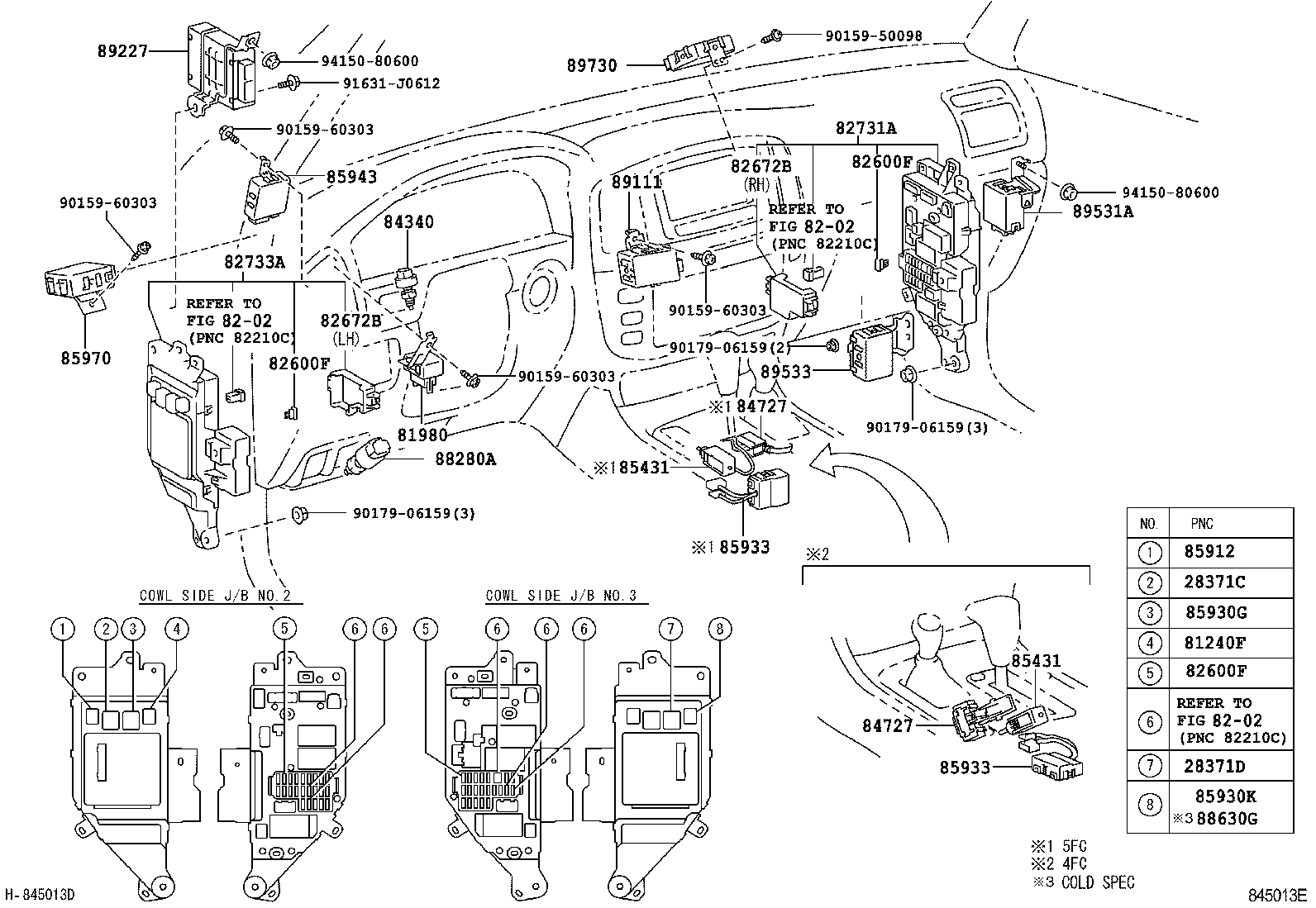

ILLUST NO. 2 OF 9(9801-0208)
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 90987-02025 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02006 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 90987-02006 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60030 |
HDJ100,UZJ100 |
1 | ||
| 82620-60010 |
HDJ100,UZJ100 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60030 |
HDJ100,UZJ100 |
1 | ||
| 82620-60010 |
HDJ100,UZJ100 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
HDJ100,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60010 |
HDJ100,UZJ100 |
1 | ||
| 82677-60040 |
HDJ100;UZJ100..LHD |
1 | ||
| 82678 - COVER, JUNCTION BLOCK, UPPER NO.3 | ||||
| 82678-60010 |
HDJ100,UZJ100 |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60010 |
HDJ100,UZJ100 |
1 | ||
| 82720-60070 |
HDJ100;UZJ100..LHD |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
HDJ100,UZJ100 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 85916-30060 |
HDJ100,UZJ100 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
HDJ100,UZJ100 |
1 | ||
| 85942-33010 |
HDJ100,UZJ100 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
HDJ100,UZJ100 |
1 | ||
| 87120F - RELAY, VISCOUS HEATER | ||||
| 88630-60091 |
HDJ100..STD |
1 | ||
| 88630-60091 |
HDJ100 |
1 | ||
| 88630-60090 |
HDJ100 |
1 | ||
| 87120F - RELAY, VISCOUS HEATER | ||||
| 88630-60091 |
HDJ100..STD |
1 | ||
| 88630-60091 |
HDJ100 |
1 | ||
| 88630-60090 |
HDJ100 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
HDJ100 |
1 | ||
| 89438-33010 |
HDJ100 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 91631-60612 | ||||
| 93383-A5025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

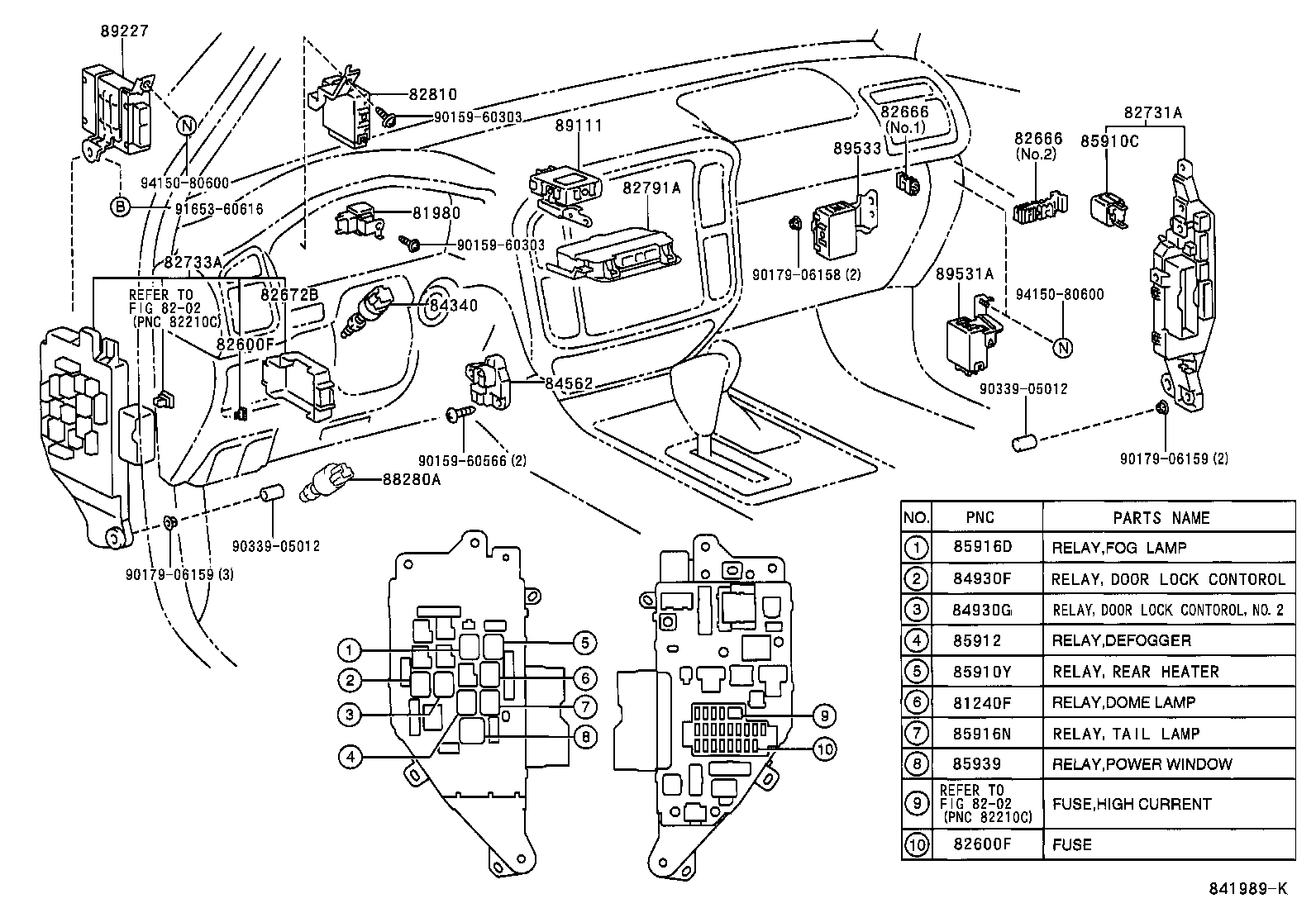

ILLUST NO. 3 OF 9(9801-0208)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 90987-02022 |
HDJ100,UZJ100 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60030 |
HDJ100,UZJ100 |
1 | ||
| 81980-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60080 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60080 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC NO.2 |
1 | ||
| 82666-60080 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-35040 |
HDJ100,UZJ100..LHD N0.1 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-60080 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-60080 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC NO.2 |
1 | ||
| 82666-60080 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666-35040 |
HDJ100,UZJ100..LHD N0.1 |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60010 |
HDJ100,UZJ100 |
1 | ||
| 82672-60011 |
HDJ100,UZJ100 |
1 | ||
| 82672-60050 |
HDJ100,UZJ100..LHD RH |
1 | ||
| 82672-60040 |
HDJ100,UZJ100..LHD LH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
HDJ100,UZJ100 |
1 | ||
| 82731-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60030 |
HDJ100,UZJ100 |
1 | ||
| 82733-60200 |
HDJ100..LHD..5F |
1 | ||
| 82733-60032 |
HDJ100,UZJ100 |
1 | ||
| 82733-60201 |
HDJ100..LHD..5F |
1 | ||
| 82791A - CONTROLLER & JUNCTION, INSTRUMENT PANEL | ||||
| 82791-60020 |
HDJ100,UZJ100 |
1 | ||
| 82791-60010 |
HDJ100,UZJ100 W(FRONT SEAT=MEMORY POWER SEPARATE SEAT) |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
HDJ100,UZJ100 |
1 | ||
| 84340-42010 |
HDJ100..STD |
1 | ||
| 84340-42010 |
HDJ100..STD |
1 | ||
| 84930F - RELAY, DOOR LOCK CONTOROL | ||||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 90987-04004 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 84930G - RELAY, DOOR LOCK CONTROL, NO.2 | ||||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 90987-04004 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
HDJ100,UZJ100 |
1 | ||
| 90987-04010 |
HDJ100,UZJ100 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
HDJ100,UZJ100 |
1 | ||
| 90987-02009 |
HDJ100,UZJ100 |
1 | ||
| 90987-02009 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-14030 |
HDJ100..5F |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-60050 |
HDJ100,UZJ100..LHD |
1 | ||
| 89531-60050 |
HDJ100,UZJ100..LHD |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60090 |
HDJ100,UZJ100 |
1 | ||
| 89533-60210 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90159-60566 | ||||
| 90179-06158 | ||||
| 90179-06159 | ||||
| 90339-05012 | ||||
| 91653-60616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||

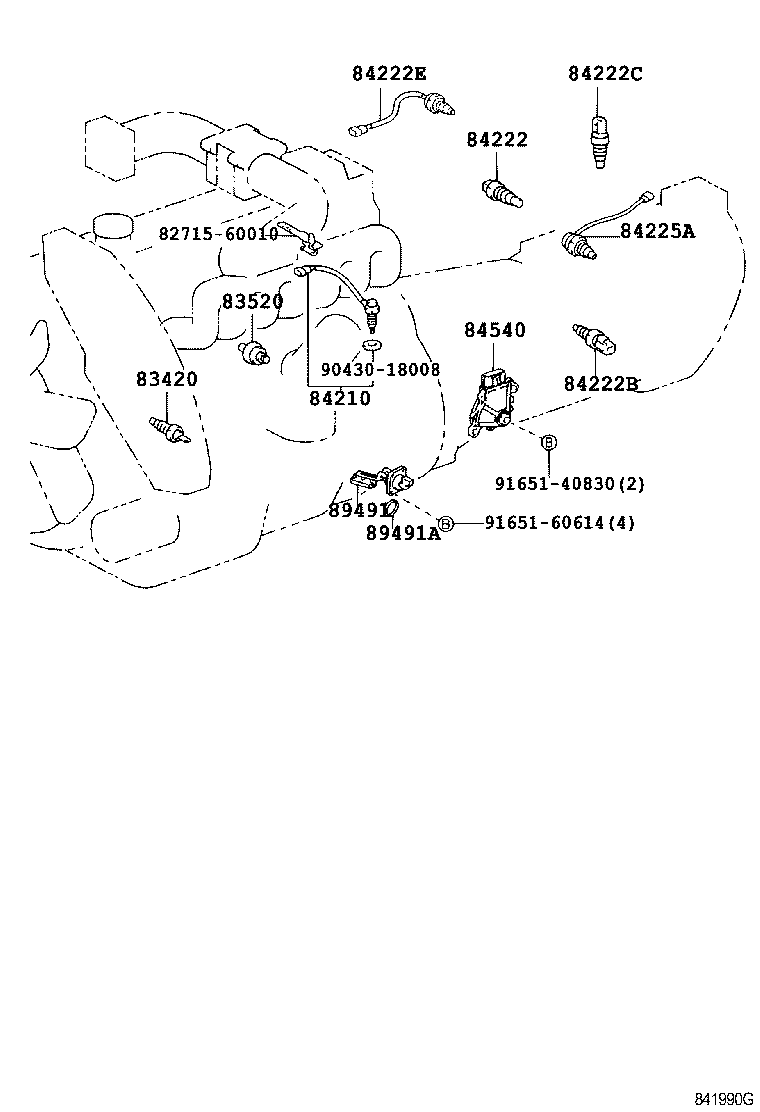

ILLUST NO. 1 OF 9(9801- )HDJ100
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
HDJ100 |
1 | ||
| 83420-16040 |
HDJ100 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-35031 |
HDJ100 |
1 | ||
| 83520-35030 |
HDJ100 |
1 | ||
| 83520-35030 |
HDJ100..5F,5FC |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
HDJ100..4FC,5F |
1 | ||
| 84210-60030 |
HDJ100..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
HDJ100,UZJ100 |
1 | ||
| 84222-12010 |
HDJ100,UZJ100 |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
HDJ100,UZJ100 |
1 | ||
| 84222-12010 |
HDJ100,UZJ100 |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-60090 |
HDJ100,UZJ100 |
1 | ||
| 84222-60090 |
HDJ100,UZJ100 |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-35010 |
HDJ100..5F |
1 | ||
| 84225-35010 |
HDJ100..5F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60060 |
HDJ100 |
1 | ||
| 89491-60060 |
HDJ100 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
HDJ100,UZJ100 |
1 | ||
| 89493-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 82715-60010 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
| 91651-60614 | ||||

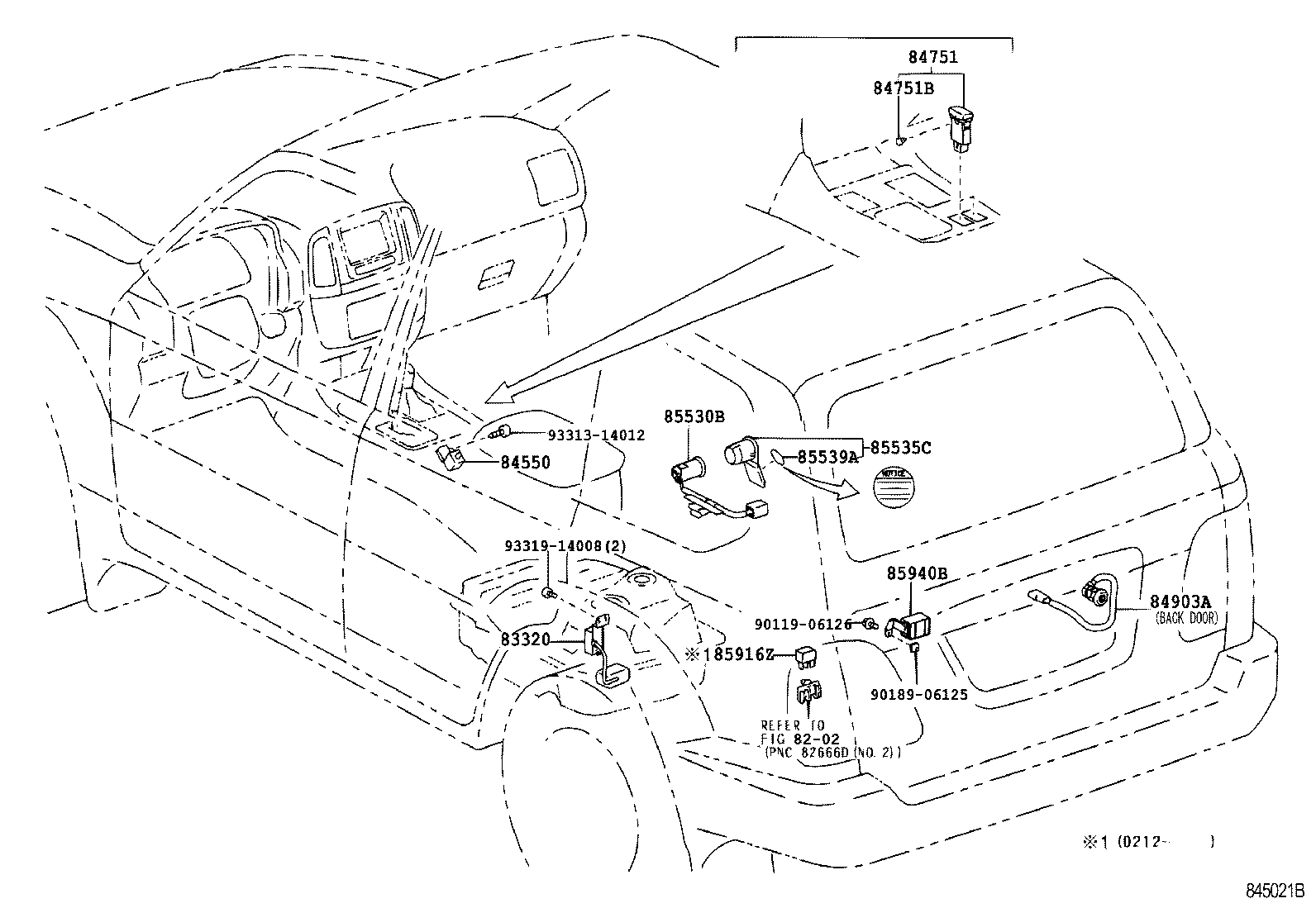

ILLUST NO. 8 OF 9(9801-0208)LHD
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60340 |
HDJ100,UZJ100 |
1 | ||
| 83320-60340 |
HDJ100,UZJ100 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
HDJ100,UZJ100..LHD |
1 | ||
| 84550-33010 |
HDJ100,UZJ100..LHD |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60020 |
HDJ100..STD LH |
1 | ||
| 84903-60040 |
HDJ100,UZJ100 |
1 | ||
| 84903-60030 |
HDJ100..STD BACK DOOR |
1 | ||
| 84903-60030 |
HDJ100..STD |
1 | ||
| 84903-60010 |
HDJ100..STD RH |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
HDJ100,UZJ100 |
1 | ||
| 85530-60010 |
HDJ100,UZJ100 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 85535-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60080 |
HDJ100..STD |
2 | ||
| 85940-60100 |
HDJ100..STD |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60080 |
HDJ100..STD |
2 | ||
| 85940-60100 |
HDJ100..STD |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60080 |
HDJ100..STD |
2 | ||
| 85940-60100 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||

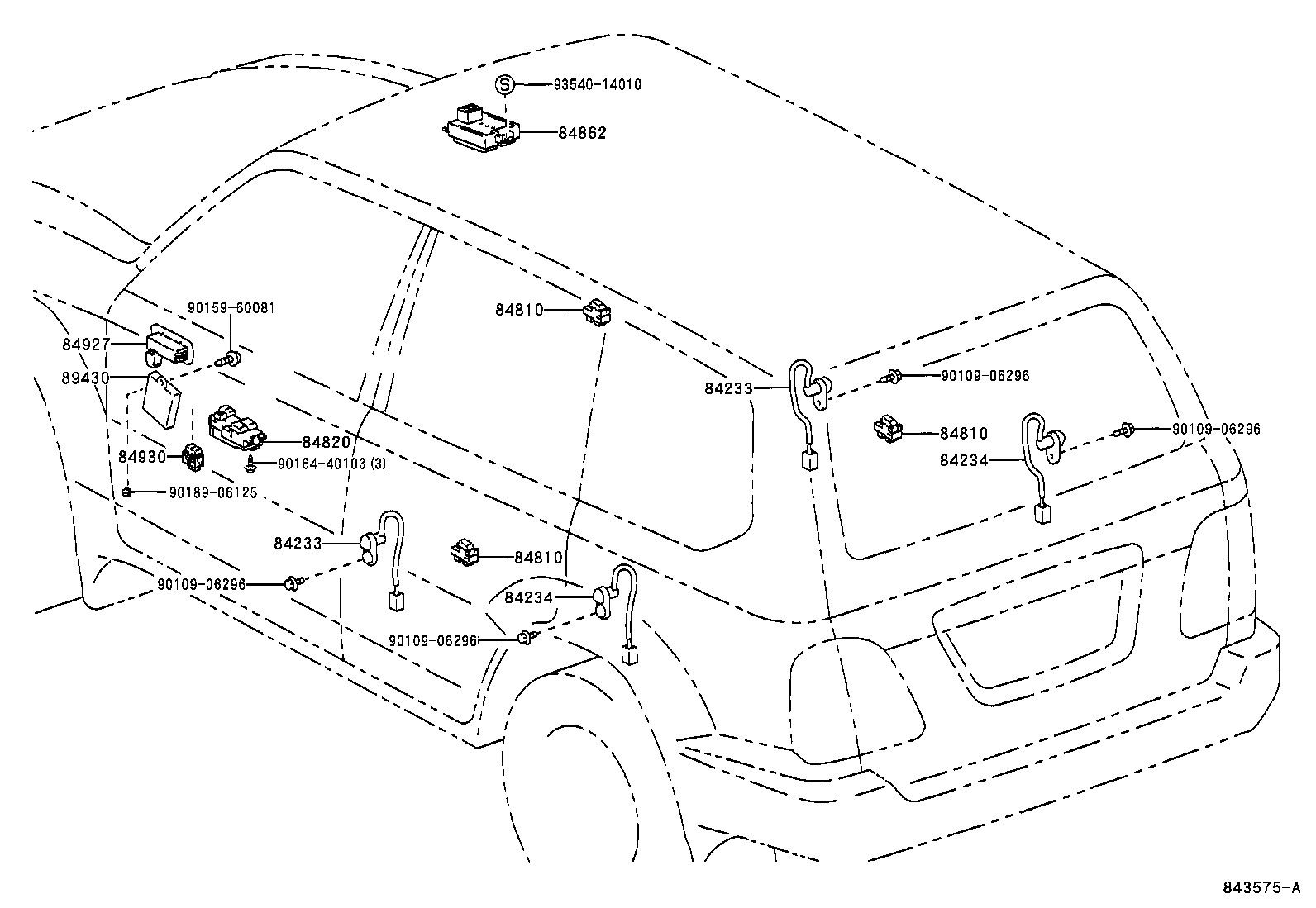

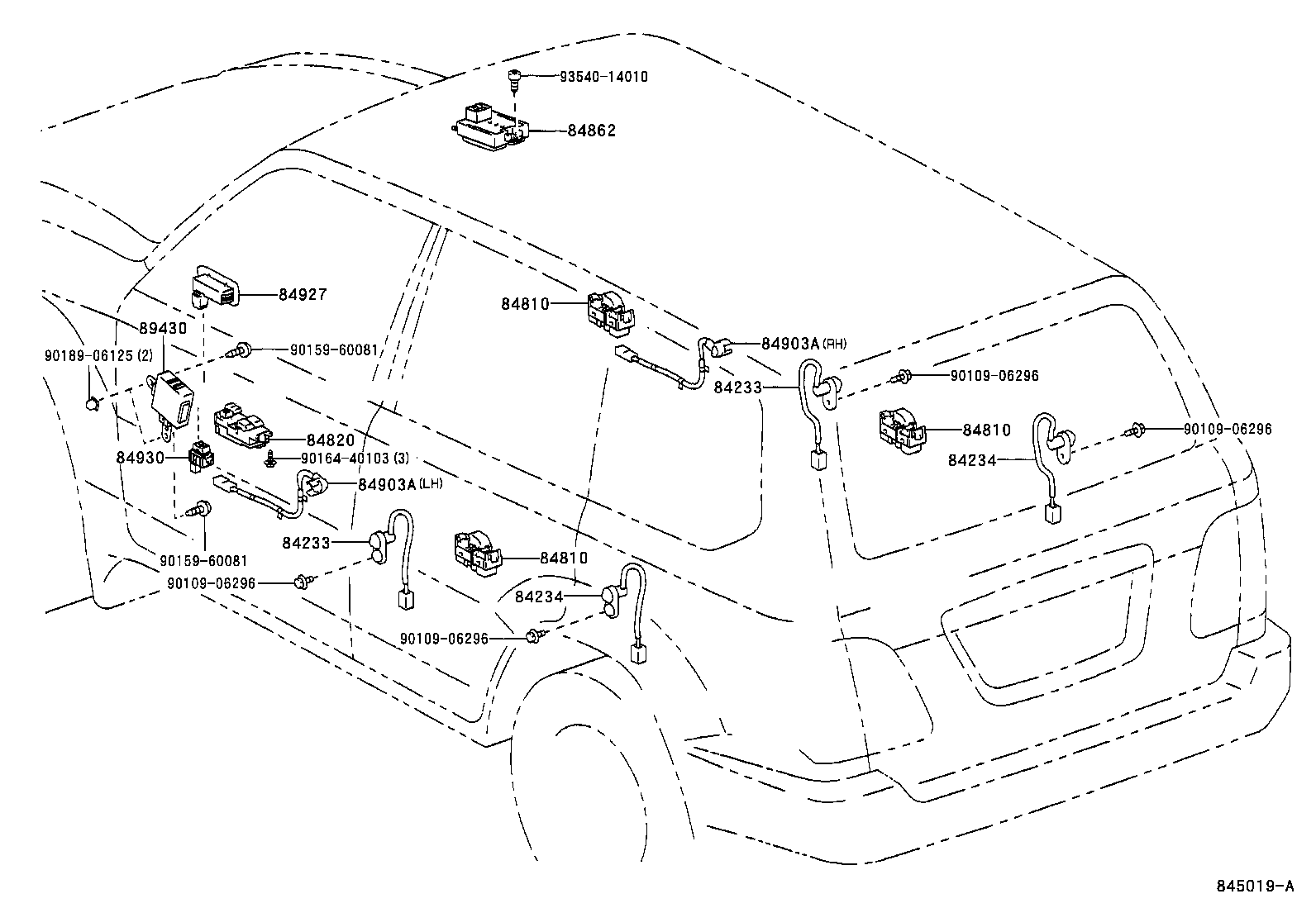

ILLUST NO. 7 OF 9(9801-0208)LHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 84820-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 84040-60091 |
HDJ100,UZJ100..LHD |
1 | ||
| 84820-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 84040-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33050 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90159-60081 | ||||
| 90164-40103 | ||||
| 90189-06125 | ||||
| 93540-14010 | ||||

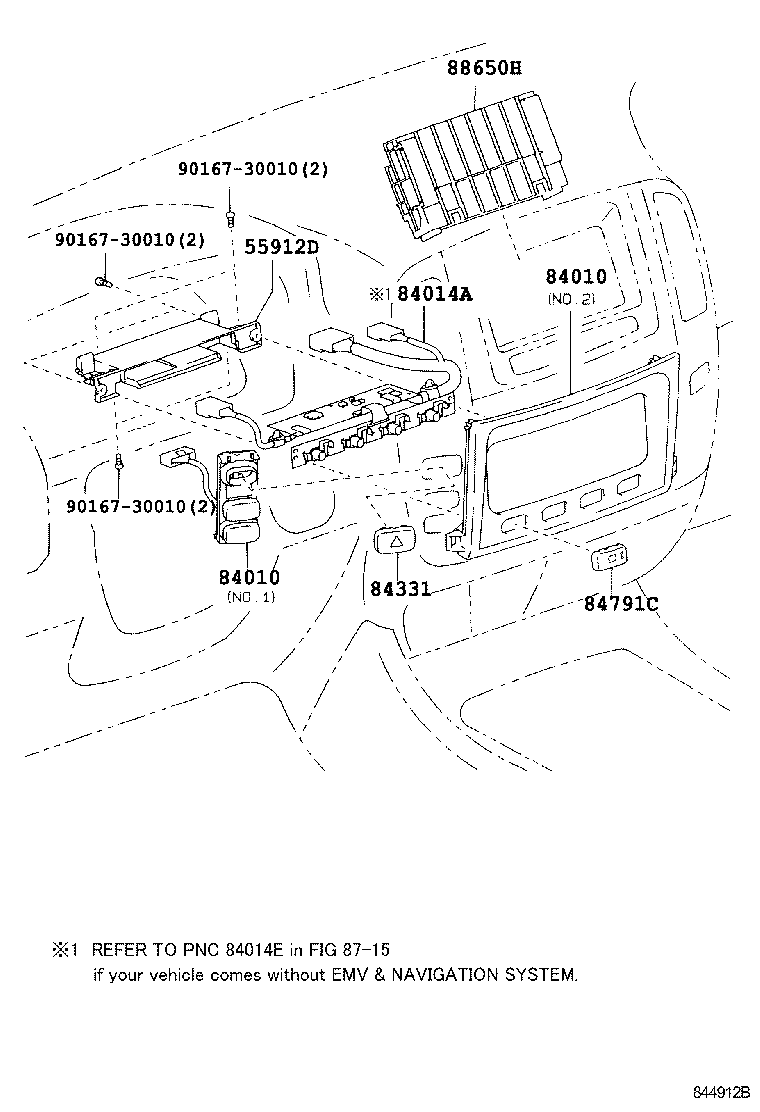

ILLUST NO. 5 OF 9(0208- )LHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

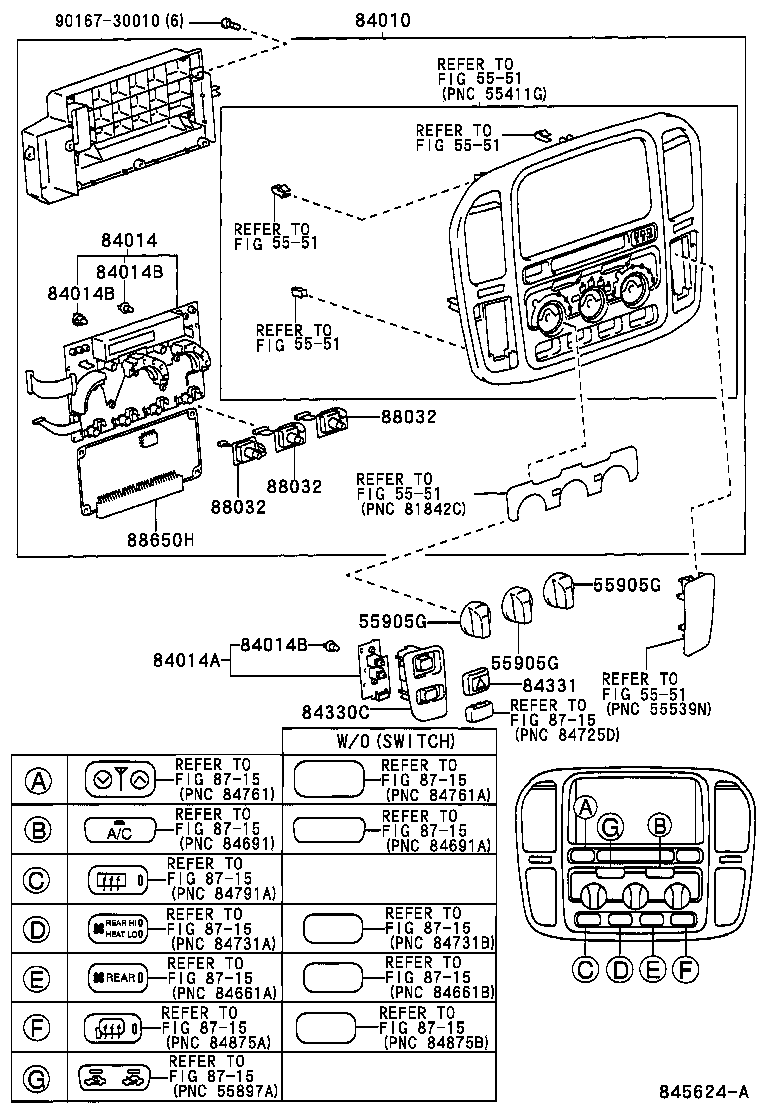

| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60080 |
HDJ100,UZJ100..LHD W(6 SPEAKERS & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84012-60040 |
HDJ100..STD |
1 | ||
| 84012-60150 |
HDJ100,UZJ100..LHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84010-60480 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 84010-60480 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60080 |
HDJ100,UZJ100..LHD W(6 SPEAKERS & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84012-60040 |
HDJ100..STD |
1 | ||
| 84012-60150 |
HDJ100,UZJ100..LHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84010-60480 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 84010-60480 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 84014-60130 |
HDJ100..STD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84331-60040 |
HDJ100,UZJ100 |
1 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60390 |
HDJ100,UZJ100 |
1 | ||
| 88650-60410 |
HDJ100,UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88650-60391 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
ILLUST NO. 9 OF 9(0208- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-60030B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, RH |
1 | ||
| 84921-60030A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, RH |
1 | ||
| 84921-60040B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1#,SLIDE, LH |
1 | ||
| 84921-60040A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W(LEATHER SEAT),IVORY,TRIM40,SLIDE, LH |
1 | ||
| 84921-60030E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, RH |
1 | ||
| 84921-60040E1 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC MD.OAK,TRIM41,SLIDE, LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33100 |
HDJ100,UZJ100 RH |
1 | ||
| 84922-33110 |
HDJ100,UZJ100 LH |
1 | ||
| Common parts | ||||
| 82711-12120 | ||||
| 91511-B0614 | ||||
| 93560-54010 | ||||

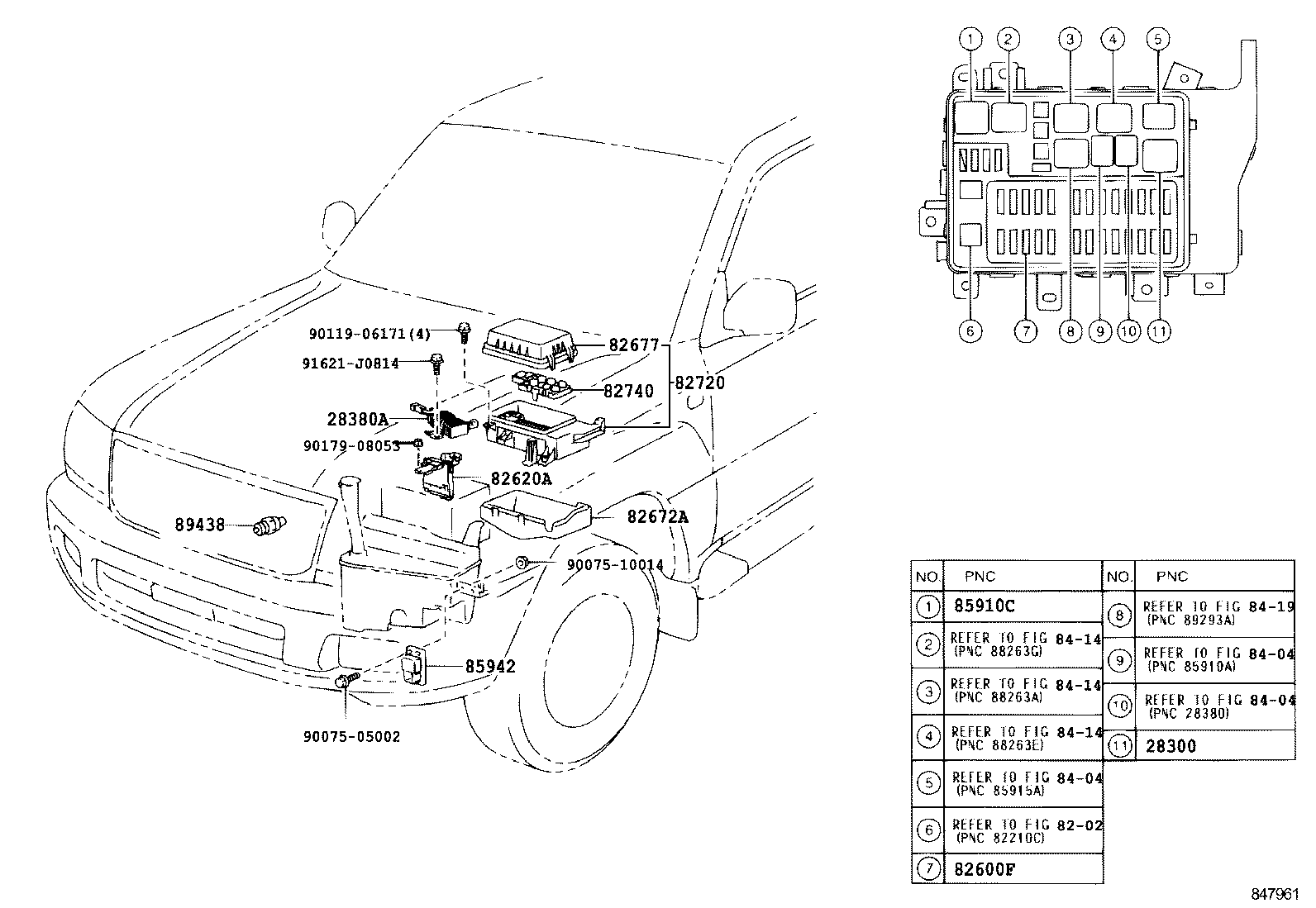

ILLUST NO. 3 OF 9(0208- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 90987-02006 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02025 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 90987-02022 |
HDJ100,UZJ100 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-60030 |
HDJ100,UZJ100 |
1 | ||
| 81980-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60010 |
HDJ100,UZJ100 |
1 | ||
| 82672-60011 |
HDJ100,UZJ100 |
1 | ||
| 82672-60050 |
HDJ100,UZJ100..LHD RH |
1 | ||
| 82672-60040 |
HDJ100,UZJ100..LHD LH |
1 | ||
| 82672B - COVER, JUNCTION BLOCK | ||||
| 82672-60010 |
HDJ100,UZJ100 |
1 | ||
| 82672-60011 |
HDJ100,UZJ100 |
1 | ||
| 82672-60050 |
HDJ100,UZJ100..LHD RH |
1 | ||
| 82672-60040 |
HDJ100,UZJ100..LHD LH |
1 | ||
| 82731A - BLOCK, COWL SIDE JUNCTION, RH | ||||
| 82731-60030 |
HDJ100,UZJ100 |
1 | ||
| 82731-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82733A - BLOCK, COWL SIDE JUNCTION, LH | ||||
| 82733-60030 |
HDJ100,UZJ100 |
1 | ||
| 82733-60200 |
HDJ100..LHD..5F |
1 | ||
| 82733-60032 |
HDJ100,UZJ100 |
1 | ||
| 82733-60201 |
HDJ100..LHD..5F |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32110 |
HDJ100,UZJ100 |
1 | ||
| 84340-42010 |
HDJ100..STD |
1 | ||
| 84340-42010 |
HDJ100..STD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100,UZJ100 |
1 | ||
| 90987-02012 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02025 |
HDJ100,UZJ100 |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-14030 |
HDJ100..5F |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 89531A - RELAY, TRANSMISSION CONTROL | ||||
| 89531-60050 |
HDJ100,UZJ100..LHD |
1 | ||
| 89531-60050 |
HDJ100,UZJ100..LHD |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60090 |
HDJ100,UZJ100 |
1 | ||
| 89533-60210 |
HDJ100,UZJ100..LHD |
1 | ||
| 89730 - COMPUTER ASSY, SECURITY WARNING | ||||
| 89730-60040 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| 90179-06159 | ||||
| 91631-J0612 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 4 OF 9(0208- )LHD
INSTRUMENT PANEL SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60040 |
HDJ100,UZJ100 |
1 | ||
| 84152-60040 |
HDJ100,UZJ100 |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 90010-08100 |
HDJ100,UZJ100 14V 40MA, GREEN |
1 | ||
| 90010-08100 |
HDJ100,UZJ100 14V 40MA, GREEN |
1 | ||
| 90010-08107 |
HDJ100,UZJ100..5F,5FC 14V 40MA, GREEN |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84165-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 84165-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01039 |
HDJ100,UZJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 90010-01039 |
HDJ100,UZJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60030 |
HDJ100 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
HDJ100,UZJ100 |
1 | ||
| 84725-60030 |
HDJ100,UZJ100 |
1 | ||
| 84732B - BULB, REAR HEATER BLOWER SWITCH | ||||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
1 | ||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-60050 |
UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F LEATHER PACKAGE |
1 | ||
| 84870-60030 |
UZJ100..LHD;HDJ100..4FC;HDJ100..LHD..5F W(ELECTRIC REMOTE CONTOROL MIRROR) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-89106 |
HDJ100,UZJ100 |
1 | ||
| 85500-89106 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01022 |
HDJ100,UZJ100..5F,5FC 14V1.4W,W(GREEN CAP) |
1 | ||
| 90010-01022 |
HDJ100,UZJ100 14V1.4W,W(GREEN CAP) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-16040 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
HDJ100,UZJ100 |
1 | ||
| 85513-12020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-60010 |
HDJ100,UZJ100 |
1 | ||
| 85515-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-89101 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 85520-89101 |
HDJ100,UZJ100 |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
HDJ100,UZJ100 |
1 | ||
| 85530-33020 |
HDJ100,UZJ100 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60040C0 |
HDJ100,UZJ100 BLACK,TRIM1#,40,41 |
1 | ||
| 85535-60040C0 |
HDJ100,UZJ100 BLACK,TRIM00,10 |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 87290 - SWITCH ASSY, HEATER | ||||
| 87290-60060 |
HDJ100 |
1 | ||
| 87290-60060 |
HDJ100 |
1 | ||
| 87290-60050 |
HDJ100 |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
HDJ100..STD 14V 0.91W |
1 | ||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 90010-01039 |
HDJ100..4FC,5F 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 84999-10310 |
HDJ100..5FC;HDJ100..STD 14V 0.91W |
1 | ||
| 87290B - BULB (FOR HEATER SWITCH) | ||||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP |
1 | ||
| 84999-10310 |
HDJ100..STD 14V 0.91W |
1 | ||
| 90010-01039 |
HDJ100 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 90010-01039 |
HDJ100..4FC,5F 14V0.91W,W(GREEN CAP,14V 0.91W,W(CAP) |
1 | ||
| 84999-10310 |
HDJ100..5FC;HDJ100..STD 14V 0.91W |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||
ILLUST NO. 6 OF 9(0208- )LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-33040 |
HDJ100,UZJ100 |
1 | ||
| 84052-33040 |
HDJ100,UZJ100 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
HDJ100,UZJ100 |
1 | ||
| 84140-26140 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12070 |
HDJ100,UZJ100 |
1 | ||
| 84306-60071 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84306-60090 |
HDJ100,UZJ100..5F,5FC TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A390 |
HDJ100,UZJ100..LHD |
1 | ||
| 84310-6A430 |
HDJ100,UZJ100..LHD W(FOG LAMP) |
1 | ||
| 84310-6A450 |
HDJ100,UZJ100..LHD W(FOG LAMP & TEMS) |
1 | ||
| 84310-6A460 |
HDJ100,UZJ100..LHD W(FOG LAMP & FRONT POWER SEAT & TEMS) |
1 | ||
| 84310-6A500 |
HDJ100,UZJ100 W(HEADLAMP CLEANER) |
1 | ||
| 84310-6A400 |
HDJ100,UZJ100..LHD W(FRONT POWER SEAT) |
1 | ||
| 84310-6A440 |
HDJ100,UZJ100..LHD W(FOG LAMP & FRONT POWER SEAT) |
1 | ||
| 84310-6A520 |
HDJ100,UZJ100 W(HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A410 |
HDJ100,UZJ100..LHD W(TEMS) |
1 | ||
| 84310-6A560 |
HDJ100,UZJ100 W(FOG LAMP & HEAD LAMP CLEANER & TEMS) |
1 | ||
| 84310-6A510 |
HDJ100,UZJ100 W(FRONT POWER SEAT & HEADLAMP CLEANER) |
1 | ||
| 84310-6A530 |
HDJ100,UZJ100 W(FRONT POWER SEAT & HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A420 |
HDJ100,UZJ100..LHD W(FRONT POWER SEAT & TEMS) |
1 | ||
| 84310-6A570 |
HDJ100,UZJ100 W(FOG LAMP & FRONT POWER SEAT & HEADLAMP CLEANER & TEMS) |
1 | ||
| 84310-6A501 |
HDJ100..STD W(*80,DRIVER SIDE & PASSENGER SIDE) |
1 | ||
| 84310-6A330 |
HDJ100..STD |
1 | ||
| 84310-6A550 |
HDJ100,UZJ100 W(FOG LAMP & FRONT POWER SEAT & HEAD LAMP CLEANER) |
1 | ||
| 84310-6A540 |
HDJ100,UZJ100 W(FOG LAMP & HEADLAMP CLEANER) |
1 | ||
| 84310-6A330 |
HDJ100..STD PART NUMBER LABEL=84310-6A330 |
1 | ||
| 84310-6B751 |
HDJ100,UZJ100..5F,5FC PART NUMBER LABEL=84310-6B751 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-26010 |
HDJ100..STD |
1 | ||
| 84312-26010 |
HDJ100..STD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
HDJ100,UZJ100 |
1 | ||
| 84450-12200 |
HDJ100,UZJ100 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-60810 |
HDJ100..STD |
1 | ||
| 84652-60810 |
HDJ100..STD;HDJ100,UZJ100..RHD |
1 | ||
| 84652-6A020 |
HDJ100,UZJ100..5F,5FC W(HEADLAMP CLEANER) |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
ILLUST NO. 7 OF 9(0208- )LHD
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84231-60070 |
HDJ100,UZJ100 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60040 |
HDJ100,UZJ100 |
3 | ||
| 84810-60050 |
HDJ100,UZJ100 |
3 | ||
| 84030-60060 |
HDJ100,UZJ100 |
3 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 84820-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 84040-60091 |
HDJ100,UZJ100..LHD |
1 | ||
| 84820-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 84040-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60020 |
HDJ100..STD LH |
1 | ||
| 84903-60040 |
HDJ100,UZJ100 |
1 | ||
| 84903-60030 |
HDJ100..STD BACK DOOR |
1 | ||
| 84903-60030 |
HDJ100..STD |
1 | ||
| 84903-60010 |
HDJ100..STD RH |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60020 |
HDJ100..STD LH |
1 | ||
| 84903-60040 |
HDJ100,UZJ100 |
1 | ||
| 84903-60030 |
HDJ100..STD BACK DOOR |
1 | ||
| 84903-60030 |
HDJ100..STD |
1 | ||
| 84903-60010 |
HDJ100..STD RH |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33050 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90159-60081 | ||||
| 90164-40103 | ||||
| 90189-06125 | ||||
| 93540-14010 | ||||

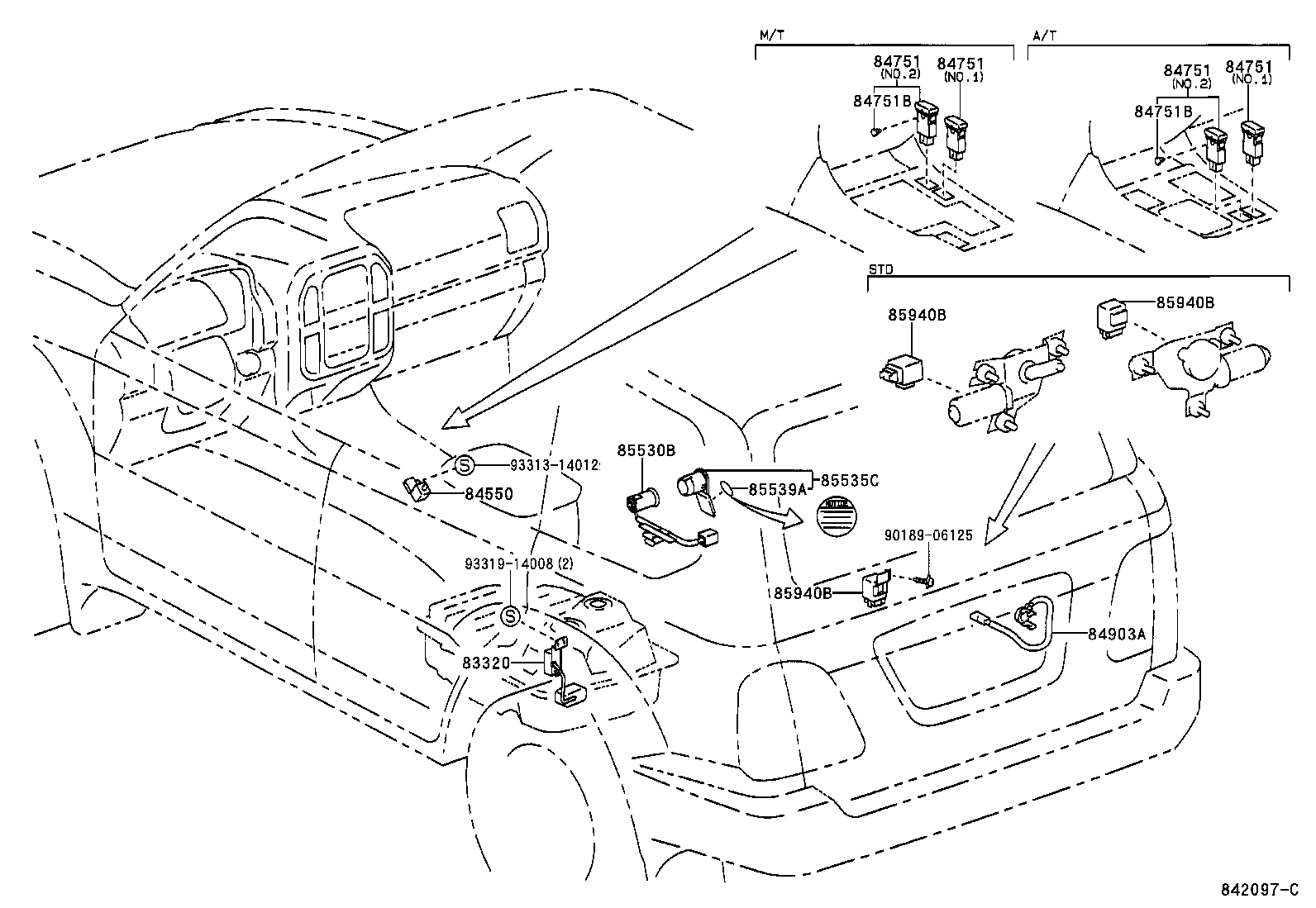

ILLUST NO. 8 OF 9(0208- )LHD
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60340 |
HDJ100,UZJ100 |
1 | ||
| 83320-60340 |
HDJ100,UZJ100 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-33010 |
HDJ100,UZJ100..LHD |
1 | ||
| 84550-33010 |
HDJ100,UZJ100..LHD |
1 | ||
| 84903A - SWITCH SUB-ASSY, DOOR UNLOCK | ||||
| 84903-60020 |
HDJ100..STD LH |
1 | ||
| 84903-60040 |
HDJ100,UZJ100 |
1 | ||
| 84903-60030 |
HDJ100..STD BACK DOOR |
1 | ||
| 84903-60030 |
HDJ100..STD |
1 | ||
| 84903-60010 |
HDJ100..STD RH |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60010 |
HDJ100,UZJ100 |
1 | ||
| 85530-60010 |
HDJ100,UZJ100 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 85535-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85539-60020 |
HDJ100,UZJ100 |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-60080 |
HDJ100..STD |
2 | ||
| 85940-60100 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90119-06126 | ||||
| 90189-06125 | ||||
| 93313-14012 | ||||
| 93319-14008 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 9(9801-0208)LHD
CENTER CLUSTER INTEGRATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
HDJ100,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
HDJ100,UZJ100 |
3 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-60270 |
HDJ100,UZJ100 |
3 | ||
| 84010 - SWITCH ASSY, CENTER CLUSTER INTEGRATION | ||||
| 84012-60080 |
HDJ100,UZJ100..LHD W(6 SPEAKERS & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84012-60040 |
HDJ100..STD |
1 | ||
| 84012-60150 |
HDJ100,UZJ100..LHD W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 84010-60480 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 84010-60480 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 84014 - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION | ||||
| 84014-60020 |
HDJ100..STD |
1 | ||
| 84014A - BOARD SUB-ASSY, PRINTED WIRE INTEGRATION, NO.2 | ||||
| 84014-60110 |
HDJ100,UZJ100..LHD |
1 | ||
| 84014-60130 |
HDJ100..STD |
1 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
HDJ100,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
HDJ100,UZJ100 14V 1.12W |
2 | ||
| 84014B - BULB, PRINTED WIRE INTEGRATION BOARD | ||||
| 84999-70007 |
HDJ100,UZJ100 14V 1.4W |
8 | ||
| 90010-05104 |
HDJ100,UZJ100 14V 1.12W |
2 | ||
| 84330C - COVER, HAZARD WARNING SIGNAL SWITCH | ||||
| 84332-60200 |
HDJ100,UZJ100..LHD |
1 | ||
| 84331 - KNOB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84331-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 84331-60040 |
HDJ100,UZJ100 |
1 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
HDJ100,UZJ100 BLOWER,MODE |
2 | ||
| 88032-60070 |
HDJ100,UZJ100 TEMP |
1 | ||
| 88032-60050 |
HDJ100,UZJ100..LHD BLOWER,MODE |
2 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
HDJ100,UZJ100 BLOWER,MODE |
2 | ||
| 88032-60070 |
HDJ100,UZJ100 TEMP |
1 | ||
| 88032-60050 |
HDJ100,UZJ100..LHD BLOWER,MODE |
2 | ||
| 88032 - SWITCH, HEATER CONTROL VOLUME | ||||
| 88032-60050 |
HDJ100,UZJ100 BLOWER,MODE |
2 | ||
| 88032-60070 |
HDJ100,UZJ100 TEMP |
1 | ||
| 88032-60050 |
HDJ100,UZJ100..LHD BLOWER,MODE |
2 | ||
| 88650H - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60390 |
HDJ100,UZJ100 |
1 | ||
| 88650-60410 |
HDJ100,UZJ100 W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 88650-60391 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 90167-30010 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 9(0208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 90987-02025 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09010 |
HDJ100,UZJ100 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09011 |
HDJ100,UZJ100 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09013 |
HDJ100,UZJ100 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC 30A,MINI FUSE,GRN |
1 | ||
| 90982-09012 |
HDJ100,UZJ100 25A,MINI FUSE |
1 | ||
| 90982-09008 |
HDJ100,UZJ100 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
HDJ100,UZJ100 10A,MINI FUSE,RED |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60030 |
HDJ100,UZJ100 |
1 | ||
| 82620-60010 |
HDJ100,UZJ100 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82674-60010 |
HDJ100,UZJ100 |
1 | ||
| 82674-60010 |
HDJ100,UZJ100 |
1 | ||
| 82677 - COVER, JUNCTION BLOCK, UPPER NO.2 | ||||
| 82677-60010 |
HDJ100,UZJ100 |
1 | ||
| 82677-60040 |
HDJ100;UZJ100..LHD |
1 | ||
| 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION | ||||
| 82720-60010 |
HDJ100,UZJ100 |
1 | ||
| 82720-60070 |
HDJ100;UZJ100..LHD |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-60020 |
HDJ100,UZJ100 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
HDJ100,UZJ100 |
1 | ||
| 90987-04010 |
HDJ100,UZJ100 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
HDJ100,UZJ100 |
1 | ||
| 85942-33010 |
HDJ100,UZJ100 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
HDJ100 |
1 | ||
| 89438-33010 |
HDJ100 |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90119-06171 | ||||
| 90179-08053 | ||||
| 91621-J0814 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8414 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
