HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
ILLUST NO. 5 OF10(9801-0208)

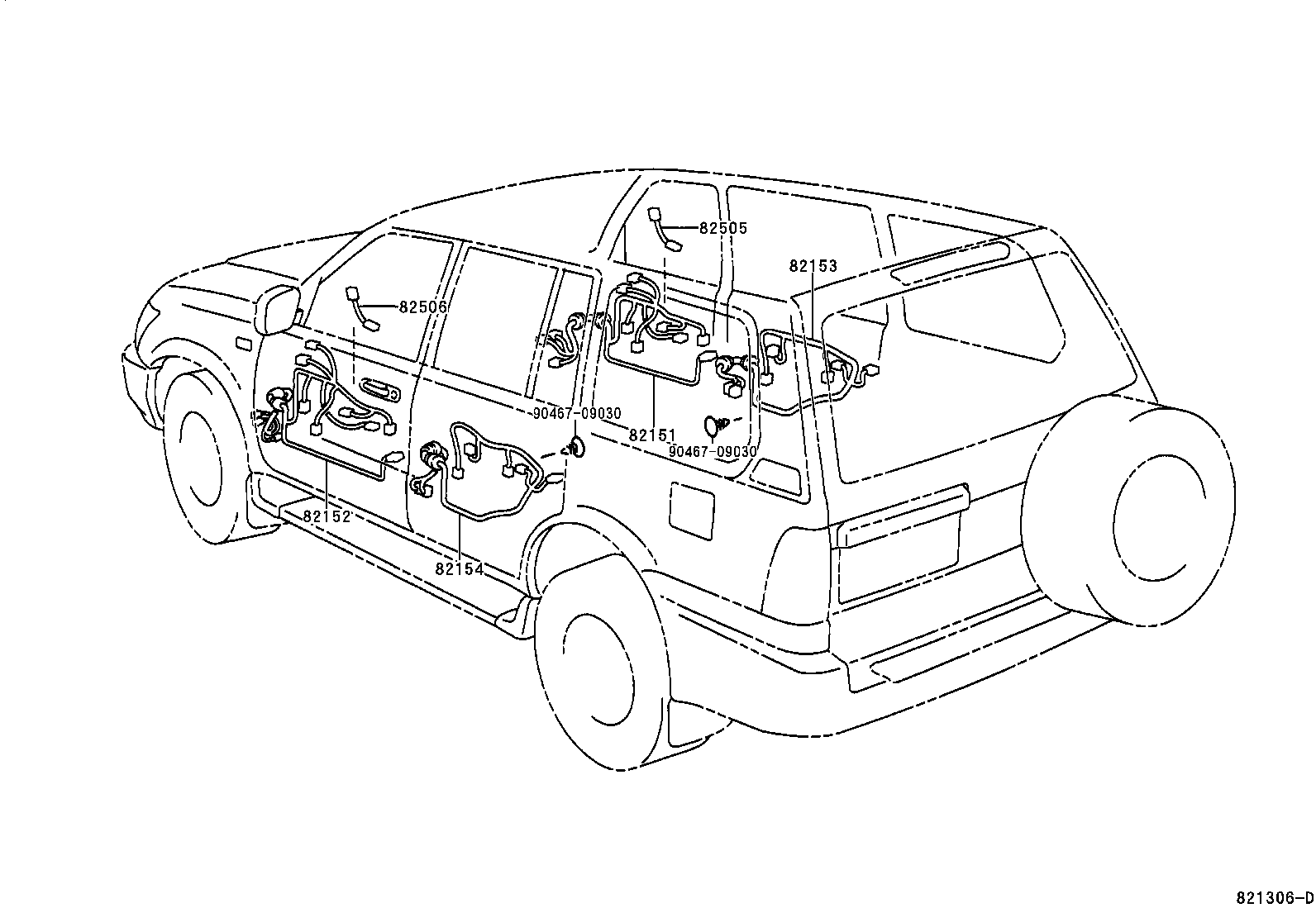

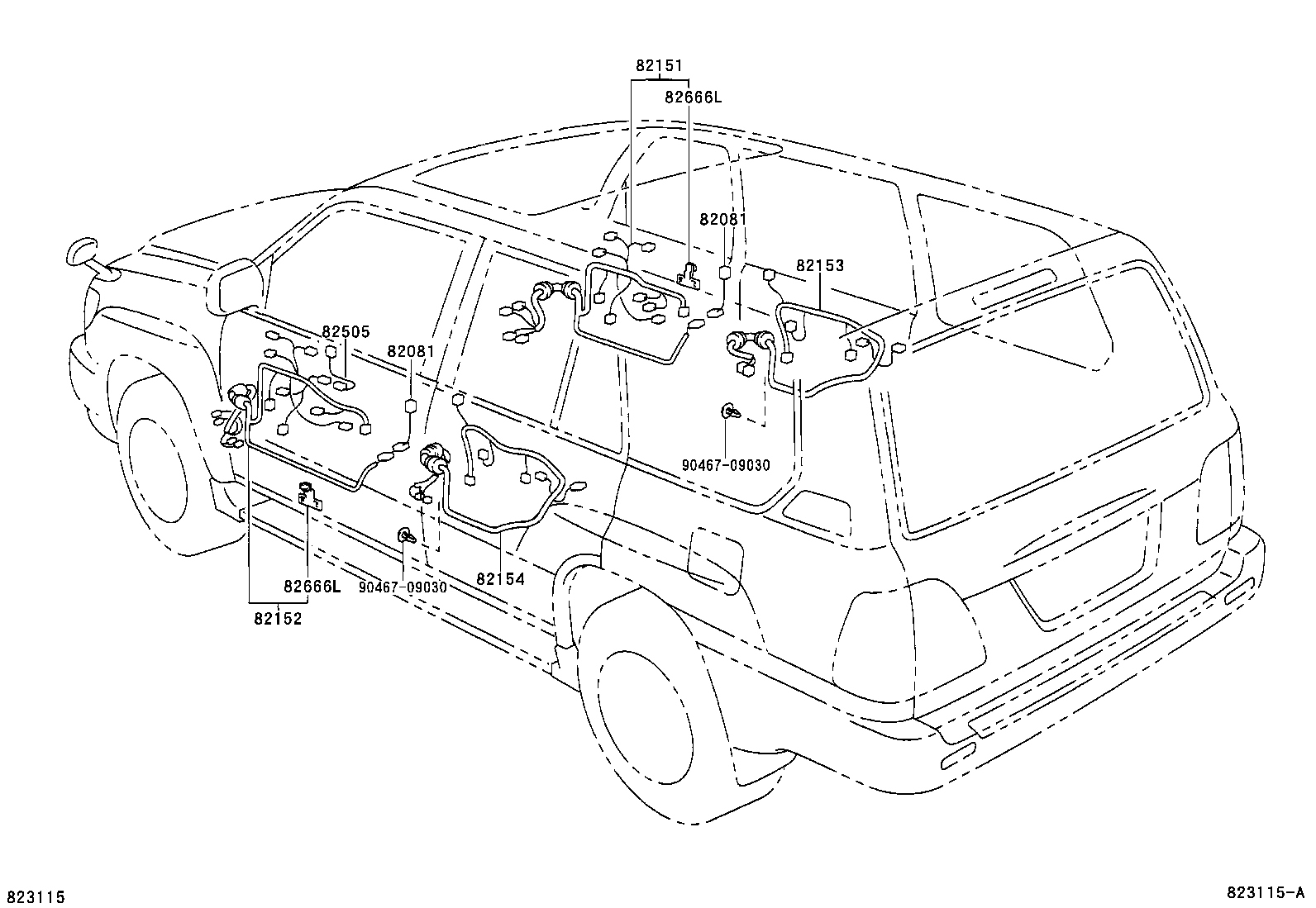

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60330 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60400 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82151-60430 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60431 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60330 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82152-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60252 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82153-60142 |
HDJ100,UZJ100 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60142 |
HDJ100,UZJ100 |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| Common parts | ||||
| 90467-09030 | ||||

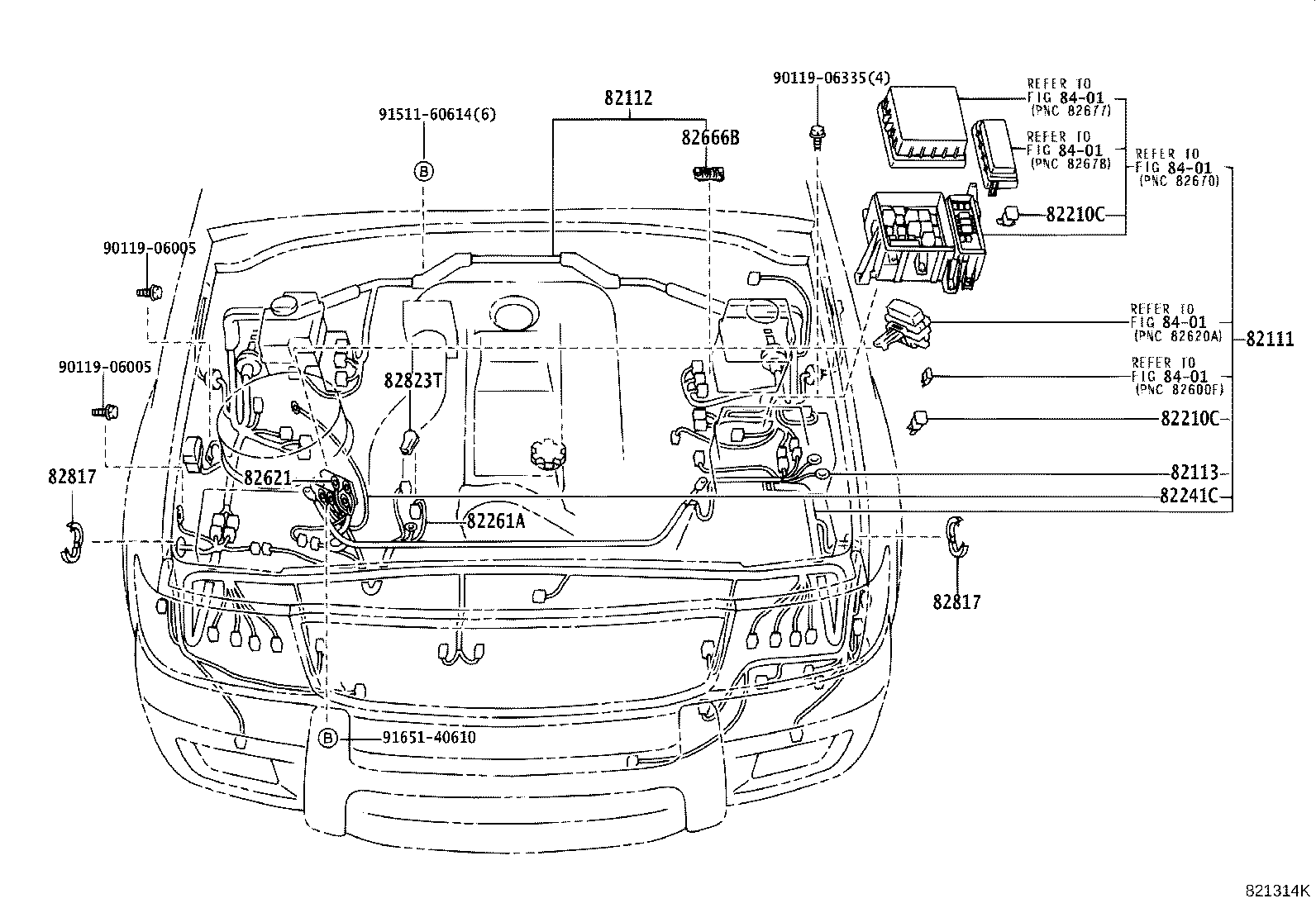

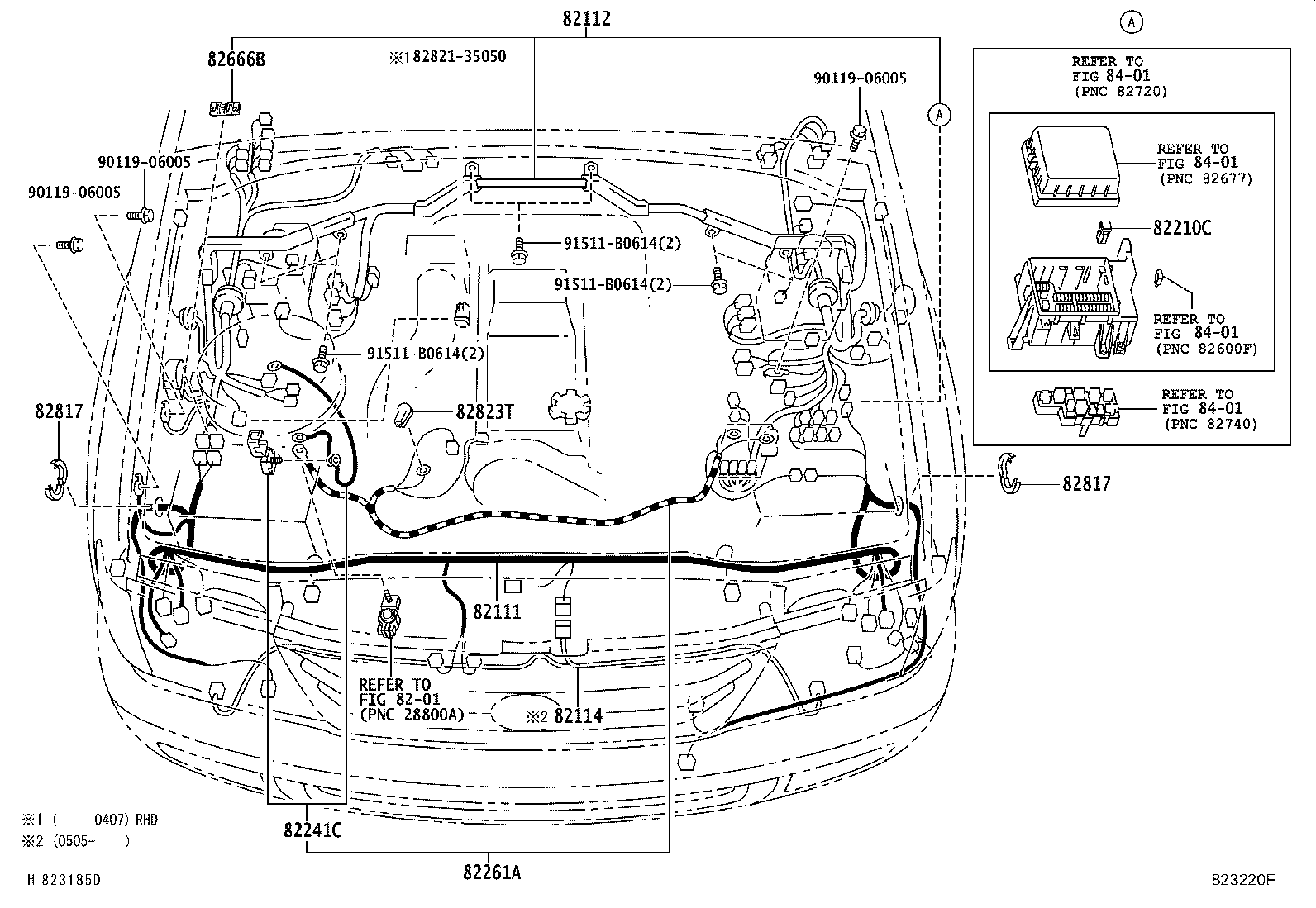

ILLUST NO. 1 OF10(9801-0208)HDJ100
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A180 |
HDJ100 W(COOL BOX OR TEMS) |
1 | ||
| 82111-6A082 |
HDJ100..STD |
1 | ||
| 82111-6A080 |
HDJ100 |
1 | ||
| 82111-6A184 |
HDJ100 W(SINGLE AIR CONDITIONER) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60150 |
HDJ100..LHD |
1 | ||
| 82112-60152 |
HDJ100..LHD |
1 | ||
| 82112-60154 |
HDJ100..LHD..(5F,5FC) |
1 | ||
| 82112-60155 |
HDJ100..LHD |
1 | ||
| 82112-60156 |
HDJ100..LHD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60060 |
HDJ100..STD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-60022 |
HDJ100 |
1 | ||
| 82241-60020 |
HDJ100 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60090 |
HDJ100 |
1 | ||
| 82261-60160 |
HDJ100..5F,5FC W(BATTERY=105D31R + 105D31L) |
1 | ||
| 82621 - COVER, FUSIBLE LINK | ||||
| 82621-60010 |
HDJ100,UZJ100 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
HDJ100..5F |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HDJ100;UZJ100..LHD |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06335 | ||||
| 91511-60614 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 8401 | ||||

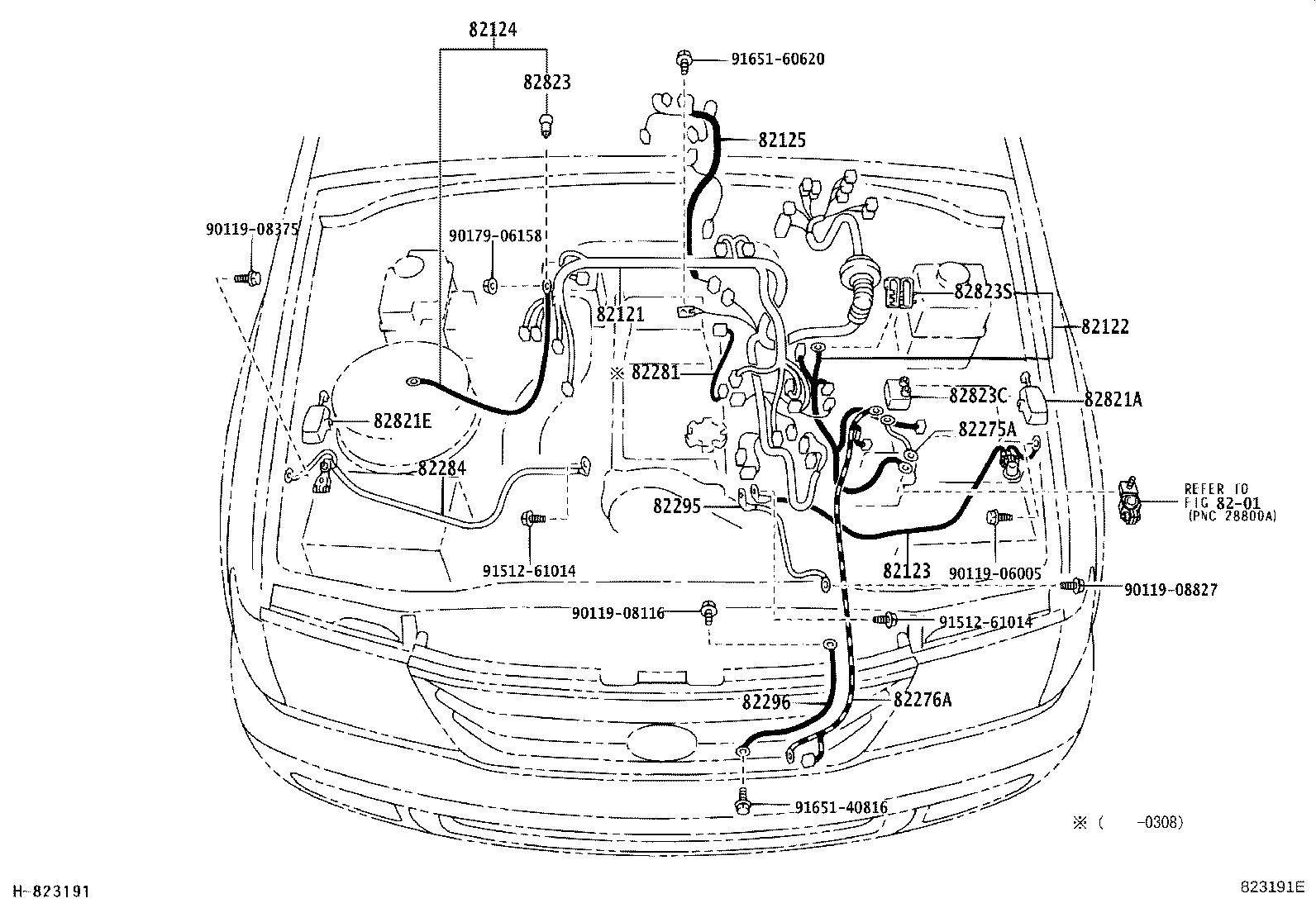

ILLUST NO. 2 OF10(9801-0208)HDJ100

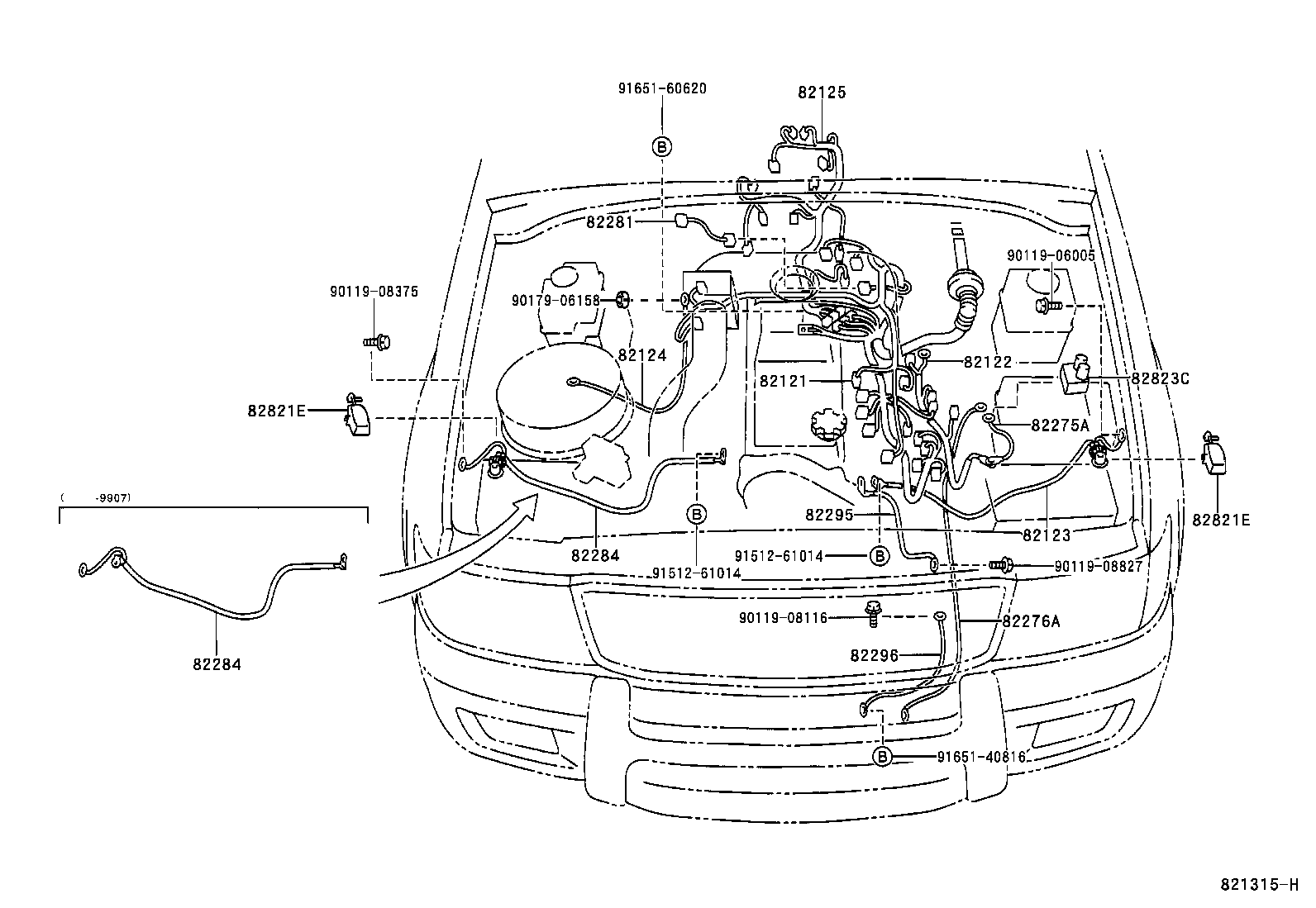

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60850 |
HDJ100..LHD..5F |
1 | ||
| 82121-60852 |
HDJ100..LHD..5F |
1 | ||
| 82121-60854 |
HDJ100..LHD..5F |
1 | ||
| 82121-60853 |
HDJ100..STD |
1 | ||
| 82121-60855 |
HDJ100..STD |
1 | ||
| 82121-6A850 |
HDJ100..STD |
1 | ||
| 82121-6A851 |
HDJ100..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60371 |
HDJ100 |
1 | ||
| 82122-60370 |
HDJ100 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60250 |
HDJ100 |
1 | ||
| 82123-60252 |
HDJ100 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-60071 |
HDJ100..4FC;HDJ100..LHD..5F |
1 | ||
| 82124-60070 |
HDJ100 |
1 | ||
| 82124-60071 |
HDJ100 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60390 |
HDJ100..5F |
1 | ||
| 82125-60391 |
HDJ100..5F |
1 | ||
| 82125-60393 |
HDJ100..5F |
1 | ||
| 82125-60392 |
HDJ100..5F |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60110 |
HDJ100 |
1 | ||
| 82275-60100 |
UZJ100;HDJ100..5F |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60070 |
HDJ100,UZJ100 |
1 | ||
| 82276-60071 |
HDJ100..5F |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60100 |
HDJ100 |
1 | ||
| 82284-60101 |
HDJ100 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60100 |
HDJ100 |
1 | ||
| 82284-60101 |
HDJ100 |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60030 |
HDJ100..5F,5FC |
1 | ||
| 82295-60030 |
HDJ100 |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60010 |
HDJ100,UZJ100 |
1 | ||
| 82296-60010 |
UZJ100;HDJ100..5F |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60070 |
HDJ100 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60070 |
HDJ100 |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-90300 |
HDJ100,UZJ100 |
1 | ||
| 82823-90300 |
UZJ100;HDJ100..5F |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 91512-61014 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
ILLUST NO. 3 OF10(9801-0208)LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82119 - WIRE, SENSOR | ||||
| 82219-60040 |
HDJ100..LHD |
1 | ||
| 82219-60040 |
HDJ100..LHD |
1 | ||
| 82128 - WIRE, COLUMN | ||||
| 82128-60010 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60190 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82128-60110 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 82128-60092 |
HDJ100..STD |
1 | ||
| 82128-60220 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82128-60221 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82128-60093 |
HDJ100..STD |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-60350 |
HDJ100..LHD..5F W(BENCH SEAT) |
1 | ||
| 82136-60160 |
HDJ100..LHD |
1 | ||
| 82136-60360 |
HDJ100..LHD..5F W(BENCH SEAT & AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82136-60170 |
HDJ100..LHD W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82136-60352 |
HDJ100..STD |
1 | ||
| 82136-60162 |
HDJ100..STD W(FRONT SEPARATE SEAT) |
1 | ||
| 82136-60354 |
HDJ100..STD BENCH SEAT TYPE |
1 | ||
| 82136-60164 |
HDJ100..STD |
1 | ||
| 82136-60355 |
HDJ100..STD BENCH SEAT TYPE |
1 | ||
| 82136-60165 |
HDJ100..STD |
1 | ||
| 82136-60166 |
HDJ100..STD |
1 | ||
| 82136-60356 |
HDJ100..STD W(EMV & 7 SPEAKER) |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60130 |
HDJ100..LHD..5F |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60020 |
HDJ100,UZJ100 |
1 | ||
| 82176-60022 |
HDJ100..STD |
1 | ||
| 82176-60052 |
HDJ100,UZJ100 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82343 - WIRE, DETECTOR | ||||
| 82343-60010 |
HDJ100,UZJ100 |
1 | ||
| 82343-60012 |
HDJ100,UZJ100 |
1 | ||
| 82343-60012 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 64777-90A00 | ||||
| 90159-50098 | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||

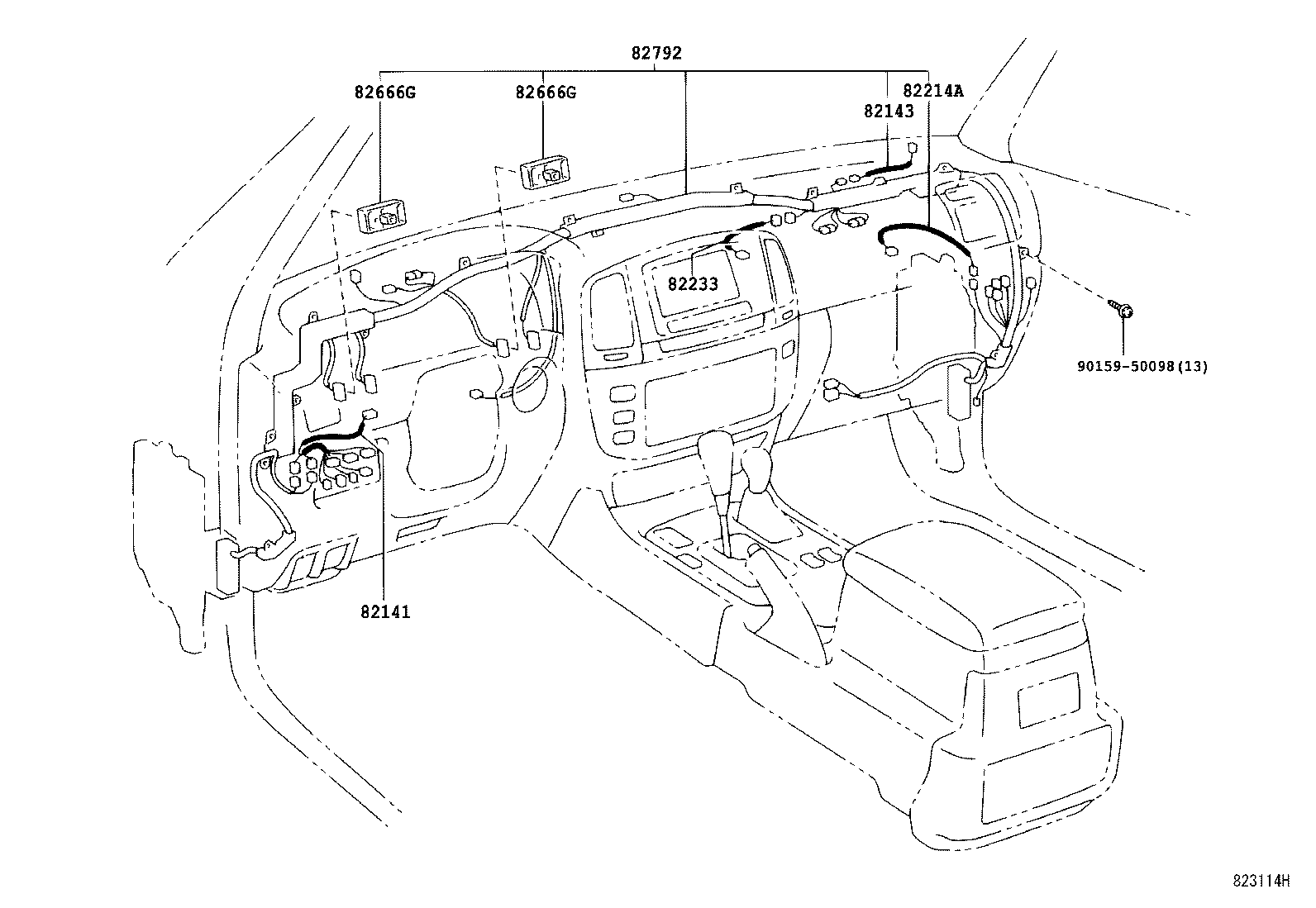

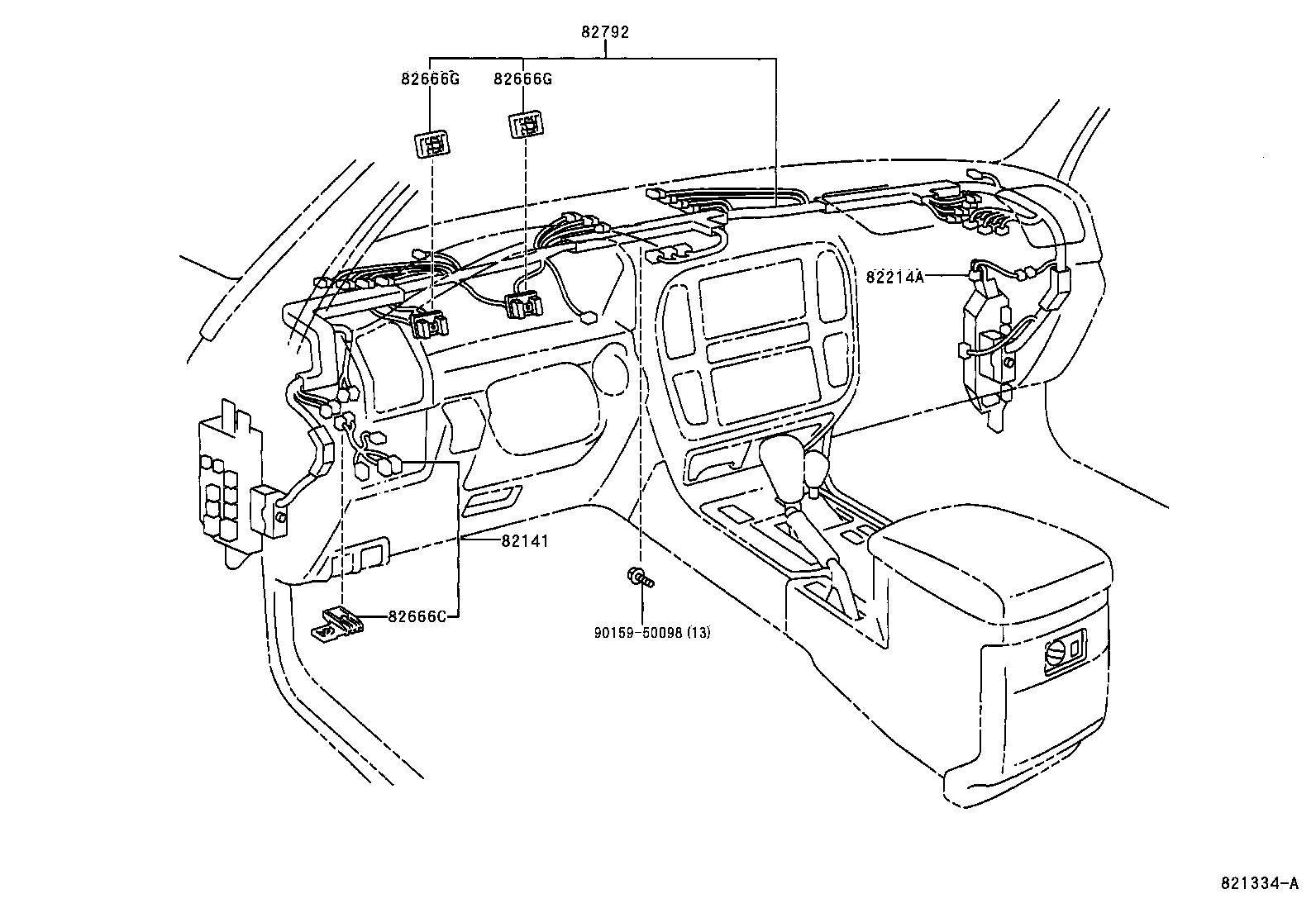

ILLUST NO. 4 OF10(9801-0208)LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60343 |
HDJ100..STD |
1 | ||
| 82141-60370 |
HDJ100,UZJ100..LHD LEATHER PACKAGE |
1 | ||
| 82141-60270 |
HDJ100,UZJ100..LHD |
1 | ||
| 82141-60342 |
HDJ100..STD |
1 | ||
| 82141-60344 |
HDJ100..STD |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60030 |
HDJ100,UZJ100 |
1 | ||
| 82214-60030 |
HDJ100..LHD..5F;HDJ100,UZJ100..RHD |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60120 |
HDJ100,UZJ100 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82792 - WIRE, INSTRUMENT PANEL INTEGRATION | ||||
| 82792-60122 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60123 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60063 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82792-60125 |
HDJ100..LHD..5F W(AIR BAG) |
1 | ||
| 82792-60160 |
HDJ100..STD |
1 | ||
| 82792-60126 |
HDJ100,UZJ100..LHD W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82792-60260 |
HDJ100..STD |
1 | ||
| 82792-60261 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||

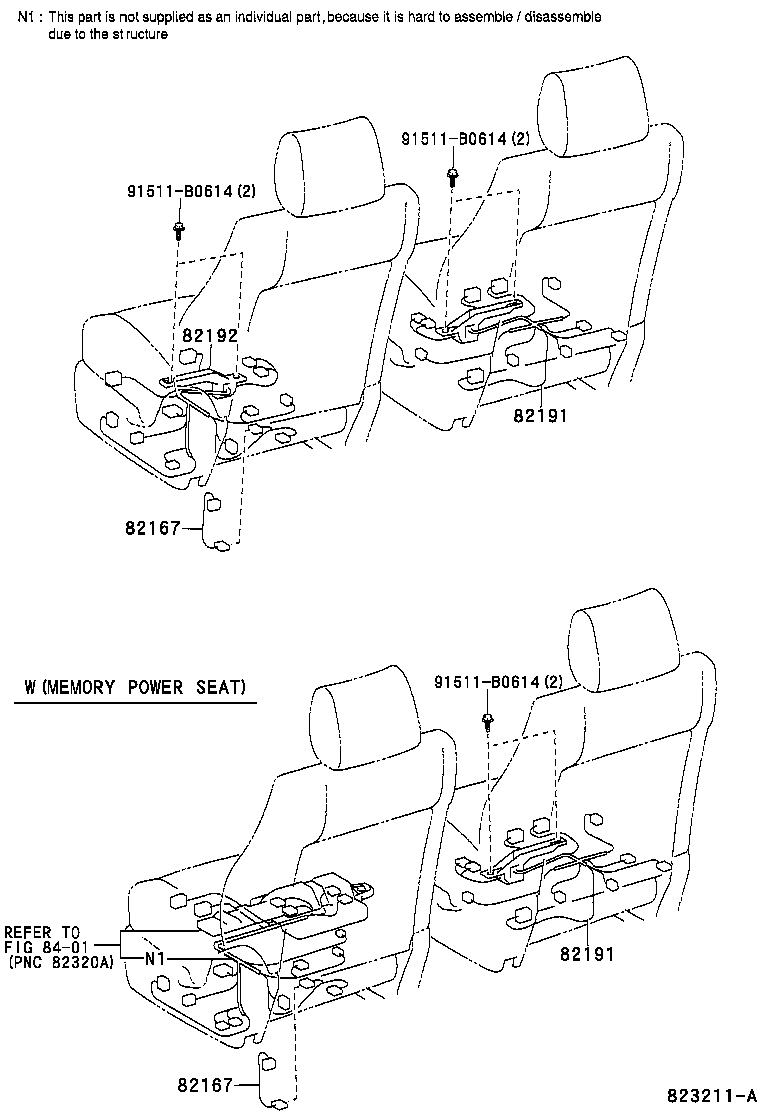

ILLUST NO. 6 OF10(9801-0208)
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60020 |
HDJ100..STD |
1 | ||
| 82192-60021 |
HDJ100..STD |
1 | ||

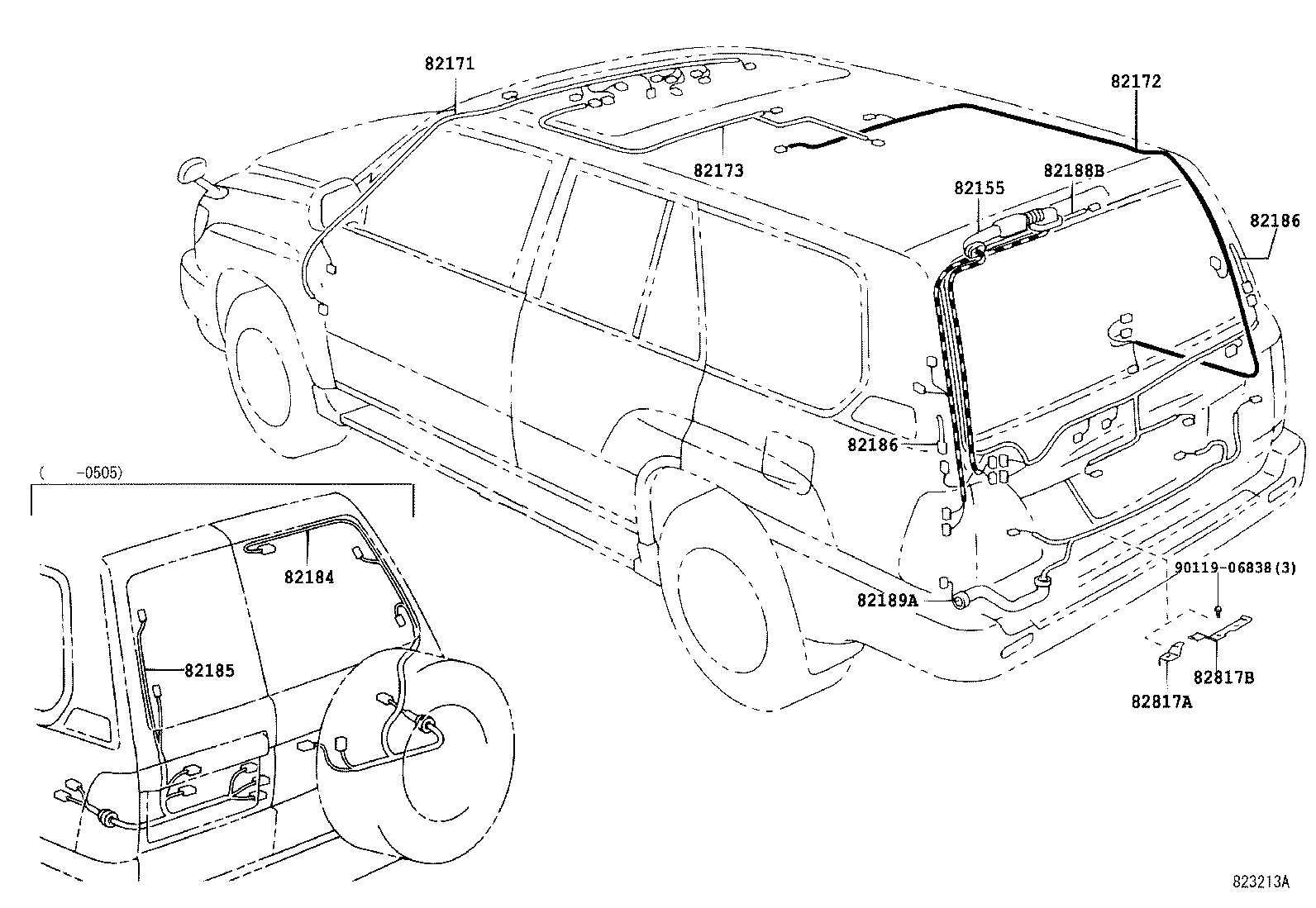

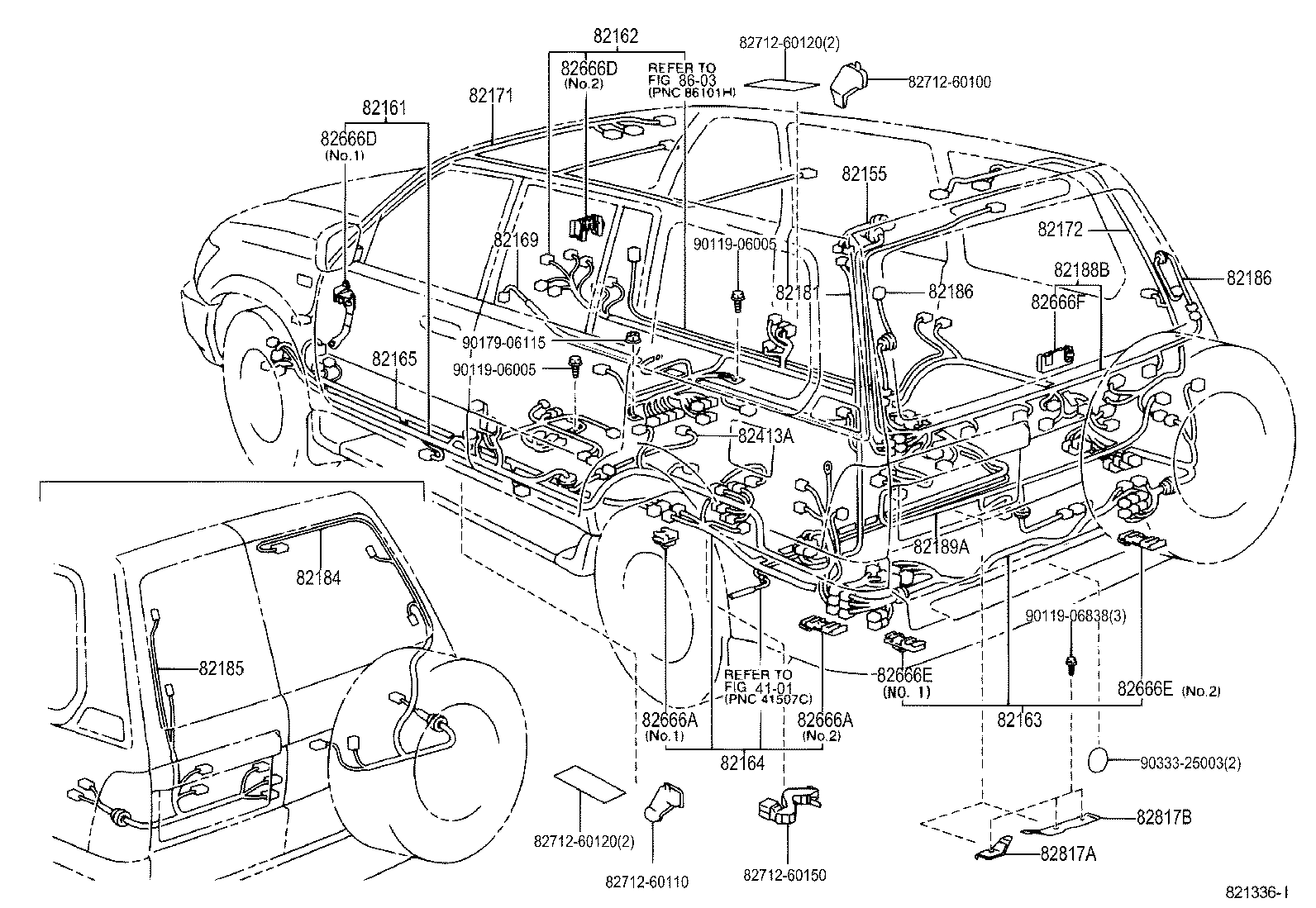

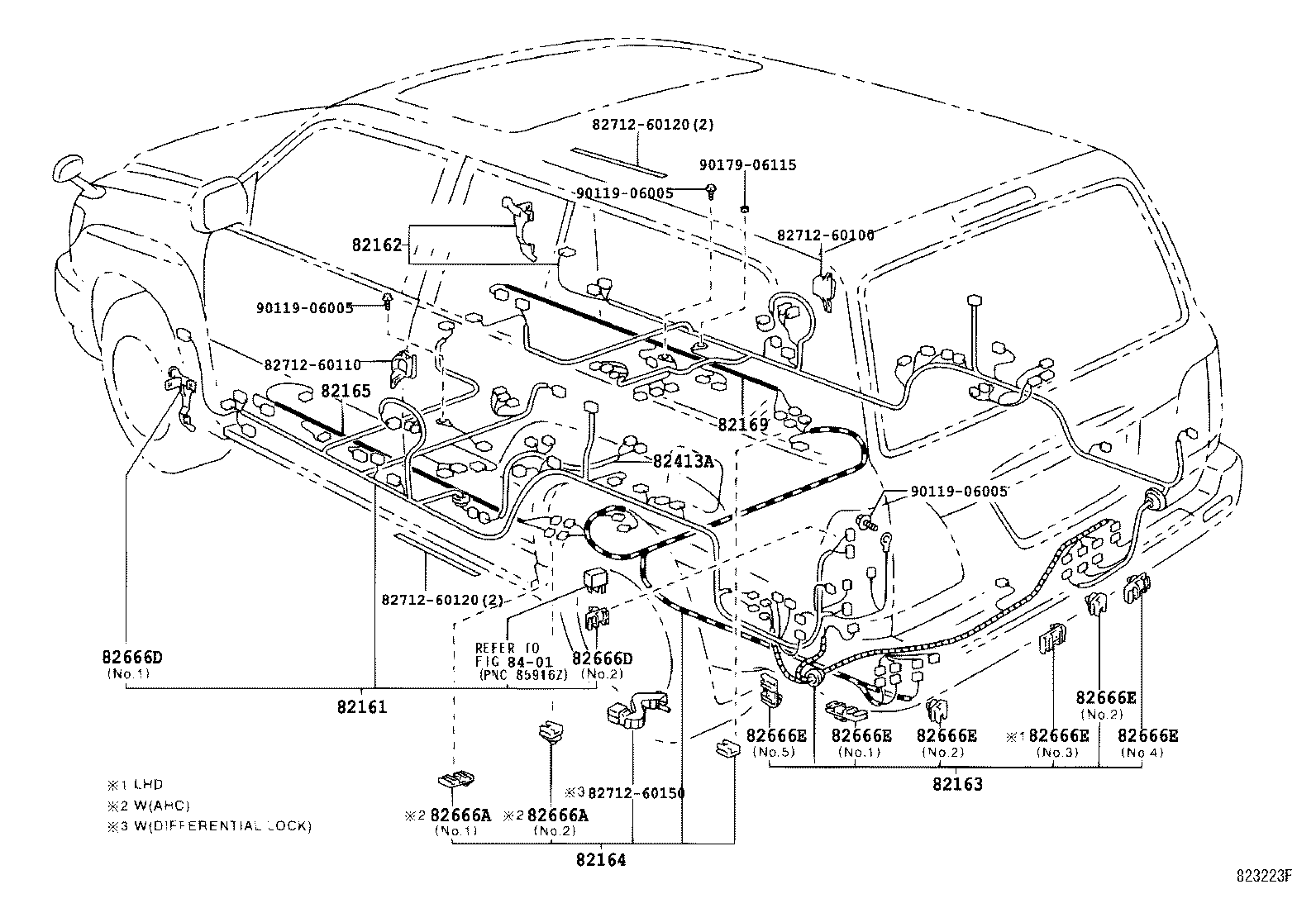

ILLUST NO. 7 OF10(9801-0208)
FLOOR,ROOF,LUGGAGE,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-60030 |
HDJ100..STD |
1 | ||
| 82155-60010 |
HDJ100,UZJ100 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60660 |
HDJ100,UZJ100 |
1 | ||
| 82161-60664 |
HDJ100,UZJ100 |
1 | ||
| 82161-60542 |
HDJ100..STD |
1 | ||
| 82161-60665 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82161-60541 |
HDJ100..STD |
1 | ||
| 82161-6A460 |
HDJ100..LHD..5F W(FRONT BENCH SEAT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60480 |
HDJ100,UZJ100 |
1 | ||
| 82162-60482 |
HDJ100,UZJ100..LHD |
1 | ||
| 82162-60483 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82162-60484 |
HDJ100,UZJ100 |
1 | ||
| 82162-6A320 |
HDJ100..LHD..5F BENCH SEAT TYPE |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60260 |
HDJ100,UZJ100..LHD W(TEMS) |
1 | ||
| 82163-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60252 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60170 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100 |
1 | ||
| 82164-60200 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK & TEMS) |
1 | ||
| 82164-60171 |
HDJ100..5F W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60130 |
HDJ100,UZJ100 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60540 |
HDJ100,UZJ100 |
1 | ||
| 82171-60701 |
HDJ100..STD |
1 | ||
| 82171-60702 |
HDJ100..STD |
1 | ||
| 82171-60620 |
HDJ100,UZJ100 W(SUN ROOF & OVERHEAD CONSOLE---SMALL TYPE) |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-60090 |
HDJ100,UZJ100 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60211 |
HDJ100..STD |
1 | ||
| 82184-60201 |
HDJ100..STD |
1 | ||
| 82184-60202 |
HDJ100..STD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60080 |
HDJ100..STD |
1 | ||
| 82185-60081 |
HDJ100..STD |
1 | ||
| 82189A - WIRE, BACK DOOR, LOWER | ||||
| 82189-60030 |
HDJ100,UZJ100 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-60010 |
HDJ100,UZJ100 |
1 | ||
| 82413-60011 |
HDJ100,UZJ100 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
HDJ100..5FC;HDJ100..LHD..5F NO.1 |
1 | ||
| 82666-60030 |
HDJ100..5FC;HDJ100..LHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
HDJ100..5FC;HDJ100..LHD..5F NO.1 |
1 | ||
| 82666-60030 |
HDJ100..5FC;HDJ100..LHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82712-60150 | ||||
| 90119-06005 | ||||
| 90119-06838 | ||||
| 90179-06115 | ||||
| 90333-25003 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8603 | ||||

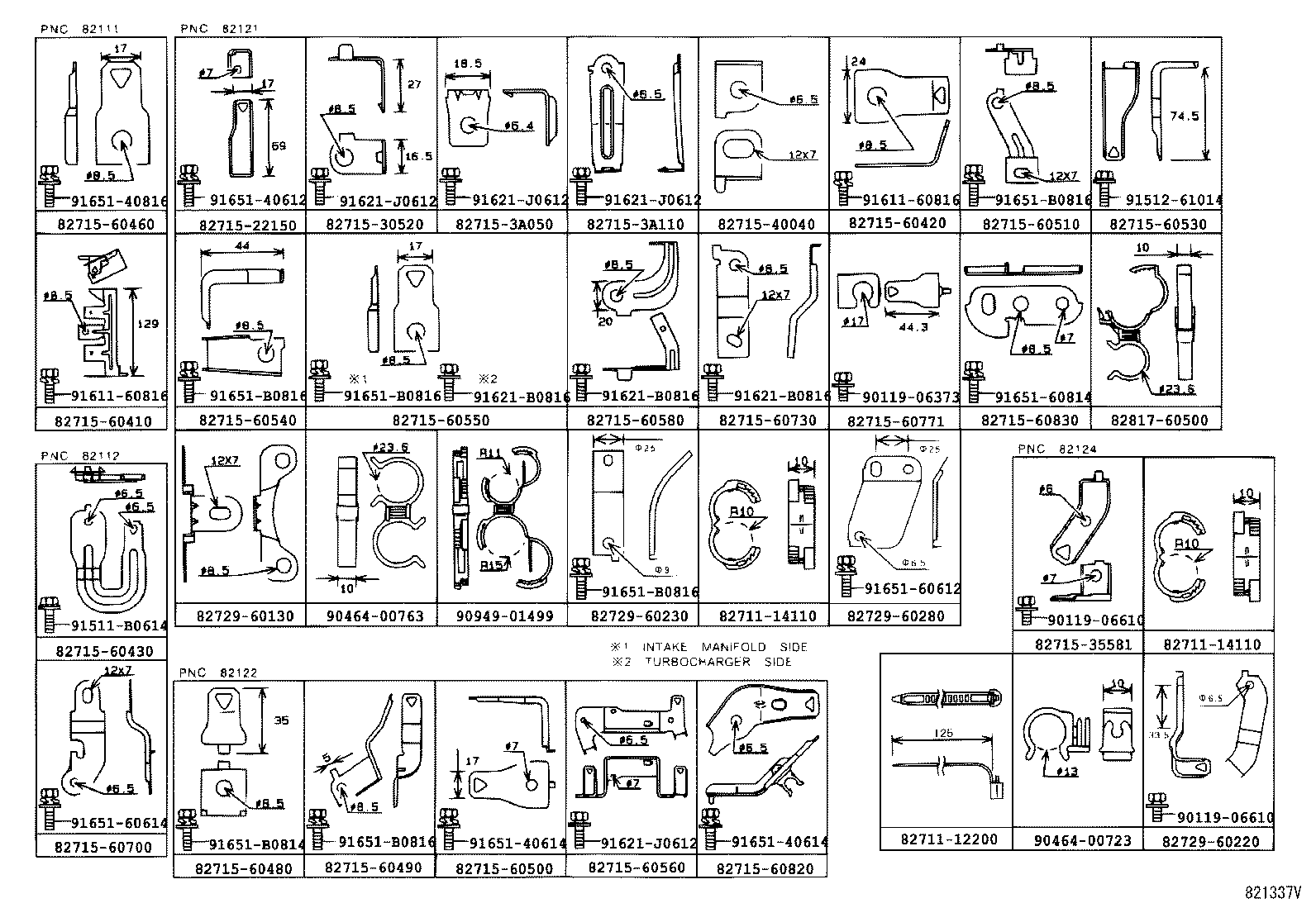

ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82715-22150 | ||||
| 82715-30520 | ||||
| 82715-35581 | ||||
| 82715-3A050 | ||||
| 82715-3A110 | ||||
| 82715-40040 | ||||
| 82715-60410 | ||||
| 82715-60420 | ||||
| 82715-60430 | ||||
| 82715-60460 | ||||
| 82715-60480 | ||||
| 82715-60490 | ||||
| 82715-60500 | ||||
| 82715-60510 | ||||
| 82715-60530 | ||||
| 82715-60540 | ||||
| 82715-60550 | ||||
| 82715-60560 | ||||
| 82715-60580 | ||||
| 82715-60700 | ||||
| 82715-60730 | ||||
| 82715-60771 | ||||
| 82715-60820 | ||||
| 82715-60830 | ||||
| 82729-60130 | ||||
| 82729-60220 | ||||
| 82729-60230 | ||||
| 82729-60280 | ||||
| 82817-60500 | ||||
| 90119-06373 | ||||
| 90119-06610 | ||||
| 90464-00723 | ||||
| 90464-00763 | ||||
| 90949-01499 | ||||
| 91511-B0614 | ||||
| 91512-61014 | ||||
| 91611-60816 | ||||
| 91621-B0816 | ||||
| 91621-J0612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 91651-60814 | ||||
| 91651-B0814 | ||||
| 91651-B0816 | ||||
ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-60410 | ||||
| 82715-60040 | ||||
| 82715-60190 | ||||
| 82715-60290 | ||||
| 82715-60360 | ||||
| 82715-60380 | ||||
| 82715-60390 | ||||
| 82715-60400 | ||||
| 82715-60610 | ||||
| 82715-60620 | ||||
| 82715-60630 | ||||
| 82715-60650 | ||||
| 82715-60660 | ||||
| 82715-60670 | ||||
| 82715-60680 | ||||
| 82715-60800 | ||||
| 82715-60810 | ||||
| 82715-6A500 | ||||
| 82729-60150 | ||||
| 82729-60160 | ||||
| 82729-60240 | ||||
| 82729-60250 | ||||
| 82729-60260 | ||||
| 82729-60270 | ||||
| 82729-60290 | ||||
| 82729-60310 | ||||
| 90119-06375 | ||||
| 90464-00241 | ||||
| 91611-B0816 | ||||
| 91651-40816 | ||||
| 91651-41018 | ||||
| 91651-41020 | ||||
| 91651-60616 | ||||
| 91651-61020 | ||||
ILLUST NO. 4 OF10(0208- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60343 |
HDJ100..STD |
1 | ||
| 82141-60370 |
HDJ100,UZJ100..LHD LEATHER PACKAGE |
1 | ||
| 82141-60270 |
HDJ100,UZJ100..LHD |
1 | ||
| 82141-60342 |
HDJ100..STD |
1 | ||
| 82141-60344 |
HDJ100..STD |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-60091 |
HDJ100..LHD..5F;HDJ100,UZJ100..RHD |
1 | ||
| 82214A - WIRE, LAMP | ||||
| 82214-60030 |
HDJ100,UZJ100 |
1 | ||
| 82214-60030 |
HDJ100..LHD..5F;HDJ100,UZJ100..RHD |
1 | ||
| 82233 - WIRE, COMPUTER | ||||
| 82233-60011 |
HDJ100,UZJ100 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82666-60050 |
HDJ100,UZJ100 |
2 | ||
| 82792 - WIRE, INSTRUMENT PANEL INTEGRATION | ||||
| 82792-60122 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60123 |
HDJ100,UZJ100..LHD |
1 | ||
| 82792-60063 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82792-60125 |
HDJ100..LHD..5F W(AIR BAG) |
1 | ||
| 82792-60160 |
HDJ100..STD |
1 | ||
| 82792-60126 |
HDJ100,UZJ100..LHD W(CURTAIN SHIELD AIR BAG) |
1 | ||
| 82792-60260 |
HDJ100..STD |
1 | ||
| 82792-60261 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
ILLUST NO. 5 OF10(0208- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82081 - WIRING ASSY, DOOR LOCK | ||||
| 82081-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 82081-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-60330 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60400 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82151-60430 |
HDJ100,UZJ100..LHD |
1 | ||
| 82151-60431 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60330 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82152-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60252 |
HDJ100,UZJ100..LHD |
1 | ||
| 82152-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82153-60142 |
HDJ100,UZJ100 |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60130 |
HDJ100,UZJ100 |
1 | ||
| 82153-60142 |
HDJ100,UZJ100 |
1 | ||
| 82153-60143 |
HDJ100,UZJ100 W(POWER DOOR LOCK) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-60300 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90467-09030 | ||||
ILLUST NO. 3 OF10(0208- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82119 - WIRE, SENSOR | ||||
| 82219-60040 |
HDJ100..LHD |
1 | ||
| 82219-60040 |
HDJ100..LHD |
1 | ||
| 82128 - WIRE, COLUMN | ||||
| 82128-60010 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC & W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60190 |
HDJ100,UZJ100..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82128-60110 |
HDJ100,UZJ100..LHD W(MEMORY ADJUST SYSTEM) |
1 | ||
| 82128-60100 |
HDJ100,UZJ100..LHD |
1 | ||
| 82128-60092 |
HDJ100..STD |
1 | ||
| 82128-60220 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82128-60221 |
HDJ100..STD W(AIR BAG) |
1 | ||
| 82128-60093 |
HDJ100..STD |
1 | ||
| 82136 - WIRE, DASH | ||||
| 82136-60350 |
HDJ100..LHD..5F W(BENCH SEAT) |
1 | ||
| 82136-60160 |
HDJ100..LHD |
1 | ||
| 82136-60360 |
HDJ100..LHD..5F W(BENCH SEAT & AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82136-60170 |
HDJ100..LHD W(AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82136-60352 |
HDJ100..STD |
1 | ||
| 82136-60162 |
HDJ100..STD W(FRONT SEPARATE SEAT) |
1 | ||
| 82136-60354 |
HDJ100..STD BENCH SEAT TYPE |
1 | ||
| 82136-60164 |
HDJ100..STD |
1 | ||
| 82136-60355 |
HDJ100..STD BENCH SEAT TYPE |
1 | ||
| 82136-60165 |
HDJ100..STD |
1 | ||
| 82136-60166 |
HDJ100..STD |
1 | ||
| 82136-60356 |
HDJ100..STD W(EMV & 7 SPEAKER) |
1 | ||
| 82176 - WIRE, REAR CONSOLE BOX | ||||
| 82176-60020 |
HDJ100,UZJ100 |
1 | ||
| 82176-60022 |
HDJ100..STD |
1 | ||
| 82176-60052 |
HDJ100,UZJ100 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(0208- )HDJ100
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60850 |
HDJ100..LHD..5F |
1 | ||
| 82121-60852 |
HDJ100..LHD..5F |
1 | ||
| 82121-60854 |
HDJ100..LHD..5F |
1 | ||
| 82121-60853 |
HDJ100..STD |
1 | ||
| 82121-60855 |
HDJ100..STD |
1 | ||
| 82121-6A850 |
HDJ100..STD |
1 | ||
| 82121-6A851 |
HDJ100..STD |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60371 |
HDJ100 |
1 | ||
| 82122-60370 |
HDJ100 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60250 |
HDJ100 |
1 | ||
| 82123-60252 |
HDJ100 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-60071 |
HDJ100..4FC;HDJ100..LHD..5F |
1 | ||
| 82124-60070 |
HDJ100 |
1 | ||
| 82124-60071 |
HDJ100 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60390 |
HDJ100..5F |
1 | ||
| 82125-60391 |
HDJ100..5F |
1 | ||
| 82125-60393 |
HDJ100..5F |
1 | ||
| 82125-60392 |
HDJ100..5F |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60110 |
HDJ100 |
1 | ||
| 82275-60100 |
UZJ100;HDJ100..5F |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60070 |
HDJ100,UZJ100 |
1 | ||
| 82276-60071 |
HDJ100..5F |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60100 |
HDJ100 |
1 | ||
| 82284-60101 |
HDJ100 |
1 | ||
| 82295 - WIRE, WINCH EARTH | ||||
| 82295-60030 |
HDJ100..5F,5FC |
1 | ||
| 82295-60030 |
HDJ100 |
1 | ||
| 82296 - WIRE, WINCH EARTH, NO.2 | ||||
| 82296-60010 |
HDJ100,UZJ100 |
1 | ||
| 82296-60010 |
UZJ100;HDJ100..5F |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-60070 |
HDJ100 |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-60070 |
HDJ100 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22060 |
HDJ100 |
1 | ||
| 82823C - CAP, TERMINAL, NO.4 | ||||
| 82823-90300 |
HDJ100,UZJ100 |
1 | ||
| 82823-90300 |
UZJ100;HDJ100..5F |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-30100 |
HDJ100 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 91512-61014 | ||||
| 91651-40816 | ||||
| 91651-60620 | ||||
| Linked diagrams | ||||
| 8201 | ||||
ILLUST NO.10 OF10(9801- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10871 | ||||
| 90980-10908 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11159 | ||||
| 90980-11162 | ||||
| 90980-11587 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
ILLUST NO. 6 OF10(0208- )LHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 82191-60021 |
HDJ100,UZJ100..LHD |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-60020 |
HDJ100..STD |
1 | ||
| 82192-60021 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(0208- )
ROOF,BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-60030 |
HDJ100..STD |
1 | ||
| 82155-60010 |
HDJ100,UZJ100 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60540 |
HDJ100,UZJ100 |
1 | ||
| 82171-60701 |
HDJ100..STD |
1 | ||
| 82171-60702 |
HDJ100..STD |
1 | ||
| 82171-60620 |
HDJ100,UZJ100 W(SUN ROOF & OVERHEAD CONSOLE---SMALL TYPE) |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60070 |
HDJ100..STD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60211 |
HDJ100..STD |
1 | ||
| 82184-60201 |
HDJ100..STD |
1 | ||
| 82184-60202 |
HDJ100..STD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60080 |
HDJ100..STD |
1 | ||
| 82185-60081 |
HDJ100..STD |
1 | ||
| 82189A - WIRE, BACK DOOR, LOWER | ||||
| 82189-60030 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90119-06838 | ||||
ILLUST NO. 1 OF10(0208- )HDJ100
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-6A180 |
HDJ100 W(COOL BOX OR TEMS) |
1 | ||
| 82111-6A082 |
HDJ100..STD |
1 | ||
| 82111-6A080 |
HDJ100 |
1 | ||
| 82111-6A184 |
HDJ100 W(SINGLE AIR CONDITIONER) |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60150 |
HDJ100..LHD |
1 | ||
| 82112-60152 |
HDJ100..LHD |
1 | ||
| 82112-60154 |
HDJ100..LHD..(5F,5FC) |
1 | ||
| 82112-60155 |
HDJ100..LHD |
1 | ||
| 82112-60156 |
HDJ100..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08246 |
HDJ100,UZJ100 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08290 |
HDJ100,UZJ100 60A,YELLOW |
1 | ||
| 90982-08285 |
HDJ100,UZJ100 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08286 |
HDJ100,UZJ100 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08284 |
HDJ100,UZJ100 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
HDJ100,UZJ100 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 90982-08291 |
HDJ100,UZJ100 80A,BLACK |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-60022 |
HDJ100 |
1 | ||
| 82241-60020 |
HDJ100 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60090 |
HDJ100 |
1 | ||
| 82261-60160 |
HDJ100..5F,5FC W(BATTERY=105D31R + 105D31L) |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-60060 |
HDJ100..5F |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82817-24110 |
HDJ100,UZJ100 |
2 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
HDJ100;UZJ100..LHD |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| 82823-22050 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 82821-35050 | ||||
| 90119-06005 | ||||
| 91511-B0614 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
ILLUST NO. 7 OF10(0208- )
FLOOR,LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-60660 |
HDJ100,UZJ100 |
1 | ||
| 82161-60664 |
HDJ100,UZJ100 |
1 | ||
| 82161-60542 |
HDJ100..STD |
1 | ||
| 82161-60665 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82161-60541 |
HDJ100..STD |
1 | ||
| 82161-6A460 |
HDJ100..LHD..5F W(FRONT BENCH SEAT) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60480 |
HDJ100,UZJ100 |
1 | ||
| 82162-60482 |
HDJ100,UZJ100..LHD |
1 | ||
| 82162-60483 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82162-60484 |
HDJ100,UZJ100 |
1 | ||
| 82162-6A320 |
HDJ100..LHD..5F BENCH SEAT TYPE |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60260 |
HDJ100,UZJ100..LHD W(TEMS) |
1 | ||
| 82163-60250 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60252 |
HDJ100,UZJ100..LHD |
1 | ||
| 82163-60253 |
HDJ100,UZJ100..LHD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60170 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100 |
1 | ||
| 82164-60200 |
HDJ100,UZJ100 W(REAR DIFFERENTIAL LOCK & TEMS) |
1 | ||
| 82164-60171 |
HDJ100..5F W(REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60160 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60130 |
HDJ100,UZJ100 |
1 | ||
| 82413A - WIRE, FUEL TANK | ||||
| 82413-60010 |
HDJ100,UZJ100 |
1 | ||
| 82413-60011 |
HDJ100,UZJ100 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
HDJ100..5FC;HDJ100..LHD..5F NO.1 |
1 | ||
| 82666-60030 |
HDJ100..5FC;HDJ100..LHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-60100 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 82666-60270 |
HDJ100..5FC;HDJ100..LHD..5F NO.1 |
1 | ||
| 82666-60030 |
HDJ100..5FC;HDJ100..LHD..5F NO.2 |
2 | ||
| 82666-60110 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-60060 |
HDJ100..STD NO.2 |
2 | ||
| 82666-60070 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 82666-60070 |
HDJ100,UZJ100..LHD NO.1 |
2 | ||
| 82666-60060 |
HDJ100,UZJ100 NO.4 |
2 | ||
| 82666-60310 |
HDJ100,UZJ100..LHD NO.3 |
1 | ||
| Common parts | ||||
| 82712-60100 | ||||
| 82712-60110 | ||||
| 82712-60120 | ||||
| 82712-60150 | ||||
| 90119-06005 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 8401 | ||||

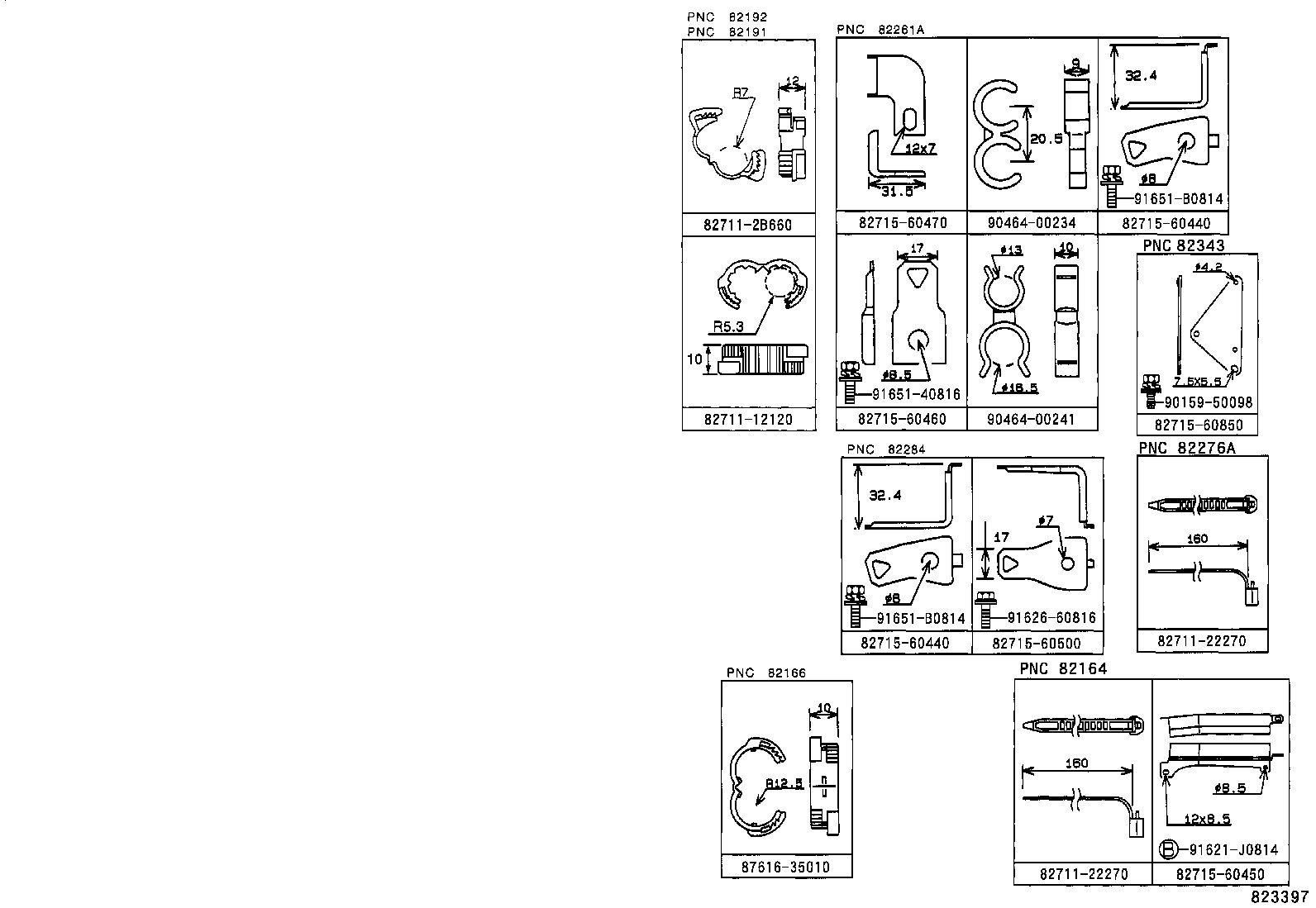

ILLUST NO. 8 OF10(9801- )
BRACKET & CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-22270 | ||||
| 82711-2B660 | ||||
| 82715-60440 | ||||
| 82715-60450 | ||||
| 82715-60460 | ||||
| 82715-60470 | ||||
| 82715-60500 | ||||
| 82715-60850 | ||||
| 87616-35010 | ||||
| 90159-50098 | ||||
| 90464-00234 | ||||
| 90464-00241 | ||||
| 91621-J0814 | ||||
| 91626-60816 | ||||
| 91651-40816 | ||||
| 91651-B0814 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
