HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801-0208)

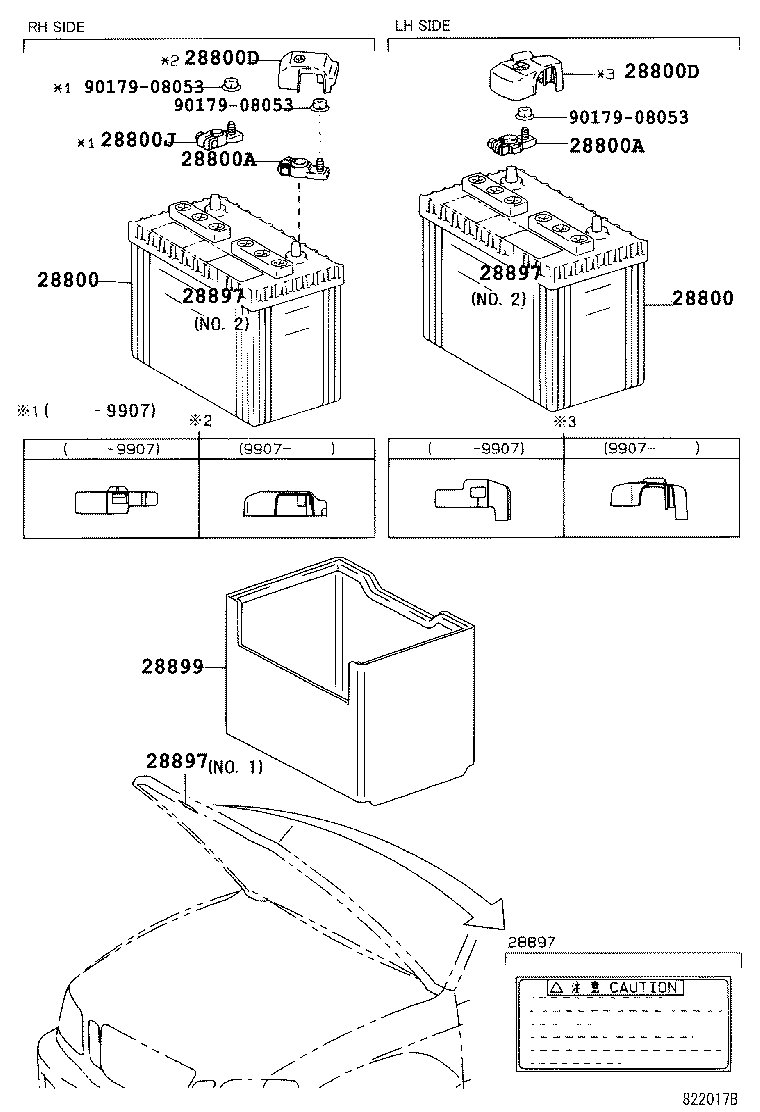

1 BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-60040 |
1HDFTE..HDJ100 FUSIBLE LINK BLOCK |
1 | ||
| 82821-60030 |
1HDFTE..HDJ100..5F,5FC |
1 | ||
| 82821-22110 |
1HDFTE..HDJ100 LH BATTERY POSITIVE SIDE |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| Common parts | ||||
| 90179-08053 | ||||
(9801-0208)

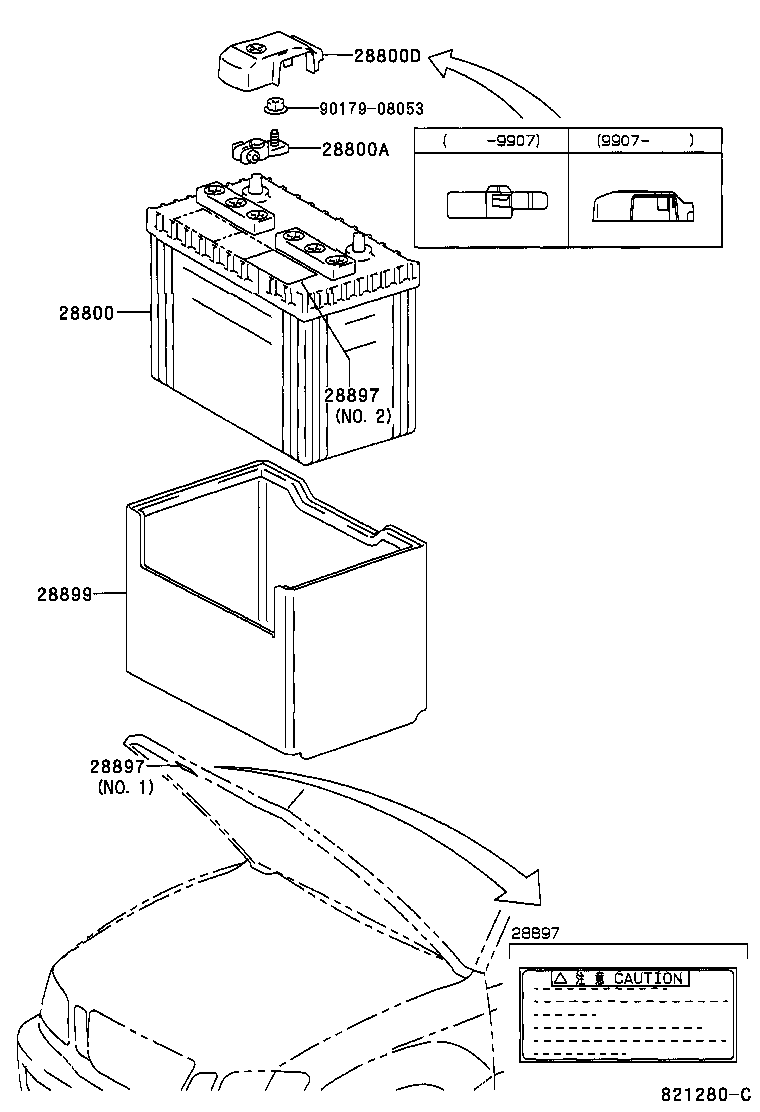

2 BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-60040 |
1HDFTE..HDJ100 FUSIBLE LINK BLOCK |
1 | ||
| 82821-60030 |
1HDFTE..HDJ100..5F,5FC |
1 | ||
| 82821-22110 |
1HDFTE..HDJ100 LH BATTERY POSITIVE SIDE |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-60040 |
1HDFTE..HDJ100 FUSIBLE LINK BLOCK |
1 | ||
| 82821-60030 |
1HDFTE..HDJ100..5F,5FC |
1 | ||
| 82821-22110 |
1HDFTE..HDJ100 LH BATTERY POSITIVE SIDE |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06024 |
1HDFTE..HDJ100 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| Common parts | ||||
| 90179-08053 | ||||
(0208- )

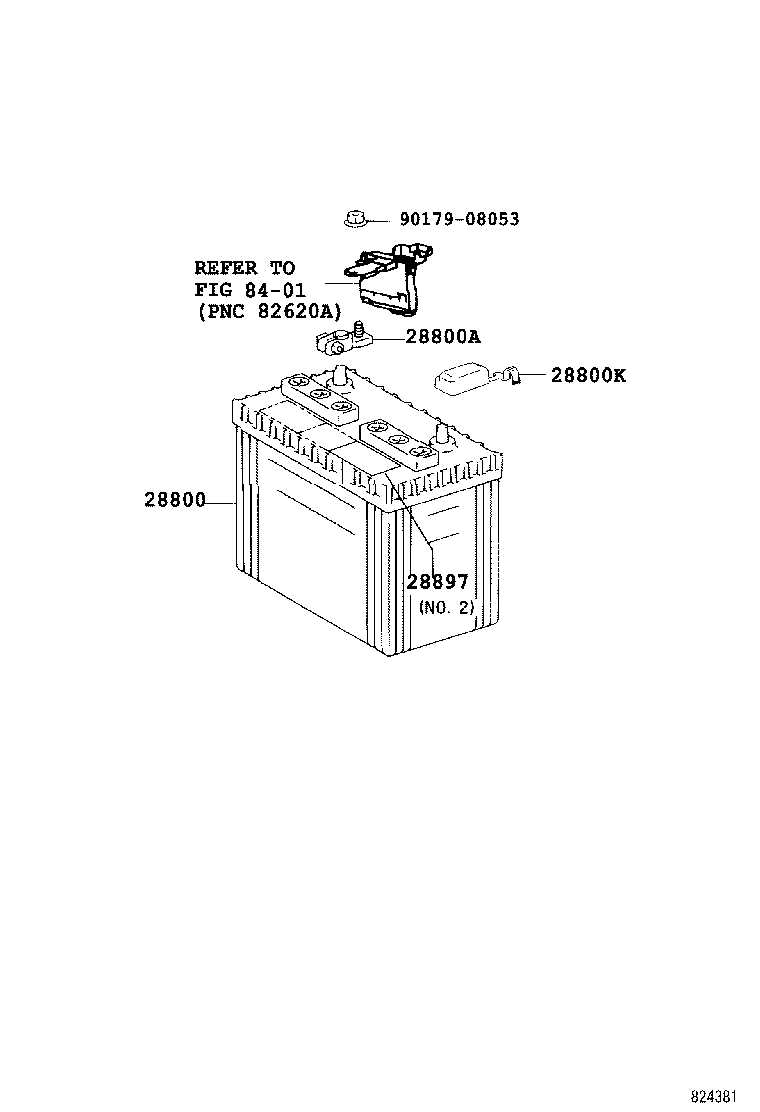

1 BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| Common parts | ||||
| 90179-08053 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0208- )

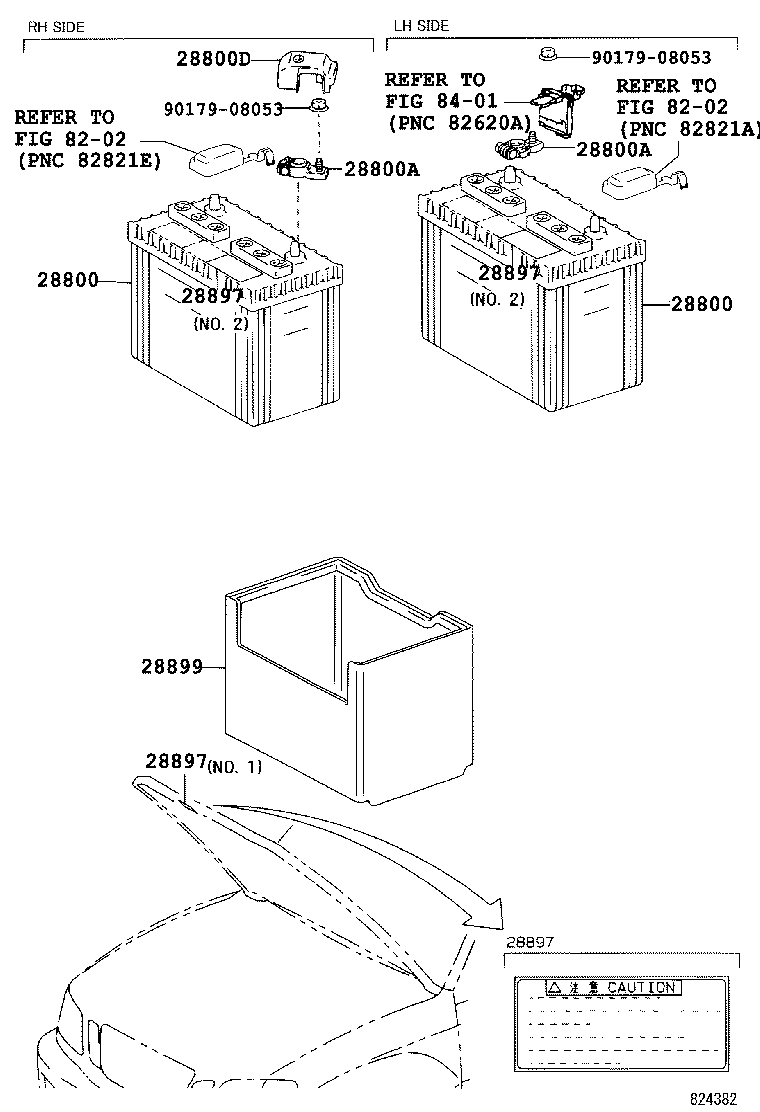

2 BATTERY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800 - BATTERY | ||||
| 28800-64250 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-17120 |
1HDFTE,2UZFE..HDJ100,UZJ100 80D26L,FURUKAWA |
1 | ||
| 28800-17110 |
1HDFTE..HDJ100 80D26R,FURUKAWA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-17130 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L,FURUKAWA |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L,YUASA |
1 | ||
| 28800-64251 |
1HDFTE,2UZFE..HDJ100,UZJ100 105D31L |
1 | ||
| 28800-64182 |
1HDFTE,2UZFE..HDJ100,UZJ100 95D31L |
1 | ||
| 28800-64062 |
1HDFTE..HDJ100 95D31R,YUASA |
1 | ||
| 28800-17131 |
1HDFTE..HDJ100 105D31R,FURUKAWA |
1 | ||
| 28800-67123 |
1HDFTE..HDJ100 105D31R |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 82675-60020 |
1HDFTE,2UZFE..HDJ100,UZJ100..5F,5FC |
1 | ||
| 90982-05035 |
1HDFTE,2UZFE..HDJ100,UZJ100 |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-60040 |
1HDFTE..HDJ100 FUSIBLE LINK BLOCK |
1 | ||
| 82821-60030 |
1HDFTE..HDJ100..5F,5FC |
1 | ||
| 82821-22110 |
1HDFTE..HDJ100 LH BATTERY POSITIVE SIDE |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28898-46020 |
1HDFTE,2UZFE..HDJ100,UZJ100 NO.2 |
1 | ||
| 28897-54030 |
1HDFTE..HDJ100 NO.1 |
1 | ||
| 28899 - INSULATOR, BATTERY | ||||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| 28899-54050 |
1HDFTE..HDJ100 BATTERY SIZE=D31 |
1 | ||
| Common parts | ||||
| 90179-08053 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
