Toyota Land cruiser 100 HDJ100 REAR LICENSE PLATE LAMP

HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005

Engine 1HDFTE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

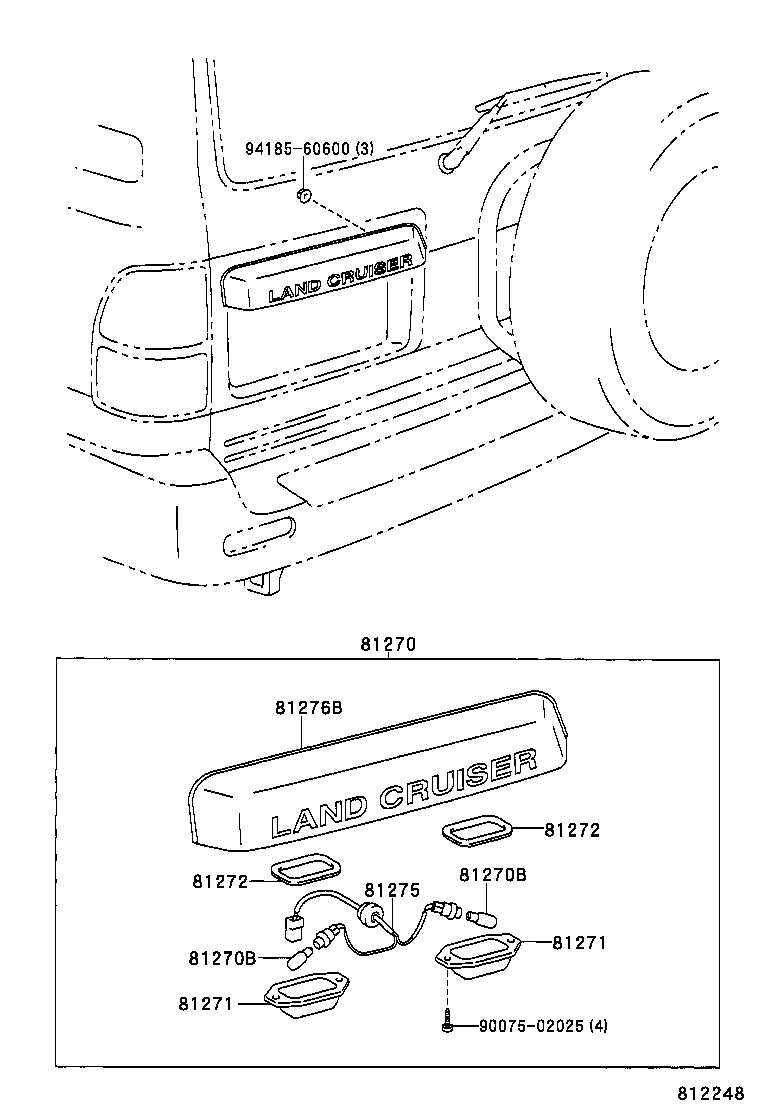

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-60300	HDJ100..STD	08/2000 - 08/2002	1
81270-30270	HDJ100,UZJ100	01/1998 - 07/1998	2
81270-60380	HDJ100..STD	08/2002 - 05/2005	1
81270 - LAMP ASSY, LICENSE PLATE
81270-60300	HDJ100..STD	08/2000 - 08/2002	1
81270-30270	HDJ100,UZJ100	01/1998 - 07/1998	2
81270-60380	HDJ100..STD	08/2002 - 05/2005	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	HDJ100,UZJ100 12V 5W	01/1998 - 08/2002	2
99132-12050	HDJ100,UZJ100 12V 5W	08/2002 - 05/2005	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	HDJ100,UZJ100 12V 5W	01/1998 - 08/2002	2
99132-12050	HDJ100,UZJ100 12V 5W	08/2002 - 05/2005	2
81271 - LENS, LICENSE PLATE LAMP
81271-24010	HDJ100..STD	08/2000 - 08/2002	2
81271-30270	HDJ100,UZJ100	01/1998 - 08/1998	2
81271-24010	HDJ100..STD	08/2002 - 05/2005	2
81271 - LENS, LICENSE PLATE LAMP
81271-24010	HDJ100..STD	08/2000 - 08/2002	2
81271-30270	HDJ100,UZJ100	01/1998 - 08/1998	2
81271-24010	HDJ100..STD	08/2002 - 05/2005	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010	HDJ100..STD	08/2000 - 08/2002	2
81272-24010	HDJ100..STD	08/2002 - 05/2005	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010	HDJ100..STD	08/2000 - 08/2002	2
81272-24010	HDJ100..STD	08/2002 - 05/2005	2
81276B - COVER, LICENSE PLATE LAMP
81276-60300	HDJ100..STD	08/2000 - 08/2002	1
81276-60380	HDJ100..STD	08/2002 - 05/2005	1
Common parts
62955-20040
90075-02025
90075-22004
94185-60600

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270 - LAMP ASSY, LICENSE PLATE
81270-60300	HDJ100..STD	08/2000 - 08/2002	1
81270-30270	HDJ100,UZJ100	01/1998 - 07/1998	2
81270-60380	HDJ100..STD	08/2002 - 05/2005	1
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	HDJ100,UZJ100 12V 5W	01/1998 - 08/2002	2
99132-12050	HDJ100,UZJ100 12V 5W	08/2002 - 05/2005	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	HDJ100,UZJ100 12V 5W	01/1998 - 08/2002	2
99132-12050	HDJ100,UZJ100 12V 5W	08/2002 - 05/2005	2
81271 - LENS, LICENSE PLATE LAMP
81271-24010	HDJ100..STD	08/2000 - 08/2002	2
81271-30270	HDJ100,UZJ100	01/1998 - 08/1998	2
81271-24010	HDJ100..STD	08/2002 - 05/2005	2
81271 - LENS, LICENSE PLATE LAMP
81271-24010	HDJ100..STD	08/2000 - 08/2002	2
81271-30270	HDJ100,UZJ100	01/1998 - 08/1998	2
81271-24010	HDJ100..STD	08/2002 - 05/2005	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010	HDJ100..STD	08/2000 - 08/2002	2
81272-24010	HDJ100..STD	08/2002 - 05/2005	2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-24010	HDJ100..STD	08/2000 - 08/2002	2
81272-24010	HDJ100..STD	08/2002 - 05/2005	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
81275-60300	HDJ100..STD	08/2002 - 05/2005	1
81276B - COVER, LICENSE PLATE LAMP
81276-60300	HDJ100..STD	08/2000 - 08/2002	1
81276-60380	HDJ100..STD	08/2002 - 05/2005	1
Common parts
90075-02025
94185-60600
