HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

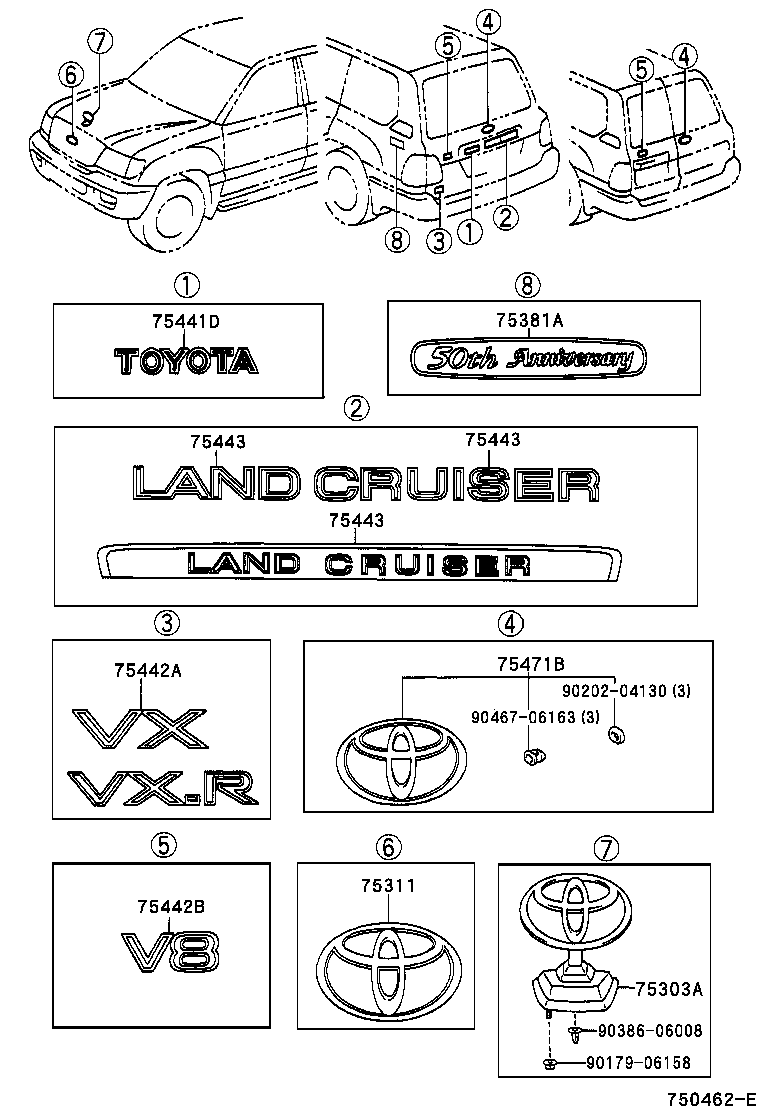

Click highlighted areas on diagram

diagram 75303A 75311 75381A 75441D 75442A 75442B 75443 75443 75443 75471B 9017906158 9020204130 9038606008 9046706163
Part # Description Qty Price
75303A - EMBLEM SUB-ASSY, HOOD
75303-60070

HDJ100..STD

 1
75303-60070

HDJ100..STD

 1
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75311-60090

HDJ100,UZJ100

 1
90975-02046

HDJ100,UZJ100

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-24131

HDJ100,UZJ100

SILVER

 1
75471-24131

HDJ100,UZJ100..5F,5FC

 1
Common parts
90179-06158
90202-04130
90386-06008
90467-06163
