HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0505)

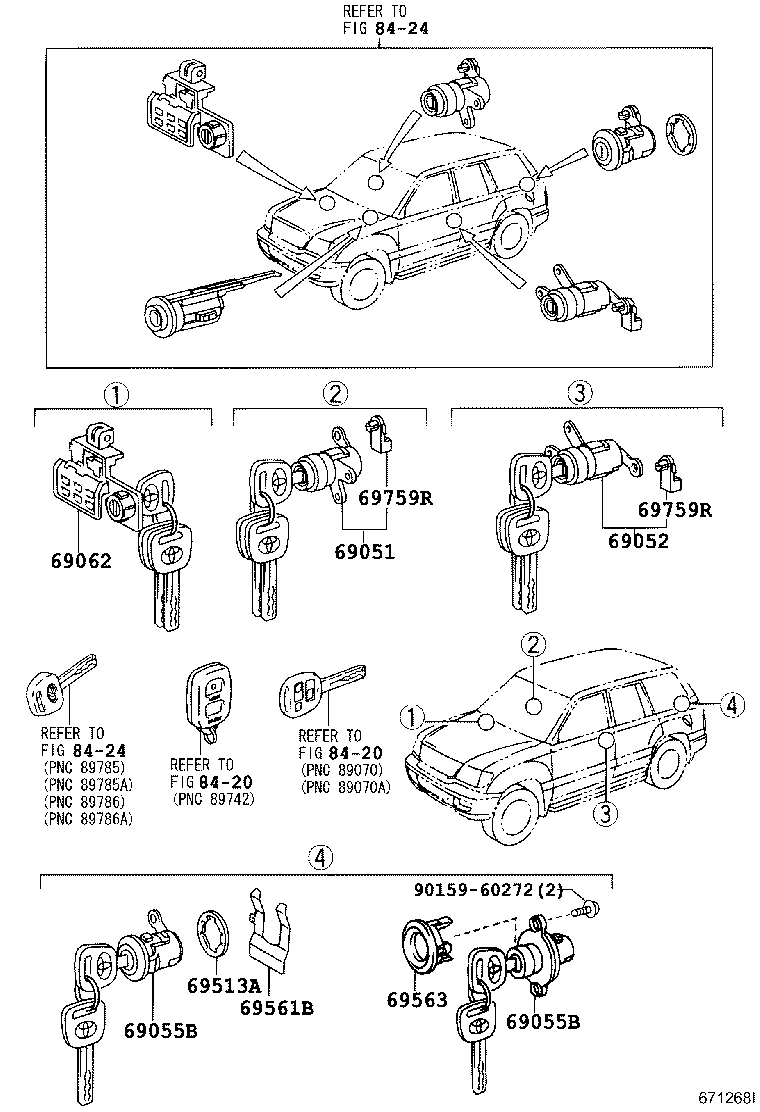

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-60200 |
HDJ100,UZJ100 |
1 | ||
| 69051-60181 |
HDJ100..STD |
1 | ||
| 69051-60260 |
HDJ100..STD |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-60181 |
HDJ100..STD |
1 | ||
| 69052-60200 |
HDJ100,UZJ100 |
1 | ||
| 69052-60270 |
HDJ100..STD |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-60220 |
HDJ100..STD |
1 | ||
| 69055-60180 |
HDJ100,UZJ100 |
1 | ||
| 69055-60280 |
HDJ100..STD |
1 | ||
| 69055B - CYLINDER & KEY SET, BACK DOOR LOCK | ||||
| 69055-60220 |
HDJ100..STD |
1 | ||
| 69055-60180 |
HDJ100,UZJ100 |
1 | ||
| 69055-60280 |
HDJ100..STD |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-60130 |
HDJ100,UZJ100 |
1 | ||
| 69056-60110 |
HDJ100..STD |
1 | ||
| 69056-60180 |
HDJ100..STD |
1 | ||
| 69513A - PAD, DOOR CYLINDER | ||||
| 69513-32010 |
HDJ100,UZJ100 |
1 | ||
| 69513-32010 |
HDJ100..STD |
1 | ||
| 69513-32010 |
HDJ100..STD |
1 | ||
| 69561B - RETAINER, BACK DOOR LOCK CYLINDER | ||||
| 69561-60020 |
HDJ100..STD |
1 | ||
| 69561-60020 |
HDJ100,UZJ100 |
1 | ||
| 69561-60020 |
HDJ100..STD |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-45010 |
HDJ100,UZJ100 RH |
1 | ||
| 69759-45020 |
HDJ100,UZJ100 LH |
1 | ||
| 69759R - SNAP, FRONT DOOR LOCK CYLINDER | ||||
| 69759-45010 |
HDJ100,UZJ100 RH |
1 | ||
| 69759-45020 |
HDJ100,UZJ100 LH |
1 | ||
| Common parts | ||||
| 90159-60272 | ||||
| Linked diagrams | ||||
| 8420 | ||||
| 8424 | ||||
