HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

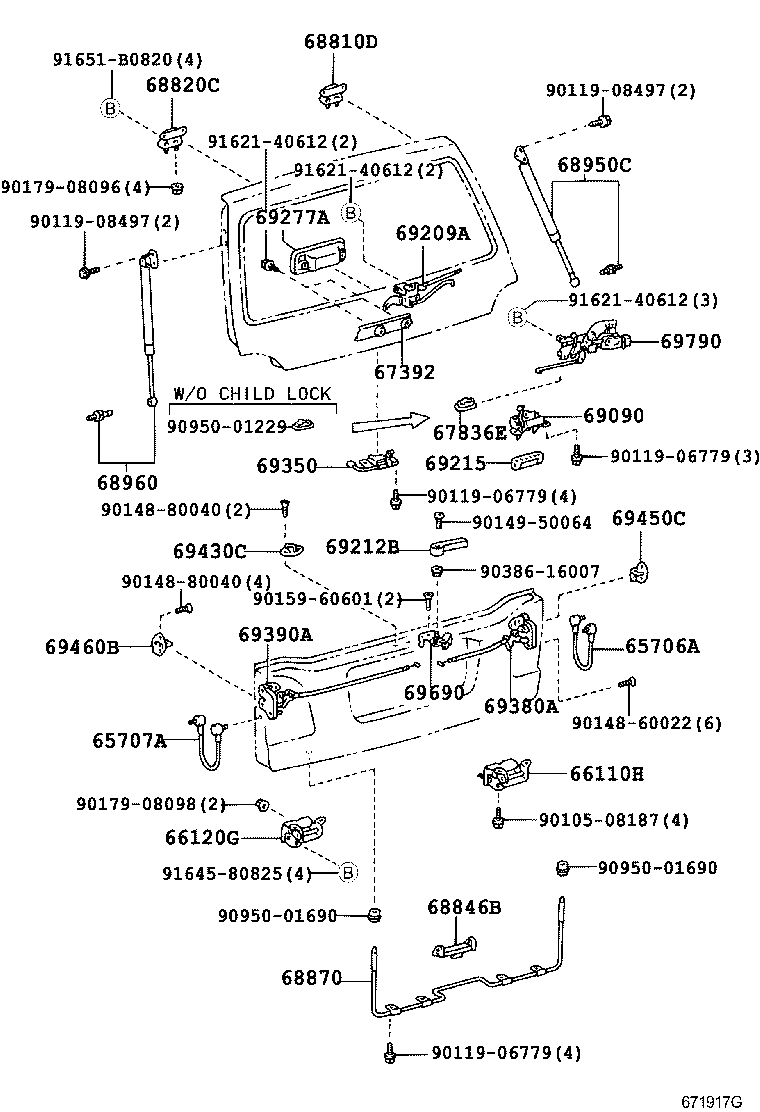

Click highlighted areas on diagram

diagram 65706A 65707A 66110H 66120G 67392 67836E 68810D 68820C 68846B 68870 68950C 68960 69090 69209A 69212B 69215 69277A 69350 69380A 69390A 69430C 69450C 69460B 69690 69790 9010508187 9011906779 9011906779 9011906779 9011908497 9011908497 9014860022 9014880040 9014880040 9014950064 9015960601 9017908096 9017908098 9038616007 9095001229 9095001690 9095001690 9162140612 9162140612 9162140612 9164580825 91651B0820
Part # Description Qty Price
65706A - STAY SUB-ASSY, TAIL GATE, RH
65706-60020

HDJ100,UZJ100

 1
65707A - STAY SUB-ASSY, TAIL GATE, LH
65706-60020

HDJ100,UZJ100

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-69055

HDJ100,UZJ100

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-69015

HDJ100,UZJ100

 1
69212B - HANDLE, BACK DOOR INSIDE
69212-60030

HDJ100,UZJ100

 1
69212-60030

HDJ100,UZJ100

 1
69350 - LOCK ASSY, BACK DOOR
69110-60120

HDJ100..STD

 1
69110-60120

HDJ100..STD

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-60040

HDJ100..STD

 1
69690-60040

HDJ100..STD

 1
Common parts
90105-08187
90119-06779
90119-08497
90148-60022
90148-80040
90149-50064
90159-60601
90179-08096
90179-08098
90386-16007
90950-01229
90950-01690
91621-40612
91645-80825
91651-B0820

(0008- )STD

Click highlighted areas on diagram

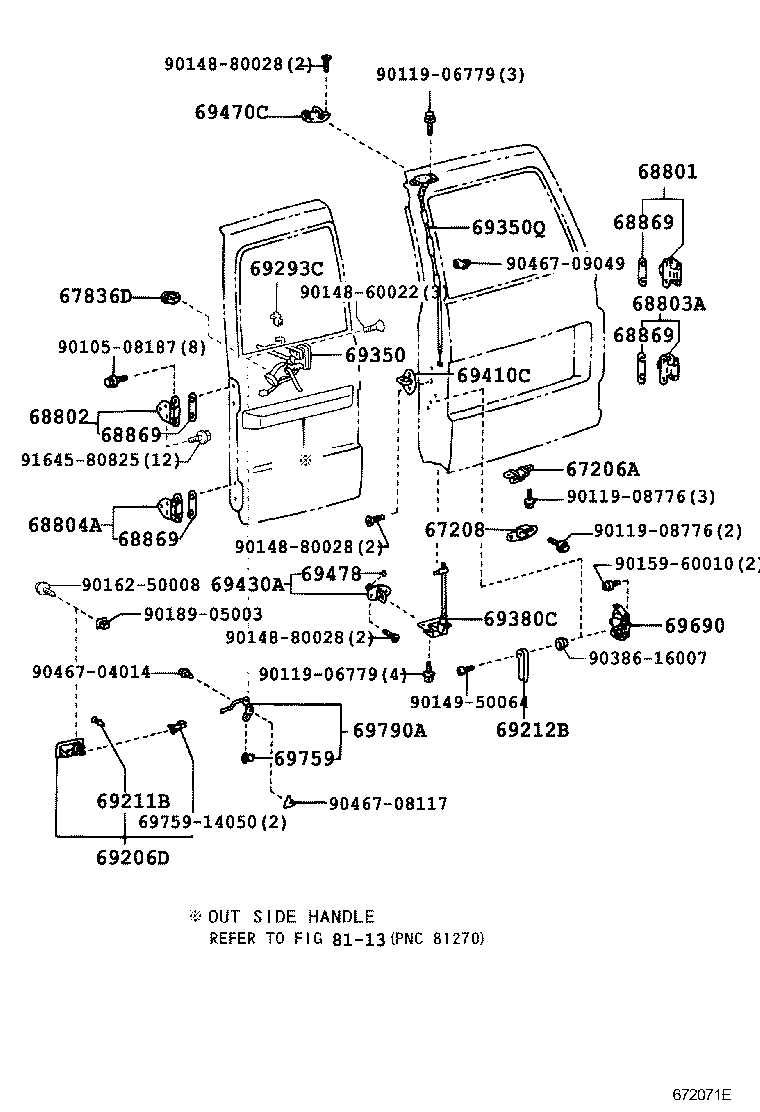

DOUBLE SWING BACK DOOR

diagram 67206A 67208 67836D 68801 68802 68803A 68804A 68869 68869 68869 68869 69206D 69211B 69212B 69293C 69350 69350Q 69380C 69410C 69430A 69470C 69478 69690 69759 6975914050 69790A 8113 9010508187 9011906779 9011906779 9011908776 9011908776 9014860022 9014880028 9014880028 9014880028 9014950064 9015960010 9016250008 9018905003 9038616007 9046704014 9046708117 9046709049 9164580825
Part # Description Qty Price
67206A - BRACKET SUB-ASSY, BACK DOOR STOPPER
67206-60040

HDJ100..STD

 1
67206-60040

HDJ100..STD

 1
67208 - STOPPER SUB-ASSY, BACK DOOR, NO.2
67208-60050

HDJ100..STD

 1
67208-60050

HDJ100..STD

 1
67836D - COVER, REAR DOOR LOCK CHILD PROTECTION
67836-12040

HDJ100..STD

 1
67836-12040

HDJ100..STD

 1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-60040

HDJ100..STD

 1
68801-60040

HDJ100..STD

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68802-60030

HDJ100..STD

 1
68802-60030

HDJ100..STD

 1
68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH
68803-60030

HDJ100..STD

 1
68803-60030

HDJ100..STD

 1
68804A - HINGE SUB-ASSY, BACK DOOR, LOWER LH
68804-60030

HDJ100..STD

 1
68804-60030

HDJ100..STD

 1
68869 - PLATE, BACK DOOR HINGE SEAL
68869-60020

HDJ100..STD

T=0.5

 1
68869-60010

HDJ100..STD

 4
68869-60010

HDJ100..STD

T=1.0

 1
68869 - PLATE, BACK DOOR HINGE SEAL
68869-60020

HDJ100..STD

T=0.5

 1
68869-60010

HDJ100..STD

 4
68869-60010

HDJ100..STD

T=1.0

 1
68869 - PLATE, BACK DOOR HINGE SEAL
68869-60020

HDJ100..STD

T=0.5

 1
68869-60010

HDJ100..STD

 4
68869-60010

HDJ100..STD

T=1.0

 1
68869 - PLATE, BACK DOOR HINGE SEAL
68869-60020

HDJ100..STD

T=0.5

 1
68869-60010

HDJ100..STD

 4
68869-60010

HDJ100..STD

T=1.0

 1
69206D - HANDLE SUB-ASSY, BACK DOOR INSIDE, LH
69206-20120B3

HDJ100..STD

MD.GRAY,TRIM1#

 1
69206-20120B6

HDJ100..STD

STONE,TRIM1#

 1
69211B - CUSHION(FOR BACK DOOR OUTSIDE HANDLE)
90541-04014

HDJ100..STD

 1
90541-04014

HDJ100..STD

 1
69212B - HANDLE, BACK DOOR INSIDE
69212-60030

HDJ100,UZJ100

 1
69212-60030

HDJ100,UZJ100

 1
69293C - SNAP, BACK DOOR HANDLE
69293-12030

HDJ100..STD

 1
69293-12030

HDJ100..STD

 1
69350 - LOCK ASSY, BACK DOOR
69110-60120

HDJ100..STD

 1
69110-60120

HDJ100..STD

 1
69350Q - LOCK ASSY, BACK DOOR, UPPER
69350-60130

HDJ100..STD

 1
69350-60130

HDJ100..STD

 1
69380C - LOCK ASSY, BACK DOOR, LOWER
69380-60050

HDJ100..STD

 1
69380-60050

HDJ100..STD

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-87001

HDJ100..STD

 1
69410-87001

HDJ100..STD

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-60041

HDJ100..STD

 1
69430-60041

HDJ100..STD

 1
69470C - STRIKER ASSY, BACK DOOR UPPER LOCK
69470-60030

HDJ100..STD

 1
69470-60030

HDJ100..STD

 1
69478 - CUSHION, BACK DOOR LOWER STOPPER
69478-60010

HDJ100..STD

 1
69478-60010

HDJ100..STD

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-60040

HDJ100..STD

 1
69690-60040

HDJ100..STD

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20030

HDJ100..STD

 1
69759-20030

HDJ100..STD

 1
69790A - LINK ASSY, BACK DOOR LOCK CONTROL
69790-60080

HDJ100..STD

 1
69790-60080

HDJ100..STD

 1
Common parts
69759-14050
90105-08187
90119-06779
90119-08776
90148-60022
90148-80028
90149-50064
90159-60010
90162-50008
90189-05003
90386-16007
90467-04014
90467-08117
90467-09049
91645-80825
Linked diagrams
8113
