HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801-0208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
HDJ100,UZJ100 |
2 | ||
| 90467-06183 |
HDJ100,UZJ100 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60071B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62111-60070B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60110B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62112-60110B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60081B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62210-60080B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-05146B0 |
HDJ100..STD MD.GRAY,TRIM1# |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60081B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62220-60080B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60090B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62311-60130B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60130 |
HDJ100..STD |
1 | ||
| 62312-60090B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60031B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331-60030B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331-60070B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60030B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62332-60031B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62332-60070B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60020B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62410-60021B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60020B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62420-60021B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62413-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60060B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62414-60060B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62421-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 62421-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62421-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62470-60150B0 |
HDJ100..STD W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1# |
1 | ||
| 62470-60120B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62470-60151B2 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62470-60121B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62480-60060B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62480-60080B0 |
HDJ100..STD W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1# |
1 | ||
| 62480-60081B2 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62480-60061B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62503-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62503-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62503-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62503-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62503-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62503-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62503-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62503-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62504-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62504-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62504-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62504-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62538-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-60040B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62594-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-60040B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62594-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62595A - POCKET, QUARTER TRIM, NO.2 | ||||
| 62595-60030B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62595-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62595A - POCKET, QUARTER TRIM, NO.2 | ||||
| 62595-60030B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62595-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62671 - BOARD SUB-ASSY, QUARTER TRIM, LOWER | ||||
| 62603-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62603-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62671 - BOARD SUB-ASSY, QUARTER TRIM, LOWER | ||||
| 62603-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62603-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 63429C - BAND, ROOM RACK | ||||
| 63429-60030 |
HDJ100,UZJ100 |
3 | ||
| 62585-60010 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 63429-60030 |
HDJ100..STD |
1 | ||
| 63429-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 63429C - BAND, ROOM RACK | ||||
| 63429-60030 |
HDJ100,UZJ100 |
3 | ||
| 62585-60010 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 63429-60030 |
HDJ100..STD |
1 | ||
| 63429-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64716-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64716-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64766-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64974-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64974-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67913-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67914-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67917-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67918B - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67918-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67921-95501 |
HDJ100,UZJ100 YELLOW |
2 | ||
| 67921-22020 |
HDJ100,UZJ100 RED |
2 | ||
| 67921-95501 |
HDJ100,UZJ100 |
4 | ||
| 67921F - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67921-95501 |
HDJ100,UZJ100 |
6 | ||
| 67921-22020 |
HDJ100,UZJ100 RED |
4 | ||
| 67921-95501 |
HDJ100,UZJ100 YELLOW |
2 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
HDJ100,UZJ100 |
4 | ||
| 67923-30030 |
HDJ100,UZJ100 |
4 | ||
| Common parts | ||||
| 67771-89104 | ||||
| 90164-40105 | ||||
| 90168-40068 | ||||
| 90183-05016 | ||||
| 90183-06044 | ||||
| 90467-10161 | ||||
| 90468-05125 | ||||
| 90950-01851B2 | ||||
| 93240-56014 | ||||
| 93560-16016 | ||||
| 93568-15012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 6454 | ||||
| 7152 | ||||
| 7456 | ||||

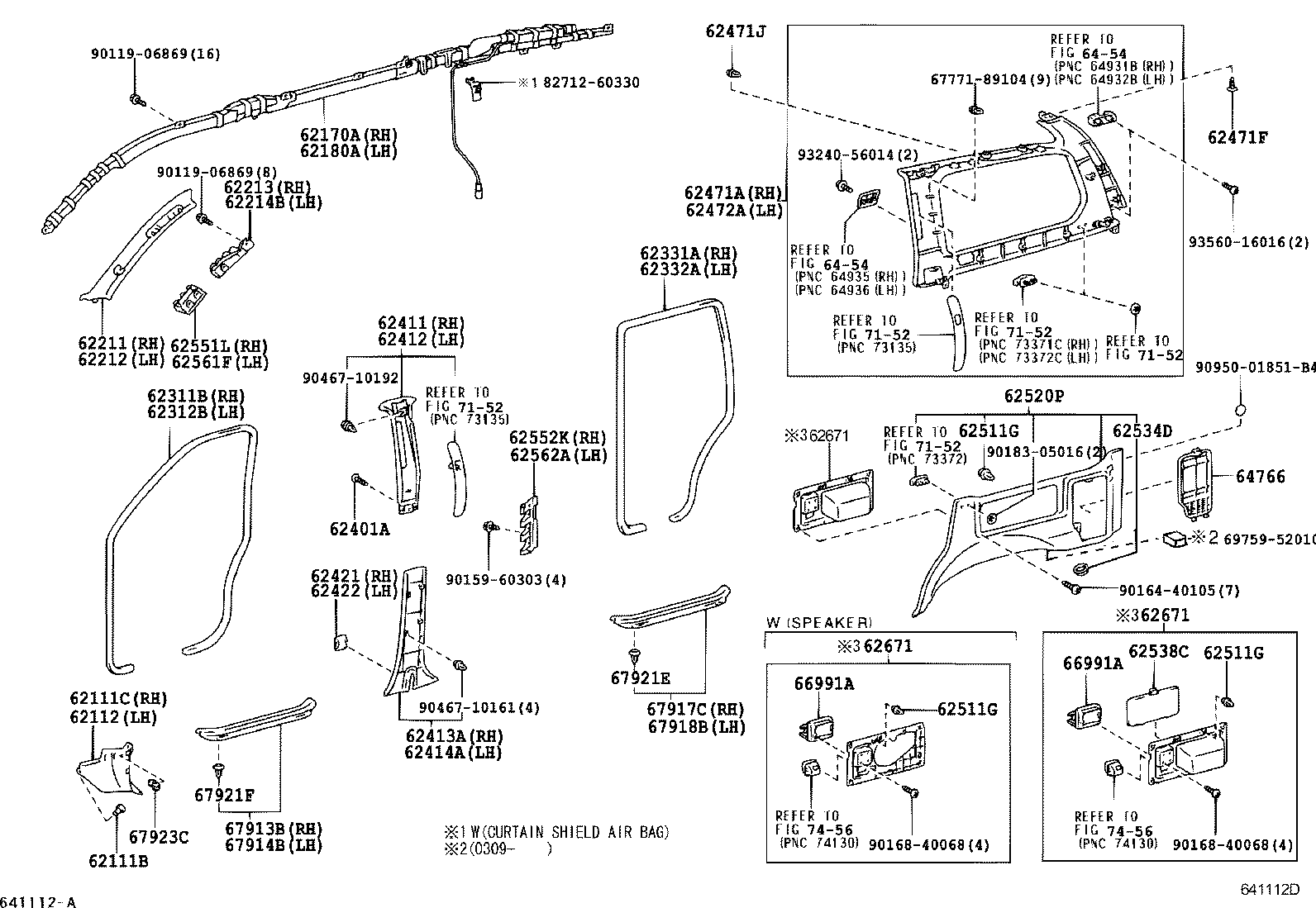

ILLUST NO. 1 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
HDJ100,UZJ100 |
2 | ||
| 90467-06183 |
HDJ100,UZJ100 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60071B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62111-60070B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60110B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62112-60110B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-60081B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62210-60080B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-60081B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62220-60080B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62213 - PAD, FRONT PILLAR GARNISH | ||||
| 62213-60031 |
HDJ100,UZJ100 |
1 | ||
| 62214B - PAD, FRONT PILLAR GARNISH, LH | ||||
| 62214-60011 |
HDJ100,UZJ100 |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60090B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62311-60130B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60130 |
HDJ100..STD |
1 | ||
| 62312-60090B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-60031B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331-60030B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62331-60070B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-60030B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62332-60031B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62332-60070B1 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-60020B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62410-60021B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-60020B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62420-60021B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62413-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60060B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62414-60060B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62421 - COVER, CENTER PILLAR GARNISH, RH | ||||
| 62421-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62421-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62422 - COVER, CENTER PILLAR GARNISH, LH | ||||
| 62421-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62421-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62470-60150B0 |
HDJ100..STD W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1# |
1 | ||
| 62470-60120B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62470-60151B2 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62470-60121B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
2 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-05146B1 |
HDJ100,UZJ100 STONE,TRIM1# |
4 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62480-60060B0 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 62480-60080B0 |
HDJ100..STD W(REAR SIDE GLASS SWING TYPE),MD.GRAY,TRIM1# |
1 | ||
| 62480-60081B2 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62480-60061B2 |
HDJ100..STD STONE,TRIM1# |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62504-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62504-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62504-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62504-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62538C - COVER, QUARTER TRIM, HOLE | ||||
| 62538-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62538-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62551L - PAD, PILLAR, NO.1 RH | ||||
| 62551-60061 |
HDJ100,UZJ100 |
1 | ||
| 62552K - PAD, PILLAR, NO.2 RH | ||||
| 62552-60070 |
HDJ100,UZJ100 |
1 | ||
| 62561F - PAD, PILLAR, NO.1 LH | ||||
| 62561-60011 |
HDJ100,UZJ100 |
1 | ||
| 62562A - PAD, PILLAR, NO.2 LH | ||||
| 62562-60010 |
HDJ100,UZJ100 |
1 | ||
| 62671 - BOARD SUB-ASSY, QUARTER TRIM, LOWER | ||||
| 62603-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62603-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62671 - BOARD SUB-ASSY, QUARTER TRIM, LOWER | ||||
| 62603-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62603-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62671 - BOARD SUB-ASSY, QUARTER TRIM, LOWER | ||||
| 62603-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62603-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-60050B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64766-60050B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67913B - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67913-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67914B - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67914-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67917-60040B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67918B - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 67918-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67921-95501 |
HDJ100,UZJ100 YELLOW |
2 | ||
| 67921-22020 |
HDJ100,UZJ100 RED |
2 | ||
| 67921-95501 |
HDJ100,UZJ100 |
4 | ||
| 67921F - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67921-95501 |
HDJ100,UZJ100 |
6 | ||
| 67921-22020 |
HDJ100,UZJ100 RED |
4 | ||
| 67921-95501 |
HDJ100,UZJ100 YELLOW |
2 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
HDJ100,UZJ100 |
4 | ||
| 67923-30030 |
HDJ100,UZJ100 |
4 | ||
| Common parts | ||||
| 67771-89104 | ||||
| 69759-52010 | ||||
| 82712-60330 | ||||
| 90119-06869 | ||||
| 90159-60303 | ||||
| 90164-40105 | ||||
| 90168-40068 | ||||
| 90183-05016 | ||||
| 90467-10161 | ||||
| 90467-10192 | ||||
| 90950-01851B4 | ||||
| 93240-56014 | ||||
| 93560-16016 | ||||
| Linked diagrams | ||||
| 6454 | ||||
| 7152 | ||||
| 7456 | ||||

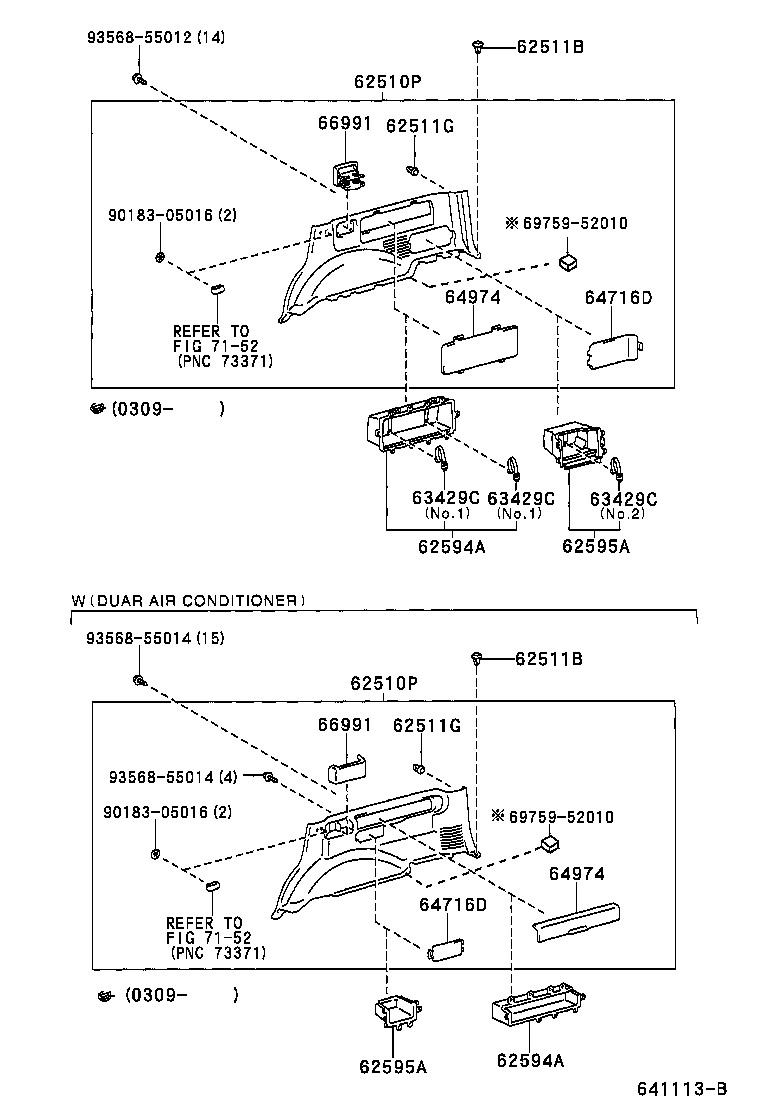

ILLUST NO. 2 OF 2(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62503-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62503-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62503-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62503-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62503-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62503-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 62503-60020B1 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),STONE,TRIM1# |
1 | ||
| 62503-60020B0 |
HDJ100..LHD..5F W(OPPOSING TYPE THIRD SEAT),MD.GRAY,TRIM1# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 90467-05021C0 |
HDJ100..STD BLACK,TRIM1# |
3 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-09091 |
HDJ100,UZJ100 |
21 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-35010 |
HDJ100,UZJ100 WHITE |
20 | ||
| 67771-89104 |
HDJ100,UZJ100 PINK |
1 | ||
| 67771-89104 |
HDJ100;UZJ100..RHD PINK |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-60040B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62594-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62594A - POCKET, QUARTER TRIM, NO.1 | ||||
| 62594-60040B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62594-60040B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62595A - POCKET, QUARTER TRIM, NO.2 | ||||
| 62595-60030B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62595-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 62595A - POCKET, QUARTER TRIM, NO.2 | ||||
| 62595-60030B0 |
HDJ100,UZJ100 SHADOW GRAY,TRIM1# |
1 | ||
| 62595-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 63429C - BAND, ROOM RACK | ||||
| 63429-60030 |
HDJ100,UZJ100 |
3 | ||
| 62585-60010 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 63429-60030 |
HDJ100..STD |
1 | ||
| 63429-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 63429C - BAND, ROOM RACK | ||||
| 63429-60030 |
HDJ100,UZJ100 |
3 | ||
| 62585-60010 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 63429-60030 |
HDJ100..STD |
1 | ||
| 63429-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 63429C - BAND, ROOM RACK | ||||
| 63429-60030 |
HDJ100,UZJ100 |
3 | ||
| 62585-60010 |
HDJ100,UZJ100 NO.1 |
2 | ||
| 63429-60030 |
HDJ100..STD |
1 | ||
| 63429-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64716-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-60030B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64716-60030B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64974-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 64974 - COVER, DECK TRIM POCKET | ||||
| 64974-60010B0 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 64974-60010B1 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| Common parts | ||||
| 69759-52010 | ||||
| 90183-05016 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
