HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100

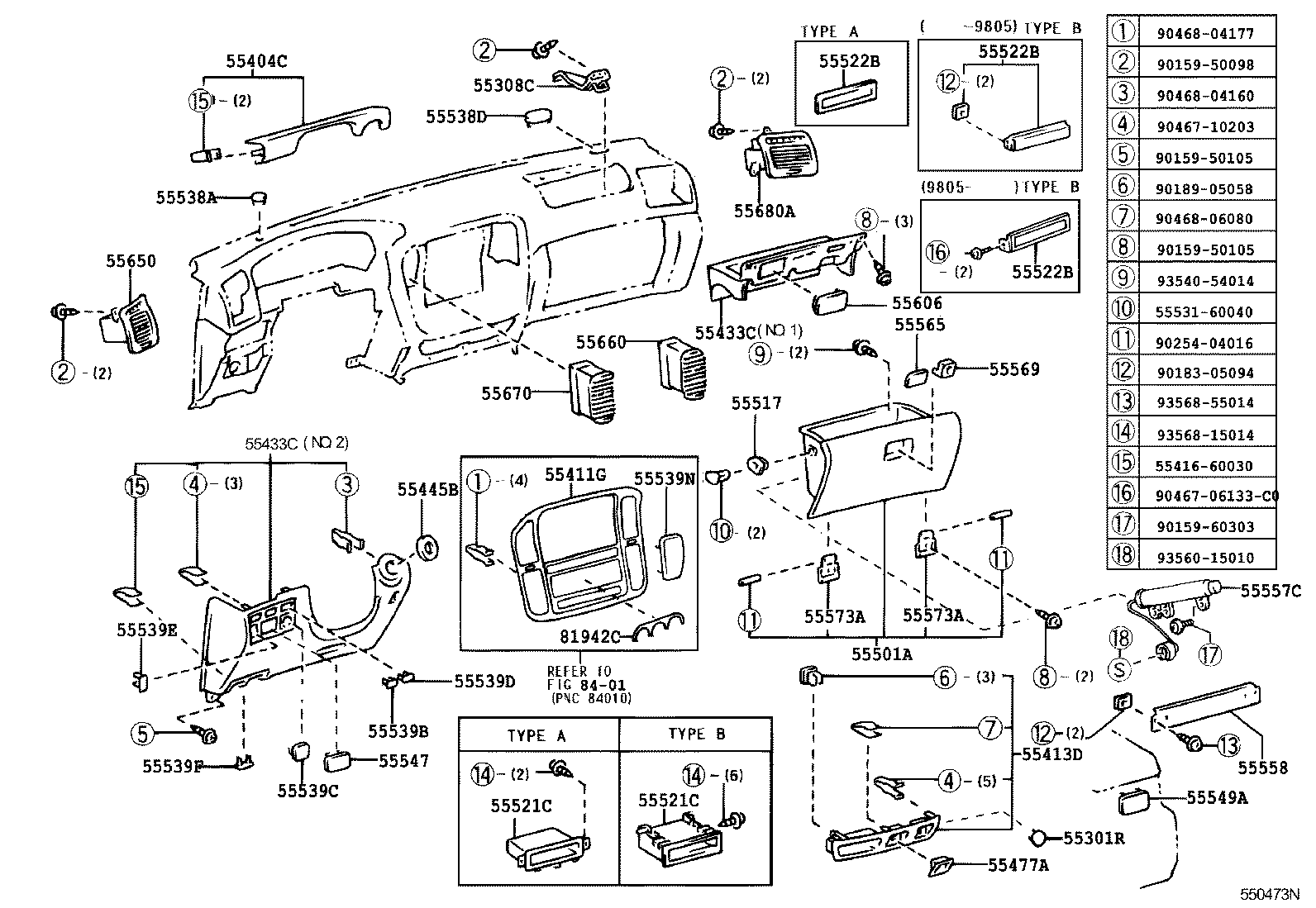

ILLUST NO. 2 OF 2(9801-0208)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01851C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 90950-01851C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55308-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60150C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55404-60150C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 84013-60010 |
HDJ100..STD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60060B0 |
HDJ100..LHD..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55413-60090B0 |
HDJ100..LHD..5F W(FRONT SEPARATE SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 55413-60140 |
HDJ100..LHD..5F W(FRONT SEPARATE SEAT) |
1 | ||
| 55413-60130 |
HDJ100..LHD..5F |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-60030B1 |
HDJ100,UZJ100..LHD MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55302-60031B2 |
HDJ100,UZJ100..LHD STONE,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-60030B1 |
HDJ100,UZJ100..LHD MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55302-60031B2 |
HDJ100,UZJ100..LHD STONE,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60100B0 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55445-60090B1 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-60040 |
HDJ100..5F;HDJ100,UZJ100..LHD..4FC W(FRONT SEPARATE SEAT) |
1 | ||
| 55477-60030 |
HDJ100..LHD..5F |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60140B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55501-60140A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC IVORY,TRIM40,41 |
1 | ||
| 55501-60141B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-60030 |
HDJ100,UZJ100 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-44020 |
HDJ100..STD |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-44020 |
HDJ100..STD |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-60020 |
HDJ100..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-42010 |
HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-60020 |
HDJ100..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-42010 |
HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-60020 |
HDJ100..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-42010 |
HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-60020B0 |
HDJ100..STD SHADOW GRAY,TRIM1# |
1 | ||
| 55538-60020B0 |
HDJ100,UZJ100 W/O(COOLER SENSOR),SHADOW GRAY,TRIM1# |
1 | ||
| 55538-60020B1 |
HDJ100..STD DK.GRAY,TRIM1# |
1 | ||
| 55538-60020E0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W/O(COOLER SENSOR),OAK,TRIM40,41 |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-60010B0 |
HDJ100..STD SHADOW GRAY,TRIM1# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55548-60040C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55548-60040C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
HDJ100,UZJ100 BLACK,TRIM1#,40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-60030 |
HDJ100,UZJ100..LHD |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55547-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-60060 |
HDJ100,UZJ100 |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-60010B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55565-60010B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60020B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55569-60020B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60010 |
HDJ100,UZJ100 |
1 | ||
| 55606-60050 |
HDJ100,UZJ100 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60091B1 |
HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
1 | ||
| 55650-60090B0 |
HDJ100,UZJ100..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60190 |
HDJ100,UZJ100..LHD |
1 | ||
| 55660-60130 |
HDJ100,UZJ100 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60070 |
HDJ100,UZJ100 |
1 | ||
| 55670-60150 |
HDJ100..STD |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60020B0 |
HDJ100,UZJ100..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55680-60050B0 |
HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
1 | ||
| 81942C - SHEET, HEATER CONTROL NAME | ||||
| 81942-60060 |
HDJ100,UZJ100..LHD |
1 | ||
| Common parts | ||||
| 55416-60030 | ||||
| 55531-60040 | ||||
| 90159-50098 | ||||
| 90159-50105 | ||||
| 90159-60303 | ||||
| 90183-05094 | ||||
| 90189-05058 | ||||
| 90254-04016 | ||||
| 90467-06133C0 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90468-06080 | ||||
| 93540-54014 | ||||
| 93560-15010 | ||||
| 93568-15014 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(9801- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-60120 |
HDJ100,UZJ100..LHD |
1 | ||
| 55306-60141 |
HDJ100,UZJ100..LHD |
1 | ||
| 55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-60042 |
HDJ100,UZJ100..LHD |
1 | ||
| 55309-60041 |
HDJ100,UZJ100..LHD |
1 | ||
| 55309-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-60170 |
HDJ100,UZJ100..LHD W(POWER TILT STEERING) |
1 | ||
| 55330-60151 |
UZJ100..LHD;HDJ100..LHD..5F W(MANUAL TILT STEERING) |
1 | ||
| 55330-60150 |
HDJ100..STD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-60210B1 |
HDJ100..STD SHADOW GRAY,TRIM1# |
1 | ||
| 55401-60190B1 |
HDJ100,UZJ100..LHD W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1# |
1 | ||
| 55401-60220B0 |
HDJ100..STD DK.GRAY,TRIM1# |
1 | ||
| 55401-60200B0 |
UZJ100..LHD;HDJ100..LHD..(4FC,5F) W(*80,DRIVER SIDE & PASSENGER SIDE),DK.GRAY,TRIM1# |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60090 |
HDJ100,UZJ100..LHD |
1 | ||
| 55950-60091 |
HDJ100,UZJ100..LHD |
1 | ||
| 55950-60091 |
HDJ100,UZJ100..LHD |
1 | ||
| 55990A - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 55990-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60060 |
HDJ100..LHD..5F |
1 | ||
| 73960-60030 |
HDJ100..STD |
1 | ||
| 73960-60140 |
HDJ100,UZJ100..LHD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60060 |
HDJ100..LHD..5F |
1 | ||
| 73960-60030 |
HDJ100..STD |
1 | ||
| 73960-60140 |
HDJ100,UZJ100..LHD TYPE A:REFER TO ILLUSTRATION |
1 | ||
| Common parts | ||||
| 90159-50098 | ||||
| 90176-06045 | ||||
| 90179-06125 | ||||
| 90179-06127 | ||||
| 90179-08102 | ||||
| 90183-05103 | ||||
| 90189-05058 | ||||
| 90249-04029 | ||||
| 91511-B0812 | ||||
| 91626-60618 | ||||
| 91635-G0616 | ||||
| 91651-B0814 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 5355 | ||||

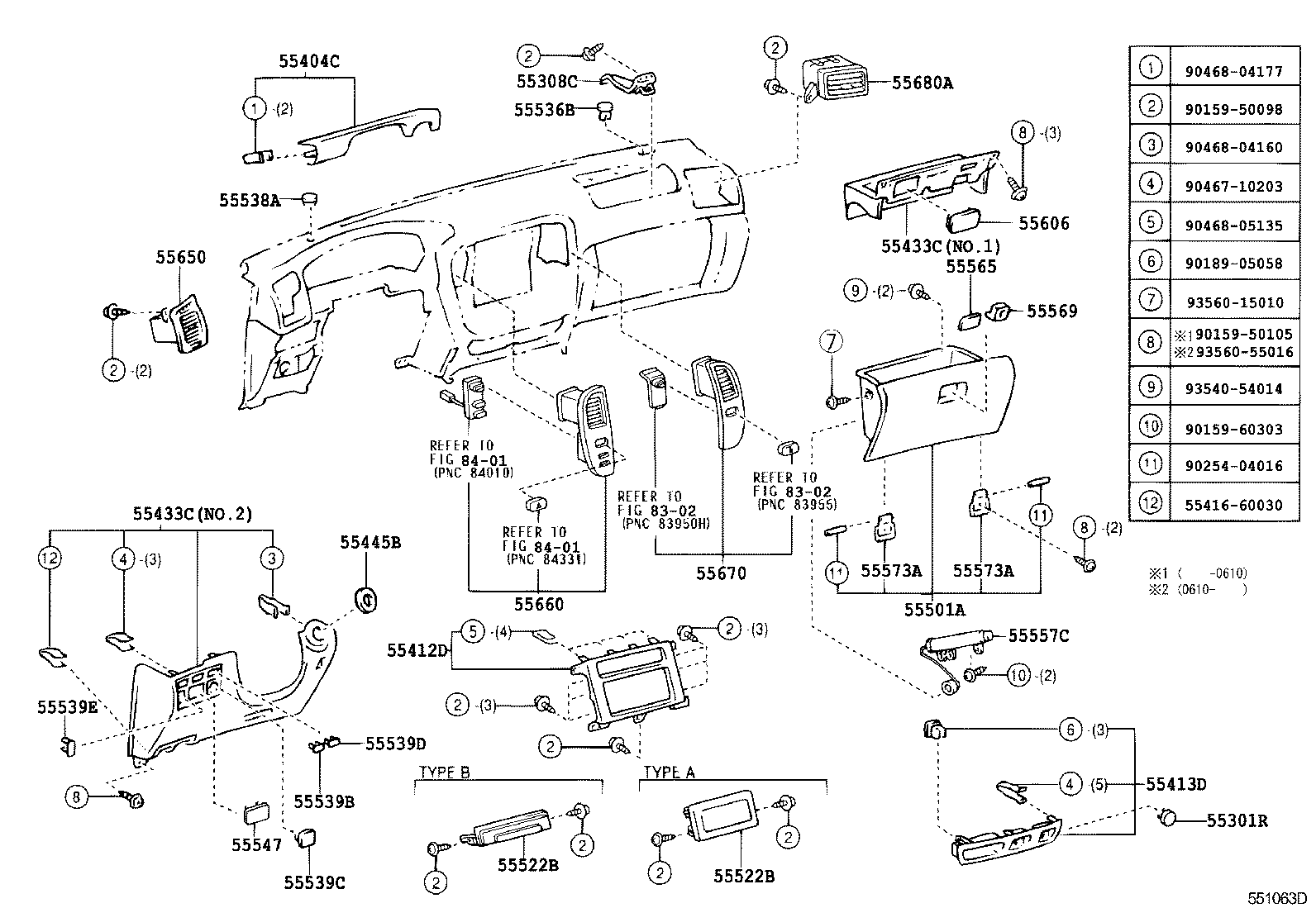

ILLUST NO. 2 OF 2(0208- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55301R - PLUG, HOLE(FOR INSTRUMENT PANEL) | ||||
| 90950-01851C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 90950-01851C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55308-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60150C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55404-60150C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-60300 |
HDJ100..STD |
1 | ||
| 55413D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER LOWER | ||||
| 55413-60060B0 |
HDJ100..LHD..5F SHADOW GRAY,TRIM1# |
1 | ||
| 55413-60090B0 |
HDJ100..LHD..5F W(FRONT SEPARATE SEAT),SHADOW GRAY,TRIM1# |
1 | ||
| 55413-60140 |
HDJ100..LHD..5F W(FRONT SEPARATE SEAT) |
1 | ||
| 55413-60130 |
HDJ100..LHD..5F |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-60030B1 |
HDJ100,UZJ100..LHD MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55302-60031B2 |
HDJ100,UZJ100..LHD STONE,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55302-60030B1 |
HDJ100,UZJ100..LHD MD.GRAY,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55302-60031B2 |
HDJ100,UZJ100..LHD STONE,TRIM1#,NO.2 |
1 | ||
| 55433-60050 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-60100B0 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55445-60090B1 |
HDJ100..STD MD.GRAY,TRIM1# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60140B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55501-60140A0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC IVORY,TRIM40,41 |
1 | ||
| 55501-60141B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-60020 |
HDJ100..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-42010 |
HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
HDJ100,UZJ100 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-60020 |
HDJ100..STD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55522-52020 |
HDJ100,UZJ100 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 55522-42010 |
HDJ100,UZJ100..LHD TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 55536B - COVER, LIGHT CONTROL SWITCH HOLE | ||||
| 55536-60020B0 |
HDJ100,UZJ100 DK.GRAY,TRIM1# |
1 | ||
| 55538A - COVER, COOLER SWITCH HOLE | ||||
| 55538-60020B0 |
HDJ100..STD SHADOW GRAY,TRIM1# |
1 | ||
| 55538-60020B0 |
HDJ100,UZJ100 W/O(COOLER SENSOR),SHADOW GRAY,TRIM1# |
1 | ||
| 55538-60020B1 |
HDJ100..STD DK.GRAY,TRIM1# |
1 | ||
| 55538-60020E0 |
HDJ100..LHD..5F;HDJ100,UZJ100..4FC W/O(COOLER SENSOR),OAK,TRIM40,41 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55548-60040C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55548-60040C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-60020C0 |
HDJ100,UZJ100 BLACK,TRIM1#,40,41 |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55547-60020C0 |
HDJ100..STD BLACK,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-60010B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55565-60010B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-60020B1 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 55569-60020B2 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55573-32010 |
HDJ100,UZJ100 |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60010 |
HDJ100,UZJ100 |
1 | ||
| 55606-60050 |
HDJ100,UZJ100 |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60091B1 |
HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
1 | ||
| 55650-60090B0 |
HDJ100,UZJ100..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60190 |
HDJ100,UZJ100..LHD |
1 | ||
| 55660-60130 |
HDJ100,UZJ100 |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-60070 |
HDJ100,UZJ100 |
1 | ||
| 55670-60150 |
HDJ100..STD |
1 | ||
| 55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4 | ||||
| 55680-60020B0 |
HDJ100,UZJ100..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 55680-60050B0 |
HDJ100,UZJ100..LHD DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 55416-60030 | ||||
| 90159-50098 | ||||
| 90159-50105 | ||||
| 90159-60303 | ||||
| 90189-05058 | ||||
| 90254-04016 | ||||
| 90467-10203 | ||||
| 90468-04160 | ||||
| 90468-04177 | ||||
| 90468-05135 | ||||
| 93540-54014 | ||||
| 93560-15010 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
