HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )LHD

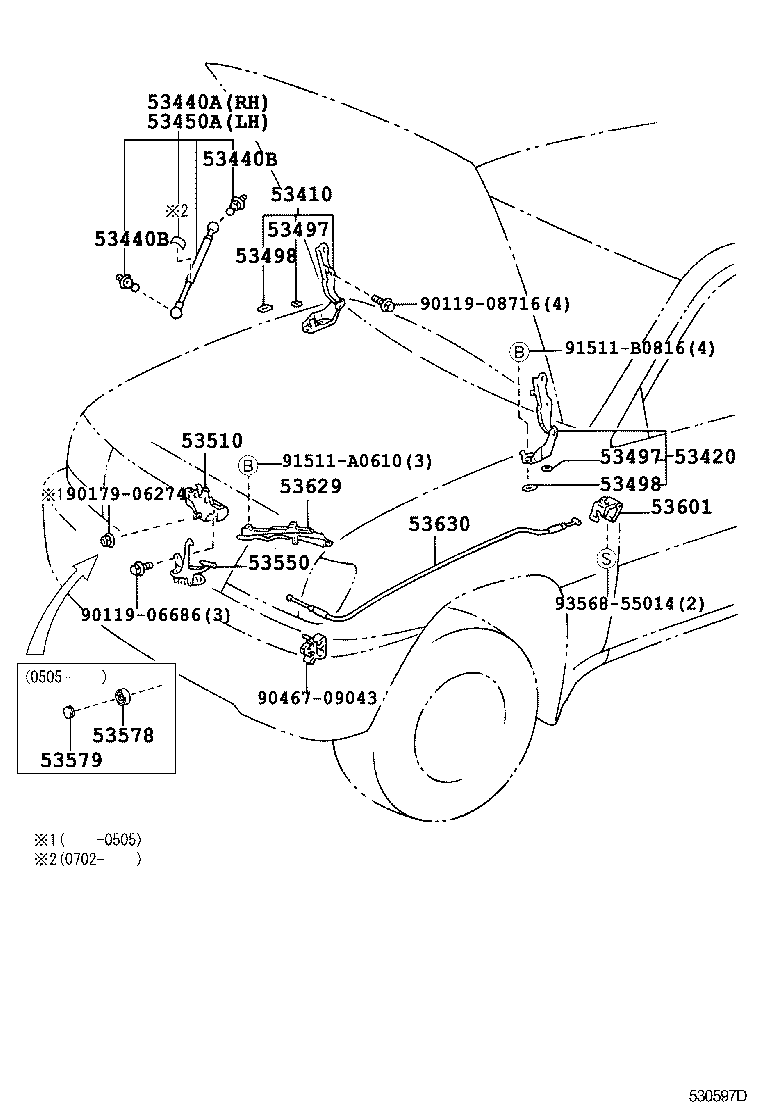

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-60050 |
HDJ100,UZJ100 |
1 | ||
| 53410-60050 |
HDJ100,UZJ100 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-60040 |
HDJ100,UZJ100 |
1 | ||
| 53420-60040 |
HDJ100,UZJ100 |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-69025 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 53440-69025 |
HDJ100,UZJ100 |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-30020 |
HDJ100,UZJ100 |
4 | ||
| 68961-30020 |
HDJ100,UZJ100 |
4 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-30020 |
HDJ100,UZJ100 |
4 | ||
| 68961-30020 |
HDJ100,UZJ100 |
4 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-69025 |
HDJ100,UZJ100 |
1 | ||
| 53450-69025 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
HDJ100,UZJ100 T=1.0 |
2 | ||
| 53497-42010 |
HDJ100,UZJ100..5F,5FC T=0.5 |
2 | ||
| 53497 - PAD, HOOD HINGE, NO.1 | ||||
| 53497-12050 |
HDJ100,UZJ100 T=1.0 |
2 | ||
| 53497-42010 |
HDJ100,UZJ100..5F,5FC T=0.5 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12050 |
HDJ100,UZJ100 |
2 | ||
| 53498-12050 |
HDJ100,UZJ100 |
2 | ||
| 53498 - PAD, HOOD HINGE, NO.2 | ||||
| 53498-12050 |
HDJ100,UZJ100 |
2 | ||
| 53498-12050 |
HDJ100,UZJ100 |
2 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-60130 |
HDJ100,UZJ100..LHD |
1 | ||
| 53510-60130 |
HDJ100,UZJ100..LHD |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-60020 |
HDJ100,UZJ100 |
1 | ||
| 53550-60020 |
HDJ100,UZJ100 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-20060B6 |
HDJ100,UZJ100 STONE,TRIM1# |
1 | ||
| 53601-20060B5 |
HDJ100,UZJ100 MD.GRAY,TRIM1# |
1 | ||
| 53629 - COVER, HOOD LOCK CONTROL CABLE | ||||
| 53629-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 53629-60040 |
HDJ100,UZJ100..LHD |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-60110 |
HDJ100,UZJ100 |
1 | ||
| 53630-60060 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90119-06686 | ||||
| 90119-08716 | ||||
| 90179-06274 | ||||
| 90467-09043 | ||||
| 91511-A0610 | ||||
| 91511-B0816 | ||||
| 93568-55014 | ||||
