HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

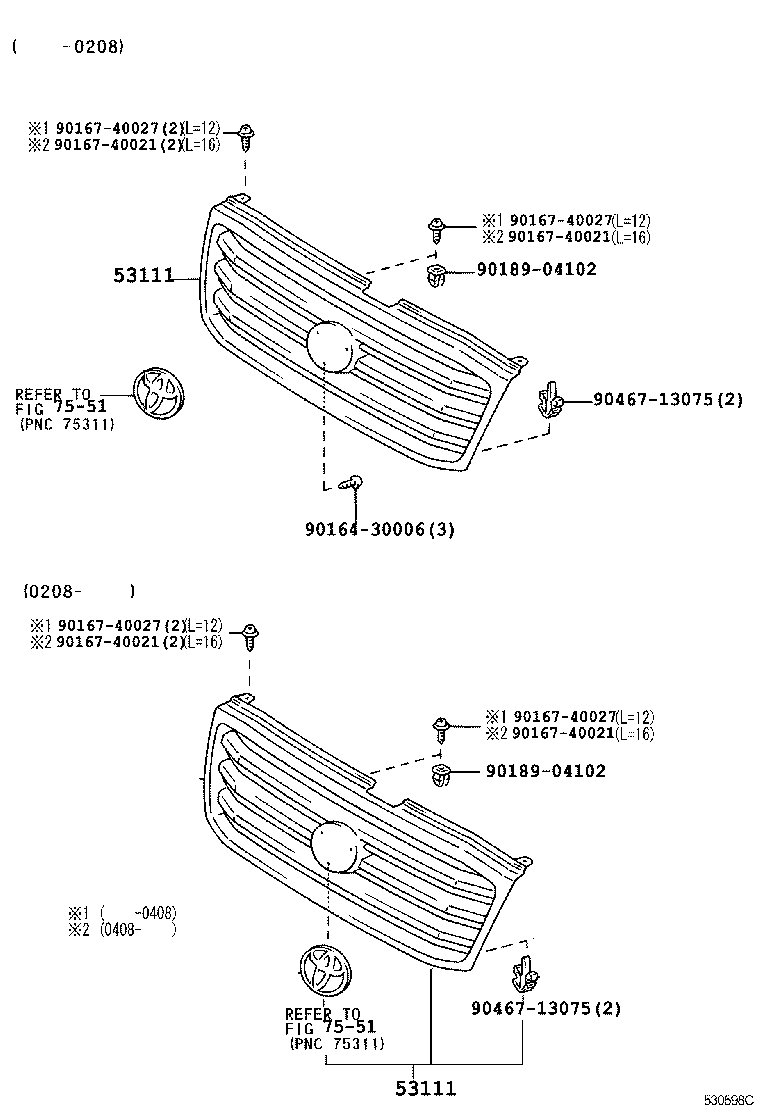

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60260 |
HDJ100..STD |
1 | ||
| 53111-60330 |
HDJ100..STD |
1 | ||
| 53111 - GRILLE, RADIATOR | ||||
| 53101-60260 |
HDJ100..STD |
1 | ||
| 53111-60330 |
HDJ100..STD |
1 | ||
| Common parts | ||||
| 90164-30006 | ||||
| 90167-40021 | ||||
| 90167-40027 | ||||
| 90189-04102 | ||||
| 90467-13075 | ||||
| Linked diagrams | ||||
| 7551 | ||||
