HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

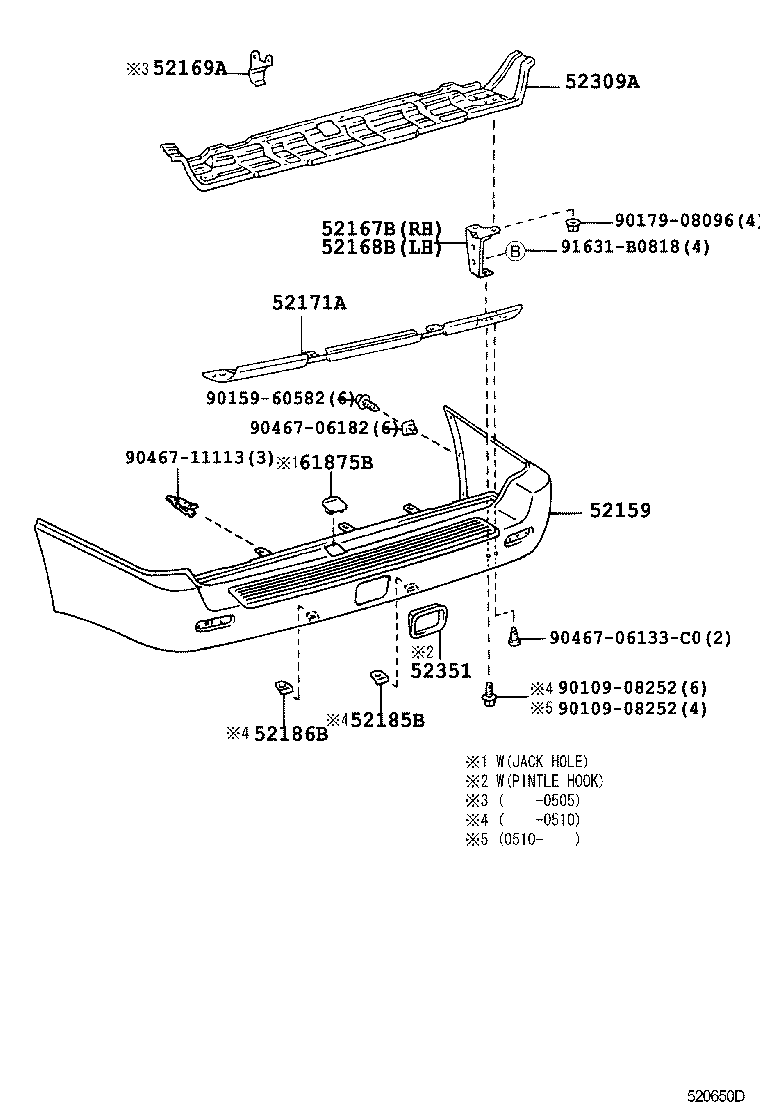

Click highlighted areas on diagram

diagram 52159 52167B 52168B 52169A 52171A 52185B 52186B 52309A 52351 61875B 9010908252 9010908252 9015960582 9017908096 9046706133C0 9046706182 9046711113 91631B0818
Part # Description Qty Price
52159 - COVER, REAR BUMPER
52159-60905

HDJ100,UZJ100

W(PINTLE HOOK & JACK HOLE)

 1
52159-60903

HDJ100,UZJ100

W(JACK HOLE)

 1
52159-60161

HDJ100..STD

W(PINTLE HOOK)

 1
52159-60121

HDJ100..STD

W(JACK HOLE)

 1
52159-60161

HDJ100..STD

W(PINTLE HOOK)

 1
52159-60121

HDJ100..STD

W(JACK HOLE)

 1
52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH
52167-60030

HDJ100,UZJ100

 1
52167-60030

HDJ100,UZJ100

 1
52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH
52168-60030

HDJ100,UZJ100

 1
52168-60030

HDJ100,UZJ100

 1
52169A - SUPPORT, REAR BUMPER SIDE, NO.3
52169-60030

HDJ100..STD

 1
52169-60030

HDJ100..STD

 1
52171A - REINFORCEMENT, REAR BUMPER, NO.1
52171-60010

HDJ100,UZJ100

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60080

HDJ100,UZJ100

 1
52185-60080

HDJ100,UZJ100

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52185-60080

HDJ100,UZJ100

 1
52185-60080

HDJ100,UZJ100

 1
52309A - REINFORCEMENT SUB-ASSY, BACK STEP
52309-60010

HDJ100,UZJ100

 1
52309-60010

HDJ100,UZJ100

 1
52351 - STEP, REAR BUMPER
51775-60040

UZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F

 1
51775-60040

HDJ100,UZJ100

 1
61875B - LID, SPARE WHEEL CARRIER, NO.1
61875-60020E0

HDJ100,UZJ100

LT. GRAYISH BEIGE ME,056 ,1B1

 1
61875-60030

HDJ100..STD

UNPAINTED

 1
61875-60020H0

HDJ100,UZJ100

MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4

 1
61875-60020H1

HDJ100,UZJ100

DK. TAUPE ME.,3N2 ,4P3

 1
61875-60030

HDJ100..STD

UNPAINTED

 1
Common parts
90109-08252
90159-60582
90179-08096
90467-06133C0
90467-06182
90467-11113
91631-B0818
