HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

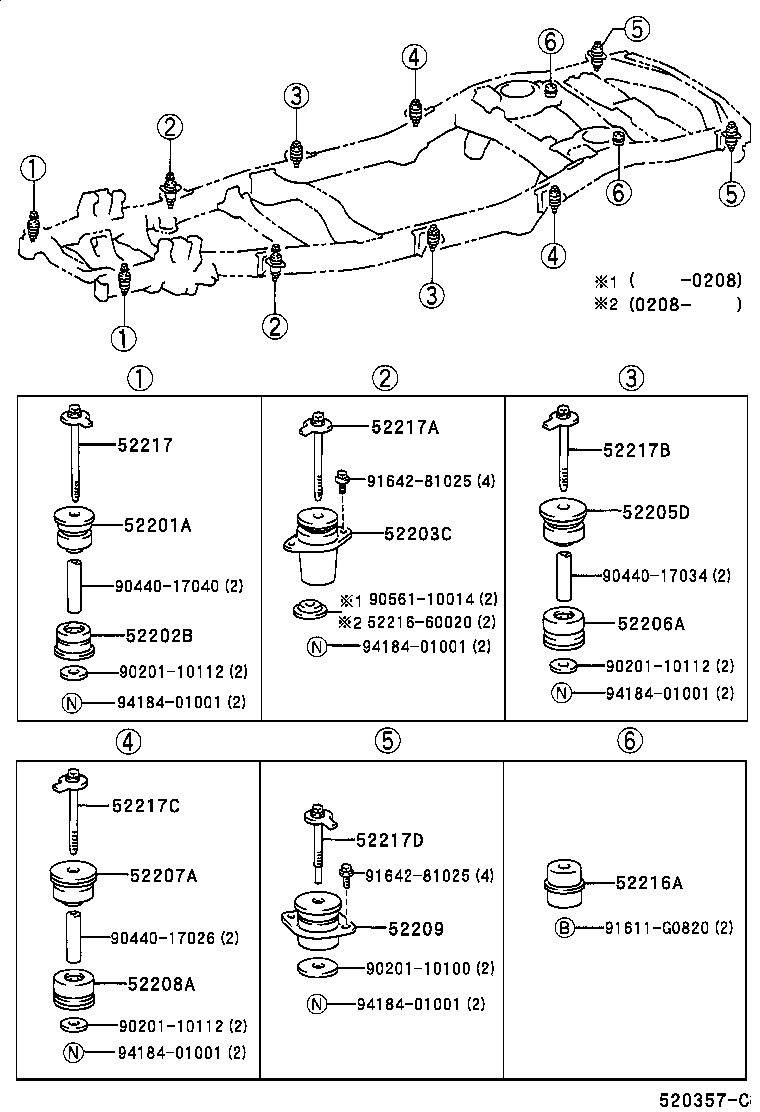

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-60050 |
HDJ100,UZJ100 |
2 | ||
| 52201-60050 |
HDJ100,UZJ100 |
2 | ||
| 52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER | ||||
| 52202-60030 |
HDJ100,UZJ100 |
2 | ||
| 52202-60030 |
HDJ100,UZJ100 |
2 | ||
| 52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-60060 |
HDJ100,UZJ100 |
2 | ||
| 52203-60060 |
HDJ100,UZJ100 |
2 | ||
| 52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER | ||||
| 52205-60020 |
HDJ100,UZJ100 |
2 | ||
| 52205-60020 |
HDJ100,UZJ100 |
2 | ||
| 52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER | ||||
| 52206-60020 |
HDJ100,UZJ100 |
2 | ||
| 52206-60020 |
HDJ100,UZJ100 |
2 | ||
| 52207A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER | ||||
| 52207-60080 |
HDJ100,UZJ100 |
2 | ||
| 52207-60080 |
HDJ100,UZJ100 |
2 | ||
| 52208A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER | ||||
| 52208-60040 |
HDJ100,UZJ100 |
2 | ||
| 52208-60040 |
HDJ100,UZJ100 |
2 | ||
| 52209 - CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER | ||||
| 52209-60071 |
HDJ100,UZJ100 |
2 | ||
| 52209-60070 |
HDJ100,UZJ100 |
2 | ||
| 52216A - STOPPER, CAB MOUNTING CUSHION | ||||
| 52216-60030 |
HDJ100,UZJ100 |
2 | ||
| 52216-60030 |
HDJ100,UZJ100 |
2 | ||
| 52217 - BOLT, BODY MOUNTING | ||||
| 52217-60020 |
HDJ100,UZJ100 |
2 | ||
| 52217-60020 |
HDJ100,UZJ100 |
2 | ||
| 52217A - BOLT, BODY MOUNTING | ||||
| 52217-60030 |
HDJ100,UZJ100 |
2 | ||
| 52217-60030 |
HDJ100,UZJ100 |
2 | ||
| 52217B - BOLT, BODY MOUNTING | ||||
| 52217-60010 |
HDJ100,UZJ100 |
2 | ||
| 52217-60010 |
HDJ100,UZJ100 |
2 | ||
| 52217C - BOLT, BODY MOUNTING | ||||
| 52217-60050 |
HDJ100,UZJ100 |
2 | ||
| 52217-60050 |
HDJ100,UZJ100 |
2 | ||
| 52217D - BOLT, BODY MOUNTING | ||||
| 52217-60040 |
HDJ100,UZJ100 |
2 | ||
| 52217-60040 |
HDJ100,UZJ100 |
2 | ||
| Common parts | ||||
| 52216-60020 | ||||
| 90201-10100 | ||||
| 90201-10112 | ||||
| 90440-17026 | ||||
| 90440-17034 | ||||
| 90440-17040 | ||||
| 90561-10014 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 94184-01001 | ||||
