HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

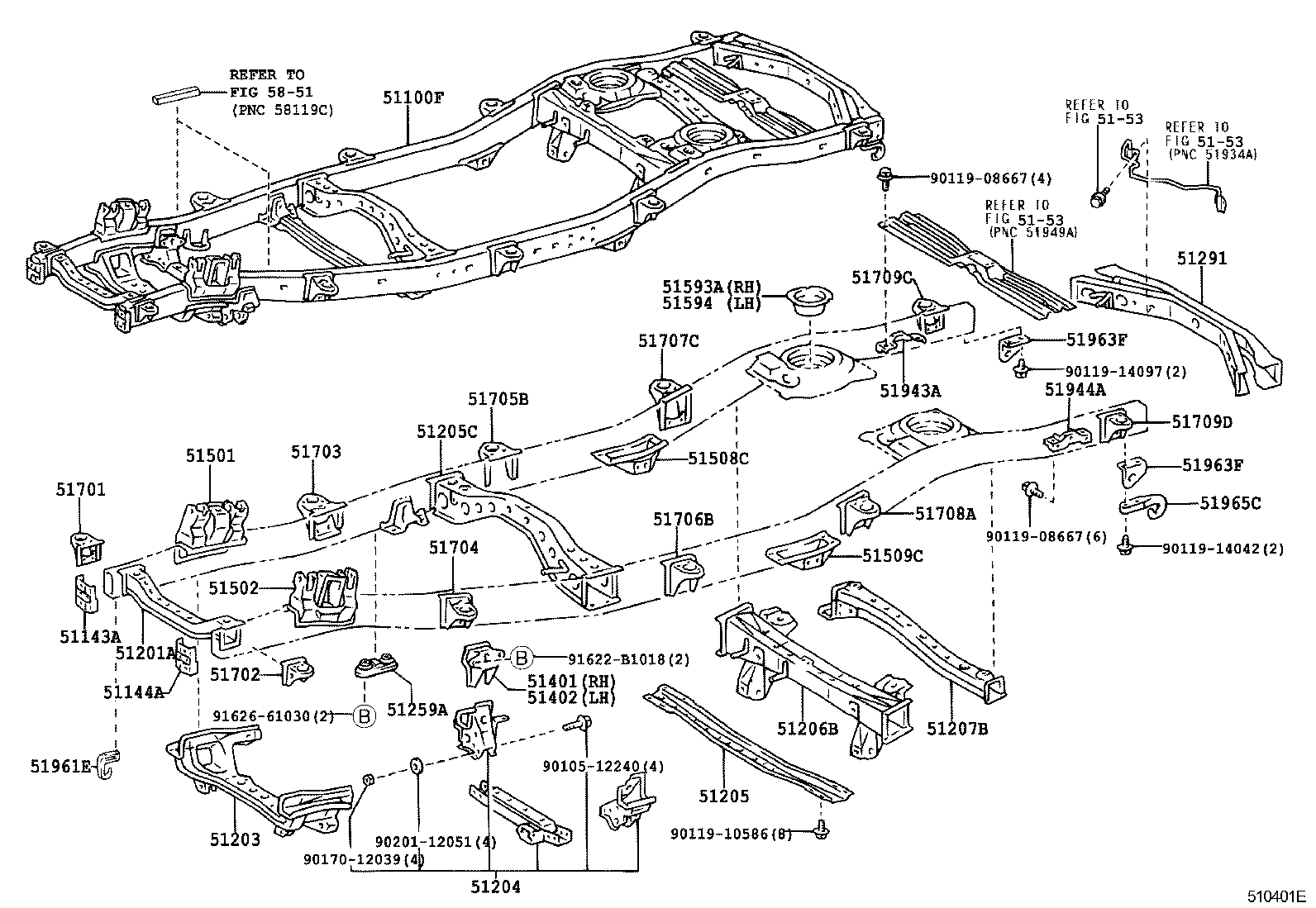

| 51100F - FRAME SUB-ASSY | ||||
| 51002-6A870 |
HDJ100..LHD..5F |
1 | ||
| 51003-6A210 |
HDJ100..LHD..5F W(WINCH) |
1 | ||
| 51001-6C040 |
HDJ100..STD |
1 | ||
| 51001-6C030 |
HDJ100..STD W(WINCH) |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51143-60070 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51143-60070 |
HDJ100,UZJ100 |
1 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51144-60060 |
HDJ100,UZJ100 |
1 | ||
| 51144-60060 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-60140 |
HDJ100,UZJ100 |
1 | ||
| 51201-60140 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60230 |
HDJ100,UZJ100..LHD..(5F,5FC) |
1 | ||
| 51202-60210 |
HDJ100,UZJ100..LHD |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51230-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51230-60010 |
HDJ100,UZJ100 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-60160 |
HDJ100..5F |
1 | ||
| 51204-60160 |
HDJ100..5F |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-60150 |
HDJ100,UZJ100 W(WINCH) |
1 | ||
| 51205-60200 |
HDJ100..5F,5FC |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51206-60030 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51206-60030 |
HDJ100,UZJ100 |
1 | ||
| 51207B - CROSSMEMBER SUB-ASSY, FRAME, NO.7 | ||||
| 51207-60010 |
HDJ100,UZJ100 |
1 | ||
| 51207-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51290-60010 |
HDJ100,UZJ100 |
1 | ||
| 51290-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-60040 |
HDJ100 |
1 | ||
| 51401-60040 |
HDJ100..5F,5FC |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-60030 |
HDJ100 |
1 | ||
| 51402-60030 |
HDJ100..5F,5FC |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-60010 |
HDJ100,UZJ100 |
1 | ||
| 51501-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-60020 |
HDJ100,UZJ100 |
1 | ||
| 51502-60020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51508C - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 51508-60020 |
HDJ100,UZJ100 |
1 | ||
| 51508-60020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51509C - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 51509-60020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51509-60020 |
HDJ100,UZJ100 |
1 | ||
| 51593A - BRACKET, REAR SPRING BUMPER, RH | ||||
| 51593-60010 |
HDJ100,UZJ100 |
1 | ||
| 51593-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51594 - BRACKET, REAR SPRING BUMPER, LH | ||||
| 51593-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51593-60010 |
HDJ100,UZJ100 |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-60090 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51701-60090 |
HDJ100,UZJ100 |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-60090 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51701-60090 |
HDJ100,UZJ100 |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60060 |
HDJ100,UZJ100 |
1 | ||
| 51703-60060 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60050 |
HDJ100,UZJ100 |
1 | ||
| 51704-60050 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51705B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH | ||||
| 51731-60140 |
HDJ100,UZJ100 |
1 | ||
| 51731-60140 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51706B - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH | ||||
| 51731-60140 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51731-60140 |
HDJ100,UZJ100 |
1 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-60070 |
HDJ100,UZJ100 |
1 | ||
| 51707-60070 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51708A - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH | ||||
| 51708-60050 |
HDJ100,UZJ100 |
1 | ||
| 51708-60050 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51709C - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH | ||||
| 51709-60060 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51709-60060 |
HDJ100,UZJ100 |
1 | ||
| 51709D - BRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH | ||||
| 51709-60060 |
HDJ100,UZJ100 |
1 | ||
| 51709-60060 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51943A - BRACKET, SPARE WHEEL CARRIER | ||||
| 51941-60090 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51941-60090 |
HDJ100,UZJ100 |
1 | ||
| 51944A - BRACKET, SPARE WHEEL CARRIER, NO.2 | ||||
| 51941-60090 |
HDJ100,UZJ100 |
1 | ||
| 51941-60090 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51961E - HOOK, FRONT | ||||
| 51961-60220 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-60040 |
HDJ100,UZJ100..5F,5FC RH |
1 | ||
| 51963-60040 |
HDJ100,UZJ100 RH |
1 | ||
| 51964-60040 |
HDJ100,UZJ100..5F,5FC LH |
1 | ||
| 51964-60040 |
HDJ100,UZJ100 LH |
1 | ||
| 51963F - HOOK, TRANSPORT | ||||
| 51963-60040 |
HDJ100,UZJ100..5F,5FC RH |
1 | ||
| 51963-60040 |
HDJ100,UZJ100 RH |
1 | ||
| 51964-60040 |
HDJ100,UZJ100..5F,5FC LH |
1 | ||
| 51964-60040 |
HDJ100,UZJ100 LH |
1 | ||
| 51965C - HOOK, REAR | ||||
| 51965-60031 |
HDJ100,UZJ100 |
1 | ||
| 51965-60031 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| Common parts | ||||
| 90105-12240 | ||||
| 90119-08667 | ||||
| 90119-10586 | ||||
| 90119-14042 | ||||
| 90119-14097 | ||||
| 90170-12039 | ||||
| 90201-12051 | ||||
| 91622-B1018 | ||||
| 91626-61030 | ||||
| Linked diagrams | ||||
| 5153 | ||||
| 5851 | ||||
