HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
ILLUST NO. 1 OF 3(9801- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 48907-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 48907B - LINK SUB-ASSY, HEIGHT CONTROL SENSOR, FRONT | ||||
| 48907-60010 |
HDJ100,UZJ100 RH |
1 | ||
| 48907-60020 |
HDJ100,UZJ100 LH |
1 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48965 - CLAMP, HEIGHT CONTROL TUBE | ||||
| 48965-60020 |
HDJ100,UZJ100..LHD NO.1 |
1 | ||
| 48965-60050 |
HDJ100,UZJ100..LHD NO.4 |
3 | ||
| 48965-60070 |
HDJ100,UZJ100 NO.6 |
3 | ||
| 48965-60030 |
HDJ100,UZJ100 NO.2 |
2 | ||
| 48965-60060 |
HDJ100,UZJ100 NO.5 |
2 | ||
| 48965-60080 |
HDJ100,UZJ100 NO.7 |
1 | ||
| 48965-60040 |
HDJ100,UZJ100 NO.3 |
3 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48981-60020 |
HDJ100,UZJ100..LHD |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-60030 |
HDJ100..LHD |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-60010 |
HDJ100 |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-60010 |
HDJ100,UZJ100 |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-60010 |
HDJ100,UZJ100 |
1 | ||
| 48994 - TUBE, HEIGHT CONTROL, REAR NO.1 | ||||
| 48994-60010 |
HDJ100 |
1 | ||
| 48995 - TUBE, HEIGHT CONTROL, REAR NO.2 | ||||
| 48995-60010 |
HDJ100,UZJ100 |
1 | ||
| 49161C - HOSE, SUSPENSION CONTROL PRESSURE, NO.1 | ||||
| 49161-60010 |
HDJ100,UZJ100 |
1 | ||
| 49162B - HOSE, SUSPENSION CONTROL PRESSURE, NO.2 | ||||
| 49162-60010 |
HDJ100,UZJ100 |
1 | ||
| 49163B - HOSE, SUSPENSION CONTROL PRESSURE, NO.3 | ||||
| 49163-60010 |
HDJ100,UZJ100 |
1 | ||
| 49164B - HOSE, SUSPENSION CONTROL PRESSURE, NO.4 | ||||
| 49164-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90179-08234 | ||||
| 90301-11022 | ||||
| 90389-08129 | ||||
| 90540-12011 | ||||
| 90562-09005 | ||||
| 90562-12003 | ||||
| 91631-G0830 | ||||
| 91631-J0612 | ||||
| 91641-K0822 | ||||
| 91651-60818 | ||||
| 92132-C0820 | ||||
| 94185-60600 | ||||
| 96711-19009 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||

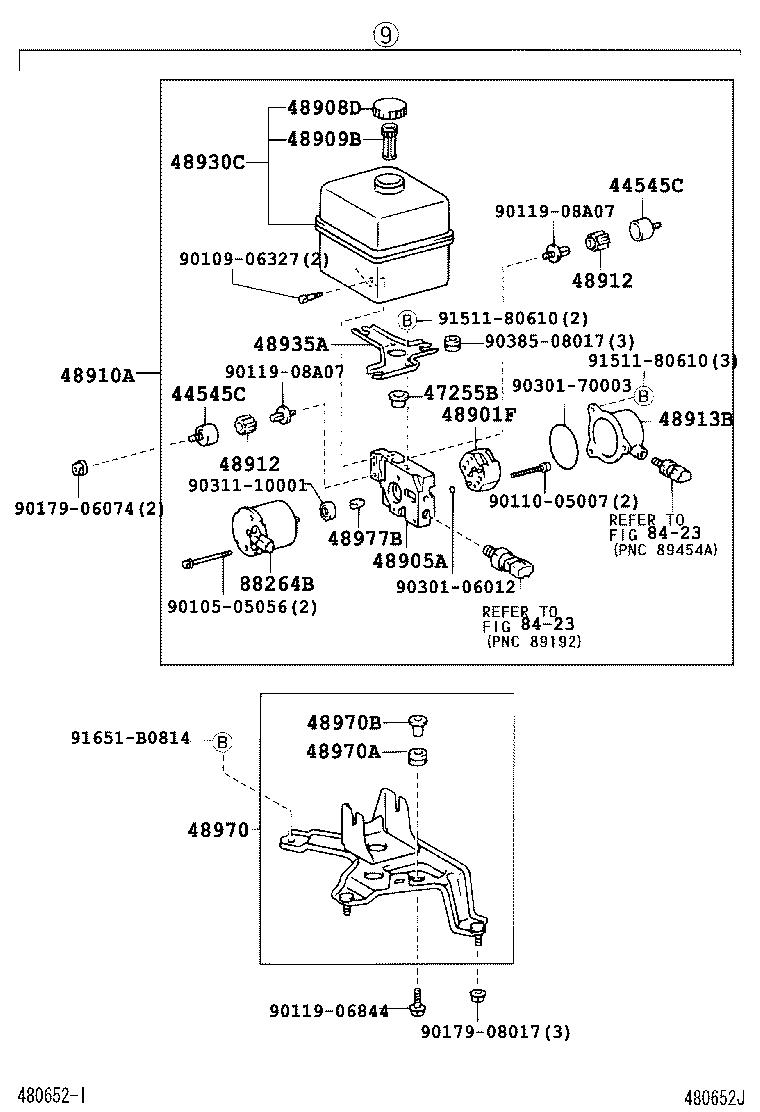

ILLUST NO. 2 OF 3(9801- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48909B - STRAINER SUB-ASSY, HEIGHT CONTROL OIL | ||||
| 48909-60010 |
HDJ100,UZJ100 |
1 | ||
| 48910A - PUMP & MOTOR ASSY, HEIGHT CONTROL | ||||
| 48910-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90105-05056 | ||||
| 90109-06327 | ||||
| 90110-05007 | ||||
| 90119-06844 | ||||
| 90119-08A07 | ||||
| 90179-06074 | ||||
| 90179-08017 | ||||
| 90301-06012 | ||||
| 90301-70003 | ||||
| 90311-10001 | ||||
| 90385-08017 | ||||
| 91511-80610 | ||||
| 91651-B0814 | ||||
| Linked diagrams | ||||
| 8423 | ||||
ILLUST NO. 3 OF 3(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 49040A - ACCUMULATOR ASSY, FRONT SUSPENSION CONTROL, LH | ||||
| 49042-60010 |
HDJ100,UZJ100 |
1 | ||
| 49050 - ACCUMULATOR ASSY, REAR SUSPENSION CONTROL, LH | ||||
| 49052-60010 |
HDJ100,UZJ100 |
1 | ||
| 49140 - ACCUMULATOR ASSY, FRONT SUSPENSION CONTROL, RH | ||||
| 49041-60010 |
HDJ100,UZJ100 |
1 | ||
| 49150A - ACCUMULATOR ASSY, REAR SUSPENSION CONTROL, RH | ||||
| 49051-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90110-05004 | ||||
| 90119-08A07 | ||||
| 90179-06074 | ||||
| 90179-08234 | ||||
| 90410-06002 | ||||
| 91621-J0814 | ||||
| 91641-K0822 | ||||
| 92132-C0820 | ||||
| 96390-71000 | ||||
