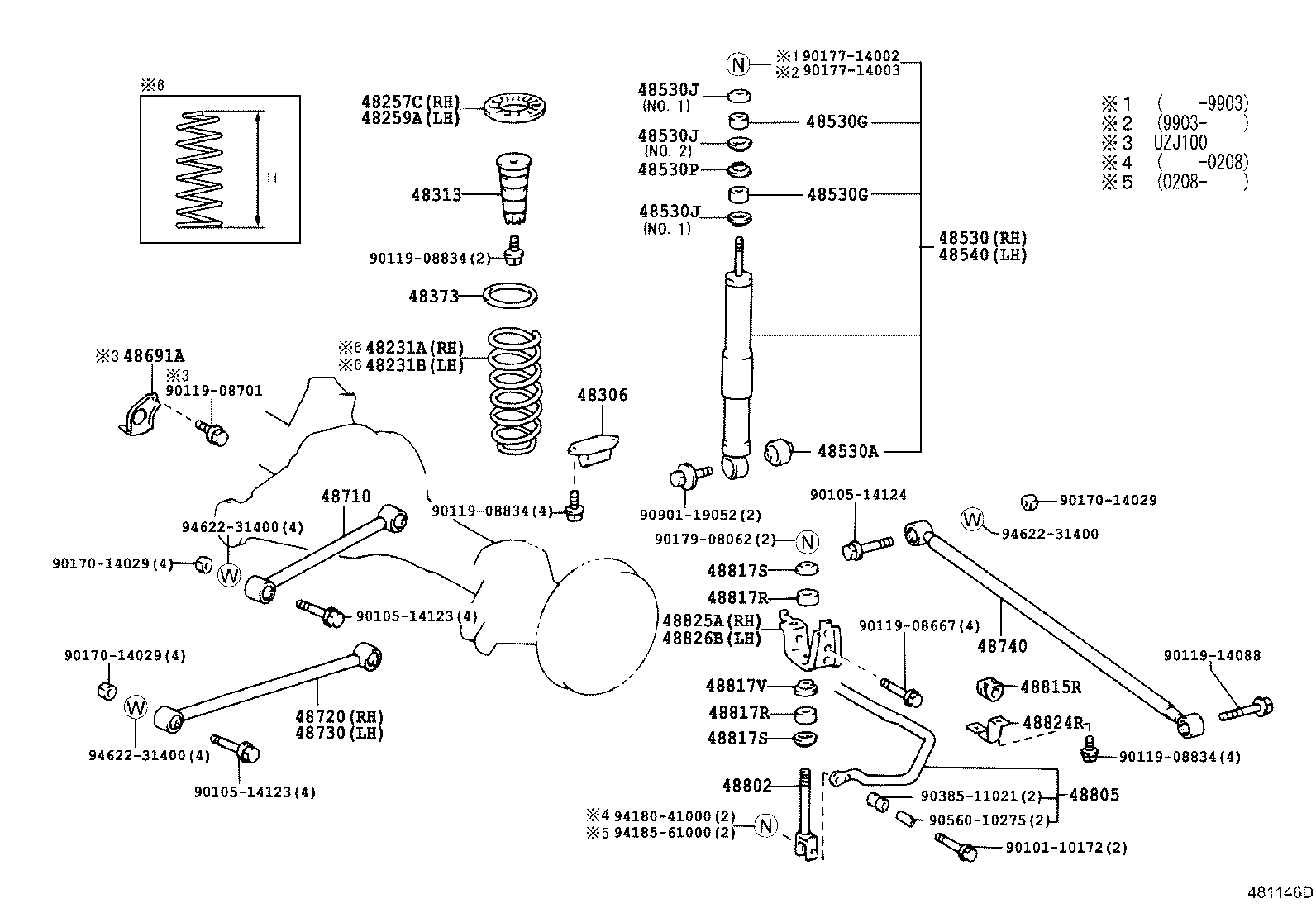

HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60140 |
HDJ100,UZJ100 |
2 | ||
| 48306-60140 |
HDJ100,UZJ100 |
2 | ||
| 48313 - SPRING, HOLLOW(FOR REAR SUSPENSION) | ||||
| 48313-60010 |
HDJ100,UZJ100 |
2 | ||
| 48313-60010 |
HDJ100,UZJ100 |
2 | ||
| 48373 - SPACER, REAR SPRING | ||||
| 48373-60010 |
HDJ100,UZJ100 |
1 | ||
| 48373-60010 |
HDJ100,UZJ100 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69705 |
HDJ100,UZJ100 MARK 48531-60700 |
1 | ||
| 48530-69116 |
HDJ100,UZJ100 MARK 48530-60050,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48531-69586 |
HDJ100,UZJ100 MARK 48531-60570 |
1 | ||
| 48531-69705 |
HDJ100,UZJ100..5F,5FC MARK 48531-60700 |
1 | ||
| 48531-69755 |
HDJ100,UZJ100 MARK 48531-60701 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19010 |
HDJ100,UZJ100 |
2 | ||
| 90385-19010 |
HDJ100..STD |
2 | ||
| 90385-19010 |
HDJ100..STD |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01066 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),LOWER |
2 | ||
| 90948-01064 |
HDJ100,UZJ100 |
4 | ||
| 90948-01065 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),UPPER |
2 | ||
| 90948-01064 |
HDJ100..4FC;HDJ100..STD |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01066 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),LOWER |
2 | ||
| 90948-01064 |
HDJ100,UZJ100 |
4 | ||
| 90948-01065 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),UPPER |
2 | ||
| 90948-01064 |
HDJ100..4FC;HDJ100..STD |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02173 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02173 |
HDJ100,UZJ100 |
6 | ||
| 90948-02173 |
HDJ100..4FC;HDJ100..STD NO.1 |
4 | ||
| 90948-02184 |
HDJ100..5FC;HDJ100..STD |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02173 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02173 |
HDJ100,UZJ100 |
6 | ||
| 90948-02173 |
HDJ100..4FC;HDJ100..STD NO.1 |
4 | ||
| 90948-02184 |
HDJ100..5FC;HDJ100..STD |
2 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02173 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02173 |
HDJ100,UZJ100 |
6 | ||
| 90948-02173 |
HDJ100..4FC;HDJ100..STD NO.1 |
4 | ||
| 90948-02184 |
HDJ100..5FC;HDJ100..STD |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02171 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02170 |
HDJ100..4FC;HDJ100..STD |
2 | ||
| 90948-02170 |
HDJ100,UZJ100 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-69116 |
HDJ100,UZJ100 MARK 48530-60050,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48531-69705 |
HDJ100,UZJ100..5F,5FC MARK 48531-60700 |
1 | ||
| 48531-69705 |
HDJ100,UZJ100 MARK 48531-60700 |
1 | ||
| 48531-69586 |
HDJ100,UZJ100 MARK 48531-60570 |
1 | ||
| 48531-69755 |
HDJ100,UZJ100 MARK 48531-60701 |
1 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-60070 |
HDJ100,UZJ100 RH |
1 | ||
| 48710-60070 |
HDJ100,UZJ100 RH |
1 | ||
| 48710-60080 |
HDJ100,UZJ100 LH |
1 | ||
| 48710-60080 |
HDJ100,UZJ100 LH |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60080 |
HDJ100,UZJ100 |
1 | ||
| 48740-60080 |
HDJ100,UZJ100 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60070 |
HDJ100,UZJ100 |
2 | ||
| 48802-60090 |
HDJ100,UZJ100 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60060 |
HDJ100,UZJ100 |
1 | ||
| 48805-60060 |
HDJ100,UZJ100 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60140 |
HDJ100,UZJ100 |
2 | ||
| 48815-60140 |
HDJ100..4FC;HDJ100..STD |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
HDJ100,UZJ100 |
2 | ||
| 90948-02127 |
HDJ100,UZJ100 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26210 |
HDJ100,UZJ100 |
2 | ||
| 48824-26210 |
HDJ100,UZJ100 |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48825-60050 |
HDJ100,UZJ100 |
1 | ||
| 48825-60050 |
HDJ100,UZJ100 |
1 | ||
| 48826B - PROTECTOR, REAR STABILIZER BAR | ||||
| 48826-60010 |
HDJ100,UZJ100 |
1 | ||
| 48826-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90101-10172 | ||||
| 90105-14123 | ||||
| 90105-14124 | ||||
| 90119-08667 | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90119-14088 | ||||
| 90170-14029 | ||||
| 90177-14002 | ||||
| 90177-14003 | ||||
| 90179-08062 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 90901-19052 | ||||
| 94180-41000 | ||||
| 94185-61000 | ||||
| 94622-31400 | ||||
(9801- )
W(ACTIVE HEIGHT CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48231-6A700 |
HDJ100,UZJ100 H=516.5,GREEN&ORANGE PAINTED |
1 | ||
| 48231-6A690 |
HDJ100,UZJ100 H=504,GREEN & PINK PAINTED |
1 | ||
| 48257C - INSULATOR, REAR COIL SPRING, UPPER RH | ||||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48259A - INSULATOR, REAR COIL SPRING, UPPER LH | ||||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48257-60020 |
HDJ100,UZJ100 |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60140 |
HDJ100,UZJ100 |
2 | ||
| 48306-60140 |
HDJ100,UZJ100 |
2 | ||
| 48313 - SPRING, HOLLOW(FOR REAR SUSPENSION) | ||||
| 48313-60010 |
HDJ100,UZJ100 |
2 | ||
| 48313-60010 |
HDJ100,UZJ100 |
2 | ||
| 48373 - SPACER, REAR SPRING | ||||
| 48373-60010 |
HDJ100,UZJ100 |
1 | ||
| 48373-60010 |
HDJ100,UZJ100 |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69705 |
HDJ100,UZJ100 MARK 48531-60700 |
1 | ||
| 48530-69116 |
HDJ100,UZJ100 MARK 48530-60050,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48531-69586 |
HDJ100,UZJ100 MARK 48531-60570 |
1 | ||
| 48531-69705 |
HDJ100,UZJ100..5F,5FC MARK 48531-60700 |
1 | ||
| 48531-69755 |
HDJ100,UZJ100 MARK 48531-60701 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19010 |
HDJ100,UZJ100 |
2 | ||
| 90385-19010 |
HDJ100..STD |
2 | ||
| 90385-19010 |
HDJ100..STD |
2 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01066 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),LOWER |
2 | ||
| 90948-01064 |
HDJ100,UZJ100 |
4 | ||
| 90948-01065 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),UPPER |
2 | ||
| 90948-01064 |
HDJ100..4FC;HDJ100..STD |
4 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01066 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),LOWER |
2 | ||
| 90948-01064 |
HDJ100,UZJ100 |
4 | ||
| 90948-01065 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL),UPPER |
2 | ||
| 90948-01064 |
HDJ100..4FC;HDJ100..STD |
4 | ||
| 48530J - RETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02173 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02173 |
HDJ100,UZJ100 |
6 | ||
| 90948-02173 |
HDJ100..4FC;HDJ100..STD NO.1 |
4 | ||
| 90948-02184 |
HDJ100..5FC;HDJ100..STD |
2 | ||
| 48530P - RETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER) | ||||
| 90948-02171 |
HDJ100,UZJ100 W(ACTIVE HEIGHT CONTROL) |
2 | ||
| 90948-02170 |
HDJ100..4FC;HDJ100..STD |
2 | ||
| 90948-02170 |
HDJ100,UZJ100 |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-60010 |
HDJ100,UZJ100 |
2 | ||
| 48539 - BRACKET, ACTUATOR SUPPORT, RR | ||||
| 48539-60010 |
HDJ100,UZJ100 |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-69116 |
HDJ100,UZJ100 MARK 48530-60050,W(ACTIVE HEIGHT CONTROL) |
1 | ||
| 48531-69705 |
HDJ100,UZJ100..5F,5FC MARK 48531-60700 |
1 | ||
| 48531-69705 |
HDJ100,UZJ100 MARK 48531-60700 |
1 | ||
| 48531-69586 |
HDJ100,UZJ100 MARK 48531-60570 |
1 | ||
| 48531-69755 |
HDJ100,UZJ100 MARK 48531-60701 |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60040 |
HDJ100,UZJ100 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-60070 |
HDJ100,UZJ100 RH |
1 | ||
| 48710-60070 |
HDJ100,UZJ100 RH |
1 | ||
| 48710-60080 |
HDJ100,UZJ100 LH |
1 | ||
| 48710-60080 |
HDJ100,UZJ100 LH |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48720-60040 |
HDJ100,UZJ100 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60080 |
HDJ100,UZJ100 |
1 | ||
| 48740-60080 |
HDJ100,UZJ100 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60070 |
HDJ100,UZJ100 |
2 | ||
| 48802-60090 |
HDJ100,UZJ100 |
2 | ||
| 48805 - BAR SUB-ASSY, REAR STABILIZER | ||||
| 48805-60060 |
HDJ100,UZJ100 |
1 | ||
| 48805-60060 |
HDJ100,UZJ100 |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-60140 |
HDJ100,UZJ100 |
2 | ||
| 48815-60140 |
HDJ100..4FC;HDJ100..STD |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817-30010 |
HDJ100,UZJ100 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 90948-02126 |
HDJ100,UZJ100 |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
HDJ100,UZJ100 |
2 | ||
| 90948-02127 |
HDJ100,UZJ100 |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48824-26210 |
HDJ100,UZJ100 |
2 | ||
| 48824-26210 |
HDJ100,UZJ100 |
2 | ||
| 48825A - BRACKET, REAR STABILIZER END | ||||
| 48825-60050 |
HDJ100,UZJ100 |
1 | ||
| 48825-60050 |
HDJ100,UZJ100 |
1 | ||
| 48826B - PROTECTOR, REAR STABILIZER BAR | ||||
| 48826-60010 |
HDJ100,UZJ100 |
1 | ||
| 48826-60010 |
HDJ100,UZJ100 |
1 | ||
| Common parts | ||||
| 90101-10172 | ||||
| 90105-14123 | ||||
| 90105-14124 | ||||
| 90119-08667 | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90119-14088 | ||||
| 90170-14029 | ||||
| 90177-14002 | ||||
| 90177-16001 | ||||
| 90179-08062 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 90901-19052 | ||||
| 94180-41000 | ||||
| 94185-61000 | ||||
| 94622-31400 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
