HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

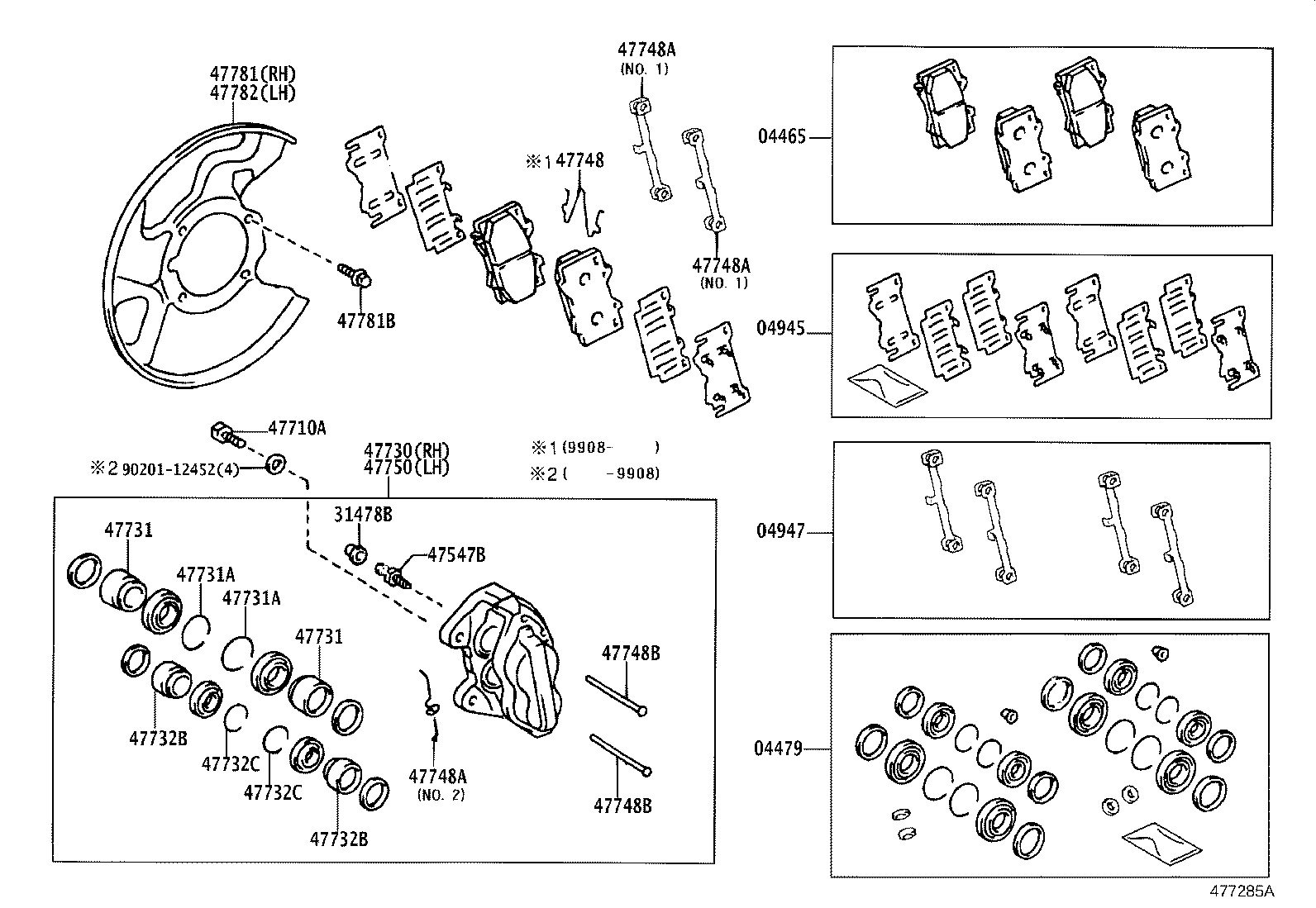

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47730 47731 47731 47731A 47731A 47732B 47732B 47732C 47732C 47748 47748A 47748A 47748A 47748B 47748B 47750 47781 47781B 47782 9020112452
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-60230

HDJ100,UZJ100

MARK SUMITOMO PS534

 1
04465-60140

HDJ100,UZJ100..LHD

MARK NBK PN532H

 1
04465-60230

HDJ100,UZJ100

MARK SUMITOMO PS534

 1
04465-60120

HDJ100,UZJ100

MARK NBK PN540H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-60040

HDJ100,UZJ100

 1
04479-60040

HDJ100,UZJ100

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-60010

HDJ100,UZJ100..5F,5FC

 1
04945-60010

HDJ100,UZJ100

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60100

HDJ100,UZJ100..5F,5FC

 1
04947-60100

HDJ100,UZJ100

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

HDJ100,UZJ100

 2
31478-30010

HDJ100,UZJ100

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-60030

HDJ100,UZJ100

 2
47547-60030

HDJ100,UZJ100

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175

HDJ100,UZJ100

*12-1.25PX35-27

 4
90101-12144

HDJ100,UZJ100

*12-1.25PX38-23

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60090

HDJ100,UZJ100

 1
47730-60090

HDJ100,UZJ100

 1
47731 - PISTON, FRONT DISC BRAKE
47732-60010

HDJ100,UZJ100

 4
47732-60010

HDJ100,UZJ100

 4
47731 - PISTON, FRONT DISC BRAKE
47732-60010

HDJ100,UZJ100

 4
47732-60010

HDJ100,UZJ100

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-56003

HDJ100,UZJ100

 4
90522-56003

HDJ100,UZJ100

 4
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-56003

HDJ100,UZJ100

 4
90522-56003

HDJ100,UZJ100

 4
47732B - PISTON, DISC BRAKE, NO.2(FOR FRONT DISC BRAKE)
47731-60030

HDJ100,UZJ100

 4
47731-60030

HDJ100,UZJ100

 4
47732B - PISTON, DISC BRAKE, NO.2(FOR FRONT DISC BRAKE)
47731-60030

HDJ100,UZJ100

 4
47731-60030

HDJ100,UZJ100

 4
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

HDJ100,UZJ100

 4
90522-50003

HDJ100,UZJ100

 4
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

HDJ100,UZJ100

 4
90522-50003

HDJ100,UZJ100

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60060

HDJ100,UZJ100

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-05131

HDJ100,UZJ100

NO.1

 4
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-05131

HDJ100,UZJ100

NO.1

 4
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-05131

HDJ100,UZJ100

NO.1

 4
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-05131

HDJ100,UZJ100

NO.1

 4
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-05131

HDJ100,UZJ100

NO.1

 4
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-12015

HDJ100,UZJ100

NO.2

 2
90468-05131

HDJ100,UZJ100

NO.1

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06024

HDJ100,UZJ100

 4
90240-06024

HDJ100,UZJ100

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06024

HDJ100,UZJ100

 4
90240-06024

HDJ100,UZJ100

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60090

HDJ100,UZJ100

 1
47750-60090

HDJ100,UZJ100

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-60110

HDJ100,UZJ100

 1
47781-60110

HDJ100,UZJ100

 1
47781B - BOLT(FOR DUST COVER SETTING)
90119-08571

HDJ100,UZJ100

*8-1.25PX18-5.5

 8
90119-08571

HDJ100,UZJ100

*8-1.25PX18-5.5

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-60110

HDJ100,UZJ100

 1
47782-60110

HDJ100,UZJ100

 1
Common parts
90201-12452
