HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )HDJ100

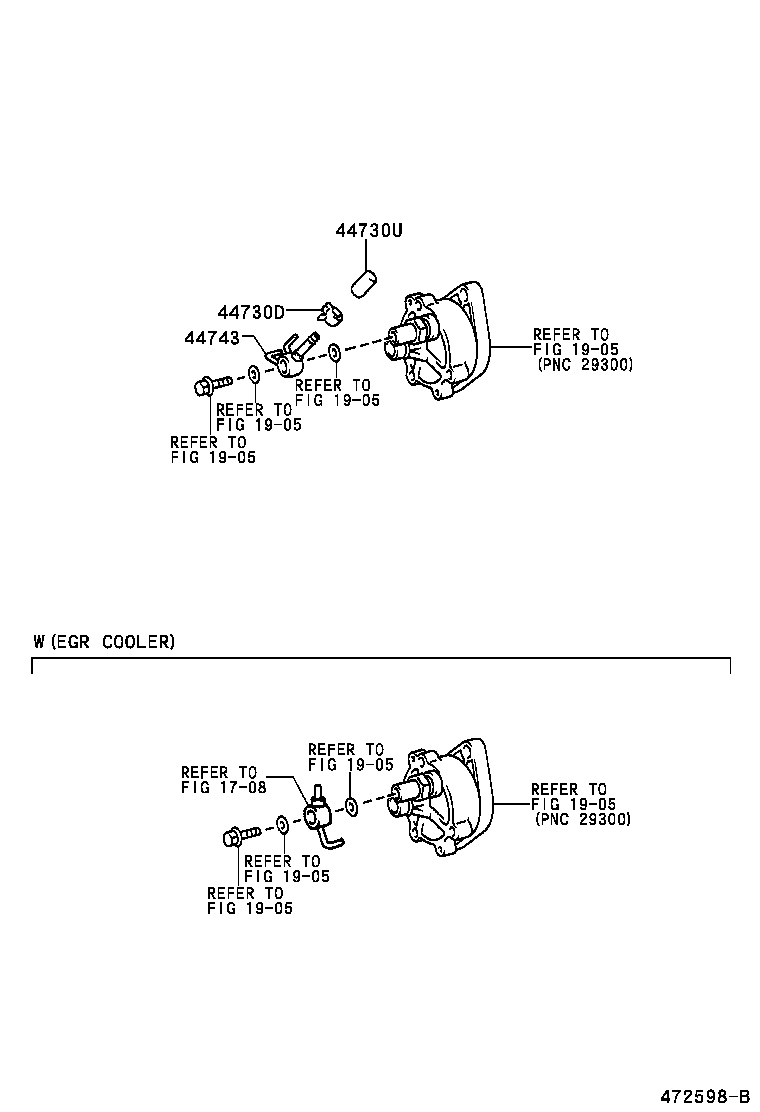

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-14003 |
HDJ100 |
1 | ||
| 90467-14003 |
HDJ100 |
1 | ||
| 90467-14003 |
HDJ100 |
1 | ||
| 44730U - PLUG(FOR VACUUM HOSE UNION) | ||||
| 90339-09003 |
HDJ100 |
1 | ||
| 90339-09003 |
HDJ100 |
1 | ||
| 90339-09003 |
HDJ100 |
1 | ||
| 44743 - UNION(FOR VACUUM PUMP) | ||||
| 90405-09142 |
HDJ100 |
1 | ||
| 90405-09142 |
HDJ100 |
1 | ||
| 90405-09142 |
HDJ100 |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 1905 | ||||
