HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801- )HDJ100

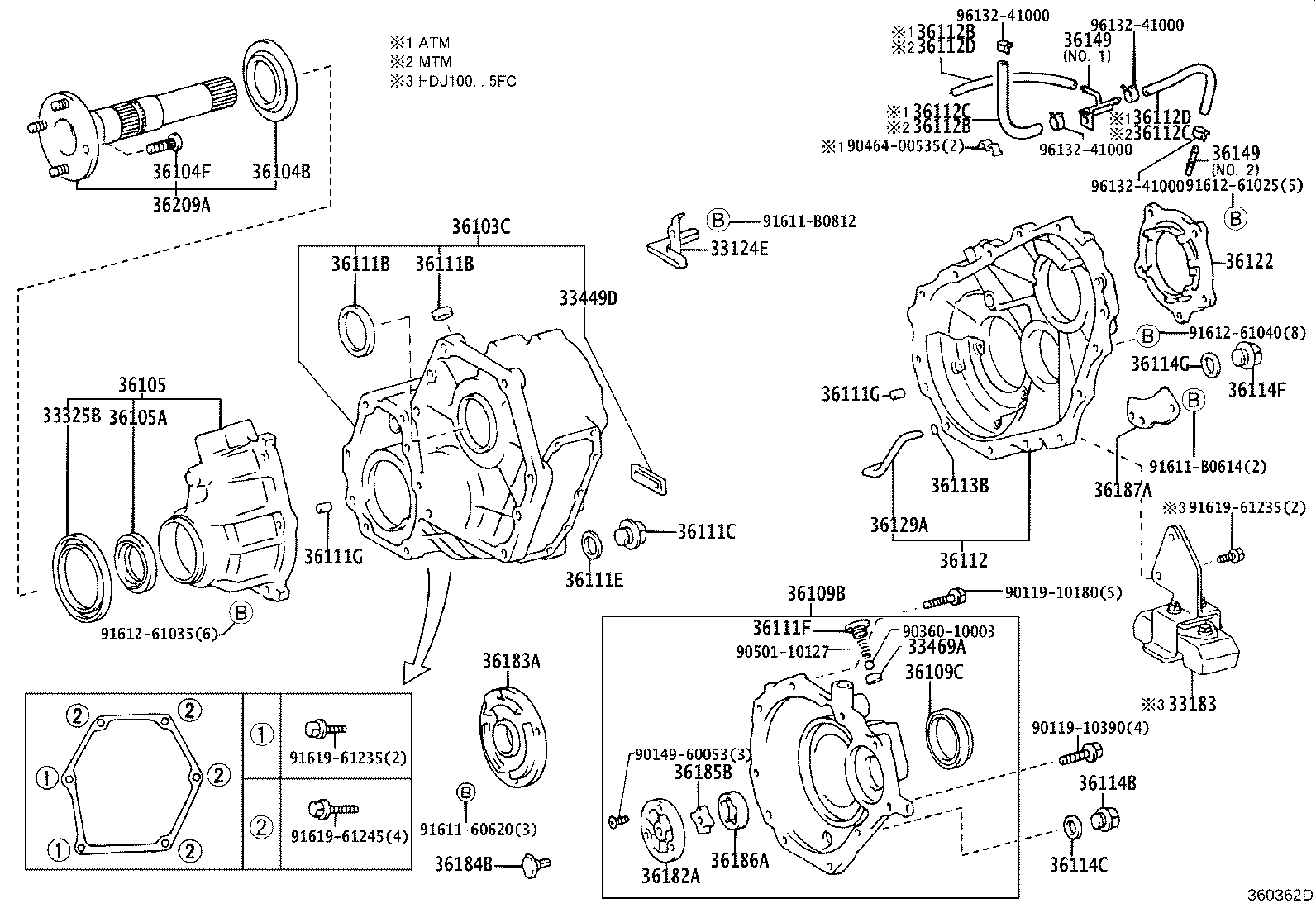

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 33124-60030 |
HDJ100,UZJ100 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 33325-60050 |
HDJ100,UZJ100 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
HDJ100,UZJ100 |
1 | ||
| 33449-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 33469-60020 |
HDJ100,UZJ100 |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60290 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36103-60290 |
HDJ100,UZJ100 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
HDJ100,UZJ100 |
1 | ||
| 33325-60040 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-10061 |
HDJ100,UZJ100..5F,5FC |
4 | ||
| 90114-10061 |
HDJ100,UZJ100 |
4 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60010 |
HDJ100,UZJ100 |
1 | ||
| 36105-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
HDJ100,UZJ100 |
1 | ||
| 90311-50014 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60060 |
HDJ100,UZJ100 |
1 | ||
| 36109-60061 |
HDJ100,UZJ100 |
1 | ||
| 36109-60061 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
HDJ100,UZJ100 |
1 | ||
| 90311-58011 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 90311-58011 |
HDJ100,UZJ100 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
HDJ100,UZJ100 SHAFT SIDE |
1 | ||
| 90310-16001 |
HDJ100,UZJ100 LEVER SIDE |
1 | ||
| 90310-16001 |
HDJ100,UZJ100..5F,5FC LEVER SIDE |
1 | ||
| 90311-48018 |
HDJ100,UZJ100..5F,5FC SHAFT SIDE |
1 | ||
| 90311-48025 |
HDJ100,UZJ100 SHAFT SIDE |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
HDJ100,UZJ100 SHAFT SIDE |
1 | ||
| 90310-16001 |
HDJ100,UZJ100 LEVER SIDE |
1 | ||
| 90310-16001 |
HDJ100,UZJ100..5F,5FC LEVER SIDE |
1 | ||
| 90311-48018 |
HDJ100,UZJ100..5F,5FC SHAFT SIDE |
1 | ||
| 90311-48025 |
HDJ100,UZJ100 SHAFT SIDE |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
HDJ100..5F |
1 | ||
| 90341-18006 |
HDJ100..5F |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HDJ100..5F |
1 | ||
| 90430-18008 |
HDJ100..5F |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 90341-18039 |
HDJ100,UZJ100 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
HDJ100,UZJ100..5F,5FC L=16,OD=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
HDJ100,UZJ100 L=16,OD=12 |
6 | ||
| 90250-12002 |
HDJ100,UZJ100..5F,5FC L=16,OD=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60020 |
HDJ100,UZJ100 |
1 | ||
| 36104-60020 |
UZJ100;HDJ100..5F |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11127 |
HDJ100..5F |
1 | ||
| 90445-11127 |
HDJ100..5F |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11127 |
HDJ100..5F |
1 | ||
| 90445-11127 |
HDJ100..5F |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11138 |
HDJ100..5F |
1 | ||
| 90445-11138 |
HDJ100..5F |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11138 |
HDJ100..5F |
1 | ||
| 90445-11138 |
HDJ100..5F |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90447-08151 |
HDJ100..5F |
1 | ||
| 90447-08151 |
HDJ100..5F |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90447-08151 |
HDJ100..5F |
1 | ||
| 90447-08151 |
HDJ100..5F |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-07012 |
HDJ100,UZJ100 ID=6.0 |
1 | ||
| 90301-07012 |
HDJ100,UZJ100..5F,5FC ID=6.0 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
HDJ100,UZJ100 |
1 | ||
| 90341-18006 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 90430-18008 |
HDJ100,UZJ100 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 90341-18057 |
HDJ100,UZJ100 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90430-18008 |
HDJ100,UZJ100 |
1 | ||
| 90430-18008 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
HDJ100,UZJ100 |
1 | ||
| 36122-36010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60030 |
HDJ100,UZJ100 |
1 | ||
| 36129-60030 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
HDJ100..5F |
1 | ||
| 36149-60010 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 36149-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 36149-60030 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
HDJ100..5F |
1 | ||
| 36149-60010 |
HDJ100,UZJ100 NO.1 |
1 | ||
| 36149-60030 |
HDJ100,UZJ100 NO.2 |
1 | ||
| 36149-60030 |
HDJ100,UZJ100..5F,5FC NO.2 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60011 |
HDJ100,UZJ100 |
1 | ||
| 36182-60011 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-60012 |
HDJ100,UZJ100 |
1 | ||
| 36183-60012 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60060 |
HDJ100,UZJ100 |
1 | ||
| 36184-60060 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60030 |
HDJ100,UZJ100 |
1 | ||
| 36185-60030 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60010 |
HDJ100,UZJ100 |
1 | ||
| 36186-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60010 |
HDJ100,UZJ100 |
1 | ||
| 36187-60010 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60020 |
HDJ100,UZJ100 |
1 | ||
| 36209-60020 |
HDJ100,UZJ100..5F,5FC |
1 | ||
| Common parts | ||||
| 90119-10180 | ||||
| 90119-10390 | ||||
| 90149-60053 | ||||
| 90360-10003 | ||||
| 90464-00535 | ||||
| 90501-10127 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 96132-41000 | ||||
