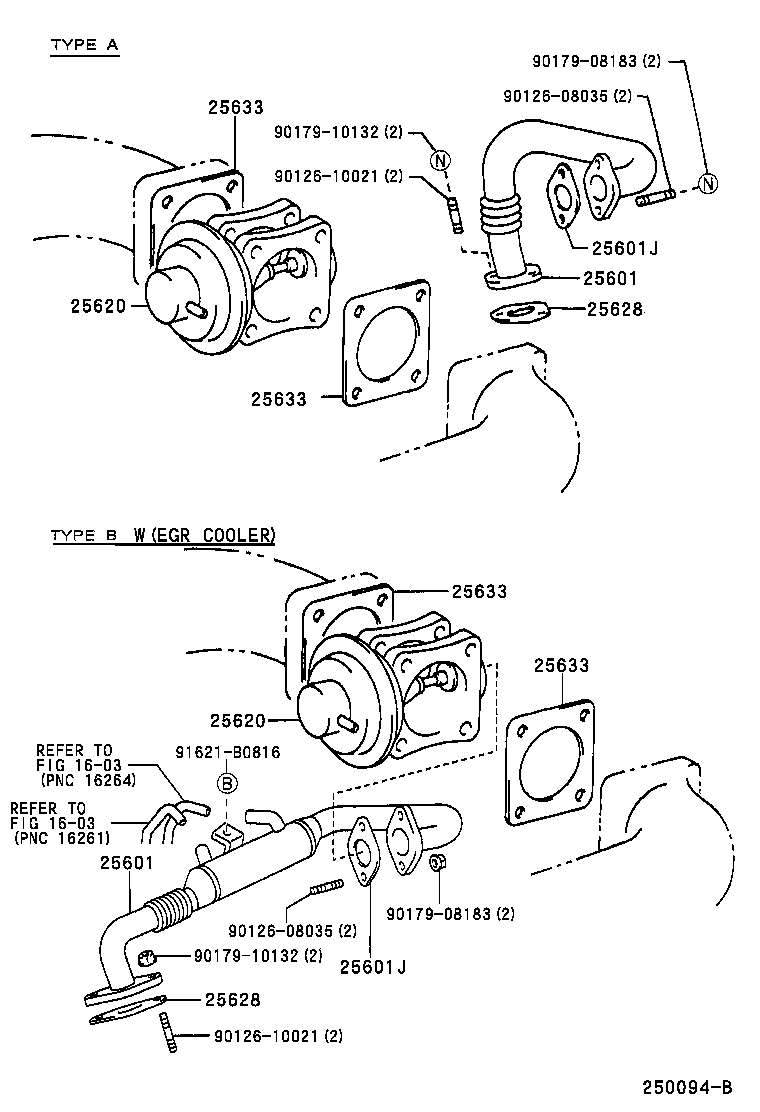

Toyota Land cruiser 100 HDJ100 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 07/2001	1
25601-17011	1HDFTE..HDJ100..LHD..(5F,5FC) TYPE A:REFER TO ILLUSTRATION	08/2002 - 05/2005	1
25601-17011	1HDFTE..HDJ100..LHD TYPE A:REFER TO ILLUSTRATION	07/2001 - 08/2002	1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 07/2001	1
25601-17011	1HDFTE..HDJ100..LHD..(5F,5FC) TYPE A:REFER TO ILLUSTRATION	08/2002 - 05/2005	1
25601-17011	1HDFTE..HDJ100..LHD TYPE A:REFER TO ILLUSTRATION	07/2001 - 08/2002	1
25601J - GASKET(FOR EGR PIPE, NO.1)
25634-17010	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25634-17010	1HDFTE..HDJ100	01/1998 - 08/2002	1
25601J - GASKET(FOR EGR PIPE, NO.1)
25634-17010	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25634-17010	1HDFTE..HDJ100	01/1998 - 08/2002	1
25620 - VALVE ASSY, EGR
25620-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25620-17020	1HDFTE..HDJ100	01/1998 - 08/2002	1
25620 - VALVE ASSY, EGR
25620-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25620-17020	1HDFTE..HDJ100	01/1998 - 08/2002	1
25628 - GASKET, EGR INLET
25628-17010	1HDFTE..HDJ100	01/1998 - 08/2002	1
25628-17010	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25628 - GASKET, EGR INLET
25628-17010	1HDFTE..HDJ100	01/1998 - 08/2002	1
25628-17010	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	1
25633 - GASKET, EGR VALVE
25633-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2001	2
25633-17020	1HDFTE..HDJ100 TYPE B:REFER TO ILLUSTRATION	08/2001 - 08/2002	2
25633-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	2
25633 - GASKET, EGR VALVE
25633-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2001	2
25633-17020	1HDFTE..HDJ100 TYPE B:REFER TO ILLUSTRATION	08/2001 - 08/2002	2
25633-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	2
25633 - GASKET, EGR VALVE
25633-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2001	2
25633-17020	1HDFTE..HDJ100 TYPE B:REFER TO ILLUSTRATION	08/2001 - 08/2002	2
25633-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	2
25633 - GASKET, EGR VALVE
25633-17010	1HDFTE..HDJ100 TYPE A:REFER TO ILLUSTRATION	01/1998 - 08/2001	2
25633-17020	1HDFTE..HDJ100 TYPE B:REFER TO ILLUSTRATION	08/2001 - 08/2002	2
25633-17020	1HDFTE..HDJ100..5F,5FC	08/2002 - 05/2005	2
Common parts
90126-08035
90126-10021
90179-08183
90179-10132
91621-B0816
Linked diagrams
1603

HDJ100L-GCMRZW (2000)

(9801- )1HDFTE
