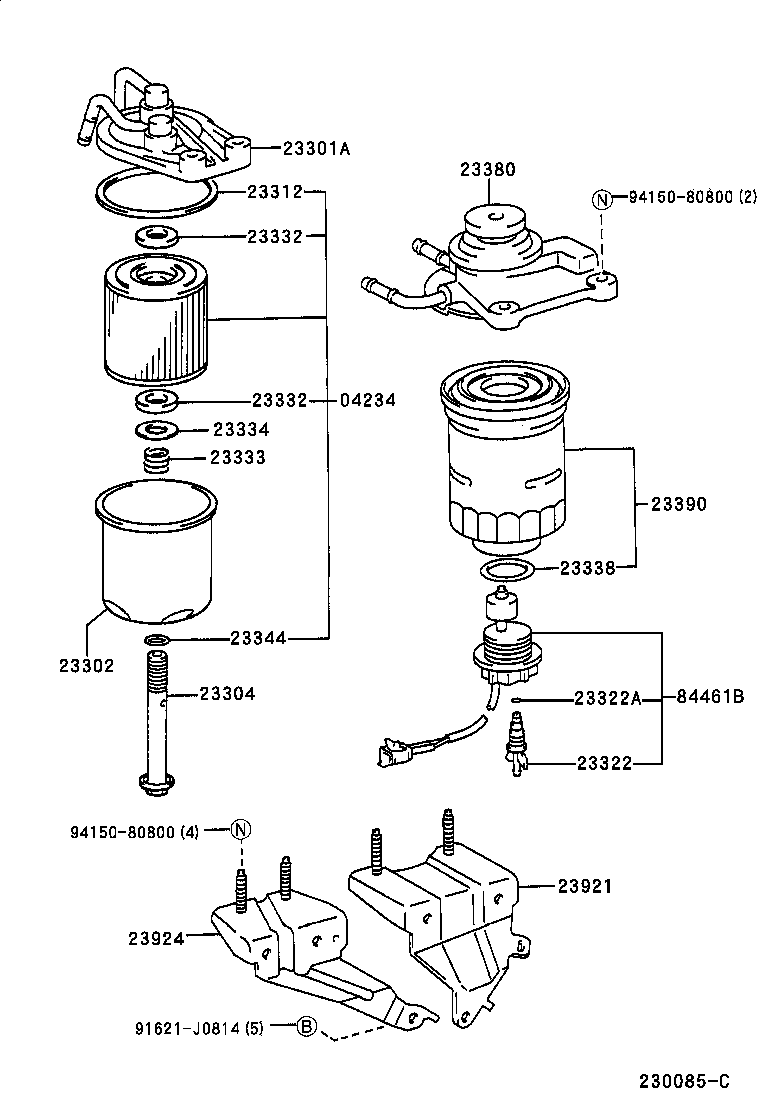

HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
(9801- )1HDFTE
W(PRE FILTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04234 - ELEMENT KIT, FUEL FILTER | ||||
| 04234-68010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23355-17040 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23302 - BODY SUB-ASSY, FUEL FILTER, LOWER | ||||
| 23302-17010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23304 - BAIL SUB-ASSY, FILTER BOWL | ||||
| 23304-56010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23312 - GASKET, FILTER BOWL | ||||
| 23312-68010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1HDFTE..HDJ100 |
1 | ||
| 23388-64470 |
1HDFTE..HDJ100 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1HDFTE..HDJ100 |
1 | ||
| 23344-54010 |
1HDFTE..HDJ100 |
1 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HDFTE..HDJ100..LHD |
2 | ||
| 23332 - GASKET, ELEMENT(FOR FUEL FILTER) | ||||
| 23332-68010 |
1HDFTE..HDJ100..LHD |
2 | ||
| 23333 - SPRING, FILTER ELEMENT SET | ||||
| 23333-48012 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23334 - PLATE, SPRING(FOR FILTER ELEMENT) | ||||
| 23334-46010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1HDFTE..HDJ100 |
1 | ||
| 23344-64010 |
1HDFTE..HDJ100 |
1 | ||
| 23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER) | ||||
| 23344-68010 |
1HDFTE..HDJ100..LHD |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-64480 |
1HDFTE..HDJ100 |
1 | ||
| 23390-64480 |
1HDFTE..HDJ100 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-17050 |
1HDFTE..HDJ100 |
1 | ||
| 23921-17050 |
1HDFTE..HDJ100 |
1 | ||
| 23924 - SUPPORT, FUEL PREFILTER | ||||
| 23924-17030 |
1HDFTE..HDJ100..LHD |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60050 |
HDJ100..LHD W(PRE FILTER) |
1 | ||
| 84461-28040 |
HDJ100 |
1 | ||
| 84461-28040 |
HDJ100 |
1 | ||
| Common parts | ||||
| 91621-J0814 | ||||
| 94150-80800 | ||||

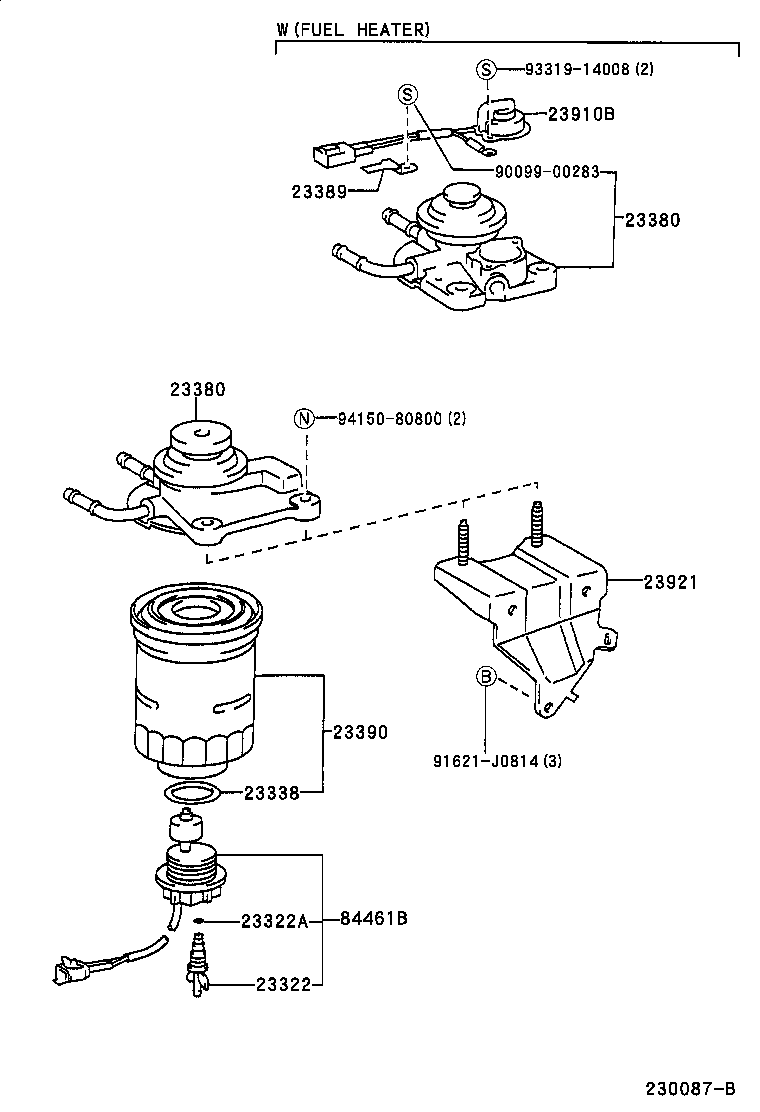

(9801- )1HDFTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23388-64470 |
1HDFTE..HDJ100 |
1 | ||
| 23388-64470 |
1HDFTE..HDJ100 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
1HDFTE..HDJ100 |
1 | ||
| 23344-54010 |
1HDFTE..HDJ100 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
1HDFTE..HDJ100 |
1 | ||
| 23344-64010 |
1HDFTE..HDJ100 |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23380 - CAP ASSY, FUEL FILTER | ||||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23380-17380 |
1HDFTE..HDJ100 W(FUEL HEATER) |
1 | ||
| 23389 - CLAMP, FUEL FILTER | ||||
| 23389-17380 |
1HDFTE..HDJ100 |
1 | ||
| 23389-17380 |
1HDFTE..HDJ100 |
1 | ||
| 23390 - ELEMENT ASSY, FUEL FILTER | ||||
| 23390-64480 |
1HDFTE..HDJ100 |
1 | ||
| 23390-64480 |
1HDFTE..HDJ100 |
1 | ||
| 23910B - HEATER ASSY, FUEL | ||||
| 23910-17060 |
1HDFTE..HDJ100 |
1 | ||
| 23910-17060 |
1HDFTE..HDJ100 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-17050 |
1HDFTE..HDJ100 |
1 | ||
| 23921-17050 |
1HDFTE..HDJ100 |
1 | ||
| 84461B - SWITCH, LEVEL WARNING | ||||
| 84461-60050 |
HDJ100..LHD W(PRE FILTER) |
1 | ||
| 84461-28040 |
HDJ100 |
1 | ||
| 84461-28040 |
HDJ100 |
1 | ||
| Common parts | ||||
| 90099-00283 | ||||
| 91621-J0814 | ||||
| 93319-14008 | ||||
| 94150-80800 | ||||
