HDJ100L-GCMRZW (2000)

Toyota Land Cruiser 100

Production Aug 2000 - May 2005
Engine 1HDFTE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9801- )1HDFTE

Click highlighted areas on diagram

diagram 1708 29391 29391 4703 9017910009 9017910009 9020114099 9020114099 9020114099 9020114099 9040109001 9040109001 9040110031 9040110031 9040110031 9040110031 9043010035 9043010035 9043010035 9043010035 9043010035 9043010035 9043010035 9043010035
Part # Description Qty Price
29391 - TUBE, VACUUM PUMP
29391-17020

1HDFTE..HDJ100

 1
29391-17020

1HDFTE..HDJ100

 1
29391 - TUBE, VACUUM PUMP
29391-17020

1HDFTE..HDJ100

 1
29391-17020

1HDFTE..HDJ100

 1
Common parts
90179-10009
90201-14099
90401-09001
90401-10031
90430-10035
Linked diagrams
1708
4703

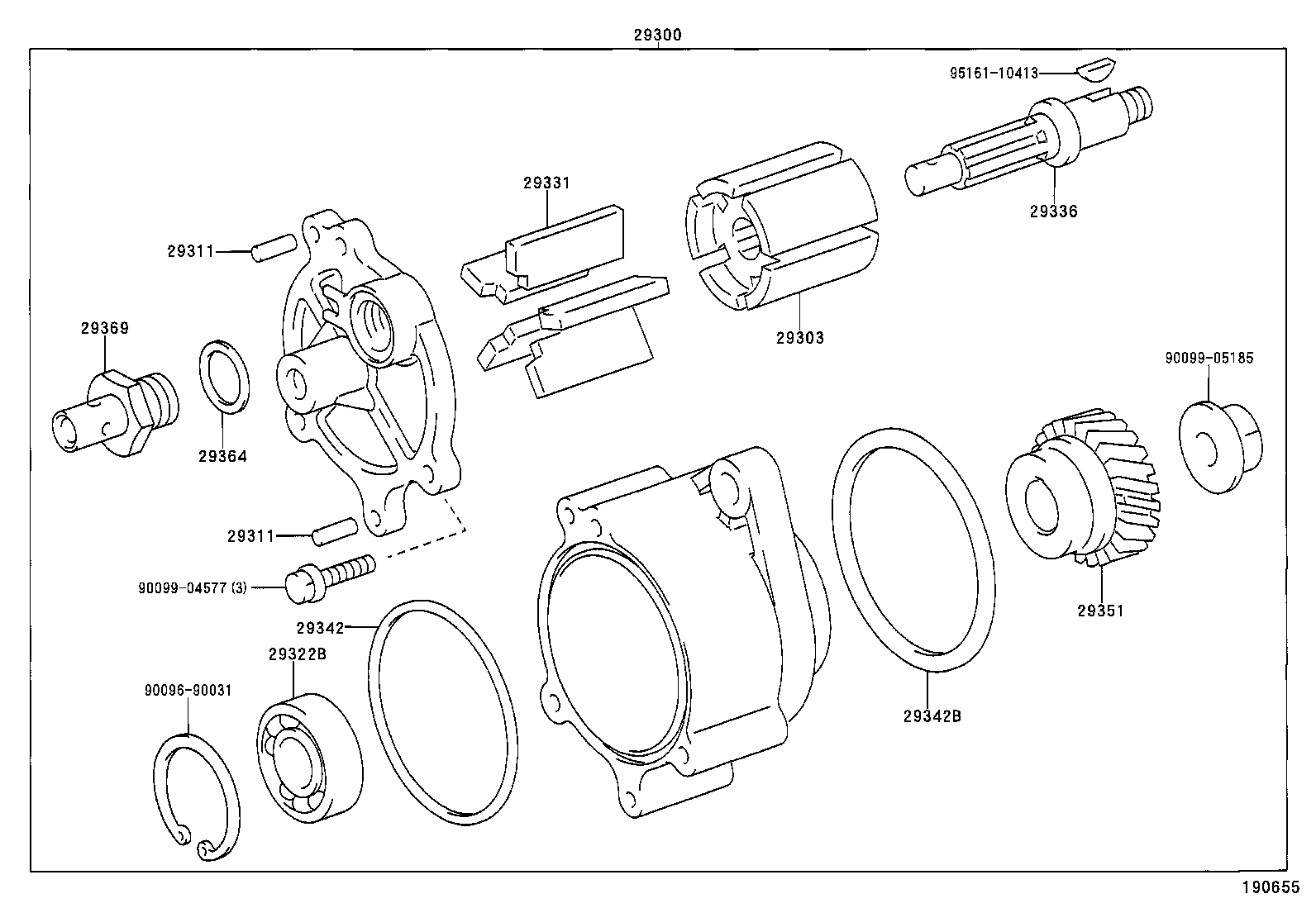

ILLUST NO. 2 OF 2(9801- )1HDFTE

Click highlighted areas on diagram

diagram 29300 29303 29311 29311 29322B 29331 29336 29342 29342B 29351 29364 29369 9009690031 9009904577 9009905185 9516110413
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-17010

1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F

TYPE A:REFER TO ILLUSTRATION

 1
29300-17010

1HDFTE..HDJ100

TYPE A:REFER TO ILLUSTRATION

 1
29300-17010

1HDFTE..HDJ100

TYPE A:REFER TO ILLUSTRATION

 1
29303 - ROTOR SUB-ASSY, VACUUM PUMP
29303-67020

1HDFTE..HDJ100

 1
29303-67020

1HDFTE..HDJ100

 1
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1HDFTE..HDJ100

 2
29311-76010

1HDFTE..HDJ100

 2
29311 - PIN, VACUUM PUMP DOWEL, NO.1
29311-76010

1HDFTE..HDJ100

 2
29311-76010

1HDFTE..HDJ100

 2
29322B - BEARING, VACUUM PUMP
90099-10185

1HDFTE..HDJ100

 1
90099-10185

1HDFTE..HDJ100

 1
29331 - BLADE, VACUUM PUMP, A
29331-67020

1HDFTE..HDJ100

 5
29331-67020

1HDFTE..HDJ100..5F,5FC

 5
29336 - SHAFT, VACUUM PUMP
29336-58050

1HDFTE..HDJ100

 1
29336-58050

1HDFTE..HDJ100

 1
29342 - PACKING, VACUUM PUMP
29342-58010

1HDFTE..HDJ100

 1
29342-58010

1HDFTE..HDJ100

 1
29342B - RING, O
29342-17010

1HDFTE..HDJ100

 1
29342-17010

1HDFTE..HDJ100

 1
29351 - GEAR, VACUUM PUMP
29351-17010

1HDFTE..HDJ100

 1
29351-17010

1HDFTE..HDJ100..STD

 1
29351-17010

1HDFTE..HDJ100..STD

 1
29364 - WASHER, VACUUM PUMP
29364-66010

1HDFTE..HDJ100

 1
29364-66010

1HDFTE..HDJ100

 1
29369 - VALVE SUB-ASSY, CHECK
29369-64030

1HDFTE..HDJ100

 1
29369-64030

1HDFTE..HDJ100

 1
Common parts
90096-90031
90099-04577
90099-05185
95161-10413
