HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

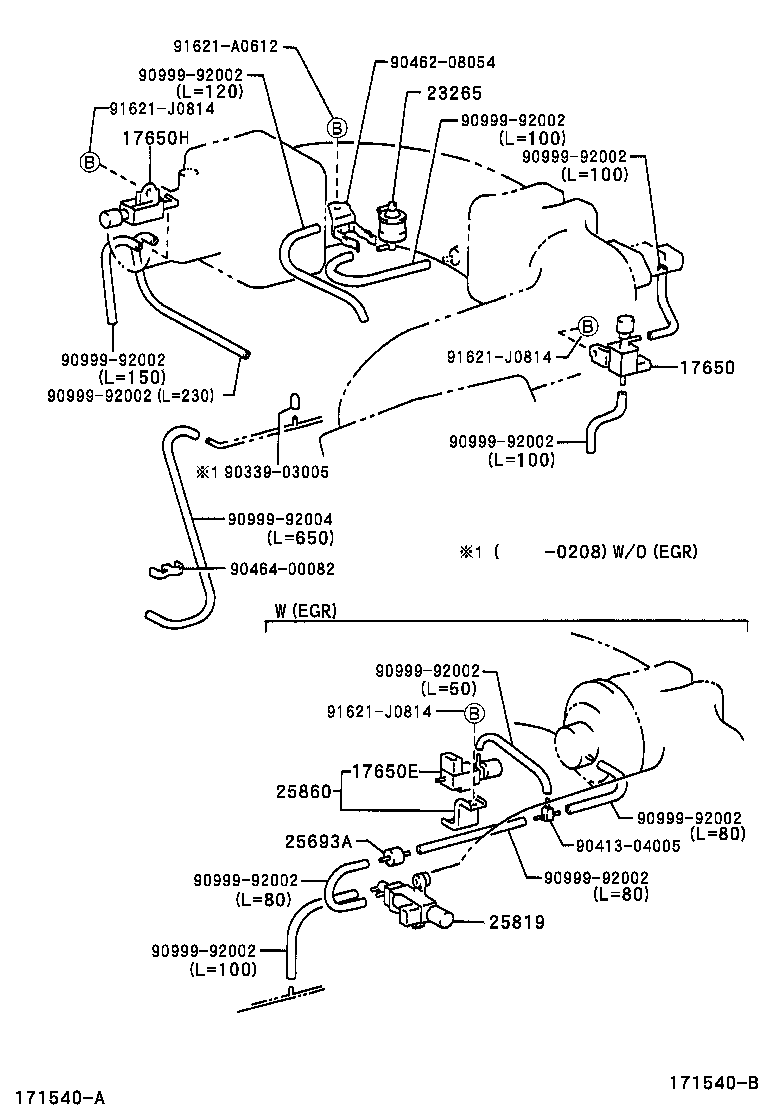

Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
(9801- )1HDFTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90910-12014 |
1HDFTE..HDJ100 |
1 | ||
| 90910-12014 |
1HDFTE..HDJ100 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12184 |
1HDFTE..HDJ100 |
1 | ||
| 90910-12184 |
1HDFTE..HDJ100 |
1 | ||
| 17650H - VALVE, VACUUM SWITCHING | ||||
| 90910-12155 |
1HDFTE..HDJ100 |
1 | ||
| 90910-12155 |
1HDFTE..HDJ100 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11036 |
1HDFTE..HDJ100 |
1 | ||
| 90917-11036 |
1HDFTE..HDJ100 |
1 | ||
| 25693A - DAMPER, EGR VACUUM MODULATOR | ||||
| 25693-64010 |
1HDFTE..HDJ100 |
1 | ||
| 25693-64010 |
1HDFTE..HDJ100 |
1 | ||
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-17020 |
1HDFTE..HDJ100..LHD |
1 | ||
| 25819-17020 |
1HDFTE..HDJ100..LHD |
1 | ||
| 25819-17020 |
1HDFTE..HDJ100 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-17070 |
1HDFTE..HDJ100 |
1 | ||
| 25860-17070 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90462-08054 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 90999-92004 | ||||
| 91621-A0612 | ||||
| 91621-J0814 | ||||
