HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
ILLUST NO. 1 OF 2(9801- )1HDFTE
W/O(EGR COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12259 - PIPE, OIL RETURN, NO.2 | ||||
| 12259-17010 |
1HDFTE..HDJ100..5F |
1 | ||
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-17020 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 15407-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 15407-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1HDFTE..HDJ100 |
1 | ||
| 90401-12097 |
1HDFTE..HDJ100 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 90430-12221 |
1HDFTE..HDJ100 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 15471-58010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 15471-58010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90910-05206 |
1HDFTE..HDJ100 |
1 | ||
| 90910-05206 |
1HDFTE..HDJ100..STD |
1 | ||
| 90910-05206 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 90467-26001 |
1HDFTE..HDJ100 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 96134-52600 |
1HDFTE..HDJ100 |
2 | ||
| 90467-26001 |
1HDFTE..HDJ100 |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HDFTE..HDJ100 |
1 | ||
| 16347-42020 |
1HDFTE..HDJ100..STD |
1 | ||
| 16347-42020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-17031 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17111-17031 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17111-17030 |
1HDFTE..HDJ100 |
1 | ||
| 17111-17031 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-17100 |
1HDFTE..HDJ100 |
1 | ||
| 17113-17060 |
1HDFTE..HDJ100 |
1 | ||
| 17113-17100 |
1HDFTE..HDJ100 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17116-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17116-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17115 - GASKET, INTAKE MANIFOLD HOLE COVER | ||||
| 17115-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17115-17021 |
1HDFTE..HDJ100 |
1 | ||
| 17115-17021 |
1HDFTE..HDJ100 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17135-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17138A - STAY, INTAKE PIPE | ||||
| 17138-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17138-17050 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F |
1 | ||
| 17138-17050 |
1HDFTE..HDJ100..4FC,5F |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-17030 |
1HDFTE..HDJ100 |
1 | ||
| 17141-17031 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17141-17031 |
1HDFTE..HDJ100..5F,5FC W/O(EGR COOLER) |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10117 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
4 | ||
| 90116-10117 |
1HDFTE..HDJ100 |
4 | ||
| 90116-10117 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
4 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-17030 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17142-17030 |
1HDFTE..HDJ100..LHD W/O(EGR COOLER) |
1 | ||
| 17142-17030 |
1HDFTE..HDJ100..LHD..(5F,5FC) W/O(EGR COOLER) |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17151-17010 |
1HDFTE..HDJ100..5F,5FC |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HDFTE..HDJ100 |
2 | ||
| 17151-17010 |
1HDFTE..HDJ100..5F,5FC |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10171 |
1HDFTE..HDJ100 |
12 | ||
| 90116-10171 |
1HDFTE..HDJ100..5F,5FC |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-17061 |
1HDFTE..HDJ100..LHD NEW ZEALAND SPEC;W(EGR COOLER) |
1 | ||
| 17167-17060 |
1HDFTE..HDJ100 W(EGR COOLER) |
1 | ||
| 17167-17062 |
1HDFTE..HDJ100..LHD NEW ZEALAND SPEC;W(EGR COOLER) |
1 | ||
| 17167-17061 |
1HDFTE..HDJ100..LHD RUSSIA SPEC;W(EGR COOLER) |
1 | ||
| 17167-17062 |
1HDFTE..HDJ100..LHD..(5F,5FC) W/O(EGR COOLER) |
1 | ||
| 17167-17062 |
1HDFTE..HDJ100..LHD RUSSIA SPEC;W(EGR COOLER) |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17171-17030 |
1HDFTE..HDJ100 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17173-17020 |
1HDFTE..HDJ100..5F,5FC |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFTE..HDJ100 |
2 | ||
| 17173-17020 |
1HDFTE..HDJ100..5F,5FC |
2 | ||
| 17183A - COLLAR, MANIFOLD | ||||
| 17183-17010 |
1HDFTE..HDJ100..5F,5FC |
1 | ||
| 17183-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17203B - ELBOW SUB-ASSY, COMPRESSOR INLET | ||||
| 17203-17010 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17203-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17203-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17271-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17271-17010 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17275 - ELBOW, COMPRESSOR OUTLET | ||||
| 17275-17011 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17275-17010 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17275-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17275-17011 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-17010 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17278-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17278-17010 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17279-17020 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17279-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-17030 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17291-17030 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17291-17030 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17293-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17293-17020 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17376C - GASKET, AIR TUBE | ||||
| 17376-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17376-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17377B - GASKET, AIR TUBE, NO.2 | ||||
| 17377-88410 |
1HDFTE..HDJ100 |
1 | ||
| 17377-88410 |
1HDFTE..HDJ100 |
1 | ||
| 17871A - STAY, AIR CONNECTOR | ||||
| 17871-17020 |
1HDFTE..HDJ100 |
1 | ||
| 17871-17020 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| Common parts | ||||
| 90105-12210 | ||||
| 90126-08029 | ||||
| 90126-08035 | ||||
| 90126-08036 | ||||
| 90179-08040 | ||||
| 90179-08183 | ||||
| 90179-10037 | ||||
| 90179-10094 | ||||
| 90466-07002 | ||||
| 90902-02003 | ||||
| 90999-92002 | ||||
| 91511-J0820 | ||||
| 91621-B0814 | ||||
| 91631-60816 | ||||
| 91631-G0614 | ||||
| 91651-B0814 | ||||
| 92112-60825 | ||||
| 94180-40800 | ||||
| 96732-24042 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 2501 | ||||
| 2606 | ||||

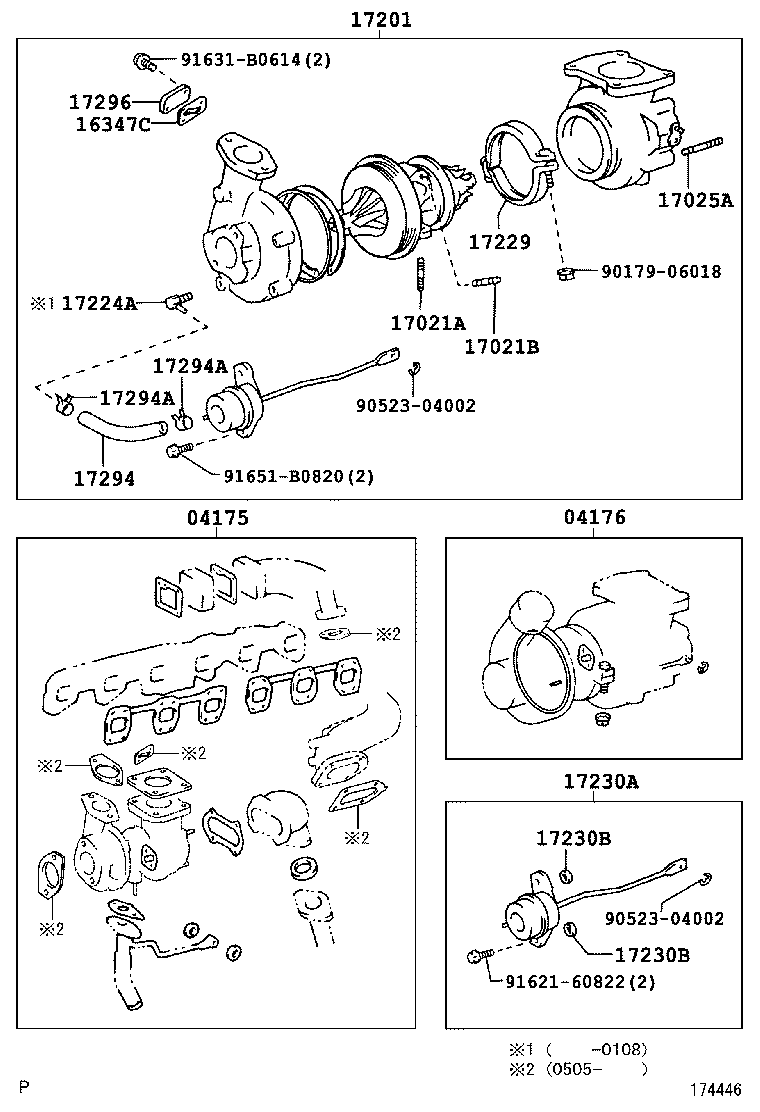

ILLUST NO. 2 OF 2(9801- )1HDFTE
W/O(EGR COOLOR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-17030 |
1HDFTE..HDJ100 |
1 | ||
| 04175-17030 |
1HDFTE..HDJ100..STD |
1 | ||
| 04175-17060 |
1HDFTE..HDJ100..STD |
1 | ||
| 04175-17090 |
1HDFTE..HDJ100 ARGENTINA OR NEW ZEALAND OR RUSSIA OR SOUTH AFRICA SPEC |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-17010 |
1HDFTE..HDJ100..4FC,5F |
1 | ||
| 04176-17030 |
1HDFTE..HDJ100 |
1 | ||
| 16347C - GASKET(FOR TURBO WATER PIPE) | ||||
| 16347-42020 |
1HDFTE..HDJ100 |
1 | ||
| 16347-42020 |
1HDFTE..HDJ100 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1HDFTE..HDJ100 |
2 | ||
| 90116-08158 |
1HDFTE..HDJ100 |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
2 | ||
| 90116-06048 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
2 | ||
| 90116-06048 |
1HDFTE..HDJ100..4FC,5F W(EGR COOLER) |
4 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
4 | ||
| 90116-10125 |
1HDFTE..HDJ100..4FC,5F W(EGR COOLER),NO.1 |
3 | ||
| 90116-10117 |
1HDFTE..HDJ100..4FC,5F W(EGR COOLER),NO.2 |
2 | ||
| 90116-10125 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-17040 |
1HDFTE..HDJ100..4FC;1HDFTE..HDJ100..LHD..5F W/O(EGR COOLER) |
1 | ||
| 17201-17040 |
1HDFTE..HDJ100..STD |
1 | ||
| 17201-17040 |
1HDFTE..HDJ100 W/O(EGR COOLER) |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51040 |
1HDFTE..HDJ100 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-46010 |
1HDFTE..HDJ100 |
1 | ||
| 17229-46010 |
1HDFTE..HDJ100 |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-19035 |
1HDFTE..HDJ100 |
1 | ||
| 17230-19035 |
1HDFTE..HDJ100..4FC,5F |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
1HDFTE..HDJ100 T=1.0 |
2 | ||
| 90201-08087 |
1HDFTE..HDJ100 T=3.0 |
2 | ||
| 90201-08081 |
1HDFTE..HDJ100 T=0.5 |
2 | ||
| 90201-08086 |
1HDFTE..HDJ100 T=2.0 |
2 | ||
| 90201-08081 |
1HDFTE..HDJ100 T=0.5 |
2 | ||
| 90201-08087 |
1HDFTE..HDJ100 T=3.0 |
2 | ||
| 90201-08086 |
1HDFTE..HDJ100 T=2.0 |
2 | ||
| 90201-08082 |
1HDFTE..HDJ100 T=1.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
1HDFTE..HDJ100 T=1.0 |
2 | ||
| 90201-08087 |
1HDFTE..HDJ100 T=3.0 |
2 | ||
| 90201-08081 |
1HDFTE..HDJ100 T=0.5 |
2 | ||
| 90201-08086 |
1HDFTE..HDJ100 T=2.0 |
2 | ||
| 90201-08081 |
1HDFTE..HDJ100 T=0.5 |
2 | ||
| 90201-08087 |
1HDFTE..HDJ100 T=3.0 |
2 | ||
| 90201-08086 |
1HDFTE..HDJ100 T=2.0 |
2 | ||
| 90201-08082 |
1HDFTE..HDJ100 T=1.0 |
2 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12265 |
1HDFTE..HDJ100 |
1 | ||
| 90445-12265 |
1HDFTE..HDJ100 |
1 | ||
| 17294-17010 |
1HDFTE..HDJ100 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HDFTE..HDJ100 |
2 | ||
| 96132-51100 |
1HDFTE..HDJ100 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HDFTE..HDJ100 |
2 | ||
| 96132-51100 |
1HDFTE..HDJ100 |
2 | ||
| 17296 - PLATE, BEARING HOUSING, SIDE | ||||
| 17296-28010 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90179-06018 | ||||
| 90523-04002 | ||||
| 91621-60822 | ||||
| 91631-B0614 | ||||
| 91651-B0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
