HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )

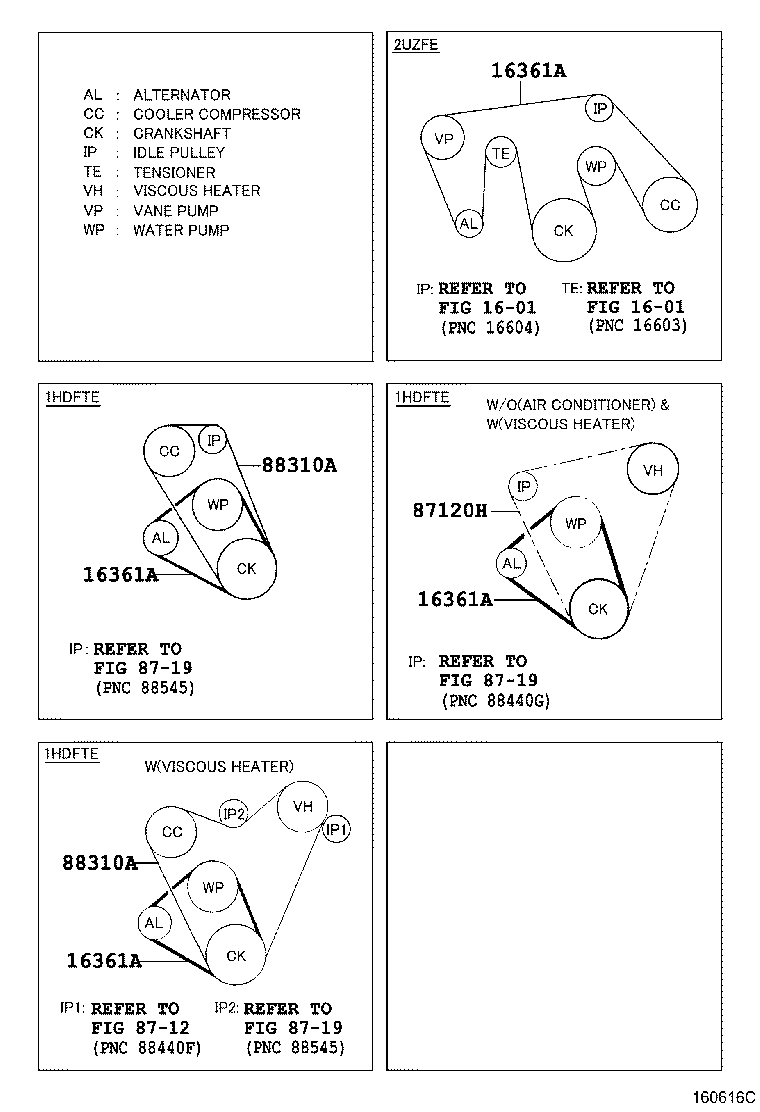

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 90916-02452 |
1HDFTE..HDJ100 |
1 | ||
| 87120H - BELT, V (HEATER TO CRANKSHAFT PULLEY) | ||||
| 99364-31580 |
HDJ100..STD |
1 | ||
| 99364-31580 |
HDJ100 |
1 | ||
| 99364-31580 |
HDJ100..LHD |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-31720 |
HDJ100 L=1720 |
1 | ||
| 99364-31720 |
HDJ100 L=1720 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99364-31720 |
HDJ100 L=1720 |
1 | ||
| 99364-31720 |
HDJ100 L=1720 |
1 | ||
| Linked diagrams | ||||
| 1601 | ||||
| 8712 | ||||
| 8719 | ||||
