HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)1HDFTE

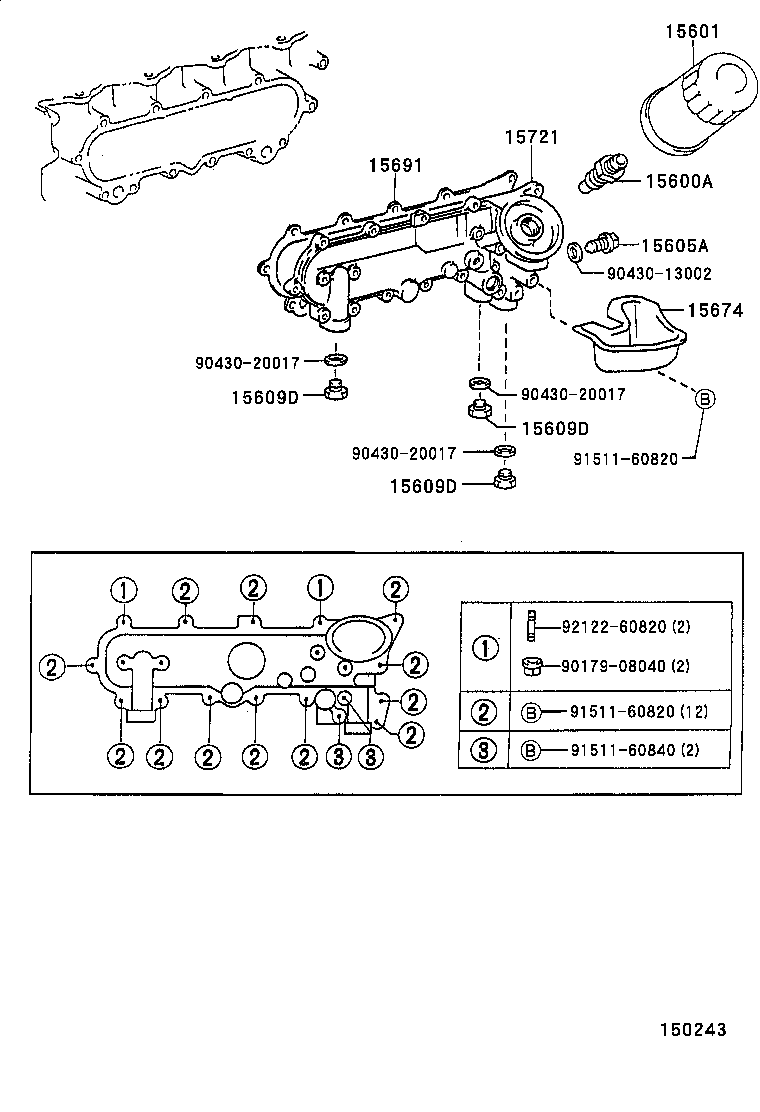

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 15116-54021 |
1HDFTE..HDJ100 |
1 | ||
| 15116-54021 |
1HDFTE..HDJ100 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-30002 |
1HDFTE..HDJ100 |
1 | ||
| 90915-30002 |
1HDFTE..HDJ100 |
1 | ||
| 15605A - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15605-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1HDFTE..HDJ100 |
3 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1HDFTE..HDJ100 |
3 | ||
| 15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 |
1HDFTE..HDJ100 |
3 | ||
| 15674 - RECEIVER, OIL FILTER | ||||
| 15674-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15674-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15725-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15725-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15721-17012 |
1HDFTE..HDJ100 |
1 | ||
| 15721-17012 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90430-13002 | ||||
| 90430-20017 | ||||
| 91511-60820 | ||||
| 91511-60840 | ||||
| 92122-60820 | ||||
(0208- )1HDFTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15600A - UNION(FOR OIL FILTER) | ||||
| 15116-54021 |
1HDFTE..HDJ100 |
1 | ||
| 15116-54021 |
1HDFTE..HDJ100 |
1 | ||
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-30002 |
1HDFTE..HDJ100 |
1 | ||
| 90915-30002 |
1HDFTE..HDJ100 |
1 | ||
| 15605A - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15605-17020 |
1HDFTE..HDJ100 |
1 | ||
| 15674 - RECEIVER, OIL FILTER | ||||
| 15674-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15674-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15725-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15725-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15721 - COVER, OIL COOLER | ||||
| 15721-17012 |
1HDFTE..HDJ100 |
1 | ||
| 15721-17012 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90430-13002 | ||||
| 91511-J0820 | ||||
| 91511-J0840 | ||||
| 92122-60820 | ||||
