HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )1HDFTE

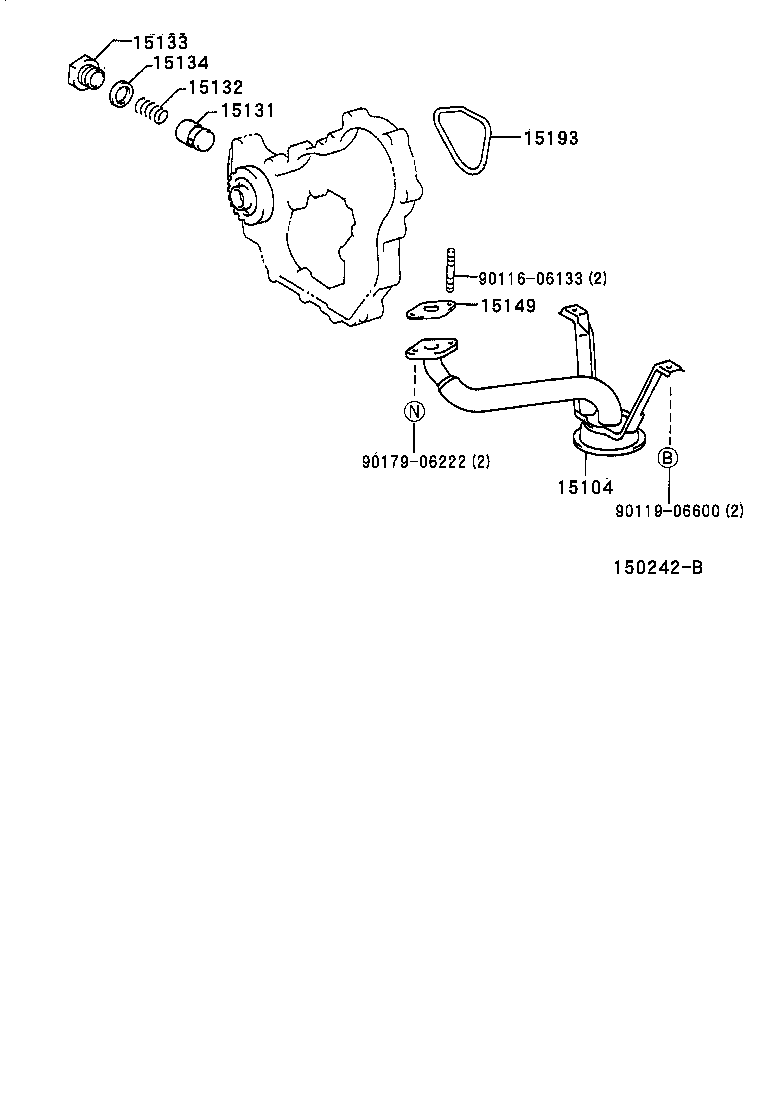

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15104 - STRAINER SUB-ASSY, OIL | ||||
| 15104-17070 |
1HDFTE..HDJ100 |
1 | ||
| 15104-17070 |
1HDFTE..HDJ100 |
1 | ||
| 15131 - VALVE, OIL PUMP RELIEF | ||||
| 15131-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15131-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15132 - SPRING, OIL PUMP RELIEF VALVE | ||||
| 15132-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15132-17041 |
1HDFTE..HDJ100 |
1 | ||
| 15133 - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15133-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15134 - GASKET, OIL PUMP RELIEF VALVE | ||||
| 15134-67020 |
1HDFTE..HDJ100 |
1 | ||
| 15134-67020 |
1HDFTE..HDJ100 |
1 | ||
| 15149 - GASKET, OIL STRAINER FLANGE | ||||
| 15149-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15149-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15193 - GASKET, OIL PUMP | ||||
| 15193-17010 |
1HDFTE..HDJ100 |
1 | ||
| 15193-17010 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90116-06133 | ||||
| 90119-06600 | ||||
| 90179-06222 | ||||
