HDJ100L-GCMRZW (2000)
Toyota Land Cruiser 100
Production
Aug 2000
-
May 2005
Engine
1HDFTE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9801- )1HDFTE

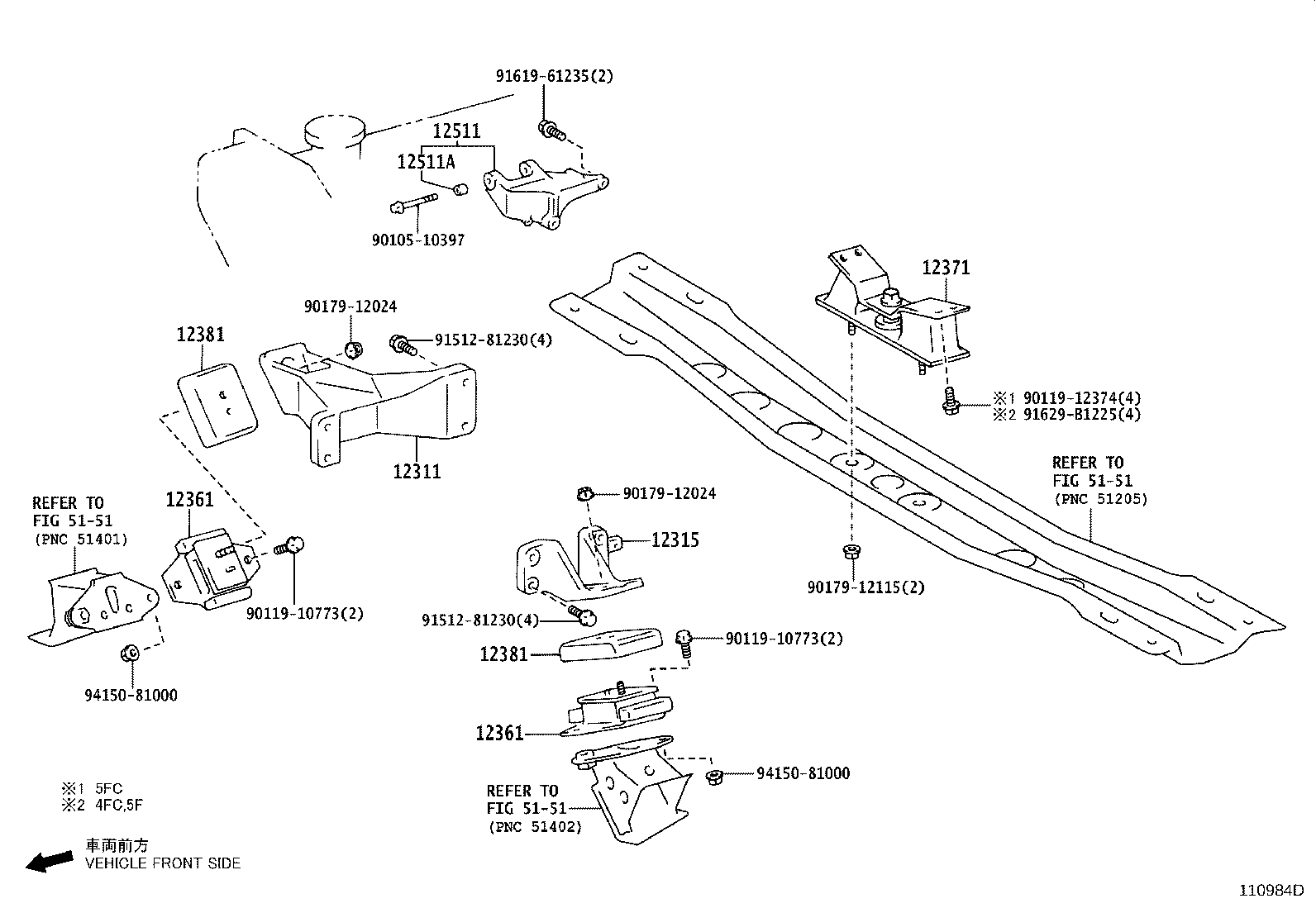

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-17060 |
1HDFTE..HDJ100 |
1 | ||
| 12311-17060 |
1HDFTE..HDJ100 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-17011 |
1HDFTE..HDJ100 |
1 | ||
| 12315-17011 |
1HDFTE..HDJ100 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17070 |
1HDFTE..HDJ100 |
2 | ||
| 12361-17070 |
1HDFTE..HDJ100 |
2 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-17070 |
1HDFTE..HDJ100 |
2 | ||
| 12361-17070 |
1HDFTE..HDJ100 |
2 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-66040 |
1HDFTE..HDJ100..5F |
1 | ||
| 12371-66040 |
1HDFTE..HDJ100..5F |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-66020 |
1HDFTE..HDJ100 |
2 | ||
| 12381-66020 |
1HDFTE..HDJ100 |
2 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-66020 |
1HDFTE..HDJ100 |
2 | ||
| 12381-66020 |
1HDFTE..HDJ100 |
2 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-17013 |
1HDFTE..HDJ100 |
1 | ||
| 12511-17013 |
1HDFTE..HDJ100 |
1 | ||
| 12511A - BUSH, ALTERNATOR BRACKET | ||||
| 90387-10155 |
1HDFTE..HDJ100 |
1 | ||
| 90387-10155 |
1HDFTE..HDJ100 |
1 | ||
| Common parts | ||||
| 90105-10397 | ||||
| 90119-10773 | ||||
| 90119-12374 | ||||
| 90179-12024 | ||||
| 90179-12115 | ||||
| 91512-81230 | ||||
| 91619-61235 | ||||
| 91629-B1225 | ||||
| 94150-81000 | ||||
| Linked diagrams | ||||
| 5151 | ||||
