VJA300R-GNUZZ (2021)

Toyota Land Cruiser

Production Apr 2021 - Sep 9999
Engine V35AFTS
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2104- )V35AFTS

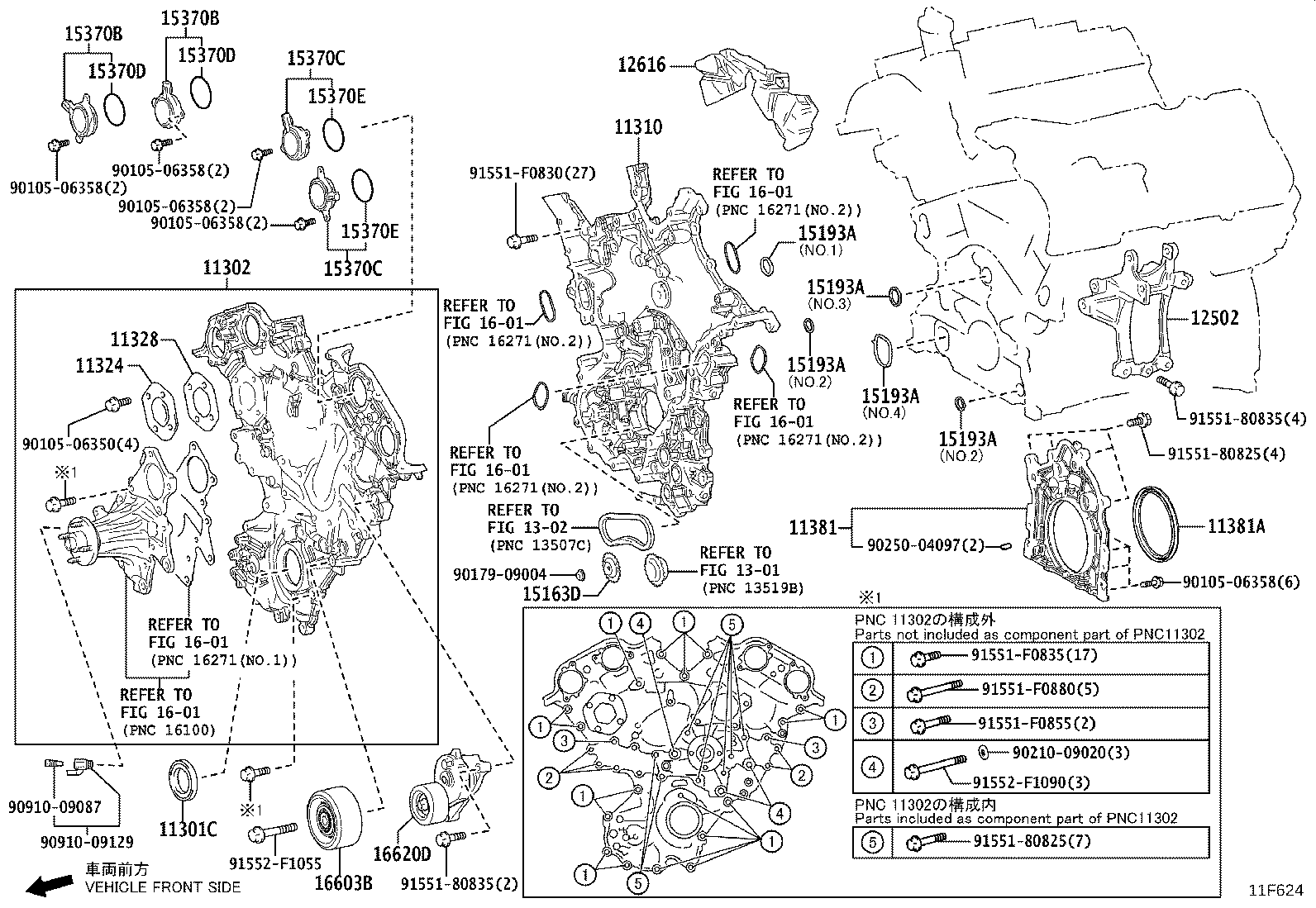

Click highlighted areas on diagram

diagram 11301C 11302 11310 11324 11328 11381 11381A 12502 12616 1301 1302 15163D 15193A 15193A 15193A 15193A 15193A 15370B 15370B 15370C 15370C 15370D 15370D 15370E 15370E 1601 1601 1601 1601 1601 1601 16603B 16620D 9010506350 9010506358 9010506358 9010506358 9010506358 9010506358 9017909004 9021009020 9025004097 9091009087 9091009129 9155180825 9155180825 9155180835 9155180835 91551F0830 91551F0835 91551F0855 91551F0880 91552F1055 91552F1090
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-44010

V35AFTS..VJA300

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11320-70090

V35AFTS..VJA300

 1
11310 - COVER ASSY, TIMING CHAIN
11310-70020

V35AFTS..VJA300

 1
11324 - PLATE, TIMING CHAIN COVER
11324-70030

V35AFTS..VJA300

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70070

V35AFTS..VJA300

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70040

V35AFTS..VJA300

 1
11381A - SEAL, ENGINE REAR OIL
90311-99016

V35AFTS..VJA300

 1
12502 - BRACKET SUB-ASSY, CHAIN COVER & COMPRESSOR
12502-70010

V35AFTS..VJA300

 1
12616 - COVER, ENGINE, NO.6
12616-70010

V35AFTS..VJA300

 1
15163D - SPROCKET, OIL PUMP DRIVE SHAFT
15163-70020

V35AFTS..VJA300

 1
15193A - GASKET, OIL PUMP
15197-70030

V35AFTS..VJA300

NO.4:REFER ILLUST.

 1
15197-70010

V35AFTS..VJA300

NO.2:REFER ILLUST.

 2
15197-36010

V35AFTS..VJA300

NO.1:REFER ILLUST.

 1
15197-70020

V35AFTS..VJA300

NO.3:REFER ILLUST.

 1
15193A - GASKET, OIL PUMP
15197-70030

V35AFTS..VJA300

NO.4:REFER ILLUST.

 1
15197-70010

V35AFTS..VJA300

NO.2:REFER ILLUST.

 2
15197-36010

V35AFTS..VJA300

NO.1:REFER ILLUST.

 1
15197-70020

V35AFTS..VJA300

NO.3:REFER ILLUST.

 1
15193A - GASKET, OIL PUMP
15197-70030

V35AFTS..VJA300

NO.4:REFER ILLUST.

 1
15197-70010

V35AFTS..VJA300

NO.2:REFER ILLUST.

 2
15197-36010

V35AFTS..VJA300

NO.1:REFER ILLUST.

 1
15197-70020

V35AFTS..VJA300

NO.3:REFER ILLUST.

 1
15193A - GASKET, OIL PUMP
15197-70030

V35AFTS..VJA300

NO.4:REFER ILLUST.

 1
15197-70010

V35AFTS..VJA300

NO.2:REFER ILLUST.

 2
15197-36010

V35AFTS..VJA300

NO.1:REFER ILLUST.

 1
15197-70020

V35AFTS..VJA300

NO.3:REFER ILLUST.

 1
15193A - GASKET, OIL PUMP
15197-70030

V35AFTS..VJA300

NO.4:REFER ILLUST.

 1
15197-70010

V35AFTS..VJA300

NO.2:REFER ILLUST.

 2
15197-36010

V35AFTS..VJA300

NO.1:REFER ILLUST.

 1
15197-70020

V35AFTS..VJA300

NO.3:REFER ILLUST.

 1
15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370-25020

V35AFTS..VJA300

 2
15370B - SOLENOID ASSY, CAM TIMING OIL CONTROL, RH
15370-25020

V35AFTS..VJA300

 2
15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370-25020

V35AFTS..VJA300

 2
15370C - SOLENOID ASSY, CAM TIMING OIL CONTROL, LH
15370-25020

V35AFTS..VJA300

 2
15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90301-44006

V35AFTS..VJA300

 2
15370D - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID RH)
90301-44006

V35AFTS..VJA300

 2
15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90301-44006

V35AFTS..VJA300

 2
15370E - RING, O(FOR CAM TIMING OIL CONTROL SOLENOID LH)
90301-44006

V35AFTS..VJA300

 2
16603B - PULLEY SUB-ASSY, IDLER
16603-70030

V35AFTS..VJA300

 1
16620D - TENSIONER ASSY, V-RIBBED BELT
16620-70030

V35AFTS..VJA300

 1
Common parts
90105-06350
90105-06358
90179-09004
90210-09020
90250-04097
90910-09087
90910-09129
91551-80825
91551-80835
91551-F0830
91551-F0835
91551-F0855
91551-F0880
91552-F1055
91552-F1090
