VJA300R-GNUVZ (2021)
Toyota Land Cruiser

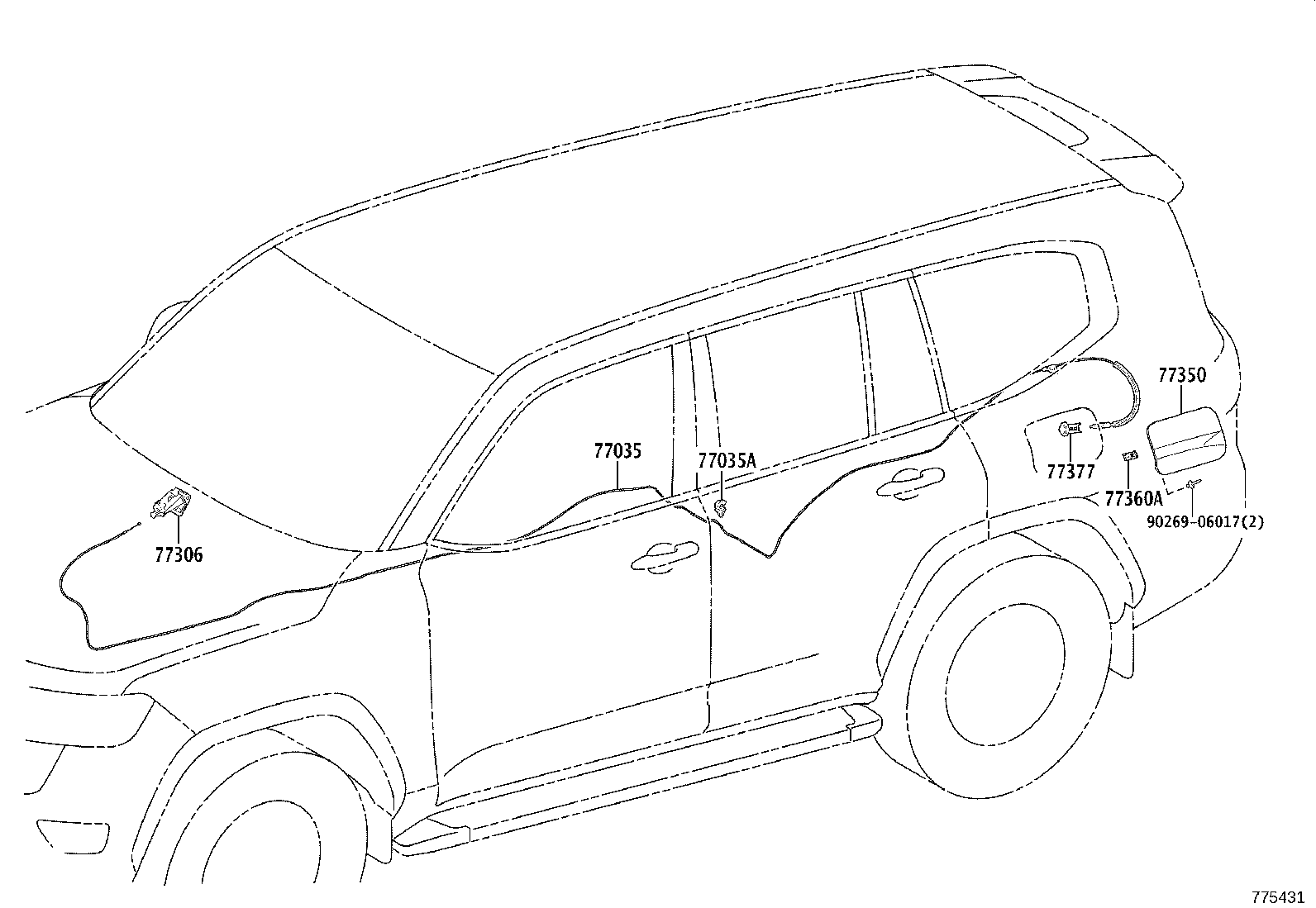

ILLUST NO. 3 OF 3(2104- )RHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-60230 |
VJA300..RHD |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-05018 |
GRJ300,VJA300 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C1 |
VJA300..Z BLACK,TRIM2#,3# |
1 | ||
| 77306-58020E0 |
GRJ300,VJA300 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 77306-58020C1 |
GRJ300,VJA300..A,G,V BLACK,TRIM2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-60130 |
GRJ300,VJA300 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-35040 |
GRJ300,VJA300 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-75010 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||

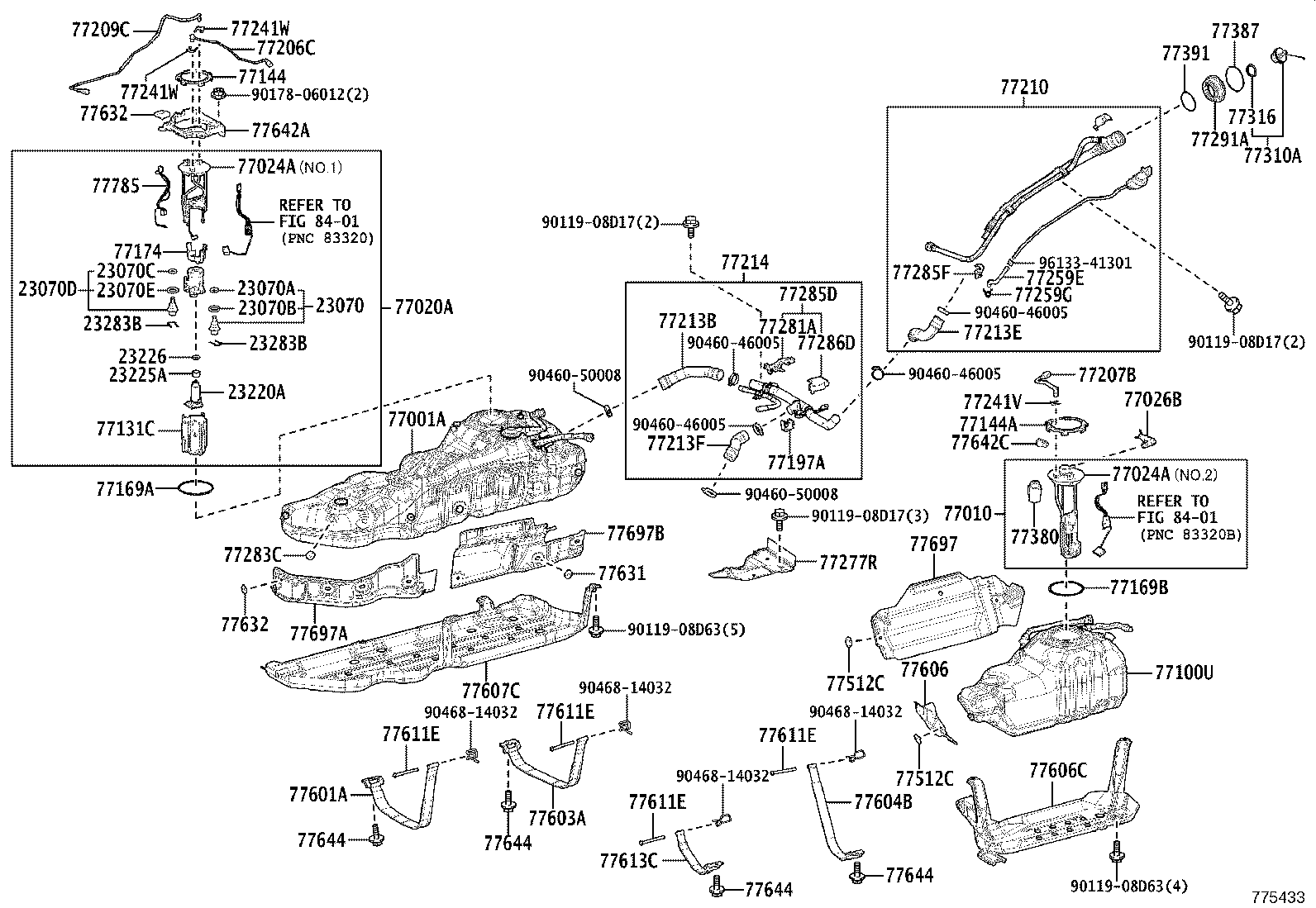

ILLUST NO. 1 OF 3(2104- )VJA300
FUEL TANK W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
V35AFTS..VJA300 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-04013 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 23070B - RING, O, NO.2(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 23070C - RING, O, NO.3(FOR FUEL MAIN VALVE) | ||||
| 90301-04013 |
V35AFTS..VJA300 |
1 | ||
| 23070D - VALVE ASSY, FUEL MAIN, NO.2 | ||||
| 23070-36010 |
V35AFTS..VJA300 |
1 | ||
| 23070E - RING, O, NO.4(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
V35AFTS..VJA300 |
1 | ||
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-31330 |
V35AFTS..VJA300 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-08019 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
V35AFTS,1GRFE..GRJ300,VJA300 |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-60C60 |
GRJ300,VJA300 |
1 | ||
| 77010 - TUBE ASSY, FUEL TANK VENT | ||||
| 77010-60320 |
GRJ300,VJA300 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-60700 |
VJA300 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60410 |
GRJ300,VJA300 NO.2:REFER ILLUST. |
1 | ||
| 77024-60390 |
VJA300 NO.1:REFER ILLUST. |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-60410 |
GRJ300,VJA300 NO.2:REFER ILLUST. |
1 | ||
| 77024-60390 |
VJA300 NO.1:REFER ILLUST. |
1 | ||
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-60280 |
GRJ300,VJA300 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-60C40 |
GRJ300,VJA300 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-60220 |
GRJ300,VJA300 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GRJ300,VJA300 |
1 | ||
| 77144A - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-30030 |
GRJ300,VJA300 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-47030 |
GRJ300,VJA300 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-47030 |
GRJ300,VJA300 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-60060 |
GRJ300,VJA300 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-42020 |
GRJ300,VJA300 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60870 |
GRJ300,VJA300 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77206-60880 |
GRJ300,VJA300 |
1 | ||
| 77209C - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-60720 |
GRJ300,VJA300 |
1 | ||
| 77210 - PIPE ASSY, FUEL TANK FILLER | ||||
| 77210-60120 |
GRJ300,VJA300 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60420 |
GRJ300,VJA300 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60410 |
GRJ300,VJA300 |
1 | ||
| 77213F - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-60430 |
GRJ300,VJA300 |
1 | ||
| 77214 - PIPE, FUEL TANK FILLER | ||||
| 77210-60320 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-33011 |
GRJ300,VJA300 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
VJA300 |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
VJA300 |
2 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-60J80 |
GRJ300,VJA300 |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90466-15004 |
GRJ300,VJA300 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-60210 |
GRJ300,VJA300 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-60590 |
GRJ300,VJA300 |
1 | ||
| 77283C - BRACKET, FUEL TANK PROTECTOR | ||||
| 77283-60040 |
GRJ300,VJA300 |
5 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60K40 |
GRJ300,VJA300 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-47120 |
GRJ300,VJA300 |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-60150 |
GRJ300,VJA300 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-60160 |
GRJ300,VJA300 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GRJ300,VJA300 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GRJ300,VJA300 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-60040 |
GRJ300,VJA300 |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-60080 |
GRJ300,VJA300 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
GRJ300,VJA300 |
1 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-47030 |
GRJ300,VJA300 |
5 | ||
| 77512C - BRACKET, FUEL TANK | ||||
| 77512-47030 |
GRJ300,VJA300 |
5 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-60440 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 77603A - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-60180 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-60070 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60230 |
GRJ300,VJA300 |
1 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-60220 |
GRJ300,VJA300 |
1 | ||
| 77607C - PROTECTOR SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77606-60210 |
GRJ300,VJA300 |
1 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ300,VJA300 |
4 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ300,VJA300 |
4 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ300,VJA300 |
4 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77653-35040 |
GRJ300,VJA300 |
4 | ||
| 77613C - BAND, FUEL TANK, NO.3 | ||||
| 77603-60070 |
GRJ300,VJA300..GCC,GEN |
1 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77512-35140 |
GRJ300,VJA300 |
5 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77512-47030 |
GRJ300,VJA300 |
5 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77512-47030 |
GRJ300,VJA300 |
5 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-60080 |
GRJ300,VJA300 |
1 | ||
| 77642C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-60090 |
GRJ300,VJA300 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10A27 |
GRJ300,VJA300 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10A27 |
GRJ300,VJA300 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10A27 |
GRJ300,VJA300 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90119-10A27 |
GRJ300,VJA300 |
4 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-60040 |
GRJ300,VJA300 |
1 | ||
| 77697A - INSULATOR, FUEL TANK HEAT, NO.2 | ||||
| 77697-60020 |
GRJ300,VJA300 |
1 | ||
| 77697B - INSULATOR, FUEL TANK HEAT, NO.3 | ||||
| 77697-60030 |
GRJ300,VJA300 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-60070 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D17 | ||||
| 90119-08D63 | ||||
| 90178-06012 | ||||
| 90460-46005 | ||||
| 90460-50008 | ||||
| 90468-14032 | ||||
| 96133-41301 | ||||
| Linked diagrams | ||||
| 8401 | ||||

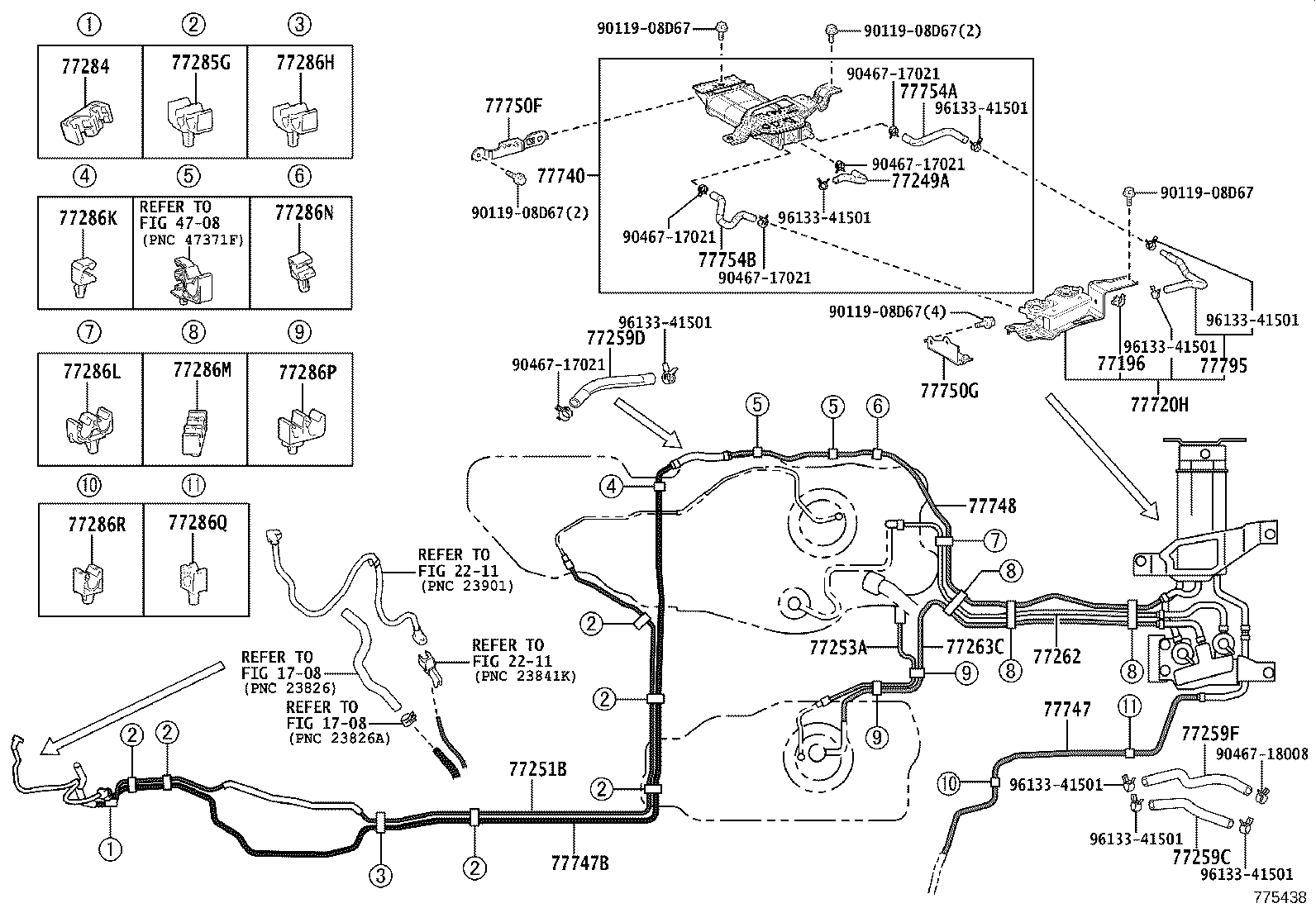

ILLUST NO. 2 OF 3(2104- )VJA300
FUEL TUBE W(FUEL SUB TANK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-48020 |
GRJ300,VJA300 |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-60270 |
GRJ300,VJA300 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-60C70 |
VJA300 |
1 | ||
| 77253A - TUBE, FUEL MAIN, NO.3 | ||||
| 77253-60430 |
GRJ300,VJA300 |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-60J30 |
GRJ300,VJA300 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-60G70 |
GRJ300,VJA300 |
1 | ||
| 77259F - HOSE, FUEL | ||||
| 77259-60M40 |
GRJ300,VJA300 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-60550 |
GRJ300,VJA300 |
1 | ||
| 77263C - TUBE, FUEL EMISSION, NO.3 | ||||
| 77262-60560 |
GRJ300,VJA300 |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 77229-47060 |
VJA300 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-60F90 |
VJA300 |
6 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77285-60J80 |
VJA300 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77285-60J00 |
VJA300 |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77285-60J30 |
GRJ300,VJA300 |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77285-60J60 |
GRJ300,VJA300 |
3 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77285-60K20 |
GRJ300,VJA300 |
1 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77286-75010 |
GRJ300,VJA300 |
2 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77285-60F70 |
GRJ300,VJA300 |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77285-60K50 |
GRJ300,VJA300 |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-60180 |
GRJ300,VJA300 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-60530 |
GRJ300,VJA300 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-60090 |
GRJ300,VJA300 |
1 | ||
| 77747B - TUBE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-60110 |
VJA300 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-60100 |
GRJ300,VJA300 |
1 | ||
| 77750F - BRACKET ASSY, CHARCOAL CANISTER, NO.1 | ||||
| 77750-60010 |
GRJ300,VJA300 |
1 | ||
| 77750G - BRACKET ASSY, CHARCOAL CANISTER, NO.2 | ||||
| 77750-60020 |
GRJ300,VJA300 |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-60080 |
GRJ300,VJA300 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-60470 |
GRJ300,VJA300 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-60090 |
GRJ300,VJA300 |
1 | ||
| Common parts | ||||
| 90119-08D67 | ||||
| 90467-17021 | ||||
| 90467-18008 | ||||
| 96133-41501 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 4708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
